Description

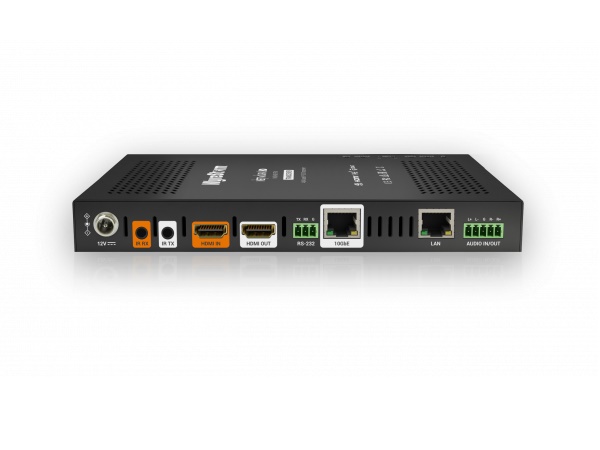

The NHD-600-TRX is a SDVoE transceiver capable of lossless & latency-free 4K60 over a 10GbE network. The TRX allows you to transmit and receive A/V simultaneous through a single device or be programmed to act as a dedicated TX or RX. 3 x USB HID ports allow extension for keyboard and mouse applications such as a corporate meeting room or an operating center. A cutting-edge architecture provides an efficient, small footprint and support for PoE+.
Features:
- Supports 4K UHD and DCI resolutions up to 60fps RGB or YUV 4:4:4
- Supports Dolby Vision, HDR10 and HLG HDR formats and ITU-R BT.2020 and BT.2100 color spaces
- Capable of high-bitrate multichannel audio passthrough, including Dolby Atmos™ and DTS:X
- HDCP 2.2 and HDCP 1.x support
- 802.3at PoE+ compliant
- 3x USB 1.1 HID ports for extension and routing for keyboard & mouse applications
- Powerful video scaling can match a connected display to the video source, leaving the original source content unaltered
- Video resolution, framerate and color space conversion using SMPTE/ITU recommended methods
- Genlock scaler mode for zero end-to-end latency
- Supports seamless AV source switching via Fast Switch mode
- Secondary video stream with alternate scaling options can be used for multiview source content
- Fully featured multiview image compositing includes arbitrary source window placement, resizing, image duplication and image offset functions
- Video wall processing including display bezel compensation
- Balanced analog audio port can be configured as an input or output for a discrete audio stream or HDMI de-embedding
- Bidirectional IP to Infrared / RS-232 functionality via the API or 3rd-party drivers
- Auxiliary 1GbE channel for network connectivity of attached source devices
- Powerful matrix functionality includes routing control of all audio, video, RS-232 and IR signals
- Compatible with NHD-000-RACK4 for easy rack mounting
- Secure A/V transmissions using AES encryption methods
- *Preview streams not supported
