Description
The NHD-510-TX is a 1GbE AV-over-IP JPEG2000 encoder designed to capture and distribute high-quality video and audio across IP networks. It accepts both HDMI and USB-C sources and provides an HDMI loop-out for local monitoring. The unit supports HDR formats and is engineered for low latency delivery.
Key capabilities include native 4K60 4:4:4 encoding, support for HDR10 and Dolby Vision, and configurable encoding data rates up to 850Mbps. The device offers automatic input switching between HDMI and USB-C to simplify source management during live events and presentations. Dante AV-A support provides dedicated audio-over-IP channels when licensed.
Performance highlights include a maximum pixel clock of 600MHz and end-to-end video latency as low as 4ms in passthrough mode. The encoder uses JPEG2000 compression and provides a 720p preview stream for monitoring. Supported video standards include RGB, BT.2020, BT.709, DCI, HDR10, HDR10+, HLG, and Dolby Vision.

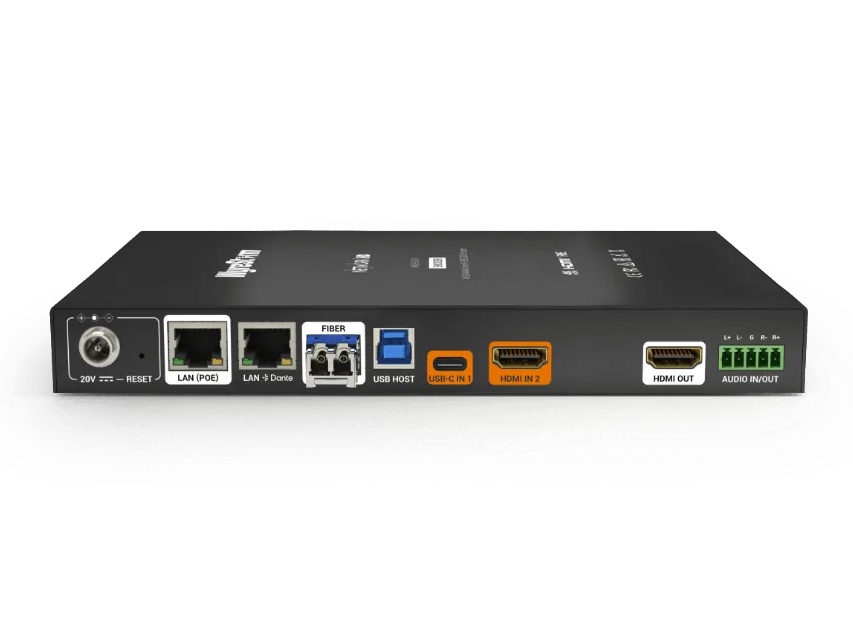

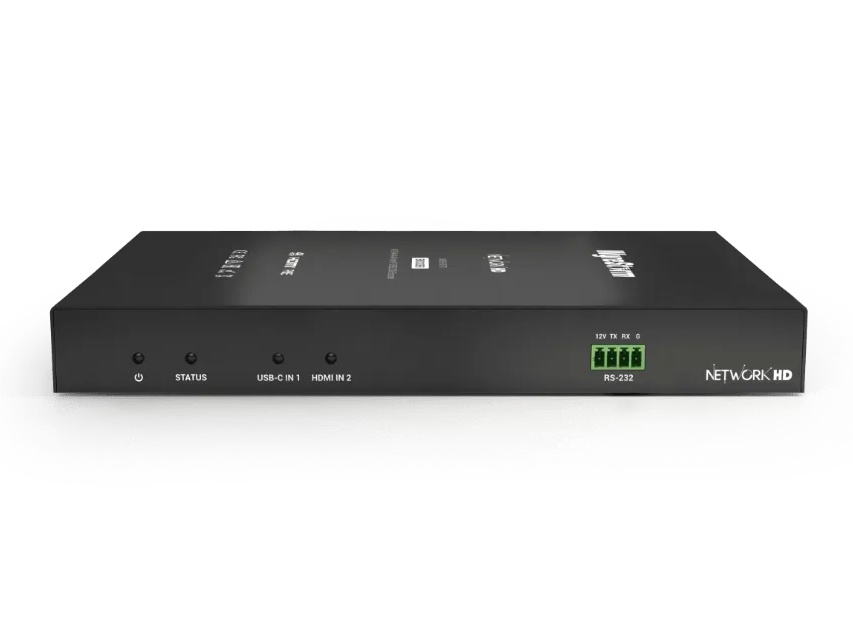

Connectivity is comprehensive with 1x HDMI input, 1x USB-C input, 1x HDMI loop-out, a 5-pin balanced analog In/Out de-embed, and a USB 2.0 host port. Network options include 1x 1GbE RJ45 for AV streaming, 1x 1Gbps SFP for fiber or copper, and a separate 1GbE RJ45 for Dante or attached source network connectivity. Control interfaces include RS-232 on a 4-pin phoenix connector, CEC, bidirectional IR, and API support.
The NHD-510-TX fits a range of installations from corporate boardrooms and lecture halls to digital signage and secure government facilities. It scales in multicast environments and integrates with NetworkHD Touch for tablet-based matrix control and previewing. The encoder also supports custom idle images and EDID import/export to streamline branding and source handshake management.
Deployment is simplified with Sygma Cloud device management for remote monitoring, firmware updates, and centralized support. Power options include a 20V 6A supply and 802.3at PoE+ compliance for flexible installations. Rack and wall mounting accessories are available to accommodate standard AV racks and in-room mounts.
