Description

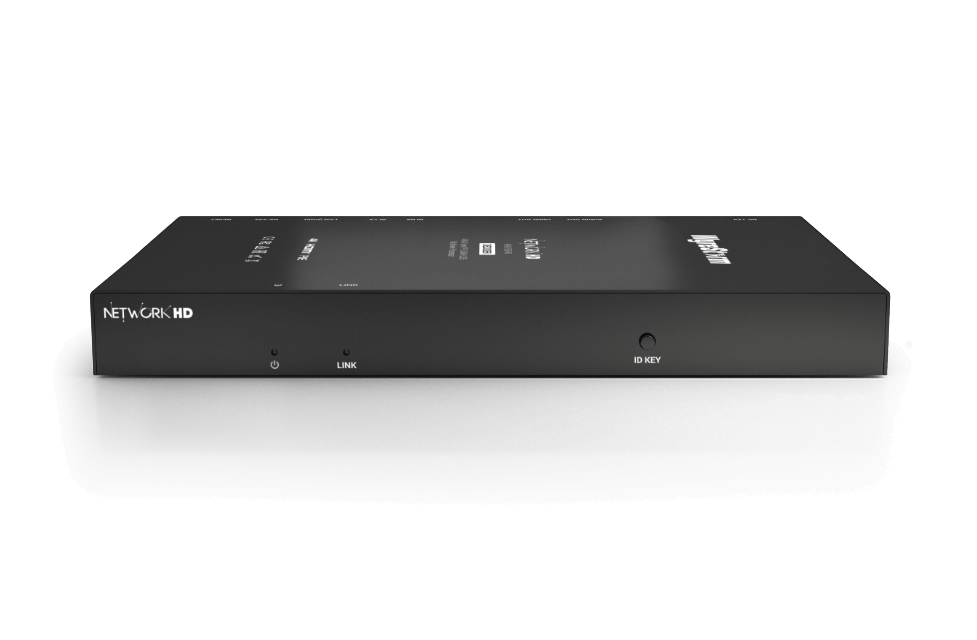

The NHD-150-RX is a NetworkHD multiview display decoder designed to aggregate and present multiple IP video sources on a single 4K display. It decodes low bandwidth streams from NetworkHD 120 Series encoders and can display up to eight active windows on a single screen. The unit is intended for monitoring and multiview applications where efficient bandwidth use and centralized display are required.
The decoder supports 4K60 4:2:0 video streams and provides configurable low bandwidth or high-quality transmission modes. It offers AES 128-bit encryption for secure AV over IP delivery and supports SSH TLS and HTTPS for secure management. Users can choose low latency (~150ms) or high-quality (~400ms) modes depending on application needs.
Technical capabilities include multiview layouts, analog audio de-embed outputs, HDMI streaming, and support for live preview streams for control applications. The NHD-150-RX supports up to eight windows for incoming network resolutions above 1080p and up to nine windows when incoming video is 1080p or lower. Encoding is configurable between constant bitrate and variable bitrate to optimize network usage.

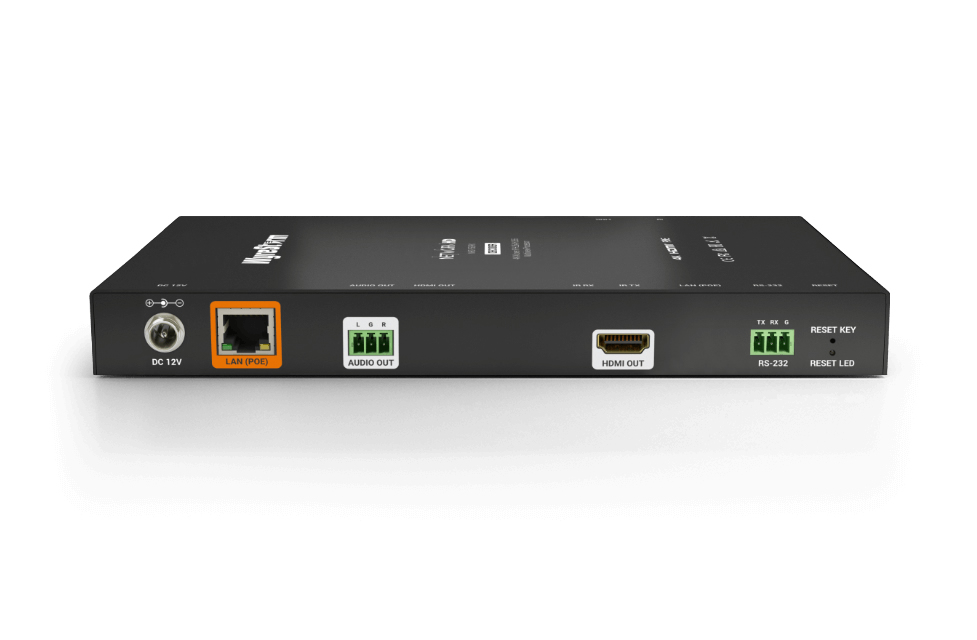

Connectivity options include HDMI output, analog audio breakout, RS-232 pass-through and CEC control for display management. Network settings support AutoIP Static DHCP and multicast for massive I/O scalability. The decoder is compatible with NetworkHD Touch Control and can be integrated with the NHD-CTL-PRO system controller for centralized control.
Typical applications include monitoring rooms control centers digital signage preview displays and AV operations where multiview monitoring is required. The device is suitable for commercial AV installations where bandwidth efficiency security and centralized control are priorities. It supports IR generation via API and batch firmware and settings updates to reduce installation time.
Installation is simplified through flexible IP addressing multicast support and control integration via RS-232 CEC or API. The unit provides a compact hardware footprint and is designed for professional AV environments requiring dependable 4K multiview performance. Firmware update and batch settings functions improve deployment speed and ongoing maintenance.
