WyreStorm NHD-0401-MV NetworkHD 4-Input 4K60 Multiview Switcher

Description

The NHD-0401-MV is a powerful multiview switcher that can be used as a standalone solution or with a NetworkHD 400 or 500 series system. The switcher comes pre-loaded with five different multiview layouts offering unique viewing experiences. 4K60 HDMI 2.0 inputs allow the switcher to support all the latest 4K HDR content with zero compression. Direct integration with the NHD-CTL-PRO provides a seamless solution for pairing this switcher with NetworkHD encoders & decoders to add multiview capability to an AV over IP project.

VERSATILE

Choose to use this switcher as a standalone multiview processor or pair it with a NetworkHD system. For a standalone solution, connect source devices directly to the four HDMI inputs and a display to the HDMI output. Or connect the switcher to a network switch with a NHD-CTL-PRO and link it to NetworkHD 400 or 500 series encoders & decoders.

READY, SET, GO

No need to spend time configuring complicated multiview layouts. Five pre-loaded layouts are available that accommodate many different uses. Seamlessly switch between each layout and easily control what source is in each multiview window. You can even discretely choose which audio is playing from the four inputs.

HDMI 2.0

Each input supports the latest HDMI 2.0 content, including 4K60 4:4:4 and high dynamic range such as HDR10, HLG and Dolby Vision. A built-in HDMI downscaler will automatically adjust the resolution to match the maximum capability of the connected display.

RACK MOUNTABLE

The NHD-0401-MV is specifically designed to fit perfectly inside the NHD-000-RACK4, making it easy to be part of a NetworkHD system. Slot the switcher next other encoders and decoders for a tidy and convenient installation.

Features:

Built-in web interface for standalone configurations
Analog audio de-embed for connection to 3^rd-party audio systems

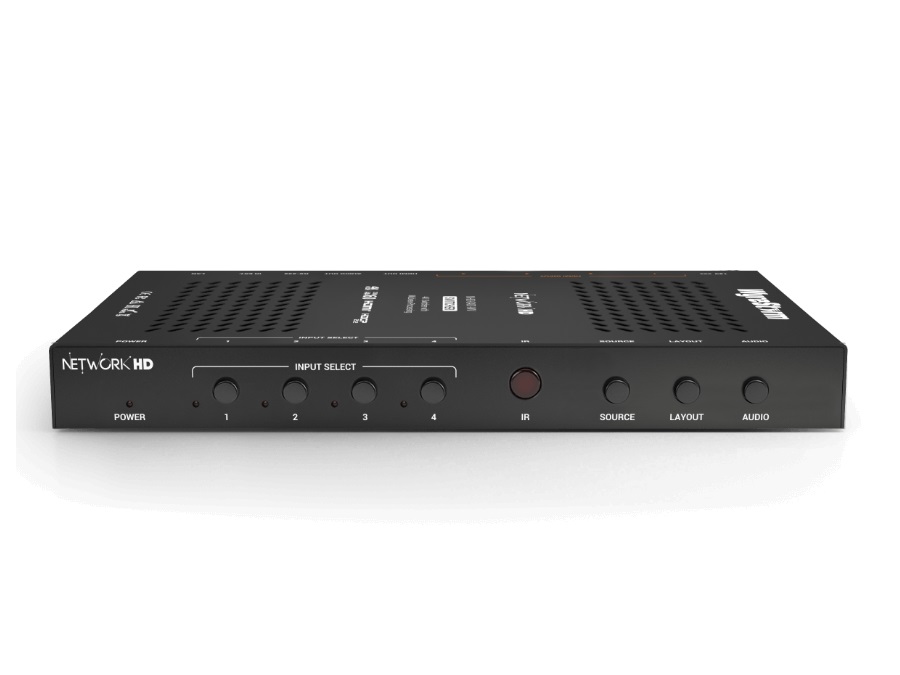

Front panel control buttons for switching inputs and multiview layouts
Compatible with NetworkHD Touch

Specifications

Audio and Video

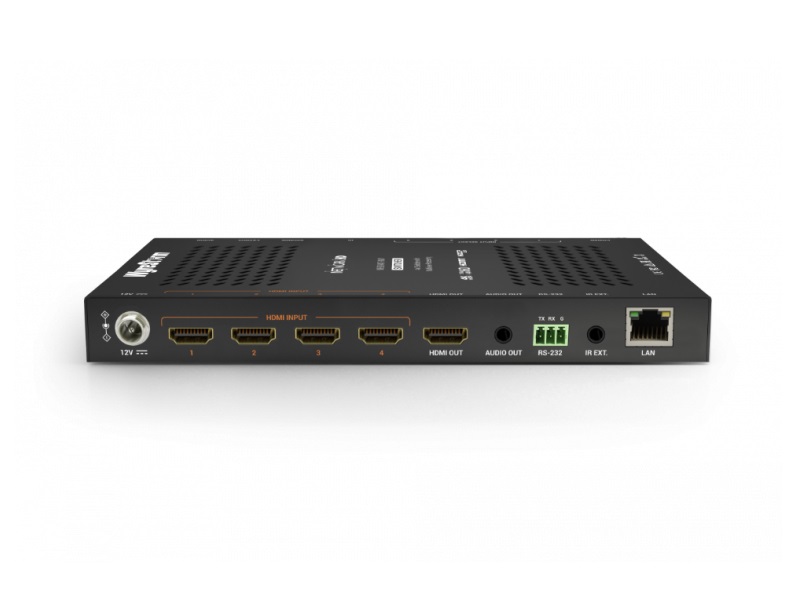

Inputs/Outputs

4x HDMI In
1x HDMI Out
1x 3.5mm TRS Analog Out

Maximum Pixel Clock

600Mhz

Max Video Resolutions

4096x2160p @ 60Hz 8bit 4:4:4 or RGB
3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
3840x 2160p @ 60Hz 10bit 4:2:2 HDR10/HLG
1920x1080p @60Hz 12bit

Supported Standards

RGB | DCI | BT.2020 | Rec.709

Output Video Encoding

Uncompressed HDMI

COMMUNICATION AND CONTROL

HDMI

HDMI 2.0b | HDCP 2.2 | CEC | EDID

Network

1x 1GbE RJ45

RS-232

1x 3-Pin Phoenix Connector (API Control)

1x IR RX 3.5mm TRS Stereo Jack

POWER

Power Supply

12V 2A DC

Power Consumption
