Description

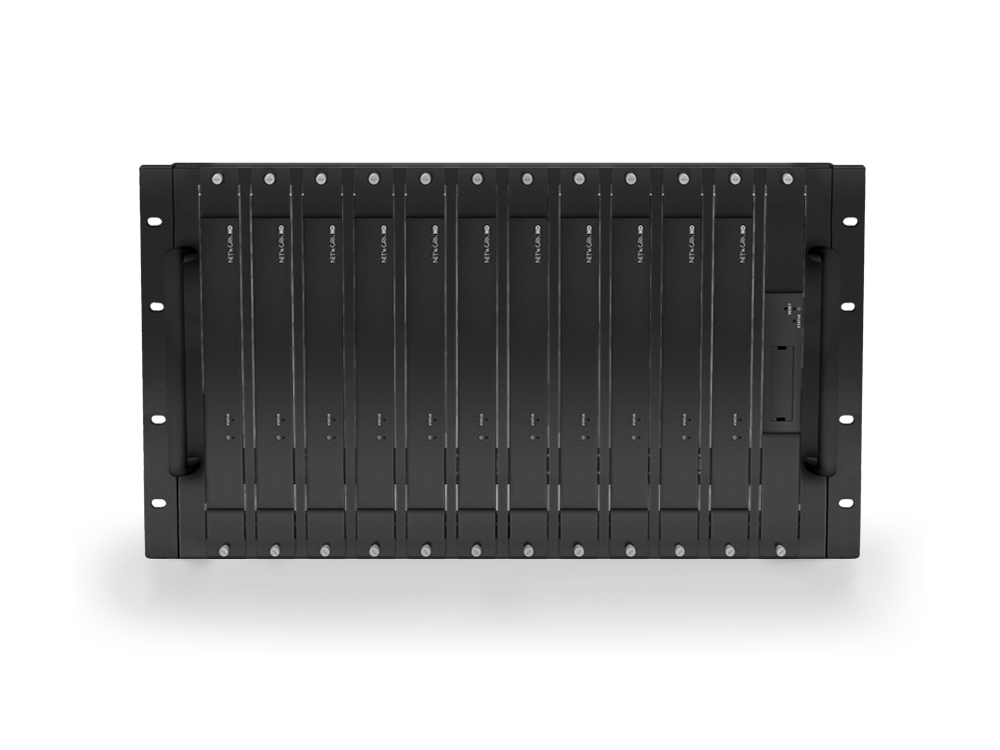

The NHD-000-RACK4 is a 6U rack mount that provides a clean installation for up to 12 NetworkHD 100, 200 and 400 Series encoders or decoders. The NHD-000-CTL NetworkHD controller is also compatible allowing for all required devices to be installed in a single location.
The slimline and thermally optimized design helps keep your centralized NetworkHD solution perfectly organized.
IDEAL HEAT DISSIPATION
Vertical slot installation supports any combination of up to 12 NetworkHD 100, 200 and 400 Series components, NHD-000-CTL or ENA-MINI-010 providing ideal component heat dissipation and airflow – a key factor in increasing reliability and product lifespan.
ALL STEEL DESIGN
Strong, steel enclosure construction keeps hardware secure and protected with units secured via brackets, rails and front panel screws.
WE SHIP COMPLETE
All device mounting hardware provided with encoder/decoder already. The Kit includes rack adaptor, brackets, blanking plates, rails, lacing bar, handles and screws.
STREAMLINE YOUR INSTALL
Specifically designed for organizing NetworkHD components within the main rack location, the NHD-000-RACK4 de-clutters the rack, improving cable management, port identification and unit access.
IMPORTANT NOTE
The NHD-000-RACK4 does not come with encoder/decoder/controller device mounting brackets. These are required to mount encoders/decoders/controller into the NHD-000-RACK4.
Device mounting brackets are included with the device, in the box.
The NHD-000-RACK4 includes 7 blanking plates. Additional NHD-000-RACK4 blanking plates are also available separately:
- NHD-RACK4-BLK: Blanking plate for NHD-000-RACK4
Features:
- 6U height and shallow depth allows for high component density in an AV or IT equipment rack
- 12 slots suitable for mounting a combination of 100 Series, 200 Series*, 400 Series, & NetworkHD Controller devices
- NHD encoders or decoders can be mounted with connections front or rear facing to suit alternative cable management designs
- The included removable rear cable management lacing bar helps route cabling at the correct point to optimize thermal efficiency
- The included removable front-facing handles greatly improves maneuverability and convenience
- Provides optimal thermal dissipation in a passively or actively cooled rack design to maintain premium device performance and MTBF
- Enables systems to be pre-built into the rack kit prior to arriving on site to improve speed and efficiency of installation
- Sturdy all-steel design creates a solid structure for supporting NetworkHD components
- Includes 7x blanking plates
* excludes NHD-SW-0501, NHD-230-TX, NHD-400-TX-IW.
