Description

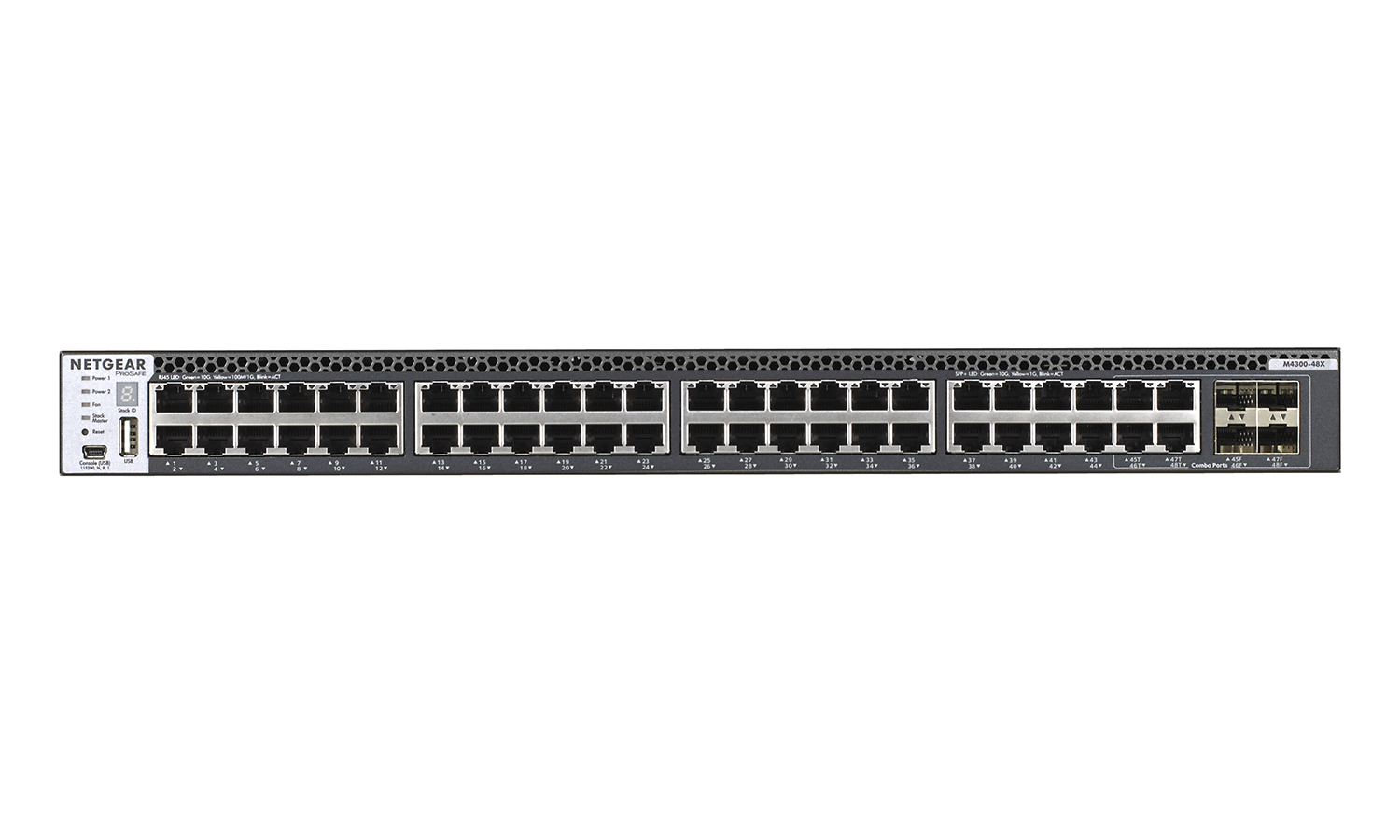

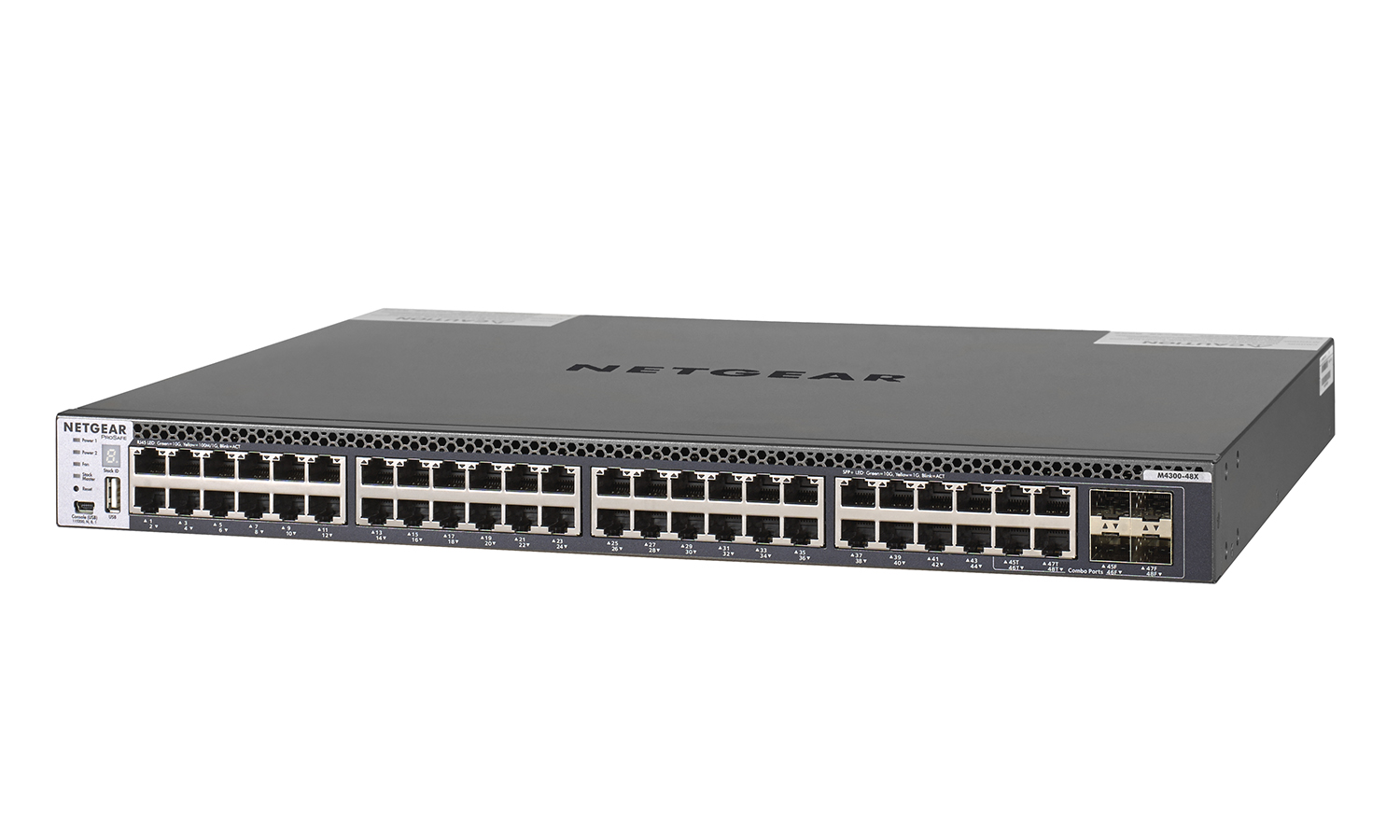

The NET-M4300-48X-PC is a stackable managed network switch designed to deliver line-rate 10Gb Ethernet connectivity across 48 RJ45 ports and four shared SFP+ slots. It provides advanced Layer 2, Layer 3 and Layer 4 services including policy based routing, nonstop forwarding and multicast optimizations. This product is engineered to support IT core deployments and AV-over-IP distribution where deterministic multicast and high port density are required.
Key features include 48 10GBASE-T ports, 4 shared 1G/10G SFP+ ports, a 960 Gbps non-blocking switching fabric and modular power options. The switch supports NSF virtual chassis architectures for hitless failover and distributed link aggregation for multi-resilient stacking. Intelligent IGMP multicast handling reduces configuration complexity for professional AV deployments.
Technical specifications include a 128K MAC address table, 8K ARP/NDP entries and throughput up to 714 Mpps. Latency is listed at 2.41 microseconds on 10G RJ45 and 1.51 microseconds on 10G SFP+. The unit provides IPv4 and IPv6 routing features, RIP and OSPF scaling and up to 1,024 IPv4 multicast groups.

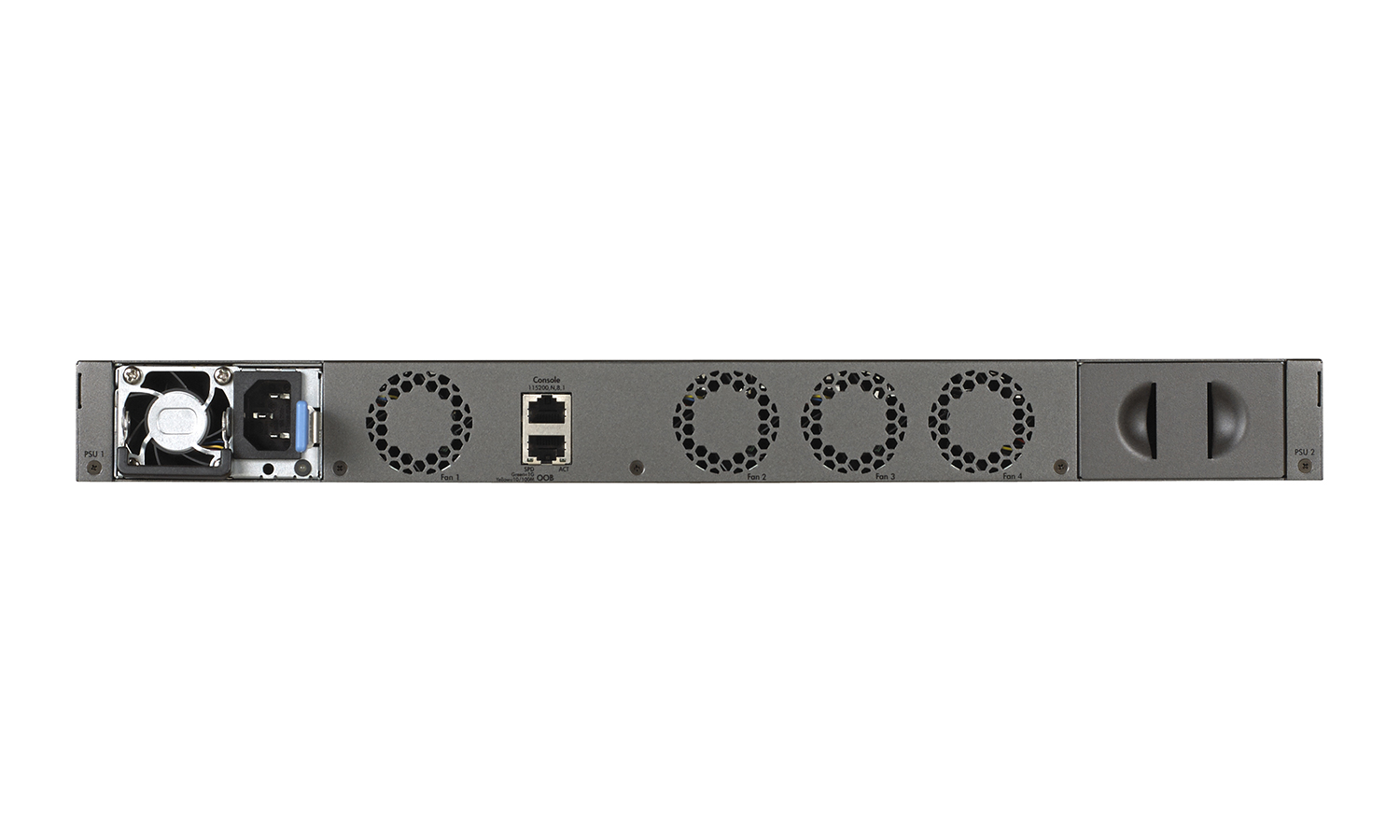

Connectivity options include an out-of-band 1G Ethernet management port, front mini-USB and rear RJ45 console ports, plus a front USB storage port. The appliance ships with one APS250W modular PSU installed and a blank cover in the secondary PSU bay. Front-to-back fixed fans provide predictable airflow and acoustics are low relative to comparable full-width designs.
Typical use cases include AV-over-IP networks where deterministic L2 multicast and SDVoE readiness are required, campus aggregation and SMB core switching. The combination of 10G copper ports and shared SFP+ uplinks supports mixed copper and fiber access strategies. Redundant power and nonstop forwarding stacking make this unit suitable for environments that require high availability and minimal service interruption.
Installation emphasizes straightforward management and integration – the switch supports single-pane-of-glass NMS300 management and mass-configuration tools. Dual firmware images and configuration file management reduce downtime during upgrades. The full-width chassis accepts standard rack mounting and is built for continual operation in enterprise and pro AV settings.
