Description

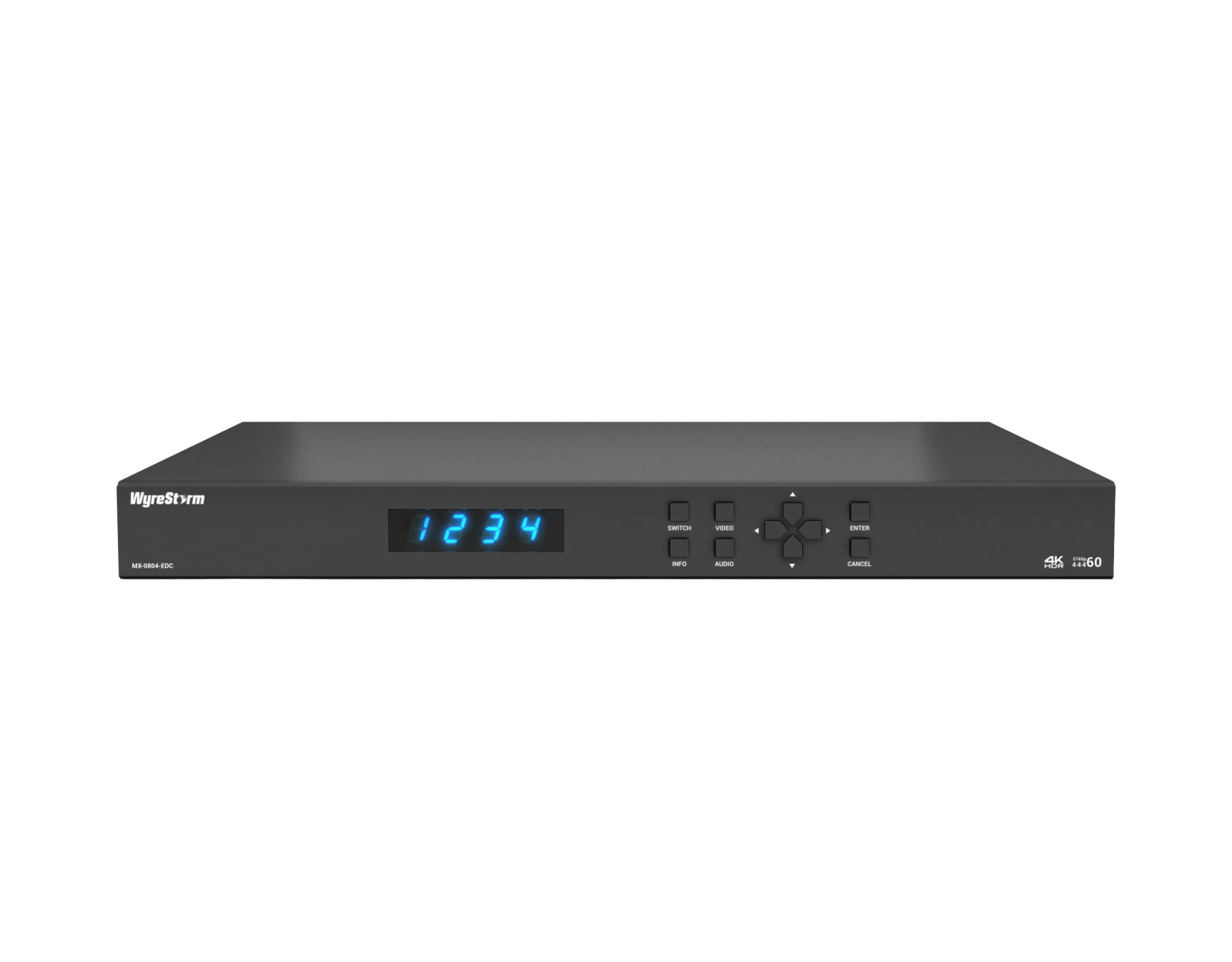

The MX-0804-EDC is a 1U 8×4 seamless matrix switcher engineered to deliver fast video switching and flexible audio routing in professional AV environments. It combines a full-featured USB-C input, seven HDMI inputs, four HDMI outputs and integrated audio processing into a compact rack-mount unit. The product is designed to simplify source management and ensure smooth visual transitions during presentations and AV events.
This matrix supports 4K60 video switching and per-output scaling to maintain consistent image quality across displays. Audio is handled through analog mic inputs, line outputs, USB audio and Dante 4×4 digital audio for low-latency networked audio distribution. The built-in DSP provides independent mixers and automatic ducking to keep speech intelligible and media audio balanced.
Performance highlights include support for 3840×2160 at 60Hz, full 4:4:4 4K60 for compatible signals and a 600MHz maximum pixel clock. The unit is HDMI 2.0 capable and supports HDCP 2.3 pass-through to maintain content protection compatibility. Fast switching on each output and dedicated scalers ensure content is presented without visible artifacts or interruptions.

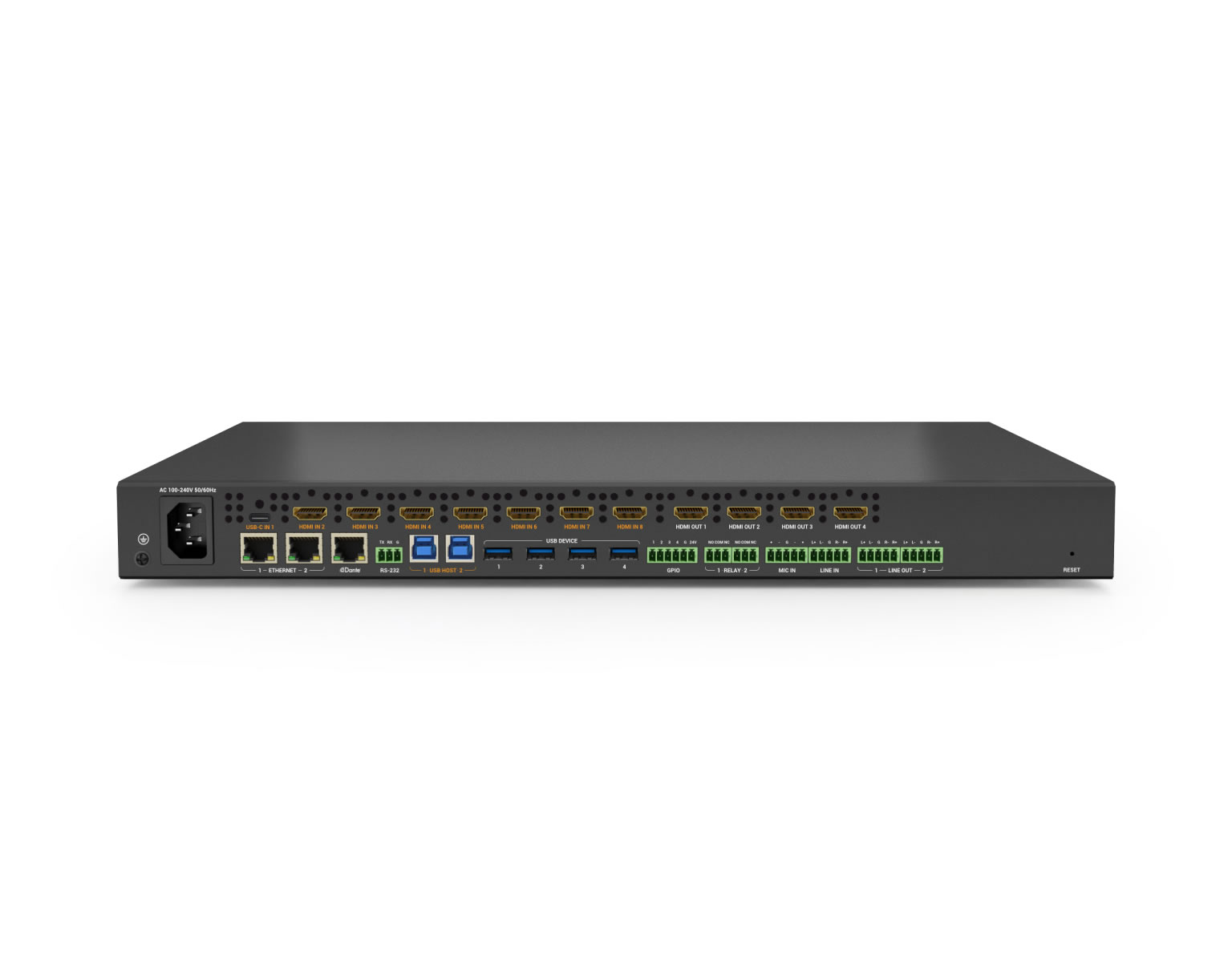

Connectivity covers a broad range of modern interfaces – a USB-C Alt-Mode input with 4K60, USB 3.1 Gen1 data, 1G network and PD3.0 charging up to 60W, seven HDMI inputs, four HDMI outputs, two USB-B host ports, four USB-A device ports, Dante 4×4, two mic inputs and two line outputs. Control options include RS-232 via a 3-pin Phoenix, dual LAN ports for web UI and Sygma Cloud management, GPIO and relay ports for external control. HDCP, EDID and CEC control features are supported to simplify integration with source and display devices.
Typical applications include higher-education lecture halls, corporate meeting spaces, and boardrooms where multiple presenters and media sources must be managed cleanly. The device supports mixed media workflows such as laptop USB-C presentation, remote Dante audio feeds and embedded HDMI sources. Built-in DSP and networked audio capabilities make it suitable for systems that require centralized audio mixing and room-automation integration.

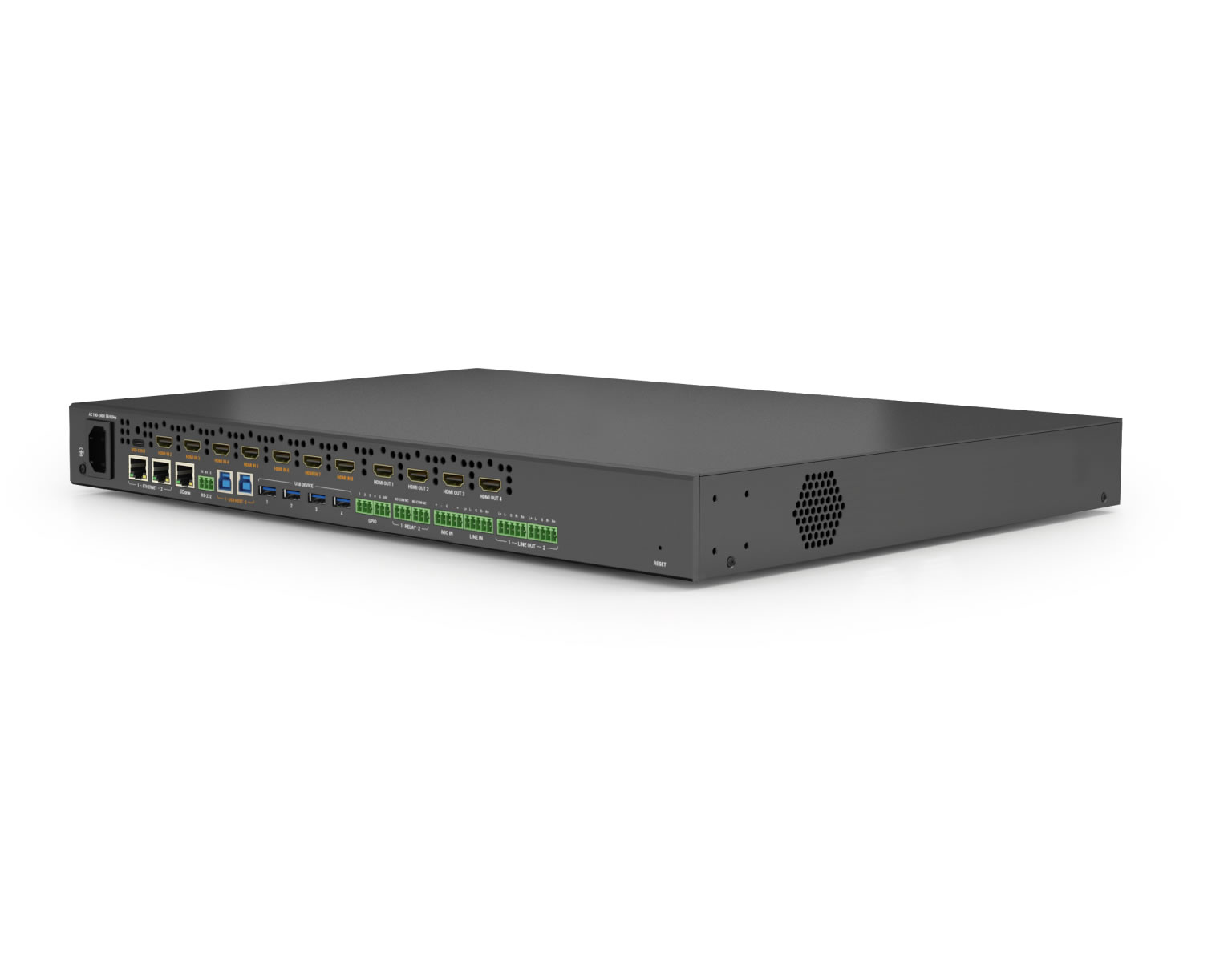

Installation is simplified by the 1U rack form factor, included mounting brackets and a straightforward web-based UI or Sygma Cloud device management. The MX-0804-EDC is powered by a universal 100-240V AC supply and is designed to operate reliably between 0 to 45 C with non-condensing humidity. The robust metal chassis and industrial connectors ensure long-term reliability in pro AV installations and reduce ongoing maintenance effort.
