TV One MWP-4H-1Y 4 x 1080p HDMI CORIOview Multi-Window Processor

Description

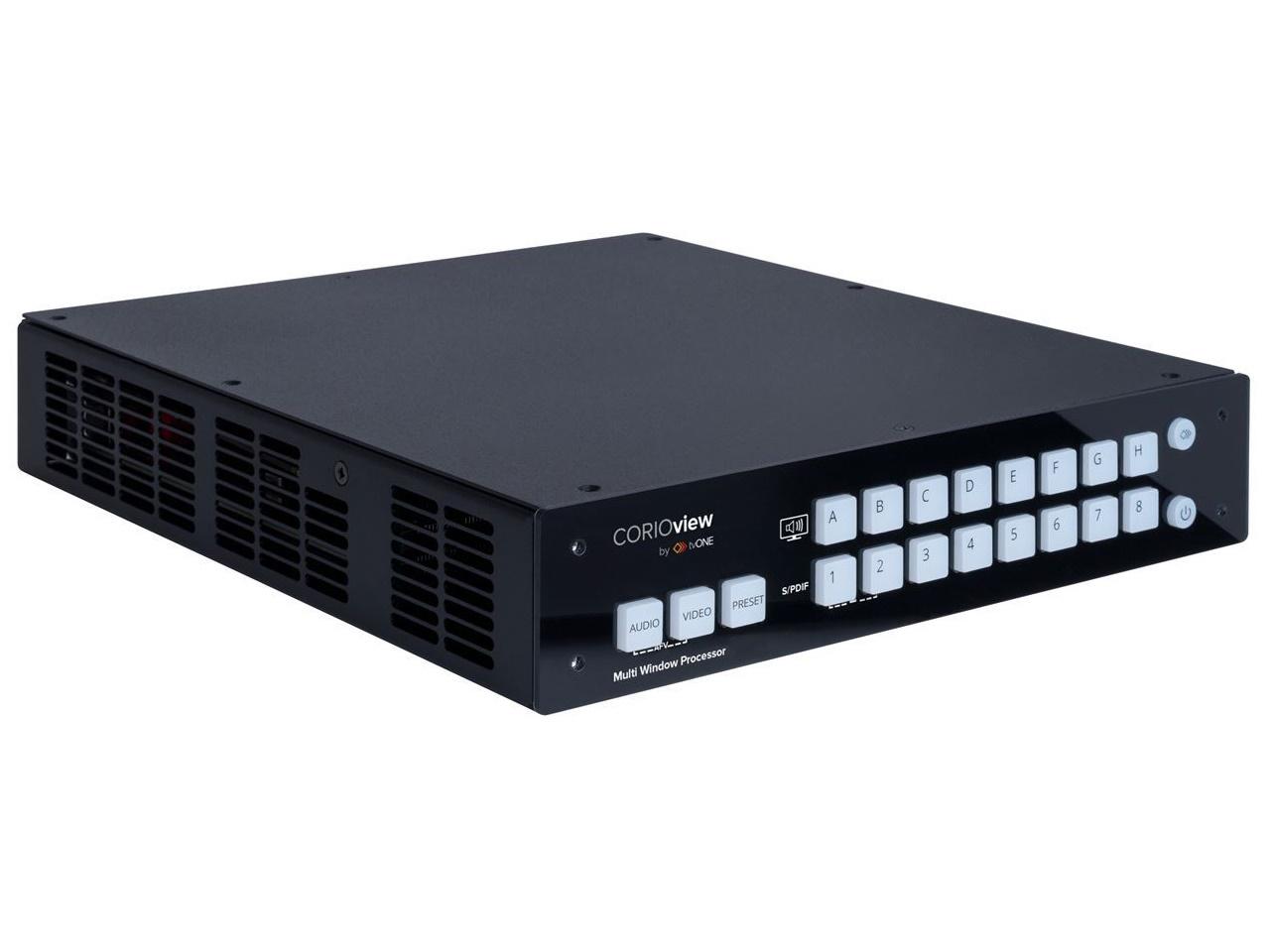

4 x 1080p HDMI CORIOview Multi-Window Processor

CORIOview is the fastest, most intuitive 4K multi-window processor with up to 8 sources. This easy to use, plug and play solution features front panel control for preset recall or source selection. With six (6) product variants CORIOview can take in almost any input type and display it on a HDMI display up to 4K. Input types include: IP, HDMI, DVI-U and SDI

Preset Layouts

CORIOview has 16 different preset layouts giving users the ultimate freedom for displaying any number of sources in different sizes and locations on the display.

Transitions

When selecting window layouts or switching sources; transitions, such as fade through black or eye-catching motion transitions, provide a unique visual experience.

Labels & Borders

Sources can be labeled making them easily identified. Borders can be added to labels and video windows.

Front panel control

CORIOview‘s front panel is minimalist in its design and is easy to use. Users can activate preset layouts, route video and audio using the front panel. The Info button, a first in the AV industry, is an instant source of information displaying current source and window assignments.

Format conversion

CORIOview offers Up/Down/Cross conversion for the full range of analog and digital video signals using high-quality CORIO scaling engines.

Control Options

CORIOgrapher is tvONE’s intuitive control software for configuration and operation of your CORIOview. Optimized for multi-window operations and touchscreen control, CORIOgrapher functionality includes selecting preset layouts, labeling, bordering and configuring sources. Other options include a real-time API together with AMX & Crestron plug-ins.

Audio Embedding / De-embedding

Audio can be output through the display or the integrated S/PDIF port with any input able to be routed to any output.

Ultra-Quiet Operation

CORIOview is perfect for your in-room install with its whisper quiet operation.

Mounting Options A 1RU mounting kit is available for both single and dual units as well as a surface mount option for mounting on tables or walls. Or choose to install in your ONErack system with our customized CORIOview module.

Features:

4 x 1080p HDMI CORIOview Multi-Window Processor
Advanced 4K processor with up to 8 sources
1/2 RU form factor with ultra-quiet operation
Intuitive Front Panel Control for presets and switching
Mixed Input types including: IP, HDMI , DVI-U & SDI
HDCP Handling on HDMI Inputs & Outputs
Custom resolution editor for LED walls
Eye-catching transitions or fade through black
Source labeling and Borders
Info button to easily indicate your source selection
Audio breakaway from SPDIF or display
CORIOgrapher touch-enabled control software
Third party control through API or AMX & Crestron plug-ins
19″ rack, surface or ONErack mounting options

Specifications

Video Processing

Technology CORIO®3
Performance Inputs up to 4K60 & Output up to 4K30
Format conversion Up/Down/Cross Conversion
Max. number of Windows 8

Windows

Windows Up to eight windows*
Borders Configurable color & thickness
Labels Available on all windows
Transitions Available when changing sources or Presets

Presets

Number of presets available 16*
Accessible from front panel 16*
Preset effects Transitions, fade through black or window movement

Configuration & Control

Application CORIOgrapher software
Platform PC with Windows 10 & Windows 7 minimum
Standby Mode Faster boot up & saves power

Control Ports

RS-232 D9 Female Connector
IP Interface RJ45 Connector
USB Type B - for future use

Video Inputs

4H-1Y

Input connectors 4 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
Resolution support (4:4:4):
480i, 576i - 24Hz to 60Hz
720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
1035i (1920x1035) - 59.94, 60Hz HDMI-4in - 1080i 50, 59.94, 60Hz
1080p (1920x1080) -23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
Color format support RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
Color depth 8 bpc (24 bit/px)
Color space support BT.601 on standard resolutions
BT.709 for 720p, 1080i, 1080p

8H-1Y

Input connectors 8 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
Resolution support (4:4:4):
480i, 576i, 24Hz to 60Hz
720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
1035i (1920x1035) - 59.94, 60Hz
1080i (1920x1080) - 50, 59.94, 60Hz
1080p (1920x1080) -23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
Color format support RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
Color depth 8 bpc (24 bit/px)
Color space support BT.601 on standard resolutions
BT.709 for 720p, 1080i, 1080p

4Y-1Y

Input connectors 4 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
Input maximum capability Up to 2x 4K@30, 1x 4K@60 per module (2 modules)
Resolution support (4:4:4):
480i, 576i, 24 to 60Hz
720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
1035i (1920x1035) - 59.94, 60Hz
1080i (1920x1080) - 50, 59.94, 60Hz
1080p (1920x1080) -23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
2160p (3840 x 2160) - 23.98 24, 25, 29.97 & 30Hz
2160p (4096x2160) - 50/59.94/60Hz
Resolution support (4:2:0) 2160p (3840 x 2160) - 50, 59.94, 60Hz
Color format support RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
Color depth 8 bpc (24 bit/px)
Color space support BT.601 on standard resolutions
BT.709 for 720p, 1080i, 1080p and 2160p

8GS-1Y

Input connectors 8 x BNC
SDI support 3G-SDI 1080p 60/59.94 SMPTE424M-A 2.97/2.967Gbps < 0.3 UI jitter
HD-SDI 720p, 1035i, 1080i (reduced quality with this because quad
input is 4:2:0), 1080p SMPTE292M 1.485/1.4835Gbps < 0.2
UI jitter
SD-SDI (526/625 lines) SMPTE259M-C 270Mbps < 0.1UI jitter
Color format support SDI 4:2:2
Color depth 20 bit

4D-1Y

Input connectors 4 on DVI-U connector - HDMI 1.4 & HDCP 1.4 compatibility
DVI-U Connector supports HDMI, DVI-I, YC, CV, VGA via optional adapters
Resolution support (4:4:4)
480i, 576i - 23.98, 24, 25, 29.97, 30Hz, 50, 59.94, 60Hz
720p (1280x720) - 50, 59.94, 60Hz
1035i (1920x1035) - 59.94, 60Hz
1080i (1920x1080) - 50, 59.94, 60Hz
1080p (1920x1080) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
Analog Sync TTL Level, 10KΩ, Pos or Neg
RGB Level Range 0.5-2.0 Vp-p
Scan Rate Detection Automatic
Max Horizontal Scan Rate 150kHz
Color format support Digital - RGB, YCbCr 4:4:4 & 4:2:2
Analog - RGBHV, RGBS, RGsB, YPbPr
Color depth 8 bpc (24 bit/px)
Color space support BT.601 on standard resolutions
BT.709 for 720p, 1080i, 1080p
Television Standards NTSC, PAL

4Hi-1Y

HDMI module
Input connectors 4 x HDMI - HDMI 1.4 & HDCP 1.4 compatibility
Resolution support (4:4:4)
480i, 576i - 24Hz to 60Hz
720p (1280x720) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
1035i (1920x1035) - 59.94, 60Hz
1080i (1920x1080) - 50, 59.94, 60Hz
1080p (1920x1080) - 23.98, 24, 25, 29.97, 30, 50, 59.94, 60Hz
Color format support RGB, YCbCr 4:4:4, 4:2:2 & 4:2:0
Color depth 8 bpc (24 bit/px)
Color space support BT.601 on standard resolutions
BT.709 for 720p, 1080i, 1080p
AVIP module
IP Input connector 1 on RJ45 connector
Resolution support Channel 1 : PC and HD resolutions up to 1920x1080p60
1920x1200p, 60cvt-rb
3840x2160p 30, 29.97, 25, 24, 23.98Hz
4096x2160p 30, 29.97, 25, 24, 23.98Hz
Full scaling support for other resolutions.
Channel 2 : 1920x1080p60
Full scaling support for other resolutions.
Interface 1Gb Ethernet port
Decoding H.264 (CBP, Main, High)
Stream bit rates 2 Streams each 25Mbps
Streaming resolutions Configurable up to 1080p60
Color depth 4:2:0
Unicast Streams RTSP, RTMP, HTTP, MPEG-TS
Multicast Streams RTSP, MPEG-TS

Media/Images

Interfaces USB 3.0, Internal Storage
Video Codecs H.264 (CBP, Main, High)
Video Formats mp4, .mov, .mkv, .m4v, .ts, .mts, .m2ts, .mt2
Playback Bit Rates Single stream to 100Mbs, Dual Streams to 40Mbs
File Playback Resolutions Supported
Up to 3480x2160@30fps 1
Up to 1080p60@60fps Up to 2
Up to 7680 x 4320 Up to 2 (still images only)

Media Handling

External 1 x USB 3.0 interface
Supported devices Flash file systems FAT, FAT32, ext3, ext4, NTFS
Internal High speed storage up to 128GB per module

Audio Inputs**

Supported sampling rate 48KHz
Sample size 24 bits
Supported channels 1 Stereo pair on each input
**4H-1Y, 8H-1Y, 4D-1Y, 4Y-1Y, 8GS-1Y

Audio Output

Connector RCA
Format S/PDIF
Supported sampling rate 48KHz
Sample size 24 bits
Supported channels 1 Stereo pair

Video Output

Output connector HDMI
Resolution support
720p, 1080i & 1080p @ 24Hz to 60Hz
3840 x 2160 @ 23.98Hz 24Hz, 25Hz, 29.97Hz & 30Hz
Chroma sampling 4:4:4
Scaling All supported resolutions
Compatibility HDMI 1.4 & HDCP 1.4
Color depth 8 bpc (24 bit/px)
Color space support BT.709 for 720p, 1080i, 1080p and 2160p

Embedded Audio Output

Supported sampling rate 48KHz
Sample size 24 bits
Supported channels 1 Stereo pair

Mechanical

Size (H x W x D) 1.73" x 8.54" x 9.61" (44 x 217 x 244mm)
Weight 3.75 lbs (1.7 Kg) approximately

Regulatory Compliance

Main unit FCC, CE, RoHS, UL

Environmental

Operating Temperature 0º to +40ºC (+32º to +104ºF)
Operating Humidity 10% to 85%, Non-condensing
Storage Temperature -10º to +70º C (+14º to +158º F)
Storage Humidity 10% to 85%, Non-condensing
MTBF 50,000 Hours
BTU 205 BTU/hr
Fan Noise 44dBA @ 0.5m

Power Supply

External 110v-240v 50-50Hz auto-detecting
Connector Locking
Power cable US, UK, EU or AU

Accessories included

Quick Start Guide Printed
USB Key Documentation & Links
Power Supply Included

Warranty

Limited Warranty 5 Years Parts and Labor
