Description

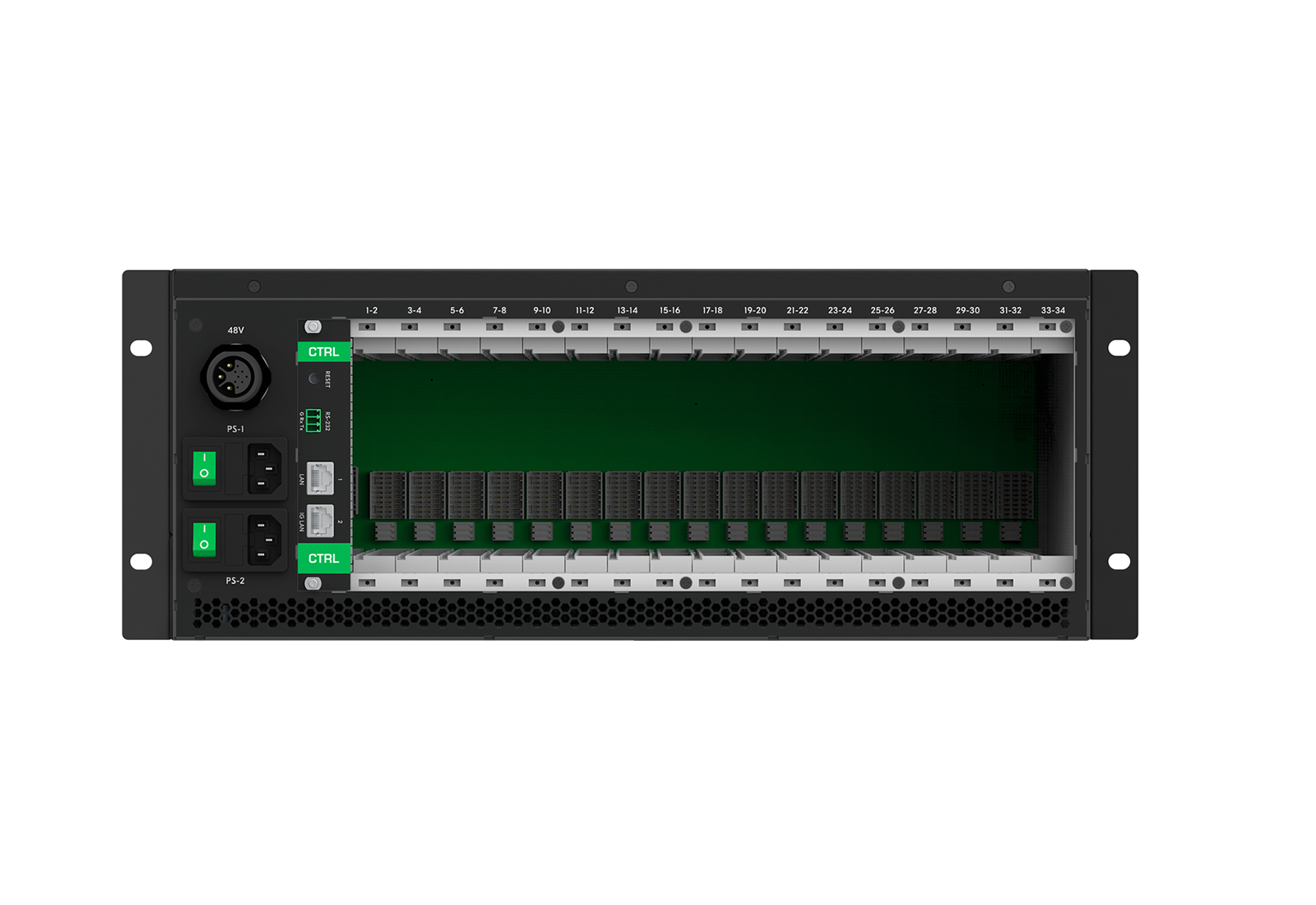

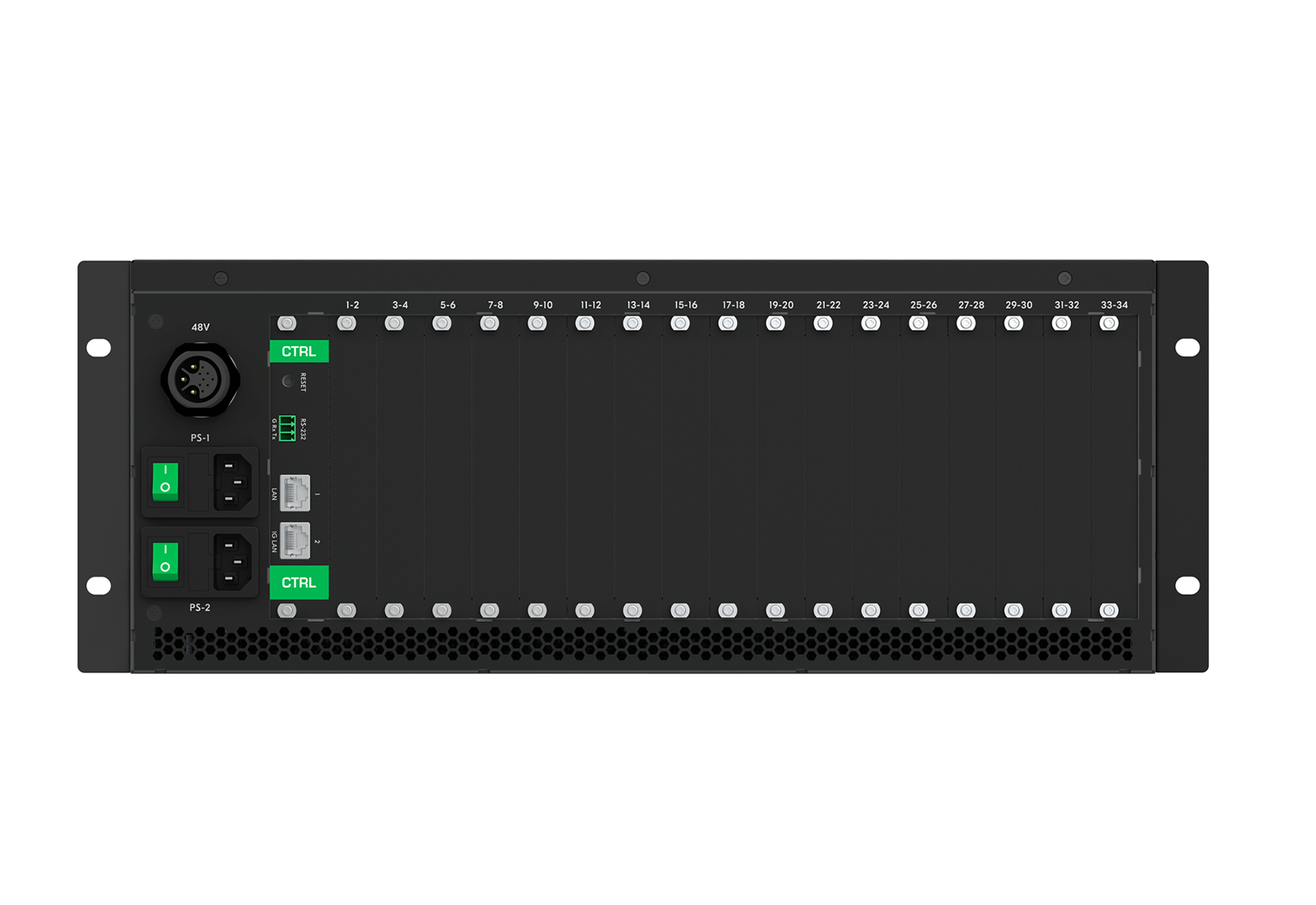

The MTX3-34-M is a 34×34 modular HDMI matrix switcher designed to distribute multi-format audio-visual signals across large AV systems. It provides a central control card and seventeen I/O card slots to support a flexible mix of input and output formats. The chassis is rackmount 4U and intended for professional AV installations that require secure remote management.
Key capabilities include support for high-resolution HDMI signals and readiness for future 8K matrix cards. The system supports HDMI 2.0 features such as HDCP 2.2, deep color, x.v.Color, CEC, lip sync, and multi-channel uncompressed audio. Kramer I-EDIDPro intelligent EDID management and Kramer Equalization and re-Klocking processing help ensure reliable signal handshakes and long-distance distribution.
Technical performance is enabled by a high-capacity backplane providing 50Gbps AV per port and a 1Gbps Ethernet backbone for control traffic. The modular chassis accepts up to seventeen I/O cards plus a central control card, and supports quad or dual port modular cards. Dual redundant power modules are supported and cooling is via field-replaceable forced-air fans for continuous operation.

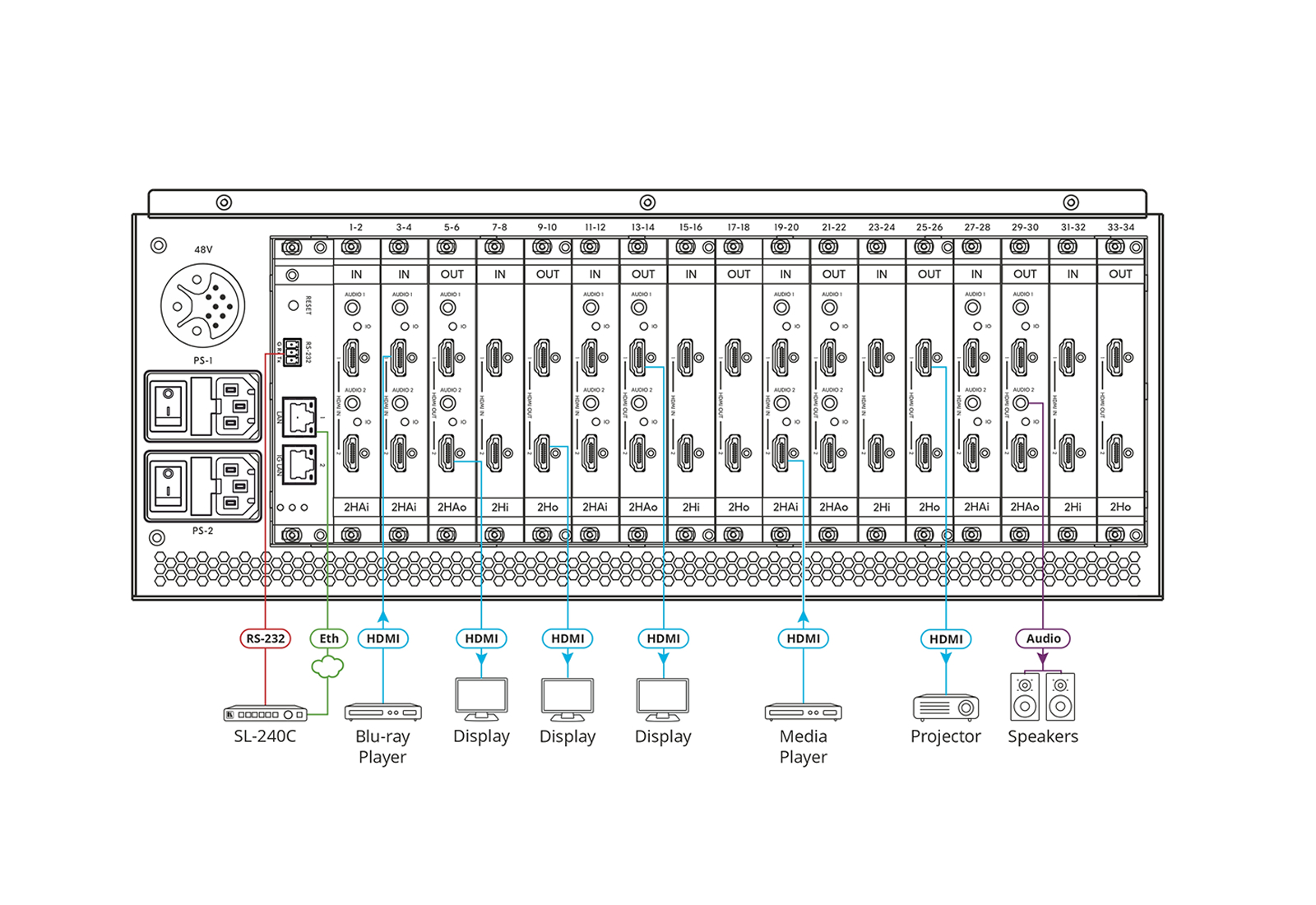

Connectivity options include an RJ-45 1GbE LAN port for matrix control, a 100Mbps RJ-45 service port, an RS-232 3-pin terminal block for local control, and a mini-USB port for firmware upgrades. The matrix supports HDBaseT distribution over standard copper and fiber infrastructures and can provide PoE over HDBaseT to remote endpoints. It interoperates with HDBaseT-certified endpoints and uses standard HDMI connectors on compatible cards.
The MTX3-34-M is suited to enterprise, government, and large-venue AV systems that need secure, large-scale AV switching. Use cases include complex meeting rooms, auditoriums, and distributed digital signage networks requiring centralized control and long-distance routing. Its non-blocking modular switching enables any input to be routed to any combination of outputs without contention.
Installation and maintenance are simplified by a 4U rack form factor, front-panel LCD and control buttons, LED indicators, and a low-noise field-replaceable fan. Firmware upgrades can be performed via USB and the unit supports secure web-UI access and enterprise management for remote diagnostics and firmware management. The MTX3-34-M combines modular flexibility and secure control to meet demanding AV distribution requirements.
