Description

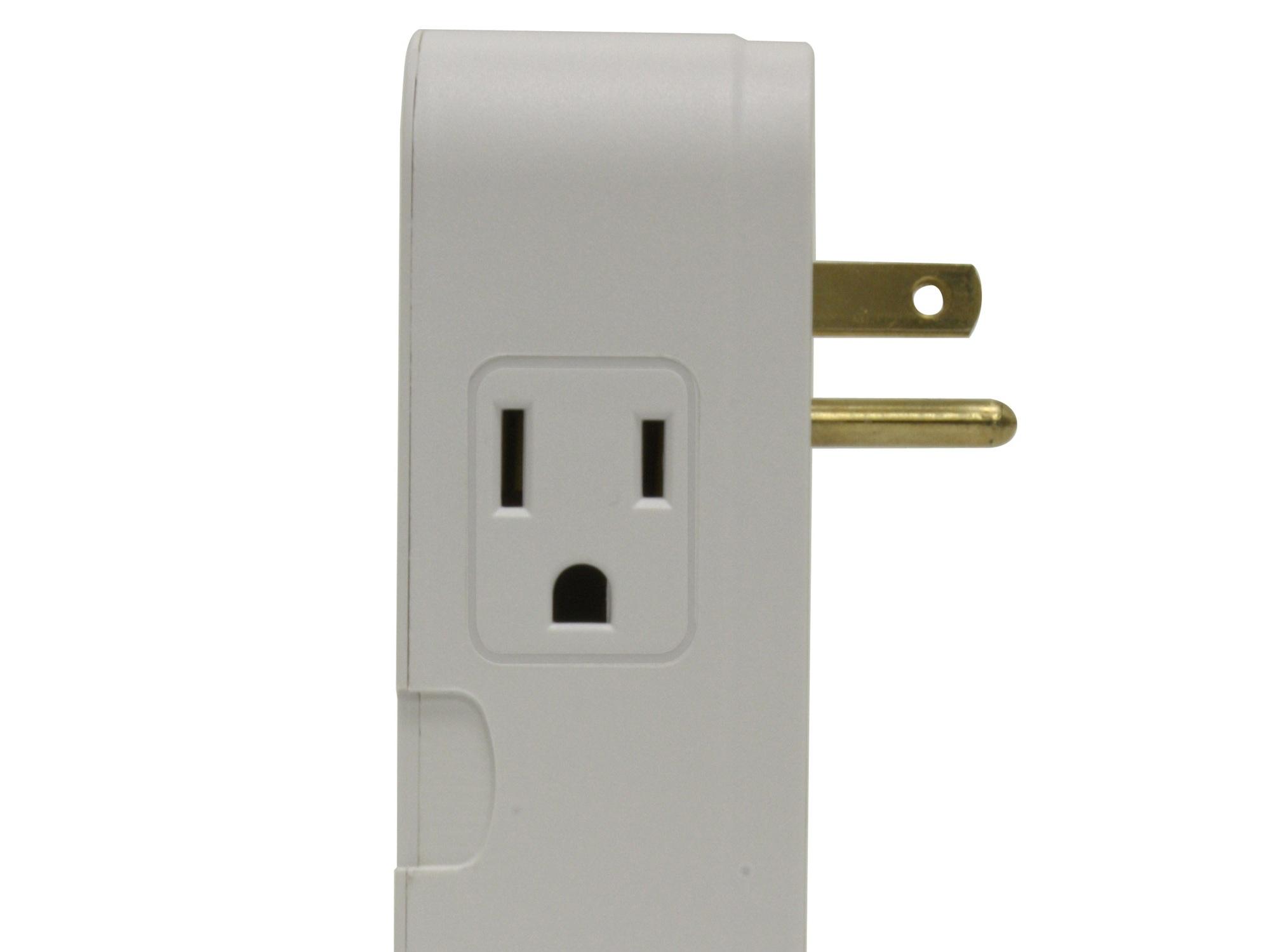

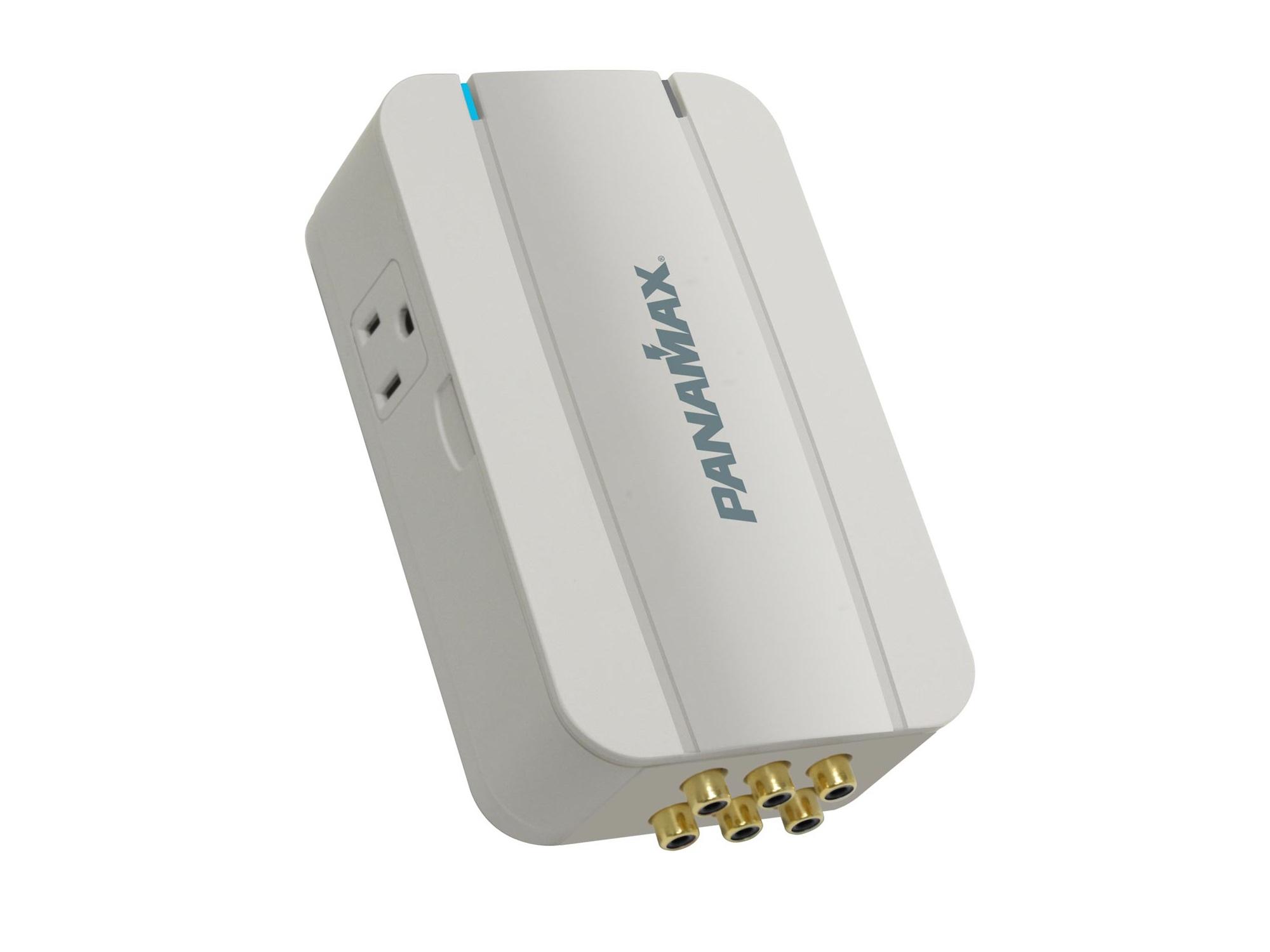

The MD2-AV is a compact end-to-end surge protector kit designed to safeguard remote subwoofers and other AV equipment from transient voltage events. It provides two protected AC outlets and dedicated RCA line-level protection to stop surges that travel over low-voltage audio lines. The unit combines fast response and intelligent Protect-or-Disconnect circuitry to prevent damage during catastrophic events.
Key features include Protect-or-Disconnect circuitry that severs AC output during catastrophic surges, built-in EMI/RFI filtration for cleaner power, and RCA clamping on audio lines. Diagnostic LEDs indicate Power On/Protection OK and Line Fault status to assist troubleshooting. The kit includes a remote signal module and a removable paintable cover for discreet installation.
Performance specifications include 1350 joules single pulse energy dissipation, 60,000 A peak impulse current, and a nominal discharge current rating of 3,000 A. The surge response time is under 1 ns and initial AC clamping level is 200V. The unit is rated for 120 VAC 50/60 Hz operation and supports a maximum current of 15A (1800 W).

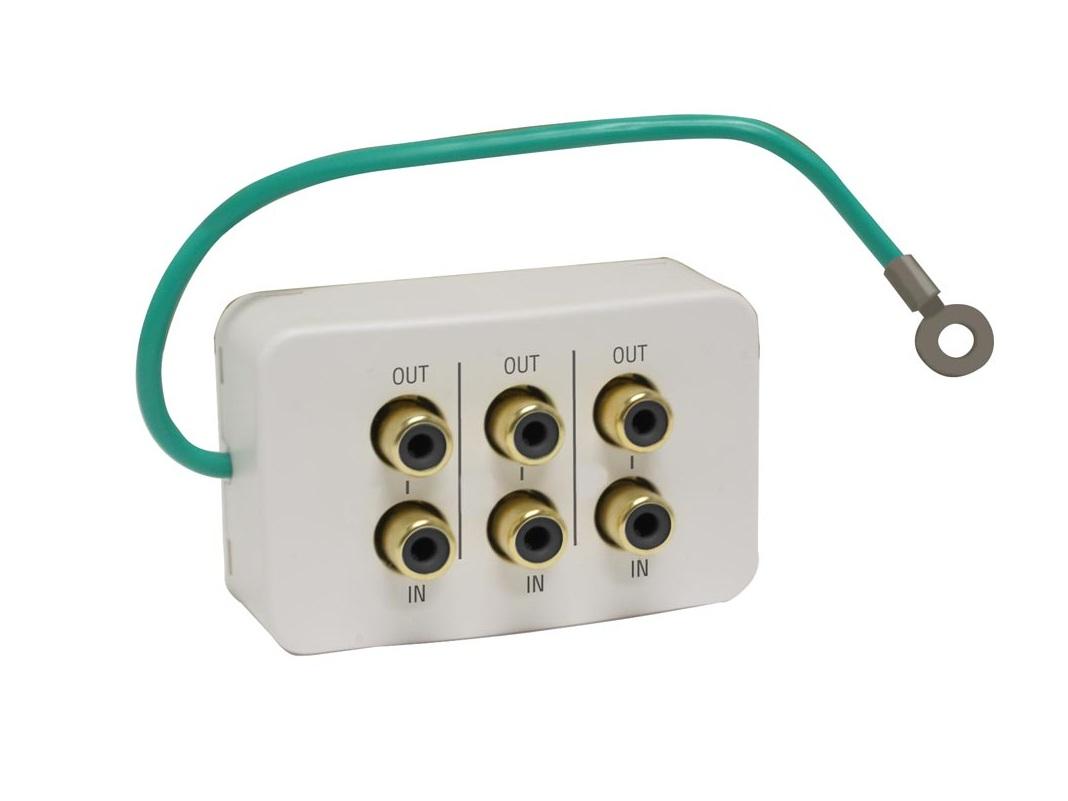

Connectivity is tailored for AV setups with RCA female connectors and three RCA circuits for input/output signal routing. The AV line clamping level is 8V and attenuation is specified at 0.06dB across 10Hz to 6MHz to preserve audio integrity. The thin 1.5 inch profile and reversible cover simplify concealment in racks or behind decor.
This surge protector is ideal for distributed audio and home theater installations where remote amplification or subwoofers are positioned away from source components. It protects both AC and low-voltage RCA lines to reduce the risk of equipment damage from lightning-induced or utility surges. The unit suits installers seeking a compact protected feed to remote AV devices.
Installation is straightforward with a low-profile wall-mountable module and a paintable cover that blends with decor. The MD2-AV includes thermal fusing and a catastrophic surge circuit to ensure safe operation and secure failure modes. Panamax backs the product with a lifetime product warranty and a connected equipment protection policy up to $100,000.
