Description
The SoundTube MCA7004T is a Dante-enabled four-channel power amplifier designed for networked commercial audio installations. It combines Dante audio-over-IP inputs with flexible fixed-resistance and fixed-voltage outputs to address multi-zone and distributed audio systems. The unit provides high output power and integrated DSP to support complex system requirements.

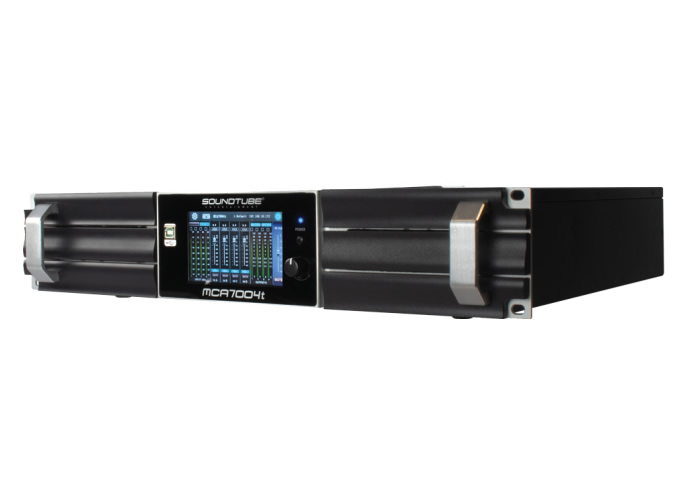

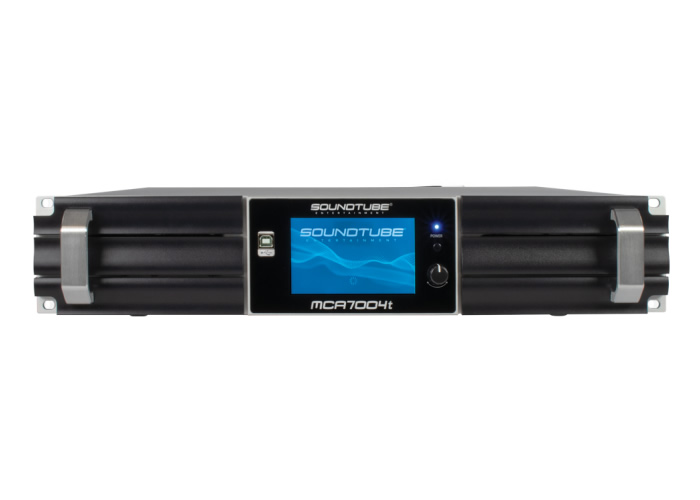

The amplifier delivers up to 700W per channel at 4 ohms and supports bridged and constant-voltage modes for 70V and 100V speaker lines. Onboard DSP includes compressor, limiter, noise gate, parametric equalization, matrix routing and delay to shape and protect audio across zones. A front-panel 4.3 inch LCD touchscreen allows fast access to gain, input matrixing and output mode selection.
Performance specifications include a 20Hz to 20kHz frequency response at 1W of +/-1dB, THD+N of 0.05% or less at 1/8 power, and an A-weighted signal-to-noise ratio of 96dB or greater. The amplifier has a damping coefficient of 200 or higher at 8 ohms and isolation of 95dB at 1kHz for clean channel separation. Maximum power consumption with all channels driven using pink noise is 1020W and 720W at one-eighth power.

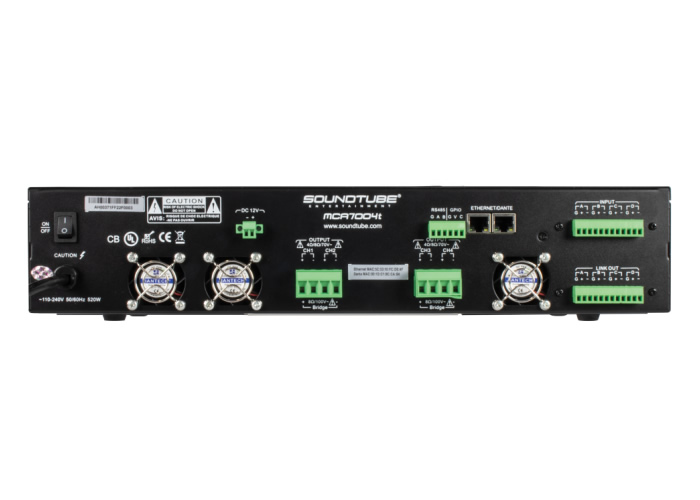

Connectivity includes Dante network audio, AES3 digital inputs and Euroblock balanced/unbalanced analog inputs. Output configurations support stereo/matrix operation, bridged channels and fixed-voltage 70V and 100V modes to suit a range of loudspeaker systems. Input sensitivity and resistance options allow matching to different signal sources and preamps.
Typical applications include distributed background and foreground music, multi-zone paging and audio distribution in hospitality, retail, corporate and worship environments. The MCA7004T is suited to installations that require networked audio routing and real-time DSP control across multiple zones. Its power density and flexible output modes make it useful for systems that mix low-impedance speakers and constant-voltage arrays.
Installation and operation are simplified by the STNet MCA Control software, which provides real-time monitoring and DSP setup over the network. Rackmount chassis, fan cooling and front-panel status indicators for power, protection and distortion support professional installations. The amplifier’s combination of Dante networking, integrated DSP and touchscreen control provides an efficient solution for AV integrators and system designers.
