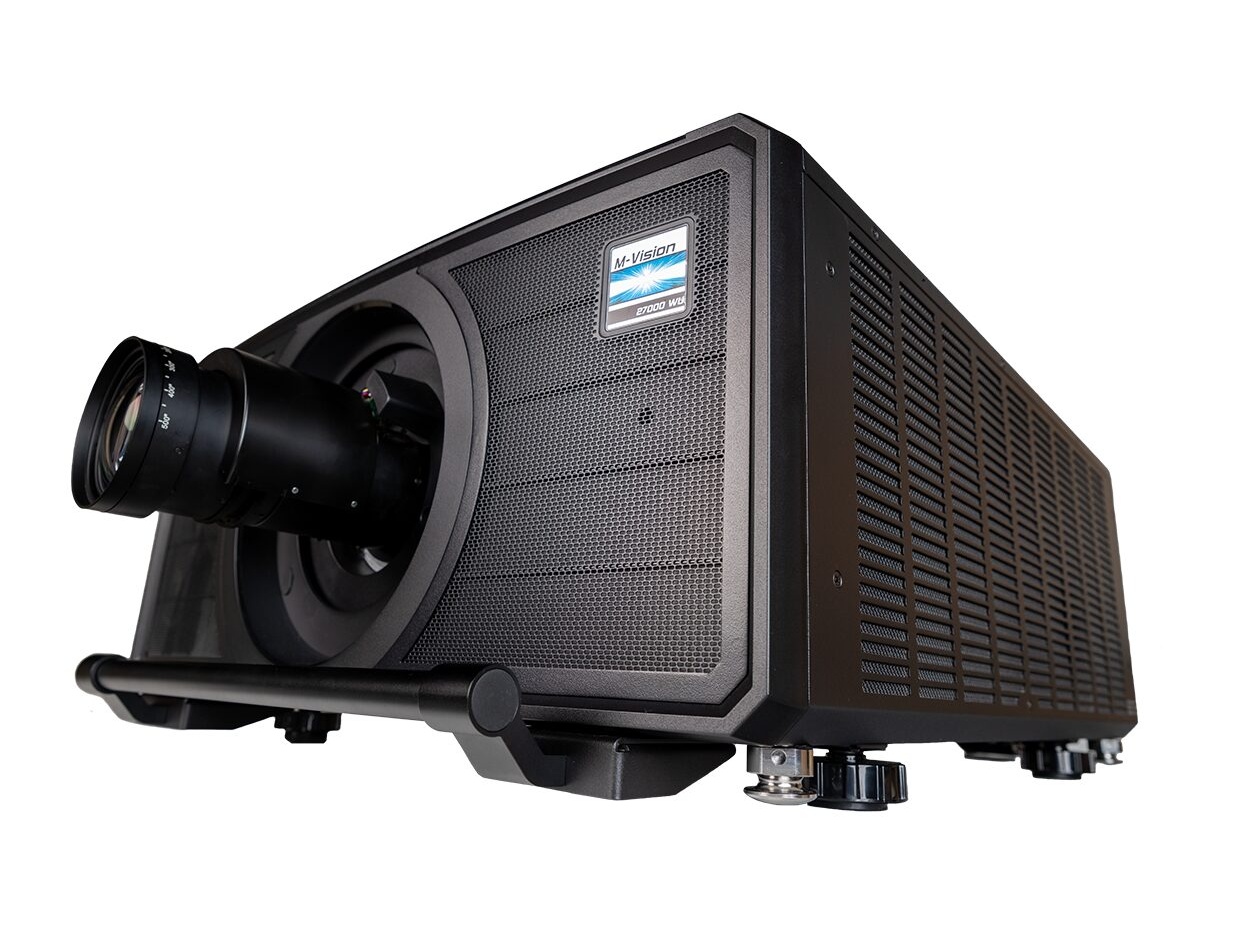

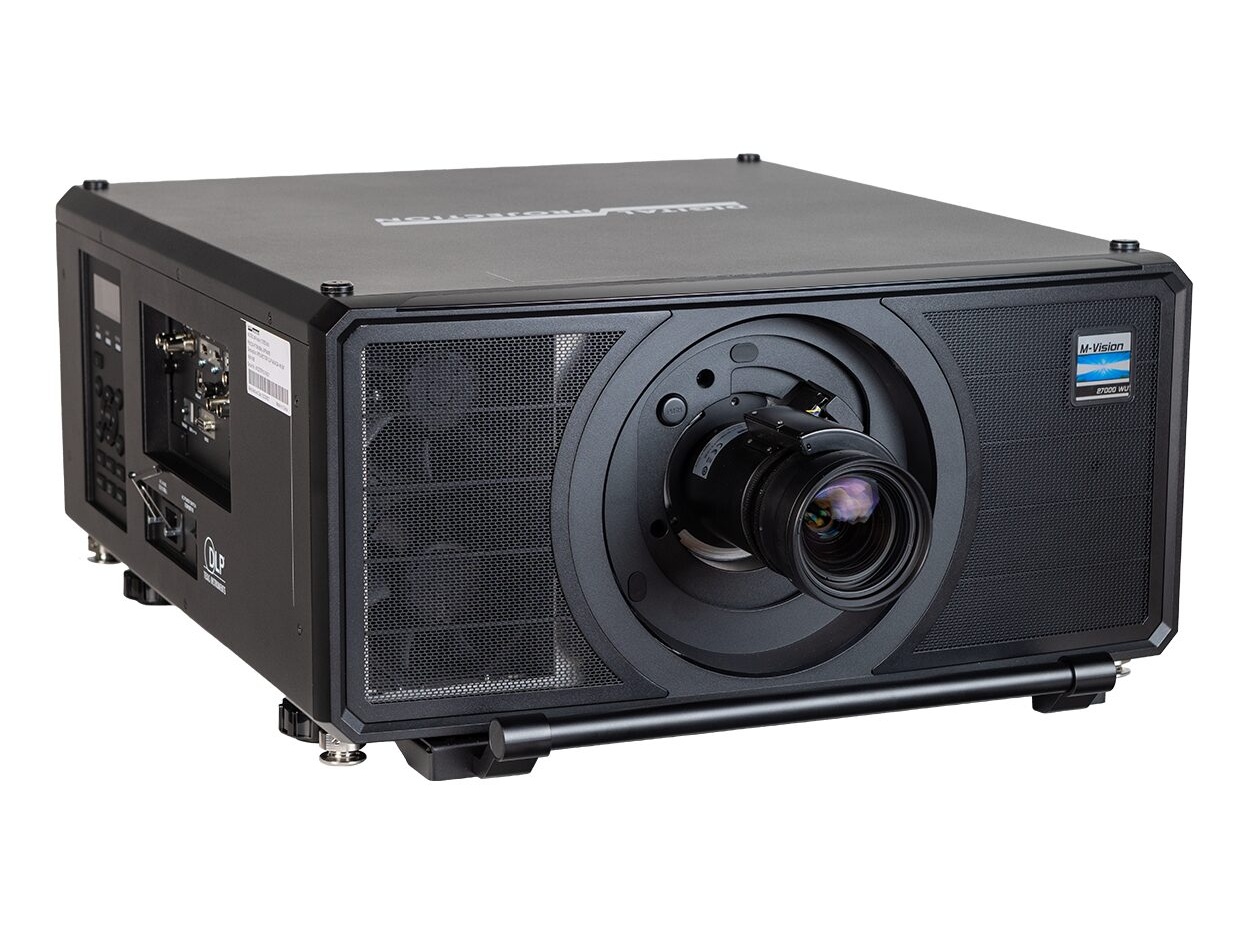

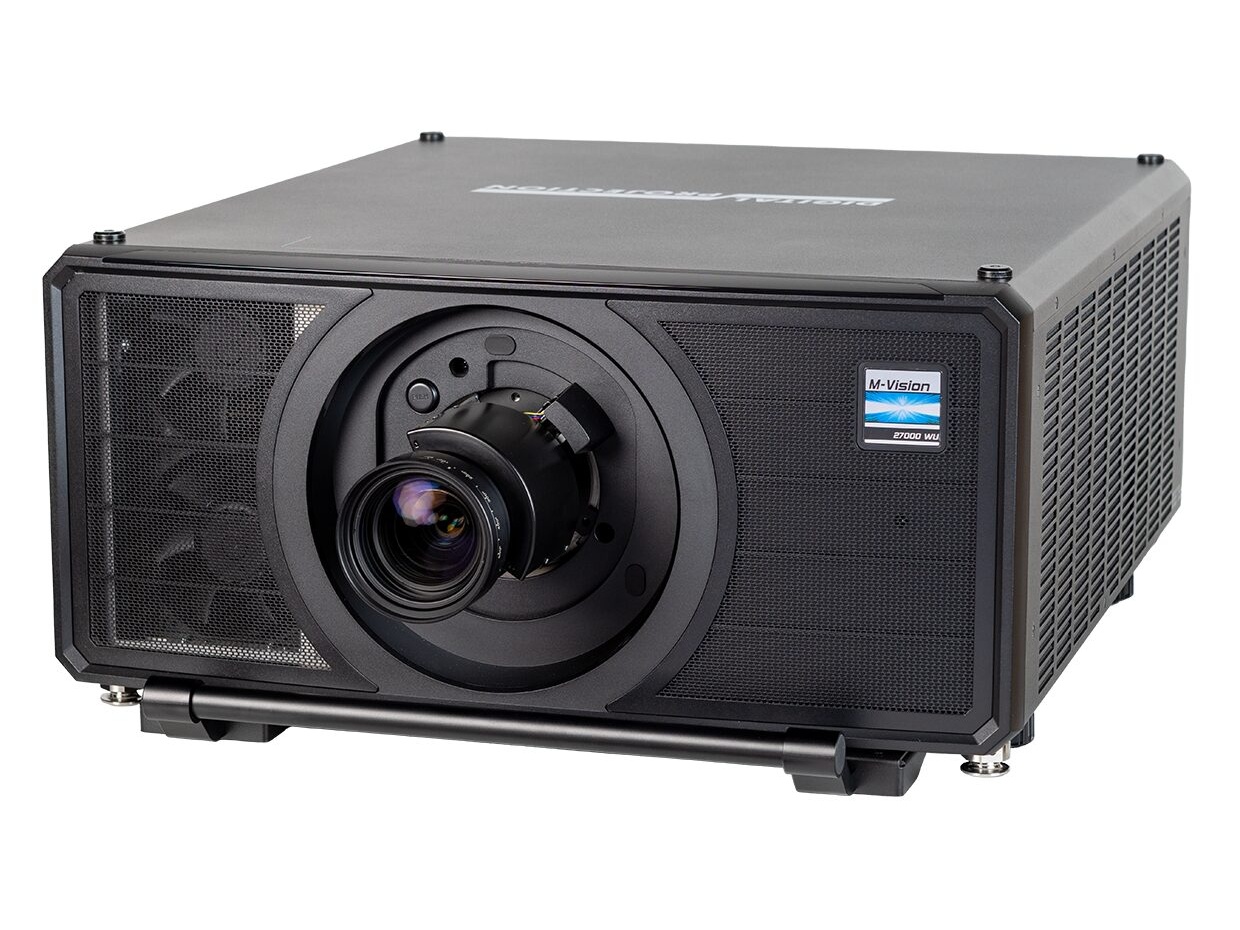

M-Vision 27000 WU Projector - 27K Lumens WUXGA

Description

The M-Vision 27000 WU is a single-chip laser-phosphor projector engineered to deliver very high brightness and colour fidelity in challenging lighting conditions. It outputs 27,000 ISO lumens (24,000 ANSI) and uses ColorBoost+Red Laser technology to produce saturated, realistic colours at high luminance levels. The projector is sealed IP6X and filterless for stable long-term performance in demanding venues.

Key features include a native WUXGA 1920 x 1200 DMD, a 10,000:1 dynamic contrast ratio, sealed optics and a sealed light engine to protect image quality. The product supports HDR, 10-bit processing and accepts 12G-SDI and HDMI 2.0 inputs along with HDBaseT connectivity for long-distance signal delivery. A choice of motorised lenses including a 0.38:1 UST and wide zoom range makes installation flexible.

Technically the M-Vision 27000 WU uses a 0.96″ DarkChip 3 DMD and a Blue + Red laser illumination system rated for approximately 20,000 hours typical life. It supports 4K input formats up to 4096 x 2160 and offers 10-bit colour processing for improved tonal gradation. Dual-pipe processing and support for multiple 3D formats are included for advanced video workflows.

Connectivity is comprehensive with DisplayPort 1.2, HDMI 2.0, HDBaseT, single-link 12G-SDI input and loop-through output, plus an array of control ports including Ethernet/Art-Net, RS232 and wired remote. Input redundancy and brightnes sync features provide reliability for live events. On-board Projector Control II software enables network monitoring and group management.

Typical applications include large venue staging, rental and production, museum and simulation environments and corporate auditoriums where high ambient light or very large screen sizes are required. The sealed optical path and liquid-cooled radiator heat exchanger support 24/7 operation and reduce maintenance. ColorBoost+Red Laser processing narrows the gap to multi-chip systems for colour-critical projection at high brightness.

Installation is simplified by motorised lens memory, wide lens-shift ranges and SmartStack mechanical stacking. The chassis supports multiple orientations and includes rigging points and stacking mounts. Thermal management keeps acoustic levels modest for this class of projector while delivering consistent brightness.

Specifications

Colour System	Blue + Red Laser illumination
Display Type	1 x 0.96" DarkChip 3 DMD
DMD Specification	1920 x 1200 pixels native display
Fast transit pixels	smooth greyscale improved contrast
Aspect Ratio	16x10
Fill Factor
Key Features	ColorBoost+Red Laser, sealed optics, Source Redundancy, Brightness Sync, Auto White Balance Correction
Video & Graphics Processing	HDMI 2.0 compliance, DisplayPort 1.2, 10-bit processing
HDMI 2.0 compliance	Side by Side Frame Packing Frame Sequential TopBottom 3D
DisplayPort 1.2	HDCP 2.2 compliance
10-bit colour processing	30-bits per pixel
Support for 1080p 24Hz	native display
Support for 4K	4096 x 2160 resolution
HDR support	yes
Input source detection	automatic
Input redundancy mode	auto switching
Dual Pipe Processing	two sources parallel for Left Right eyes
3D Synchronisation	active 3D glasses polarising switcher
DICOM simulation mode	included
Sealed light engine	IP6X sealed optics filterless liquid-cooled radiator
Geometry Correction	Vertical Horizontal Keystone Four Corner Rotation Pin Barrel Wall Corner Centre Shift Custom Warp
Upload maps	warp blend uniformity masking
Selectable aspect ratios	5:4 4:3 16:10 16:9 1.88 2.35 TheaterScope Source Unscaled
Digital Zoom	included
Blanking control	custom input window sizing
Edge Blending	non-active pixel correction
HDBaseT Interface	uncompressed HD video over CAT5e/6 up to 100m Ethernet 100BaseT RS232 IR
Colour Processing	seven-point colour correction
Projector Controller Software	network control group management status monitoring
Projector Automation	real-time clock daily on off automation
Installation	4 eye bolts 4 top stacking mounts mount securing pins
IP6X sealed optics	yes
Source Compatibility	12G-SDI SMPTE 292M 424M 2081 2082

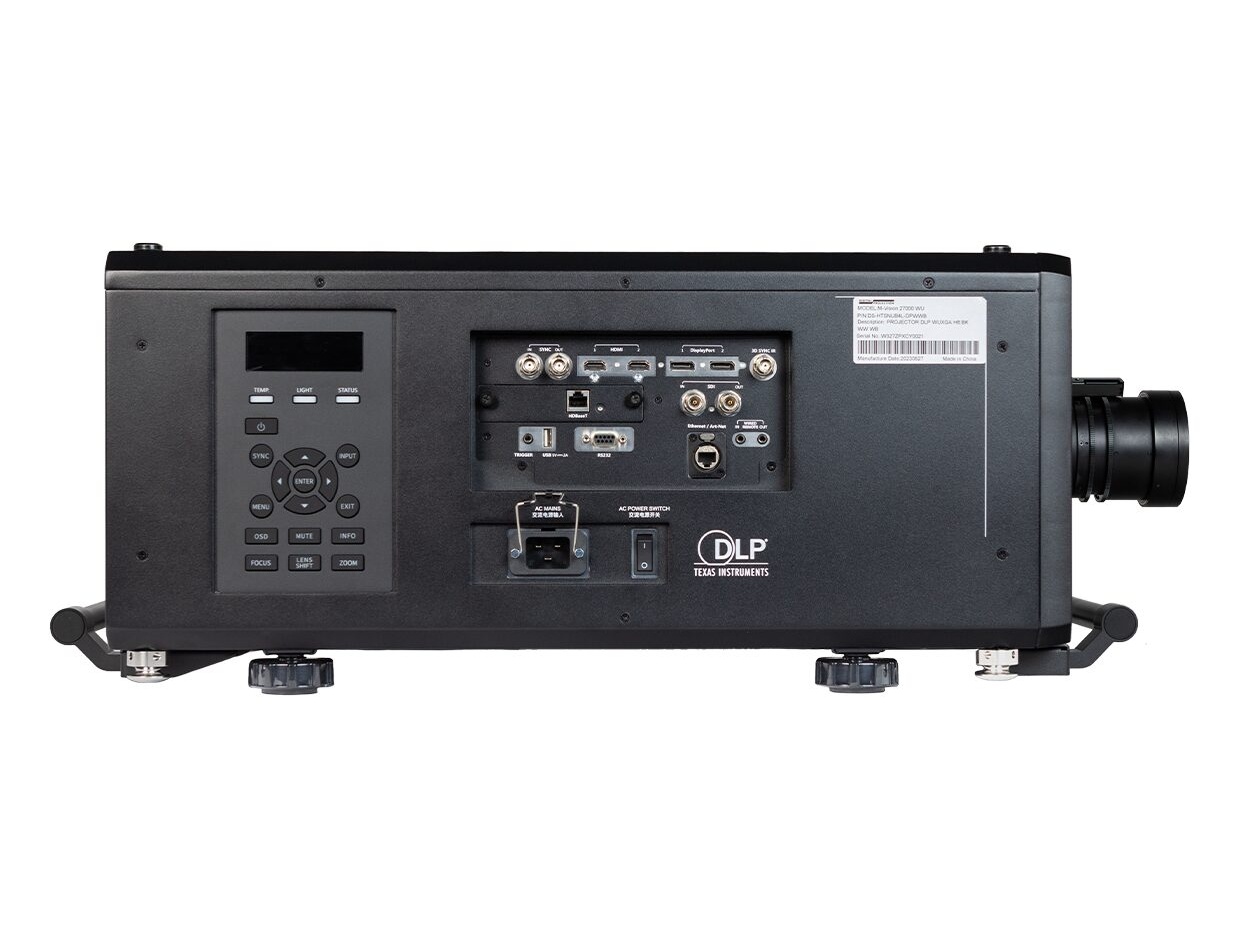

Inputs/Outputs Video & Computer Type	DisplayPort 1.2 HDMI 2.0 HDBaseT 12G-SDI In 12G-SDI Out loopthrough
Connectors	DisplayPort HDMI RJ45 BNC BNC
Qty	2 2 1 1 1
Communication & Control Types	3D Sync In 3D Sync Out 3D Sync IR Ethernet Art-Net HDBaseT/Ethernet/RS232/IR Serial In RS-232C Wired Remote In Wired Remote Out 12V Trigger USB Power out 5V/2A
Control Connectors	BNC BNC BNC EtherCON RJ45 RJ45 9-pin D-Sub 3.5mm 3.5mm 3.5mm USB Type A
Communication Qty	1 1 1 1 1 1 1 1 1 1 3D
3D Formats Supported	Frame Packing Dual Pipe Frame Sequential Side By Side Top and Bottom
3D Compatibility	compatible with polarised 3D glasses
HDTV Formats Supported	480p 576p 720p 1080i 1080p UHD DCI 4K 3840 x 2160 60Hz 4096 x 2160 60Hz
Computer Compatibility	VGA SVGA XGA SXGA SXGA+ WXGA UXGA WUXGA WQXGA
Bandwidth	18Gb/s 600MHz clock rate on HDMI
Remote Control	Addressable IR Remote wireless wired On-Board keypad
Automation Control	LAN RS-232 Alert E-Mails Served webpage OSD Crestron RoomView Crestron eControl PJ Link AMX SSDP LAN to RS232 DMX Art-Net Scheduled On Off
Colour Temperature	3200K 5400K 6500K 7500K 9300K Native
illumination Type	MCL Blue Laser MCL Red Laser 30% - 100% output setting
Constant Brightness mode	included
Typical illumination Life	20,000 hours
Lens 0.38:1 fixed	Part No. 123-417 Optimised Focus Range 1.6m - 5m Lens Shift Vert 0.50 U 0.50 D Hor 0.025 L 0.025 R
Lens 0.9 - 1.2 : 1 zoom	Part No. 120-624 Optimised Focus Range 0.92m - 10.6m Lens Shift Vert 0.45 U 0.45 D Hor 0.15 L 0.15 R
Lens 1.20 - 1.56 : 1 zoom	Part No. 120-625 Optimised Focus Range 0.95m - 17.47m Lens Shift Vert 0.5 U 0.5 D Hor 0.15 L 0.15 R
Lens 1.50 - 2.00 : 1 zoom	Part No. 120-626 Optimised Focus Range 1.24m - 16.4m Lens Shift Vert 0.5 U 0.3 D Hor 0.15 L 0.15 R
Lens 2.00 - 4.00 : 1 zoom	Part No. 120-627 Optimised Focus Range 1.82m - 41.8m Lens Shift Vert 0.5 U 0.3 D Hor 0.15 L 0.15 R
Lens 4.00 - 7.00 : 1 zoom	Part No. 120-628 Optimised Focus Range 4.38m - 74.5m Lens Shift Vert 0.5 U 0.3 D Hor 0.15 L 0.15 R
Lens 6.9 - 10.3 : 1 zoom	Part No. 123-418 Optimised Focus Range 12m - 80m Lens Shift Vert 0.5 U 0.5 D Hor 0.15 L 0.15 R
Lens focal range note	optimised distances contact RSM lens ratio tolerances listed
Lens Mount	Motorised Shift Zoom Focus Intelligent Lens Memory 10 presets
Mechanical Mounting	Front Rear Table Front Rear Ceiling Adjustable Feet
Orientation	Table Top Inverted Pointing Up Pointing Down Roll Portrait
Power Requirements	200-240VAC 50/60Hz 10.6A 110-130VAC 50/60Hz 11.1A
Note on 120V	reduced brightness mode
Power Consumption	Typical 1550W @ 220VAC Normal Typical 850W @ 110VAC Normal
Thermal Dissipation	5289 BTU/Hour @ 220VAC Typical 2901 BTU/Hour @ 110VAC Typical
Fan Noise	Normal 50 dBA max 48 dBA typical Eco 48 dBA max 46 dBA typical
Operating Temperature	Operating 0 to 40 C Projector auto 90% laser 33-35 C auto eco 35-40 C
Storage Temperature	-20 to 60 C
Operating Humidity	90% non-condensing max 35 C
Weight	47.2 kg / 104.1 lbs
Dimensions Including handles feet	L 768.4mm W 598.8mm H 302.75mm
Dimensions Including handles feet inches	L 30.25 inch W 23.57 inch H 11.92 inch
Dimensions Excluding handles	L 669.4mm W 598.8mm H 302.75mm
Dimensions Excluding handles inches	L 26.35 inch W 23.57 inch H 11.92 inch
Carton Dimensions	944mm W 758mm H 516mm
Carton Dimensions inches	L 37.17 inch W 29.84 inch H 20.31 inch
Safety & EMC Regulations	cTUVus CB CCC FCC Class A FDA CE UKCA KC BSMI IEC EN 60825-1 Class 3R GB 7247.1-2012
Accessories	Accessory Part No.
Downloads	PDF CAD Drawings AUTOCAD STEP IGS Lens CAD Drawings User Guide
User Guides	User Guides German French
Laser Risk Group Document	available
Important Information	available
Core Technologies Nexus	Next Generation Electronics Platform Projector Control II
IP6x Sealed Optics	sealed optical system filterless liquid-cooled radiator
ColorBoost+ Red Laser Technology	red laser diodes increased colour fidelity
Source Redundancy	automatic backup switching
Flexible Geometry Adjustment	grid on-screen PC tool remote
Art-Net Support	stage controller direct control DMX to-Net not required
Intelligent Lens Memory	lens position presets focus zoom shift
24/7 operation	continuous operation supported efficient heat dissipation

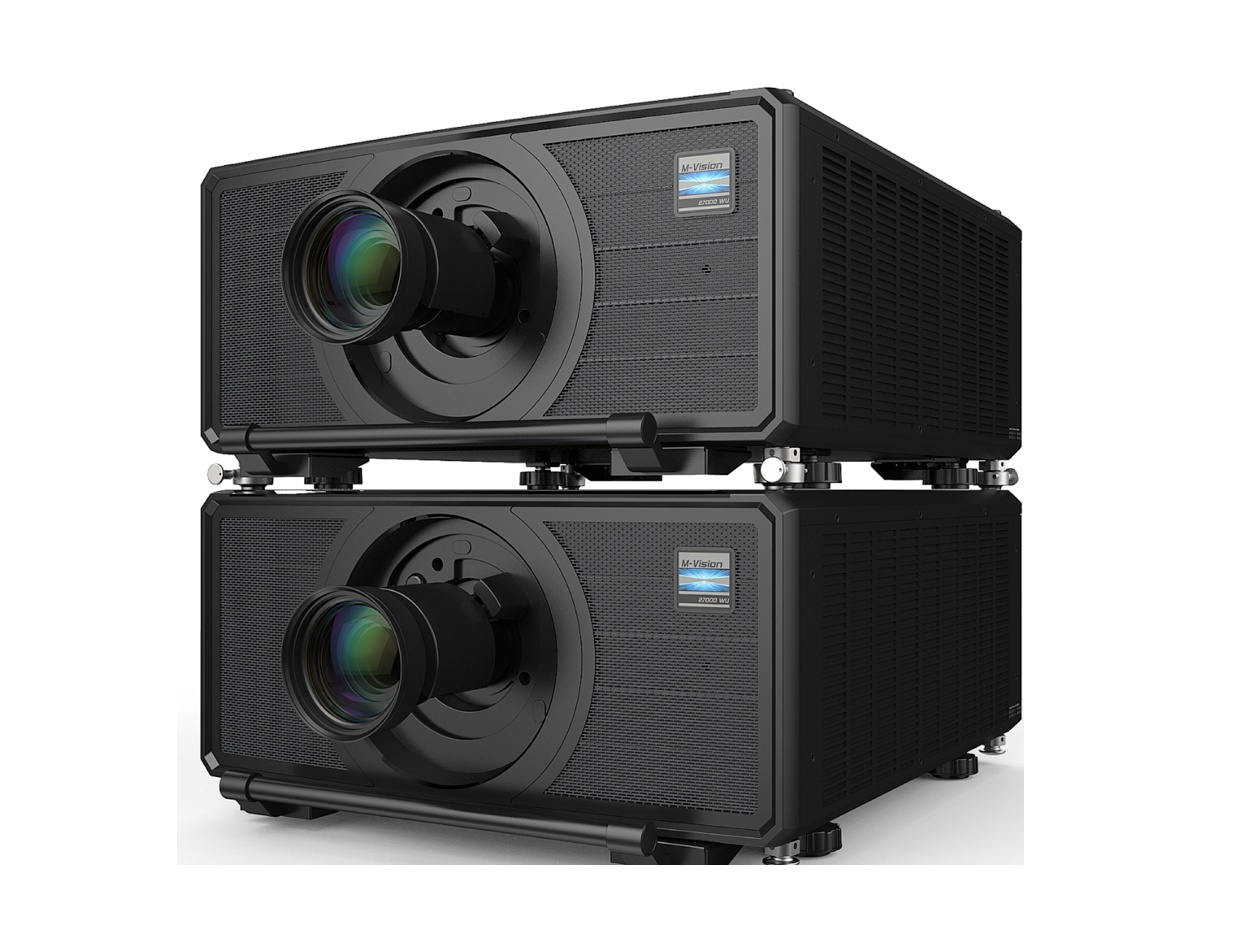

SmartStack System	lock-stacked without extra rigging
Easy Bore-sight adjustment	quick lens bore-sight without disassembly
