Description

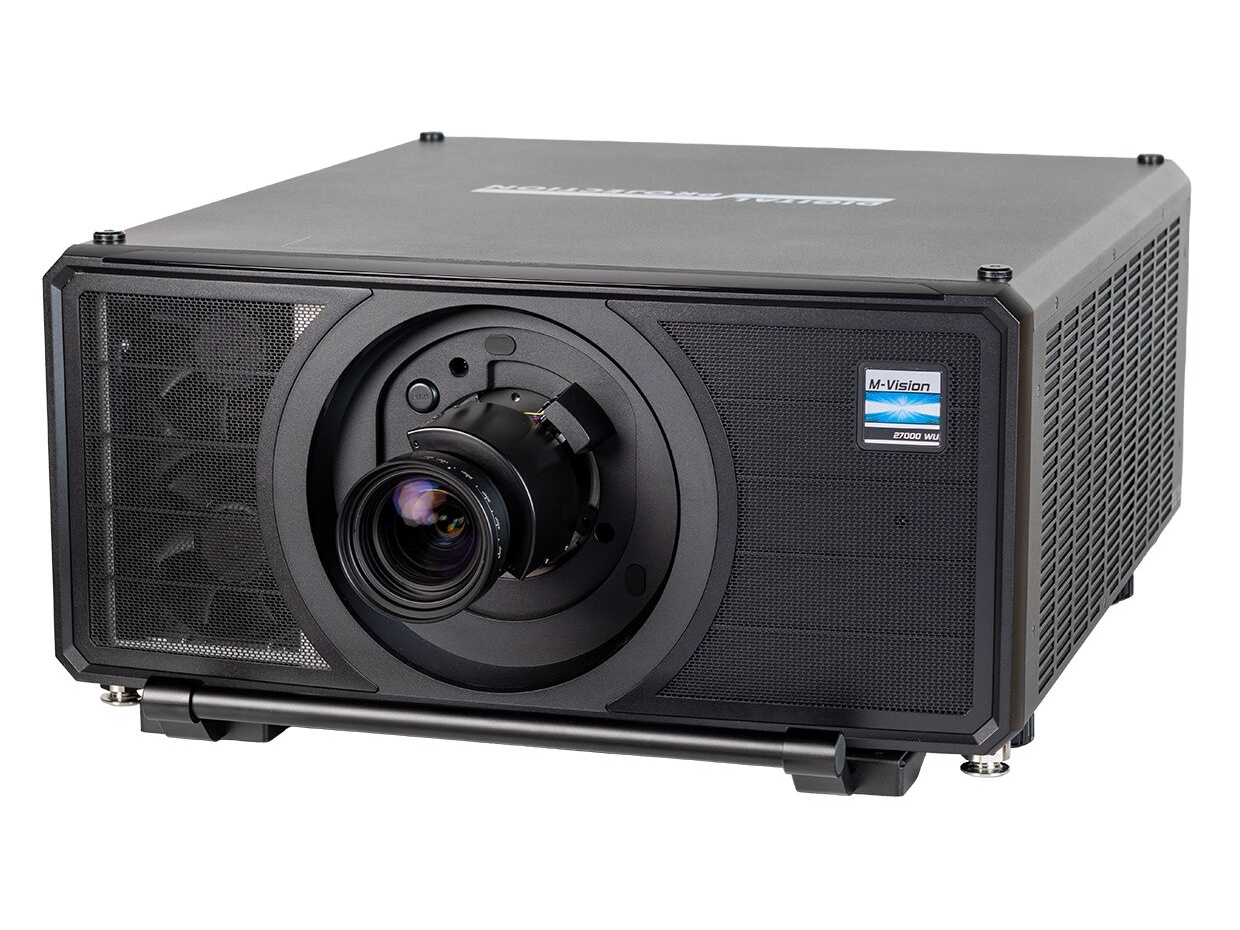

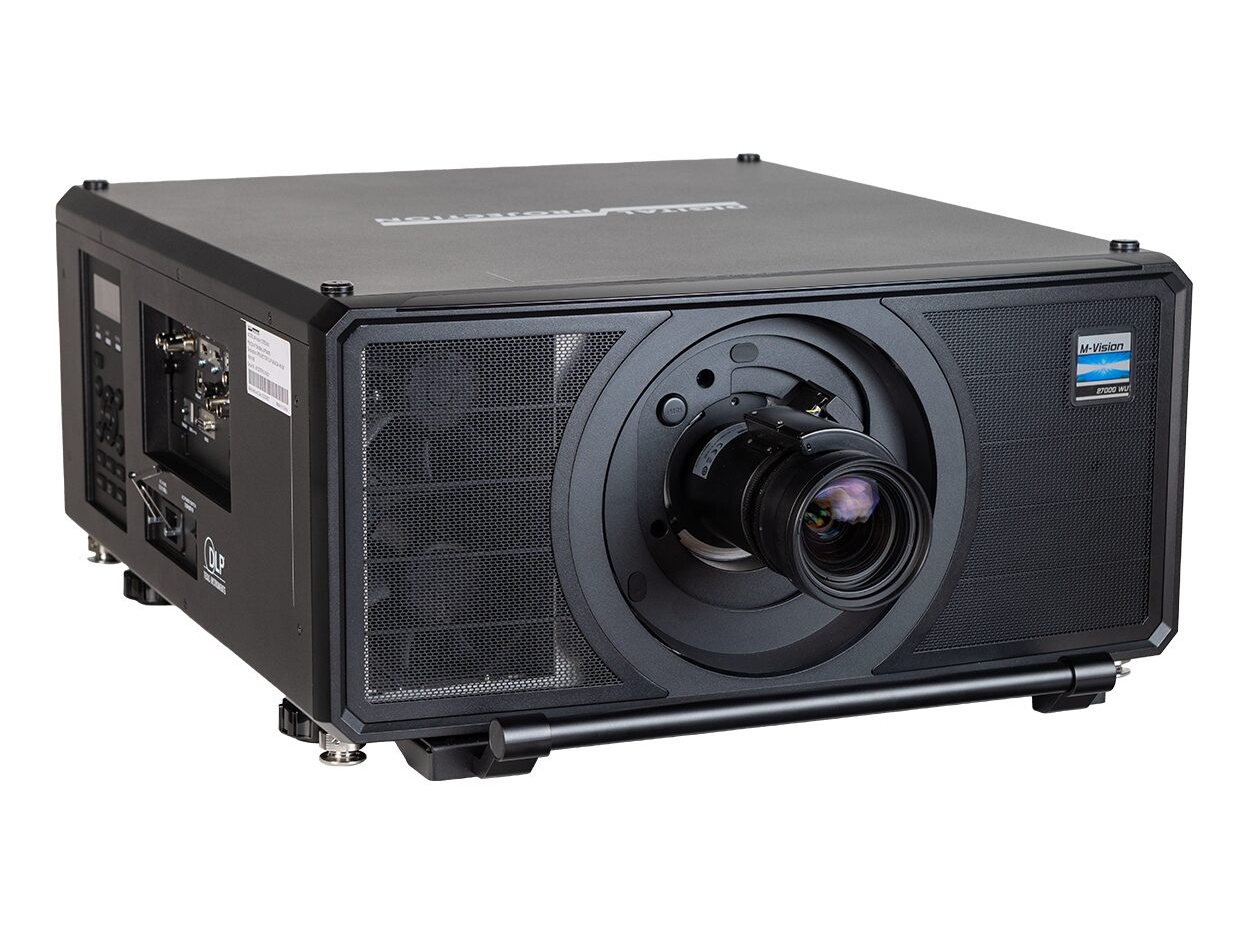

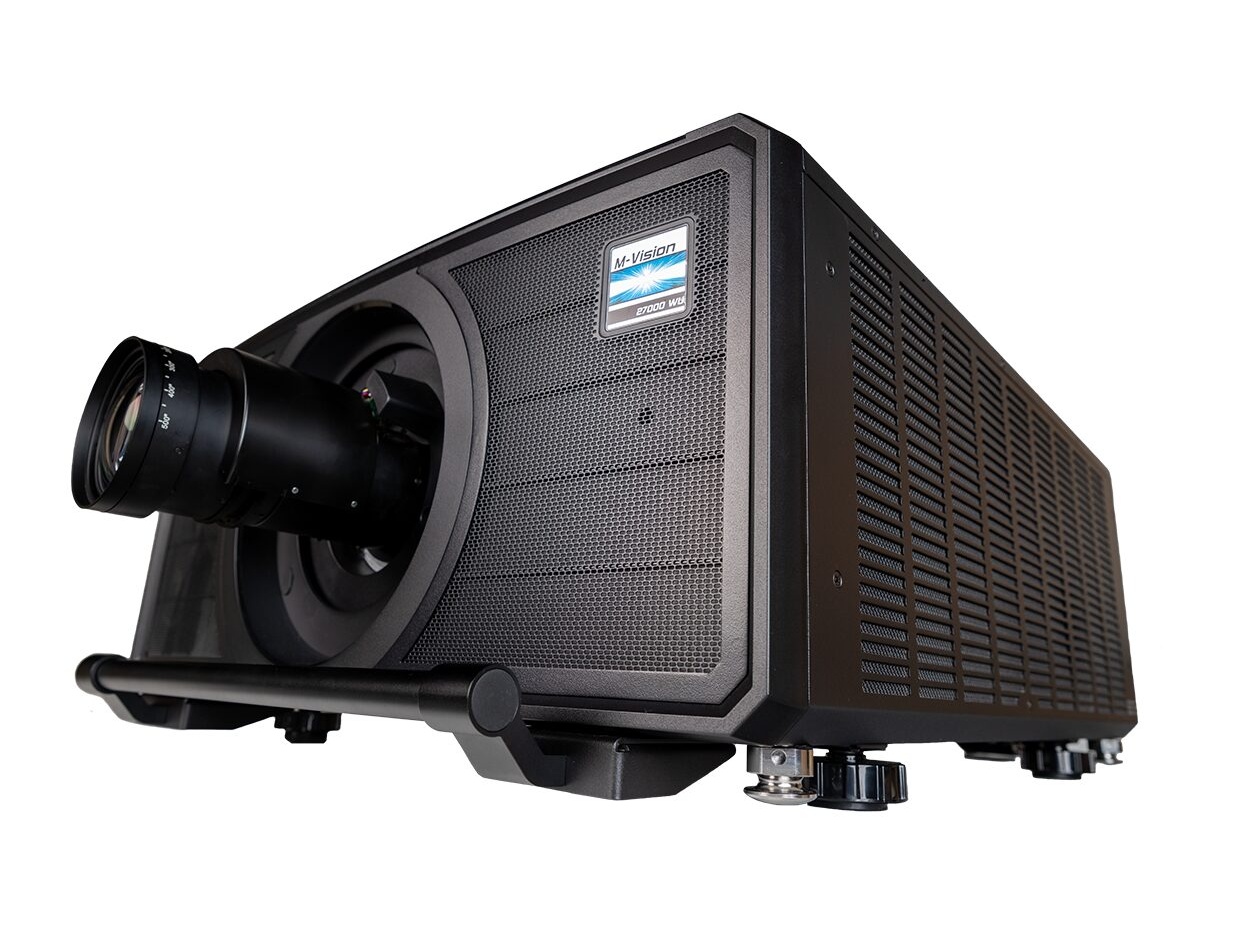

The M-Vision 24000 WU is a high-brightness single-chip DLP projector designed to deliver large-screen images in challenging ambient light conditions. It combines a 0.96 inch DarkChip 3 DMD with MCL Blue and Red laser illumination to produce saturated, accurate color and stable long-term output. This model offers sealed optics and a liquid-cooled radiator heat exchanger for low maintenance operation and consistent image quality.
Key features include 24,000 ISO lumens of brightness, WUXGA native resolution, and ColorBoost+ Red Laser technology to extend color gamut toward 3-Chip levels. Dual-pipe processing and support for multiple 3D formats are included along with HDR support and 10-bit color processing. Installation and alignment tools include Intelligent Lens Memory, extensive geometry correction and uploadable warp maps for complex surfaces.
Performance metrics reflect a dynamic contrast ratio of 10,000:1 and a typical laser life of 20,000 hours under normal settings. The projector supports native 1920 x 1200 resolution and accepts up to DCI 4K 4096 x 2160 inputs at 60 Hz. Constant Brightness and automatic power modes maintain output stability across prolonged operation and higher ambient temperatures.
Connectivity is broad and professional grade – HDMI 2.0, DisplayPort 1.2, HDBaseT with Ethernet and RS232/IR, and 12G-SDI single link inputs for high-bandwidth video feeds. Built-in HDBaseT enables placement up to 100 m from source over CAT5e/6 cabling while preserving uncompressed HD signals. Control options include LAN, Art-Net, RS-232, DMX and addressable IR remote control.
Typical applications include large-venue staging, rental and touring events, simulation environments and permanent installations requiring high brightness and reliable 24/7 operation. The projector supports source redundancy and brightness sync for mission-critical events and multi-projector arrays. Edge blending, custom masking and multi-projector grouping features simplify multi-unit deployments on curved or irregular screens.
Installation is simplified by motorised lens shift, zoom and focus and 10 user-definable lens memory presets for repeatable setups. The IP6X sealed optical path removes filters and reduces onsite maintenance while the SmartStack mechanical design supports lock-stacking without extra rigging. A comprehensive set of rigging points and stacking hardware speeds deployment in pro AV environments.
Overall the M-Vision 24000 WU balances extreme brightness with professional feature sets including HDBaseT connectivity, sealed optics and advanced color processing. It is targeted at AV integrators and rental houses that require long runtime reliability and large screen performance. The projector provides a robust set of tools to integrate into complex AV systems while minimizing ongoing service demands.
