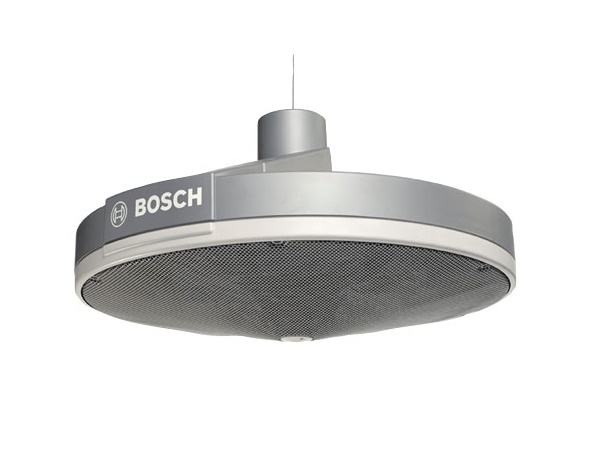

Bosch LS1-OC100E-1 Hemi-Directional Loudspeaker/100W/Single Speaker Covers Up to 6,500 square feet

Description

The Bosch Hemi-directional Loudspeaker is an easy to install, innovative loudspeaker which projects consistent and high quality sound, ensuring superb reproduction of background music and high speech intelligibility for paging or emergency calls. The speaker’s opening angle and high sound pressure level allows it to cover at least 700 m2 , making it extremely suitable for indoor high‑ceiling areas like warehouses, transport and exhibition halls, mega stores and swimming pools.

Functions

Voice alarm loudspeaker

The LS1‑OC100E‑1 is used in voice alarm systems and is compliant with emergency standards. The loudspeaker has built‑in protection to ensure that a fire‑damaged loudspeaker does not cause failure of the connected circuit. This ensures system integrity, meaning loudspeakers in other areas can still be used to inform people of the fire. The loudspeaker has ceramic terminal blocks, a thermal fuse and heatresistant, high‑temperature wiring.

Materials

The loudspeaker is made of high‑impact ABS TSG, selfextinguishing according to class UL 94 V 0 and with the highest flame retardant rating (UL 94 5VA). The loudspeaker has a white and silver finish; the metal grille has a silver finish. All metal parts are zinc plated.

Drivers

This acoustically innovative loudspeaker accommodates 14 drivers in combination with advanced positioning and filtering.

Features:

For large area, high-ceiling applications
Optional bracket for fixed mounting
Self‑restoring tweeter overload protection
Provision for internal mounting of the optional line/ loudspeaker supervision board
EN 54-24 certified

Specifications

Rated power	100 W (100 - 50 - 25 W)
Sound pressure level at 100 W / 1 W (1 kHz, 1 m)	110 / 90 dB
Sound pressure level at 100 W / 1 W (1 kHz, 4 m)	98 / 77 dB
Opening angle at 1 kHz / 4 kHz (‑6 dB)	175º / 96º (horizontal)180º / 137º (vertical)
Effective frequency range (‑10 dB)	60 Hz to 20 kHz
Rated input voltageRated impedance	28.3 V , 70 V , 100 V
100 W	8 Ohm , 50 Ohm , 100 Ohm
50 W	N.A. , 100 Ohm , 200 Ohm
25 W	N.A. , 200 Ohm , 400 Ohm
Connector	Ceramic screw terminal
LS1‑OC100E‑1
Dimensions (dia. x H)	800 x 425 mm (31.50 x 16.74 in)
Weight	27 kg (59.52 lb)
Color baffle	White (RAL 9010)
Color top cover	Pearl dark gray (RAL 9023)
Color grille	White aluminum (RAL 9006)
Material	ABS TSG
LM1‑MSB‑1
Dimensions (H x W x D)	150 x 100 x 150 mm (5.90 x 3.94 x 5.90 in)
Weight	2.9 kg (6.39 lb)
Color	Pearl dark gray (RAL 9023)
Material	Zinc plated steel
Operating temperature	-25 to +55 ºC (-13 to 131 ºF)
Storage and transport temperature	-40 to +70 ºC (-40 to +158 ºF)
Relative humidity	<95%
