Description

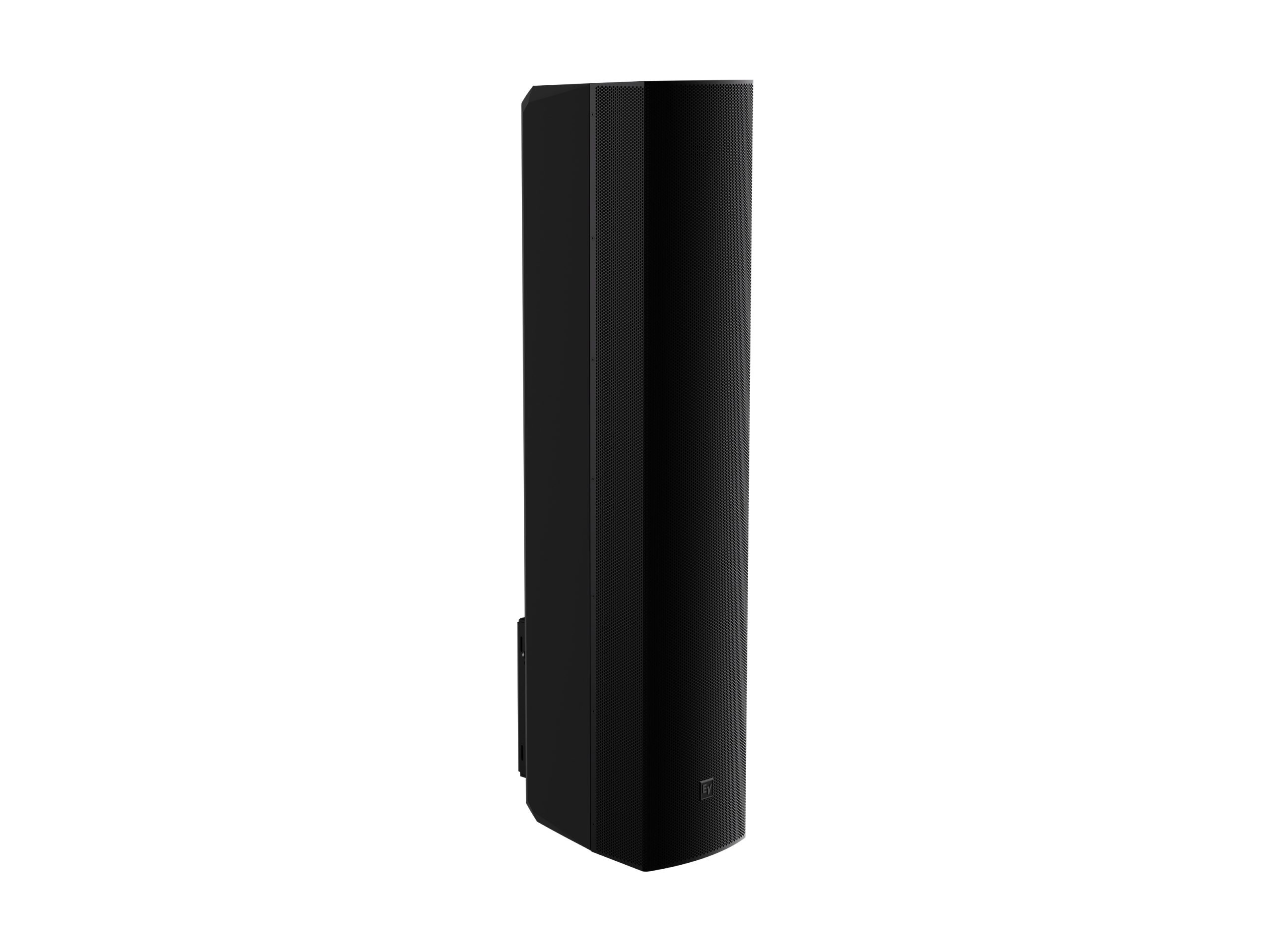

The LRC-2100 is a passive column loudspeaker designed for fixed installations where controlled patterning and speech intelligibility are required. It combines slender industrial design with multiple mid-high drivers and dedicated woofers to deliver clear, consistent coverage. The loudspeaker is intended for indoor and outdoor installations that require durable weather resistance and flexible aiming.

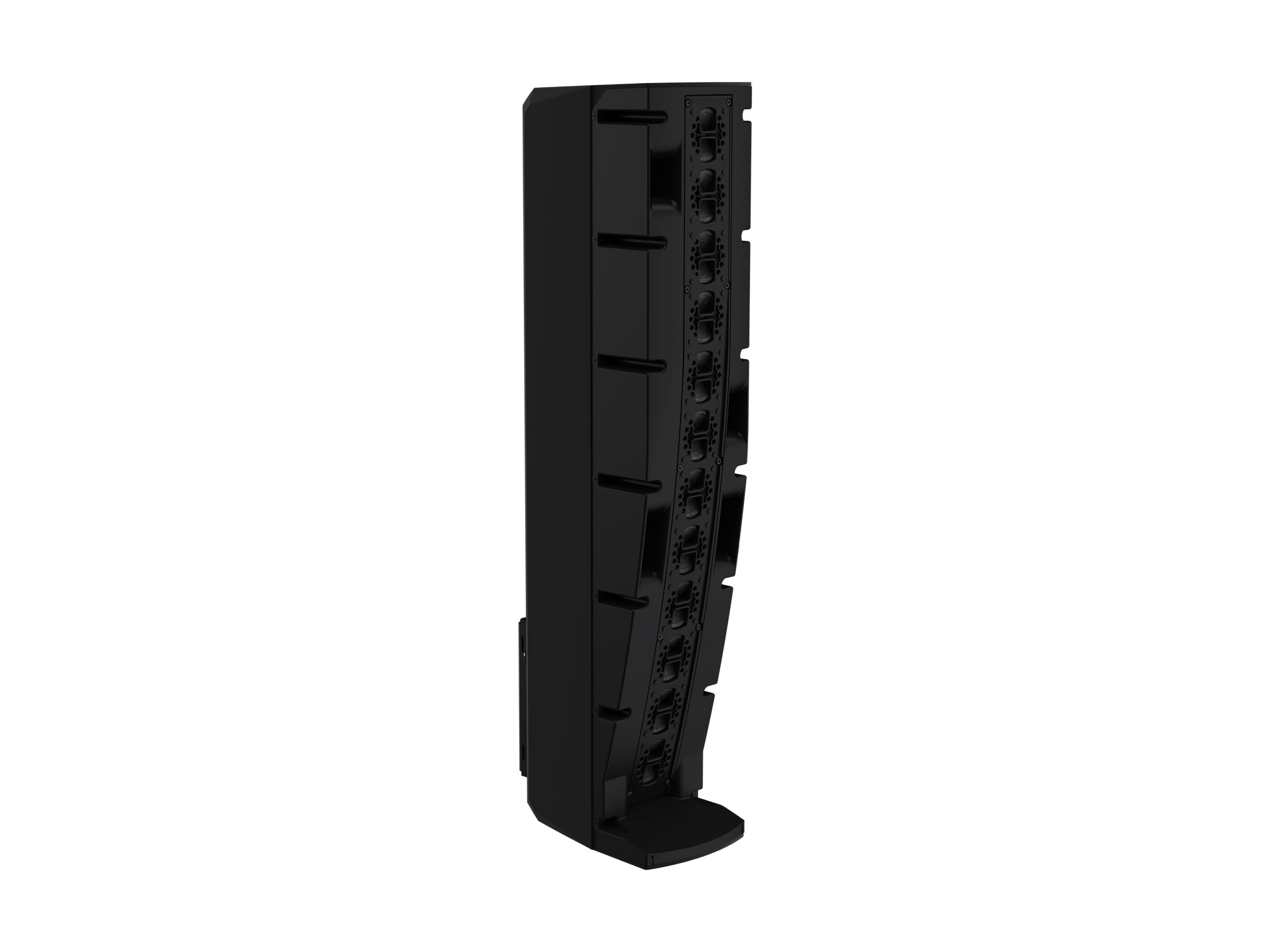

The enclosure houses twelve 2.5 in mid-high drivers using PaSS dispersion control and two 6.5 in band-pass woofers to extend low-frequency output. Horizontal coverage is broad at 140deg and vertical coverage is switchable between 25deg and 45deg to match room geometry. An acoustic down-tilt option of 7.5 deg and the included SwifTilt pan-tilt bracket provide precise aiming for array or single-point deployment.
Measured performance covers a frequency range of 45 – 16000 Hz and a maximum SPL up to 128 dB narrow / 126 dB wide depending on pattern selection. Axial sensitivity is specified at 91.5 dB SPL 1W/1m narrow and 90 dB SPL 1W/1m wide. The loudspeaker is rated for 300 W continuous and 600 W program power handling and presents a nominal 8 ohm load with a minimum impedance of 6.4 ohm at 280 Hz.
Connectivity is provided via a 4-pin Euroblock input with pass-through capability and accepts conductors up to 10AWG. The LRC-2100 is recommended to be used with a 50 Hz Butterworth 24 dB/oct high-pass filter and benefits from dedicated presets in Dynacord DSP matrix processors and amplifiers. It is supported by EASE, EASE Focus3, PREVIEW Loudspeaker Software and SONICUE system software for modeling and system integration.
Typical applications include speech reinforcement, foreground music, and background sound in houses of worship, transit facilities, retail spaces, and hospitality venues. The selectable vertical patterns and wide horizontal dispersion make the speaker suitable as a main, fill, or support loudspeaker in distributed systems. Weather rating IP55 and available black or white finishes allow deployment in semi-exposed outdoor areas as well as interior spaces.
Installation is simplified by the included SwifTilt multi-angle tilt and pan bracket which provides +-80deg horizontal pan and multiple down-tilt stops. The cabinet offers six M8 suspension points and a gland nut weather cover for outdoor cable entry. Robust construction, RAL finish options, and optimized transducer alignment ensure reliable long-term performance in installed sound systems.
