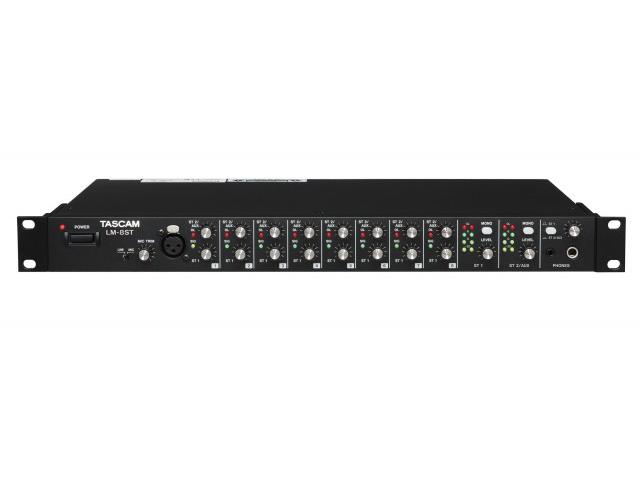

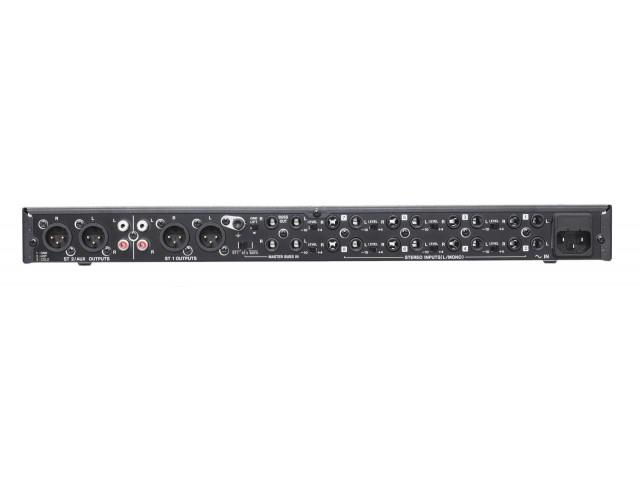

TASCAM LM-8ST 1-Space Rackmountable Line Mixer

Description

The TASCAM LM-8ST is a 1-space rackmountable line mixer for installation, studio submixing, keyboardists or anyone looking for a great-sounding mix. Eight pairs of balanced 1/4″ TRS inputs – switchable from +4 or -10dB – can be bussed to a pair of XLR balanced outputs, labeled ST1 and ST2/AUX. Pre or post-fader bussing is available for the alternate buss, and master output level controls and metering keep signals under control. A microphone input is also provided for announcements or performance.

Packed with high-quality audio components, the TASCAM LM-8ST is perfect for any live performance or installation.

Features

8 stereo channel / 4-buss line mixer
(8) stereo 1/4″ TRS balanced inputs with -10/+4dB switch
1U rack mountable
Mic input with trim control on front panel
2-segment LED meter per channel
ST1 and ST2/AUX level control per channel
ST1 and ST2/AUX master level controls
Each channel switchable to ST2 (pre fader) or AUX (post) output
1/4″ and 1/8″ stereo headphone outputs
XLR balanced ouptuts for ST1 and ST2/AUX
Stereo balanced buss output/input for cascade
Ground lift switch and terminal

Applications:

Boardroom
Conference room
Health club
Restaurant
House of worship
Keyboard mixer
Effects return submixer
One-man performance stage mixer

Specifications

Audio inputs and outputs

Microphone input
Connector: XLR-3-31 (pin 2 hot)
Input impedance: 2.4kO
Nominal input level: -58 dBu (1 mV) - 12dBu
(195 mV)
Maximum input level: +10 dBu (2.45 Vrms)
Stereo Inputs
Connectors: 1/4" TRS balanced phono jack
Input impedance: 16kO
Nominal input level: +4 dBu (1.23 Vrms)
Maximum input level: +24 dBu (12.3 Vrms)
Master Buss Input
Connectors: 1/4" TRS balanced phono jack
Input impedance: 16kO
Nominal input level: +4 dBu (1.23 Vrms)
Maximum input level: +24 dBu (12.3 Vrms)
ST1 and ST2/Aux Outputs
Connector: XLR-3-31 (pin 2 hot)
Input impedance: 940
Nominal output level: +4 dBu (1.23 Vrms)
Maximum output level: +24 dBu (12.3 Vrms)
Connector: RCA pin jacks
Input impedance: 2000
Nominal output level: -10 dBV (0.3 Vrms)
Maximum output level: +10 dBV (3.16 Vrms)
Buss Output
Connectors: 1/4" TRS balanced phono jack
Output impedance: 940
Nominal output level: +4 dBu (1.23 Vrms)
Maximum output level: +24 dBu (12.3 Vrms
Phones Output
Connectors: 1/4" TRS stereo phono jack and
3.5mm (1/8") stereo mini jack
Maximum output level: 250mW + 250mW (320)

Audio performance

Frequency response: 20 Hz-50 kHz ±3 dB (Phones
outputs)
10 Hz-100 kHz, ±3 dB (Each Buss output)
S/N ratio: 80 dB or more (Phones outputs, A-
WTD, 20kHz LPF)
80 dB or more (Each Buss output, A-WTD,
20kHz LPF)
THD: 0.07% or less (Phones outputs,
100mW+1 OOmW (320), 20Hz HPF and
20kHz LPF
0.03% or less (Each Buss output, 20Hz HPF
and 20kHz LPF)
Channel separation: 50 dB or more (Phones out-
puts, within a channel, A-WTD, 20kHz LPF,
1 kHz nominal input, 320 termination)
70dB or more (Each Buss output, A-WTD,
20kHz LPF, 1kHz nominal input, 6000 ter-
mination)
Crosstalk: 65dB or more (Each Buss output, A-
WTD, 20kHz LPF, 1kHz nominal input, 6000
termination)

General / Power supply

AC: 120-240V, 50-60 Hz
Power consumption: 15 W
Dimensions (W x H x D): 19” x 1.73” x 11” (482 x 44 x 280mm)
Weight: 8.4 lbs. (3.8 kg)
