Description

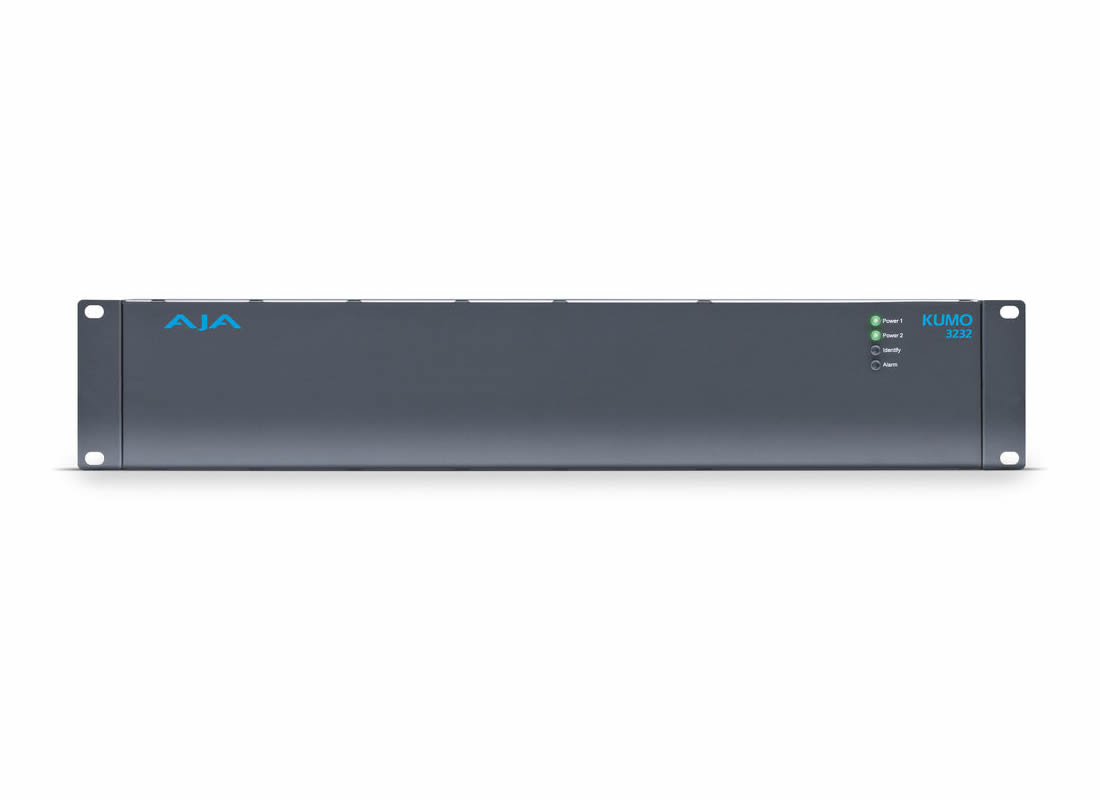

The KUMO 3232 Compact SDI Router from AJA provides signal control and supports full broadcast specifications over 3G-SDI with quality that exceeds SMPTE specifications. This compact 2 RU format router is designed for broadcast, production, or postproduction environments including mobile sports trucks, edit suites, corporate video installations, or live theatrical A/V rigs.
This router features 32 3G-SDI inputs and outputs and has a Linux embedded operating system. It is network-ready and supports HTTP control and monitoring via a web browser, without the need for any additional software. It can be integrated with existing infrastructure utilizing the industry-standard Grass Valley Native Protocol over RS-422 or Ethernet. Ethernet network connectivity also allows you to control this router from any web browser on a network-connected device.
Key Features

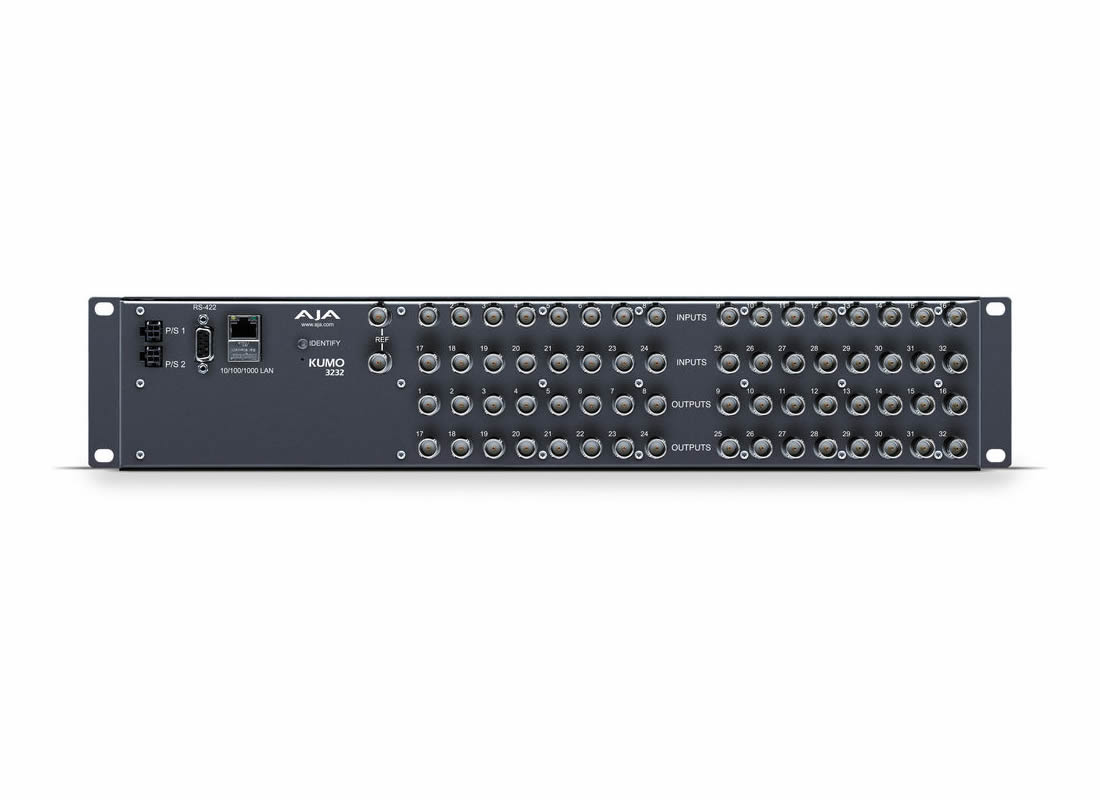

- 32 x 3G-SDI Input
- 32 x 3G-SDI Output
- Mini-USB for IP Configuration
- RJ45 Ethernet Port
- RS-422 Serial Port
- 2 RU
Powerful Signal Control
The cross-point routing matrix maps any input to any number of outputs without the need for additional patch panels or distribution amplifiers. It can be configured for ganged dual and quad port routing, allowing users to group together multiple inputs and outputs for dual link, 4K, and UltraHD workflows.
Salvo Simplicity
The Salvos support simplifies switching operations by recalling multiple sources to specific destinations. Eight Salvos can be configured and stored in this router and can be recalled via the Web UI, GVG Native Protocol over Ethernet, RS-232, and/or the KUMO CP2 Salvos buttons.
Simple Installation and Configuration
With an embedded Linux operating system, this router is network-ready and supports HTTP control and monitoring via a web browser, without the need for any additional software. The auto-detect Bonjour/Zeroconf protocols mean that network configuration is automatic. By connecting it to a network or computer the system will self-configure, and be ready for use. Alternatively, standard network configuration allows access to the router via its default IP address.
KUMO Control Panel
The KUMO CP2 and KUMO CP are optional control panels that can be used in standalone or network configurations. They enable full control from any location without the need for a computer by connecting via Ethernet to the same network as the KUMO routers. Up to four KUMO routers can be controlled from a single control panel. The KUMO CP2 offers direct access to all 32 inputs and 32 outputs.
