AJA KONA-X-R0 12G-SDI and HDMI 2.0 Ultralow-Latency PCIe Card

Description

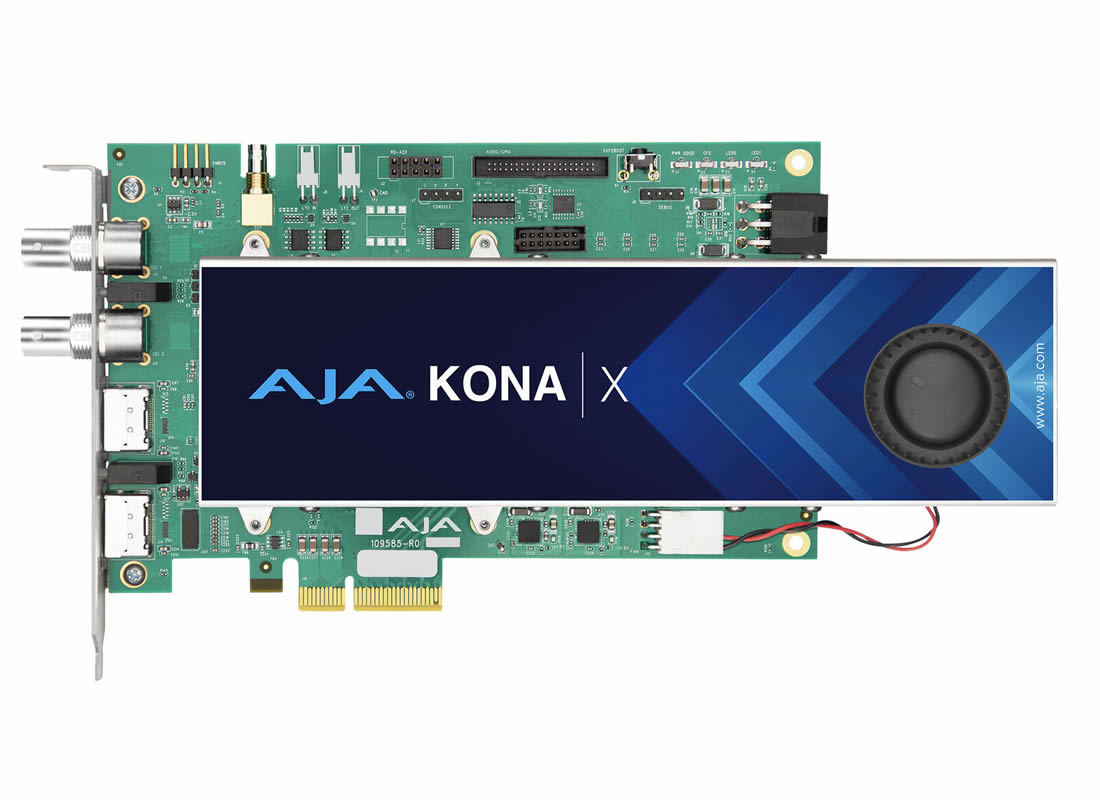

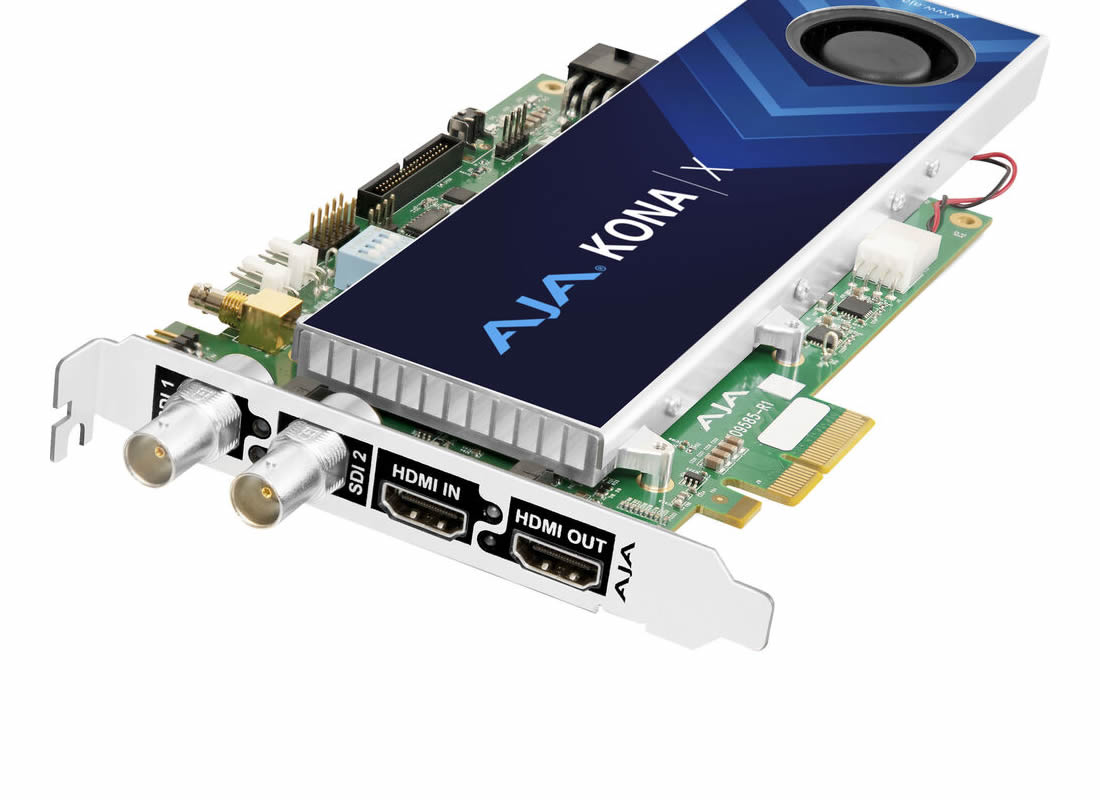

Add a powerful video I/O card to your AI, 4K HDR, or AR workflow with the KONA X 12G-SDI and HDMI 2.0 Ultralow-Latency PCIe Card from AJA. The PCIe card is compatible with the latest hardware such as the Apple Mac Pro and the latest Windows, Linux, and macOS operating systems, and can be used with a variety of NLE and VFX software such as Adobe Premiere Pro, Apple Final Cut Pro, Avid Media Composer as well as eSports, Sports, and virtual production packages. The card provides two bidirectional 12G-SDI ports, an HDMI 2.0 input, and an HDMI output that support up to 12-bit 4:4:4 color spaces and DCI 4K resolutions in a numerous video formats.

Key Features

4K/UltraHD/2K/HD/SD up to 50/60p

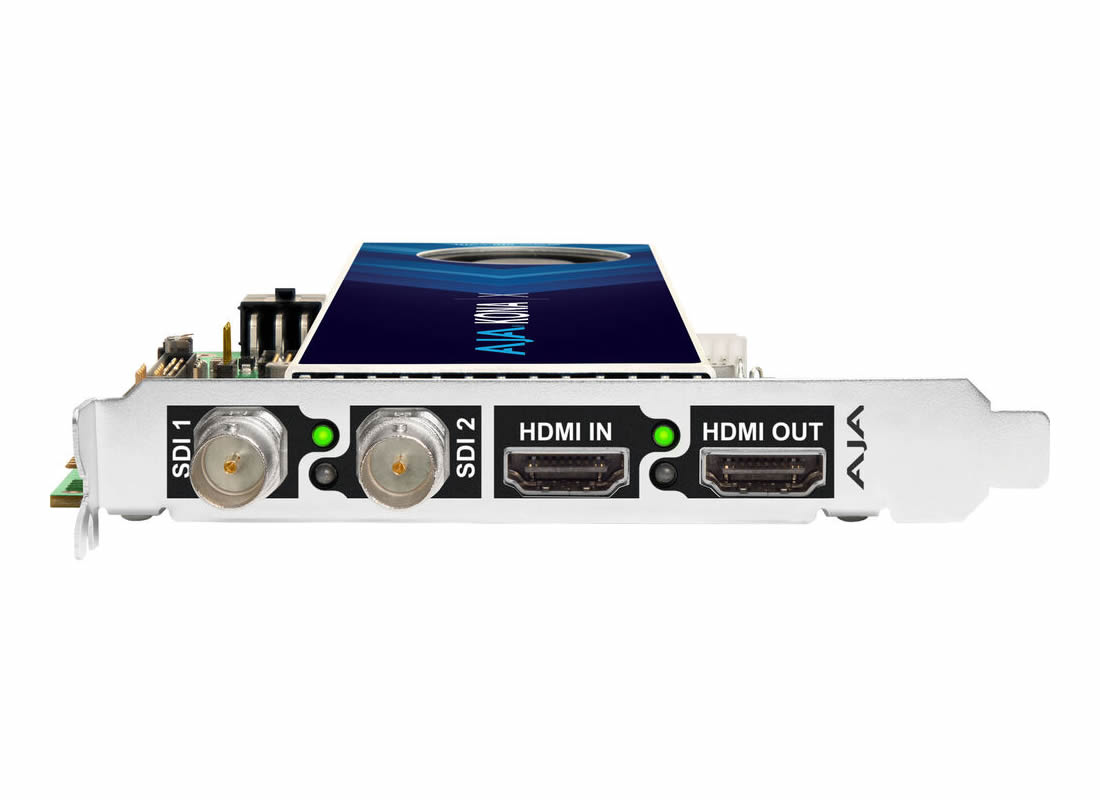

2 x bidirectional 12G-SDI with up to 16 channels of embedded audio
HDMI 2.0 input and output with up to 8 channels of embedded audio
RGB 4:4:4 12-bit (4K/UltraHD) workflows supported
YCbCr 4:2:2 10-bit and HFR workflows supported
VESA HDMI I/O compatibility: the video subsystem timing is agnostic, enabling capture and playback of a myriad of HDMI formats
Support for Apple Final Cut Pro, Adobe Premiere Pro, Avid Media Composer, and much more
Support for OEM applications with the AJA Developer SDK and In-Firmware microcontroller
4K Closed caption support
VPID signaling for SDR/HDR transfer characteristics, colorimetry and luminance via SDI
PQ, HLG, HDR10, HDR10+, and Dolby Vision Support
HDR metadata capture and auto playback detection
Includes support for the latest Apple silicon
Optional KONA Xpand board provides bi-level / tri-level video reference (BNC), LTC in/out, RS-422, 8 channels of AES/EBU audio (with included breakout cable) and 2 channels of analog audio in and out (via user supplied DB-15 to XLR cable)

Specifications

Weight	2.00 lbs
