Datavideo KMU-100C 4K HDMI/HD-SDI Multicamera Processor with Controller

Description

KMU-100C Kit includes: KMU-100 and RMC-185

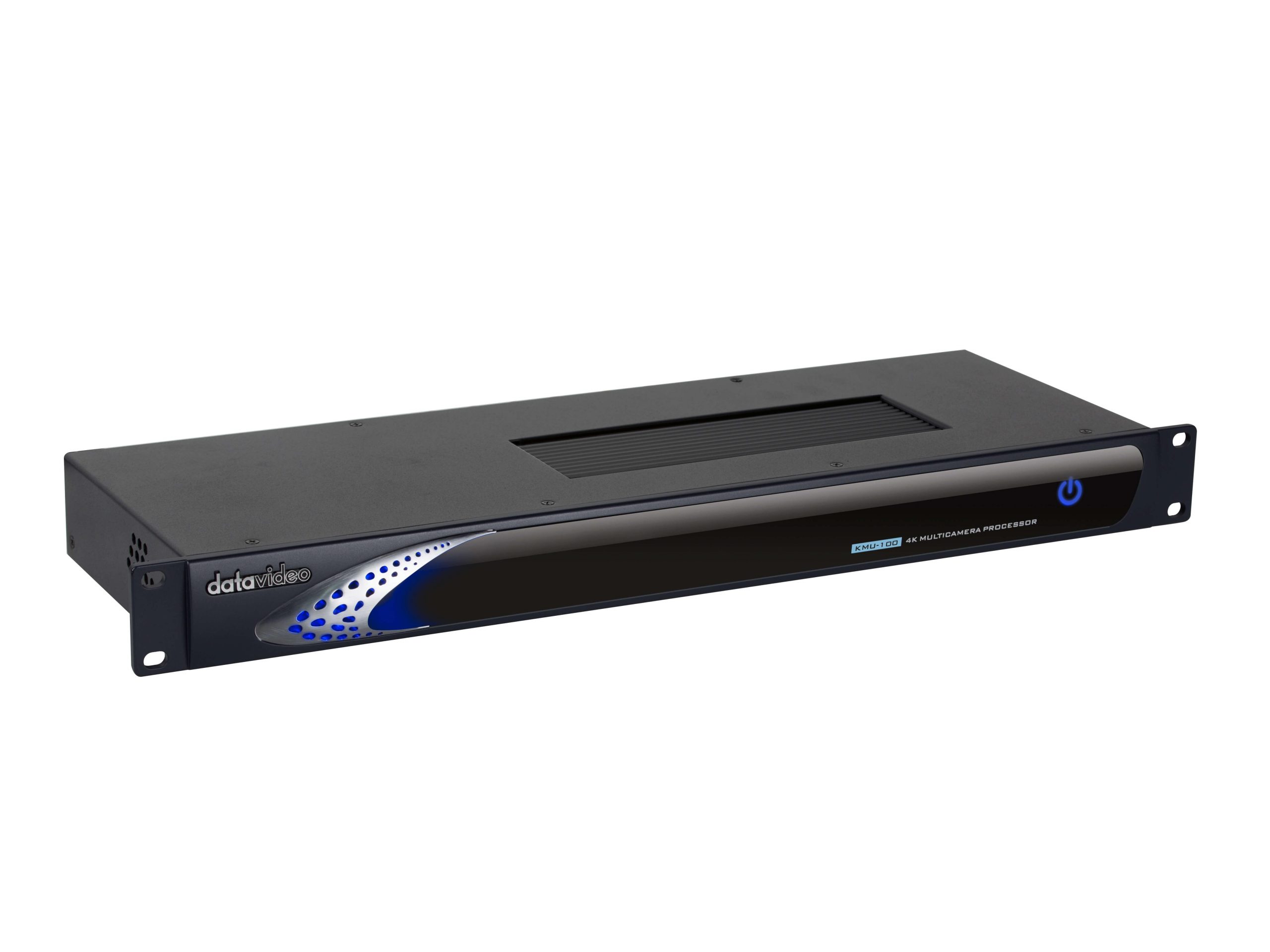

KMU-100

Datavideo’s all new KMU-100 is a unique 4K multi-camera production solution that delivers multiple virtual full HD (up to 1080p) scaled camera angles with minimal installation cost and simple operation. The basic concept is straightforward: The output of a single 4K/UHD camera is connected to KMU-100, which then displays up to four 16×9 user-defined cropped windows that are sent out as four separate HD signals through HD-SDI. These user defined windows can be scaled to zoom in on a particular subject that you would like to highlight on the 4K signal. As an option, the Datavideo RMC-185 controller can be added to easily pan, tilt, and zoom to create the user defined windows on the 4K signal. You can set up these shots in advance and save them as presets, or you can do it in real-time.

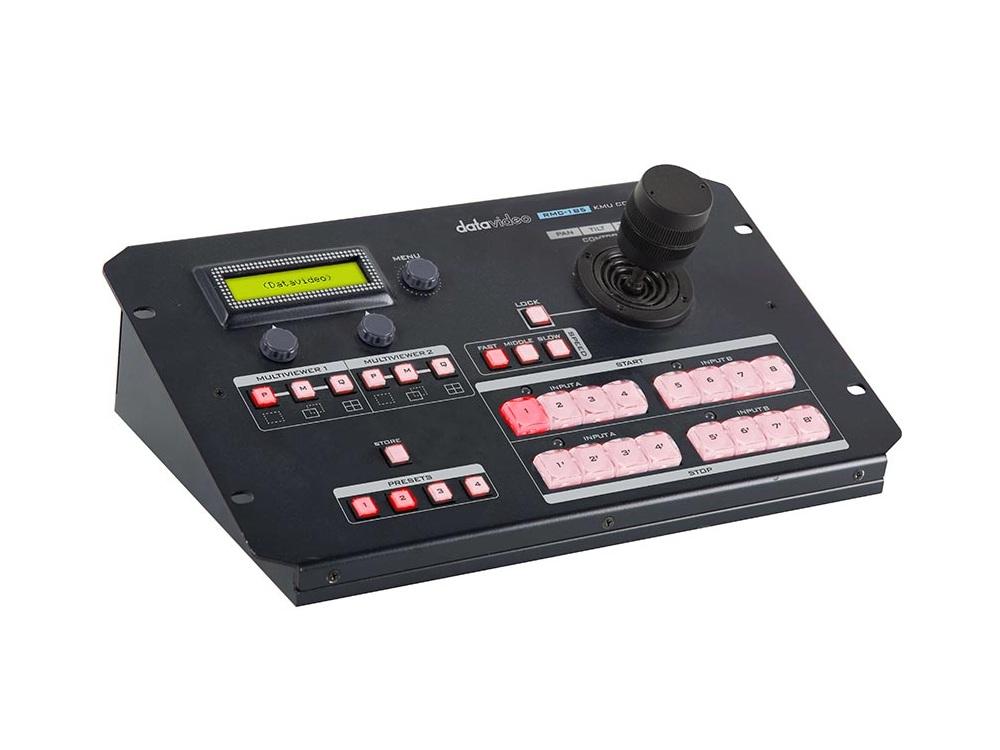

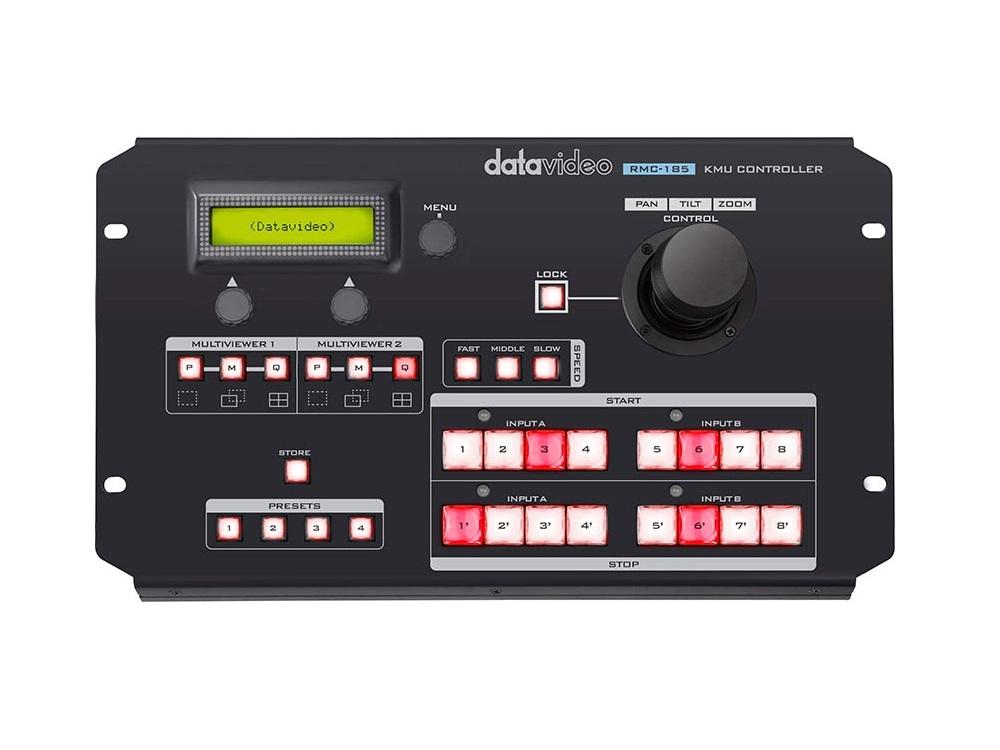

RMC-185

The RMC-185 is a cost effective physical controller designed specifically for control of the KMU series 4K Multi-Camera Processor.

The RMC-185 interfaces with the KMU-100 via an RS-422 interface. This dedicated controller allows operators to make smooth zoom and pan/tilt motions by using the joystick.

4 presets are available that hold scale, position, motion path and speed of all 4 individual 3Gb/s outputs, per channel. Buttons allow start/stop/reset of motion in a predefined speed of every individual output.

Features

Dedicated control surface for KMU-100
Provides easy and intuitive control of the KMU-100
Easily pan, tilt and zoom to create the user defined windows on the 4K signal
Switch between live and preview inputs
LCD display showing setup menu options
Three Multiviewer modes (Preview, A to B Motion and Quad)
Robust, rugged metal housing
Dimensions: 310 x 129.98 x 170mm
Weight: 1.5 Kg

Specifications

KMU-100

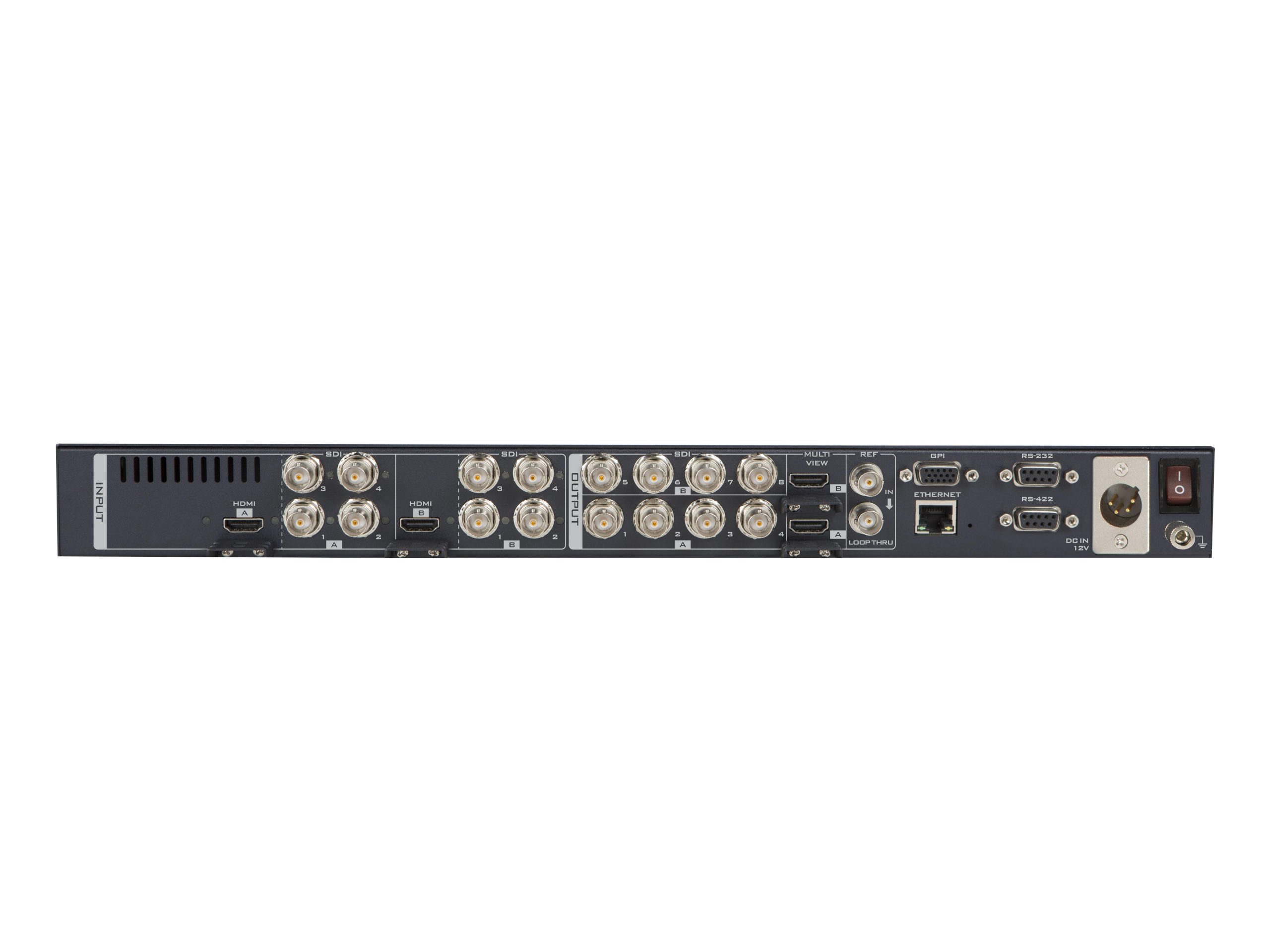

Connections
SDI Video Input	2 x (1) -10 bit HD, 3G levels A and B, 12G UHD switchable
SDI Video Input	6 x (2,3,4) - 10 bit HD, 3G levels A and B switchable; Usable as Quad SDI; 4x3G SDI input for UHD
HDMI Video Input	2x HDMI type A connector with support for 2160p60
SDI Video Output	8 x - 10 bit SD, HD, 3G levels A and B switchable
HDMI Multiviewer Video Output	2x HDMI type A connector with support for 1080p50/59.94/60
SDI Audio Input	16 channels in HD, 3G HD, and UHD
SDI Audio Output	16 channels in HD, 3G HD, and UHD
Multi Rate Support	SDI connections are switchable between standard definition, high definition and UltraHD
Sync Input (Genlock)	Blackburst or TriSync
Computer Interface	Ethernet RJ45 for control, configuration and updates RS-232 x 1 input for controlling configuration
Software
Software Control	A dedicated software control utility application for changing settings via Windows 7, Windows 8, and Windows 10 is included free of charge.
Power Requirements
Power Supply	Included external 12V / 5A power supply
Environmental Specifications
Operating Temperature	5° to 50 ° C (41° to 122° F)
Storage Temperature	-20° to 45°C (-4° to 113°F)
Relative Humidity	0% to 90% non-condensing
Processing - Two independent channels
Outputs Definition	Each channel has a definition of four rectangles indicating the way the input signal is divided into 4 different outputs. The content bordered by each frame window will be sent to a corresponding output.
Windows Animation	Animation is possible for every frame window. User selects the size and position of Start and Stop rectangles. Motion modes available: Single - Single movement from Start to Stop. Ping-Pong - Swing cyclical movement, i.e. Start- Stop, Stop-Start, Start-Stop and so on (pendulum swing motion). Loop - Cyclical movement, i.e. Start-Stop, Start-Stop and so on.
Multiview Output	Preview of the outputs: Preview - Four rectangles at their respective Start positions are visible on the live input. Motion preview - The Start, Current and Stop rectangles of the selected Frame tab are visible on the live input. Quad view - Preview of the content of four outputs.
Standards
SD Format	Support
1.5 Gb/s HD Format Support	720p50 720p59.94 1080p25 1080p29.97 1080i50 1080i59.94
3 Gb/s HD Format Support	1080pS0,1080p59.94 and 1080p60 levels A and B
Ultra HD Format Support	2160p25, 2160p29.97, 2160pS0, 2160p59.94
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, SMPTE2082-1
Audio Sampling	Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD
Video Sampling	4:2:2
Color Precision	10-bit
Color Space	REC 601, REC 709

RMC-185

RMC-185 KMU Controller
Firmware Upgrade	USB
Power	DC 12V 0.5A
Dimensions (W x H x D)	310 x 129.98 x 170 (mm)
Net Weight	1.5 Kg
Gross Weight	2.0 Kg
Operating Temperature	0°C to 50°C (32°F to 122°F)
Humidity	10% to 80%
