Sustainability is pivotal in modern business, with IT/OT convergence at the forefront of innovation. This union not only heightens competitiveness but also enhances responsiveness to market demands, particularly concerning data security and network uptime. With the rise of digitalization in industry, cybersecurity’s role in bolstering IT-OT synergy is crucial.
The DigiKVM™ – KG0016/KG0032 exemplifies this digital shift. This all-digital KVM over IP OmniBus Gateway champions digital transformation in spaces like server rooms and data centers. Through a secure portal, it offers centralized management and real-time remote server access. All transmissions from the linked KVM DigiProcessor are digitized and protected, ensuring fast, clear video monitoring with remarkable visual accuracy.
This all-digital KVM over IP solution is robust in security, versatile in OS compatibility, and provides a reliable method for remote IT access with out-of-band (OOBM) connection, especially when in-band connectivity is compromised. For geographically dispersed businesses, it allows IT to quickly reinstate services and minimize downtime.
ISO/IEC 27002:2022 Compliance & BIOS-Level Remote Security
The KVM over IP OmniBus Gateway offers a secure, hardware-based KVM solution with direct, hack-proof BIOS-level control. Unlike software tools such as VNC or RDP, it eliminates OS-level vulnerabilities and ensures compliance with ISO/IEC 27002:2022 Control 6.7 on Remote Working – safeguarding the confidentiality, integrity, and availability of sensitive data.

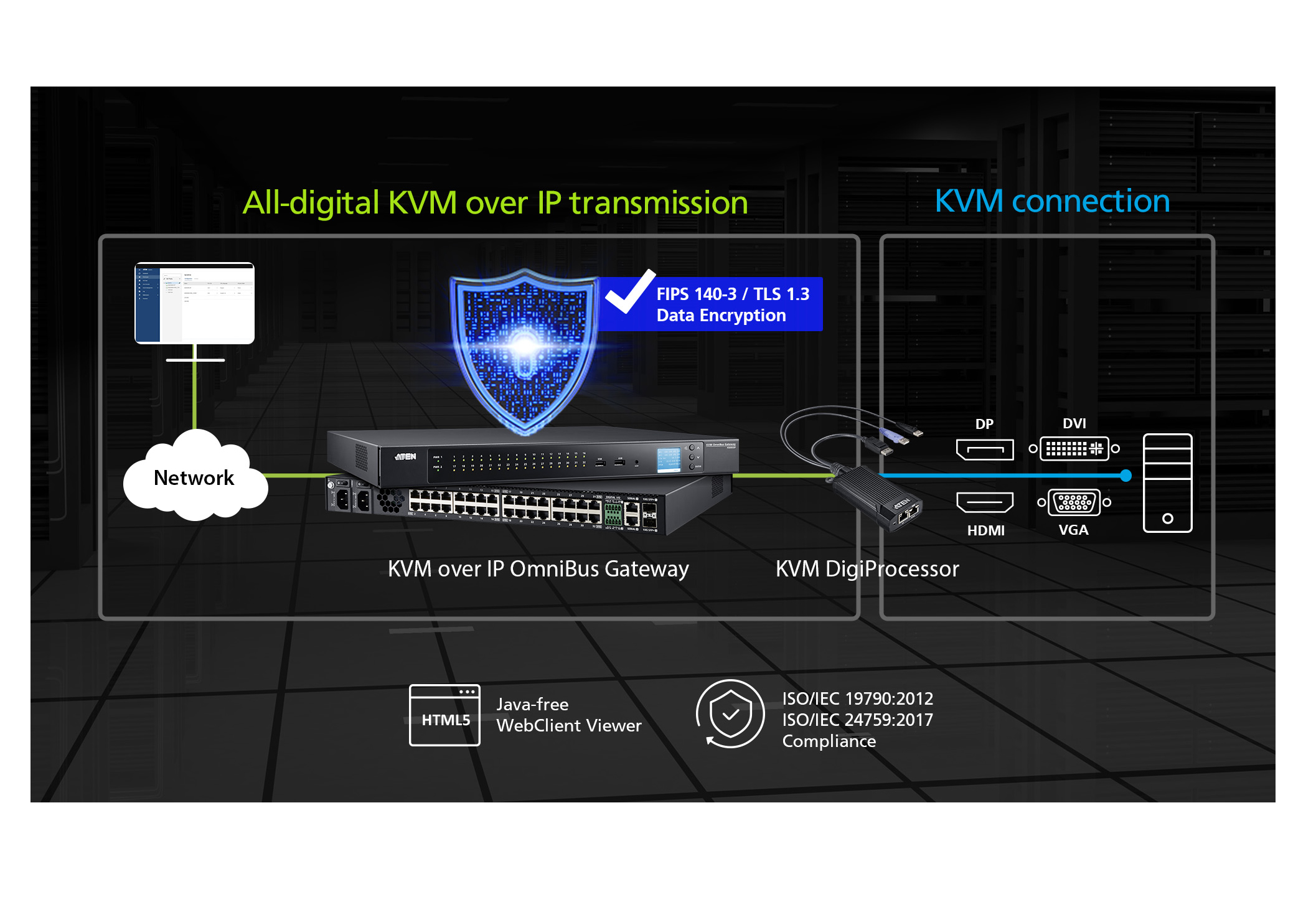

Industry-First FIPS 140-3 Secured All-Digital KVM over IP Transmission
Operating within a closed system, the OmniBus Gateway provides a single secure portal to centralize BIOS-level connections to PCs and servers – without requiring additional software installation. It is the industry’s first all-digital KVM over IP solution implementing FIPS 140-3 and TLS 1.3 encryption, securing all remote server access via a Java-free HTML5 WebClient or WinClient Viewer.
Real-time and Concurrent Remote Access

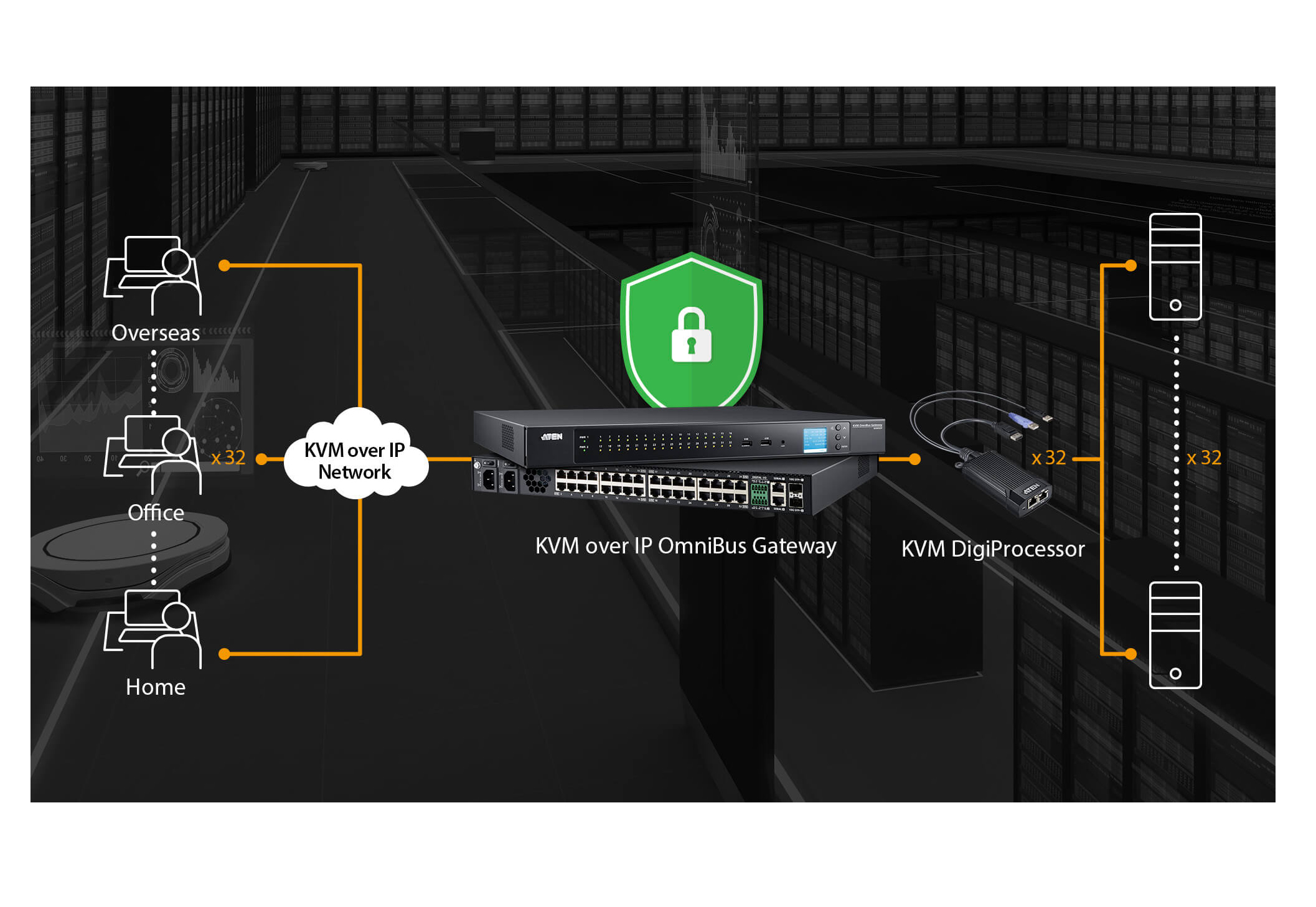

Supports up to 32 concurrent remote users accessing any connected servers from anywhere. Server connections can extend up to 100 m, delivering 4K visual clarity with smooth keyboard-video-mouse synchronization.
Accelerating Digitalization via Digital Twin Model
With the OmniBus Gateway and KVM DigiProcessor, production line equipment data can be monitored and processed in real time via a remote console. This minimizes the need to enter the production line or clean room, enabling digital twin implementation to optimize production processes.
Out-of-Band Management
With separate management and production networks, IT operators can perform troubleshooting and system maintenance via BIOS during production network downtime. This ensures end-to-end data and workflow security in contingencies.
Panel Array Mode™ Live+ for Multi-View Monitoring
Real-time monitoring is effortless with Panel Array Mode™ Live+. Dedicated server content is displayed in 24-bit true color at 3840 × 2160 @ 30Hz in a control-view window, while other servers appear in a flexible multi-view grid layout (up to 4×4 for KG0016 or 4×8 for KG0032). All video feeds are livestreamed smoothly for optimized situational awareness.
Virtual Media Support for Prompt Server Updates
Virtual Media allows mapping media to a remote server as though it were local, supporting firmware upgrades, diagnostic tests, file transfers, and software installations with high transfer rates (Read: 265 Mbps, Write: 188 Mbps), 10× faster than standard KVM over IP switches.
Superior Hardware Performance
The OmniBus Gateway features 4x server-grade smart fan modules for efficient airflow and system reliability, operating at <40 dBA when idle. Front panel pushbuttons allow for device configuration, troubleshooting, and system reboot while maintaining security.
Compact KVM DigiProcessor

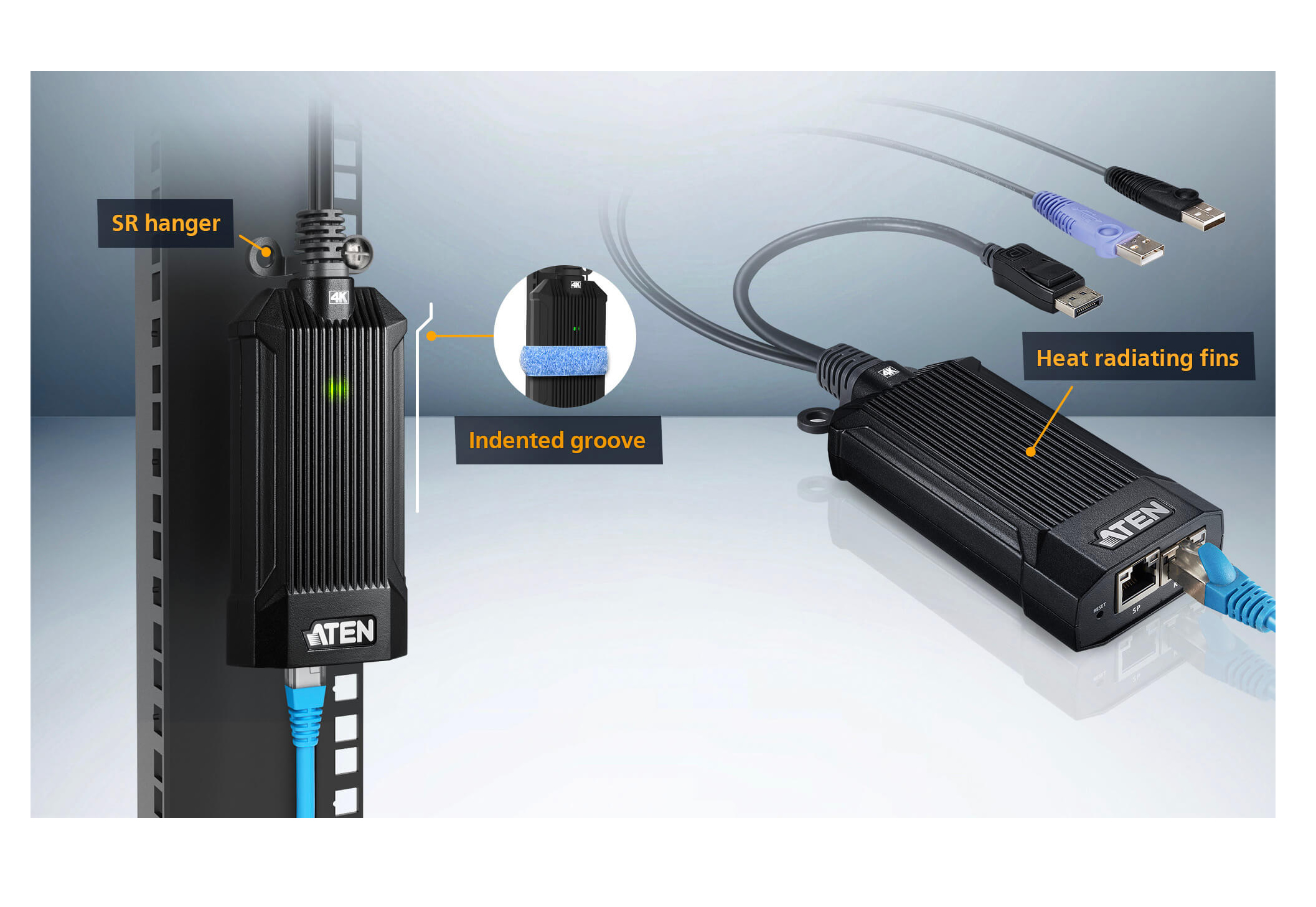

Available in VGA, DVI, HDMI, and DisplayPort versions, the KVM DigiProcessor is 25% lighter and ¼ the size of comparable devices. It includes anti-bending SR hangers and heat radiating fins for reliable, space-efficient in-rack installation.
Applications
- IT Infrastructure Management: BIOS-level access, high-speed virtual media, TLS 1.3 & FIPS 140-3 encryption, up to 32 concurrent remote users, real-time monitoring, Panel Array Mode Live+.
- Production Automation: Delay-free remote control, real-time monitoring of production equipment, Panel Array Mode Live+, high-speed virtual media read/write.
- Remote Monitoring & Control: Up to 32 concurrent remote users, livestreamed Panel Array Mode, virtual media transfers.
Features
- Superior video quality – supports resolutions up to 3840 × 2160 @ 30 Hz with 24-bit color depth
- Distortion-free dynamic video performance up to 100 m via a Cat 5e/6 cable
- Virtual Media supports fast transmission speeds up to Read: 265 Mbps / Write: 188 Mbps
- Space-saving – 0U compact design with SR mounting hanger for organized server rack installation
- Light-weight aluminum die-casting shroud – enhanced passive cooling with streamlining stripes for efficient heat radiation
- Bus-powered – no external power adapter required, ultra-low power consumption
- Firmware upgradable for long-term compatibility
- Smart Card / CAC reader support
- DisplayPort digital audio support
