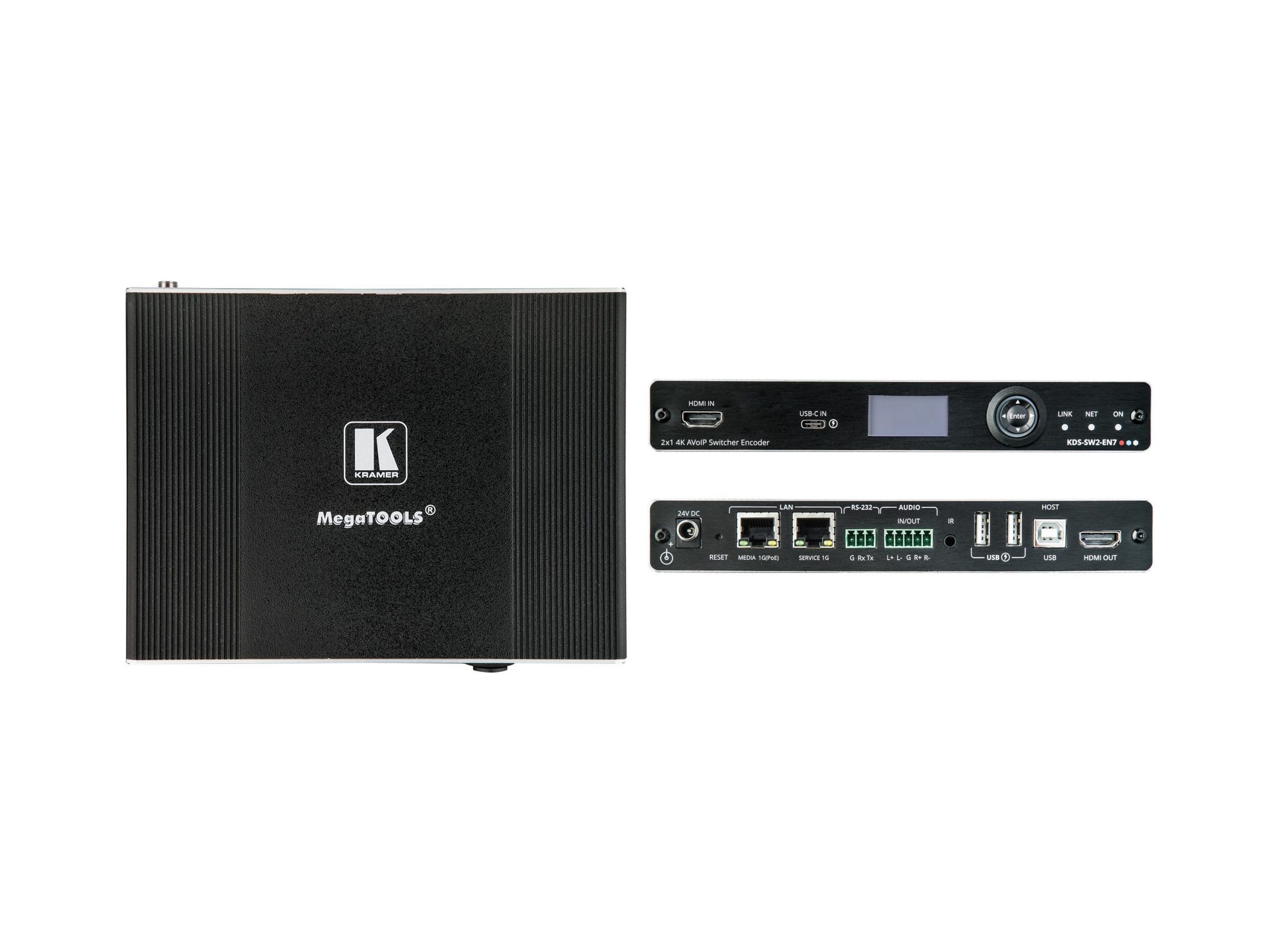

Kramer KDS-SW2-EN7 High-Performance/Highly-Scalable/AVoIP Auto-Switch Encoder over 1G Network

Description

KDS-SW2-EN7 auto-switch encoder with HDMI and USB-C inputs.

Features:

Outstanding end-user experience

2 HDMI and 1 USB-C with charging capabilities for laptop
Easy-to-use KM/KVM – Searchable OSD Menu for KM and fully configurable KVM roaming
Large scale video wall – up to 16×16
Instantaneous switching time – 1 second

Ideal for large-scale deployments

Highly scalable – 999 channels build in support
State of the art management device
Rich set of management capabilities – Standard P3K Open API , LCD screen for configuration

Robust security

Cost-effective from day one
Full product range for any site, any application
Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.

Simple planning and rollout

Cost-effective from day one
Full product range for any site, any application
Plug-and-play with Netgear M4250 AVoIP switches, Kramer Control, KDS-USB2, etc.

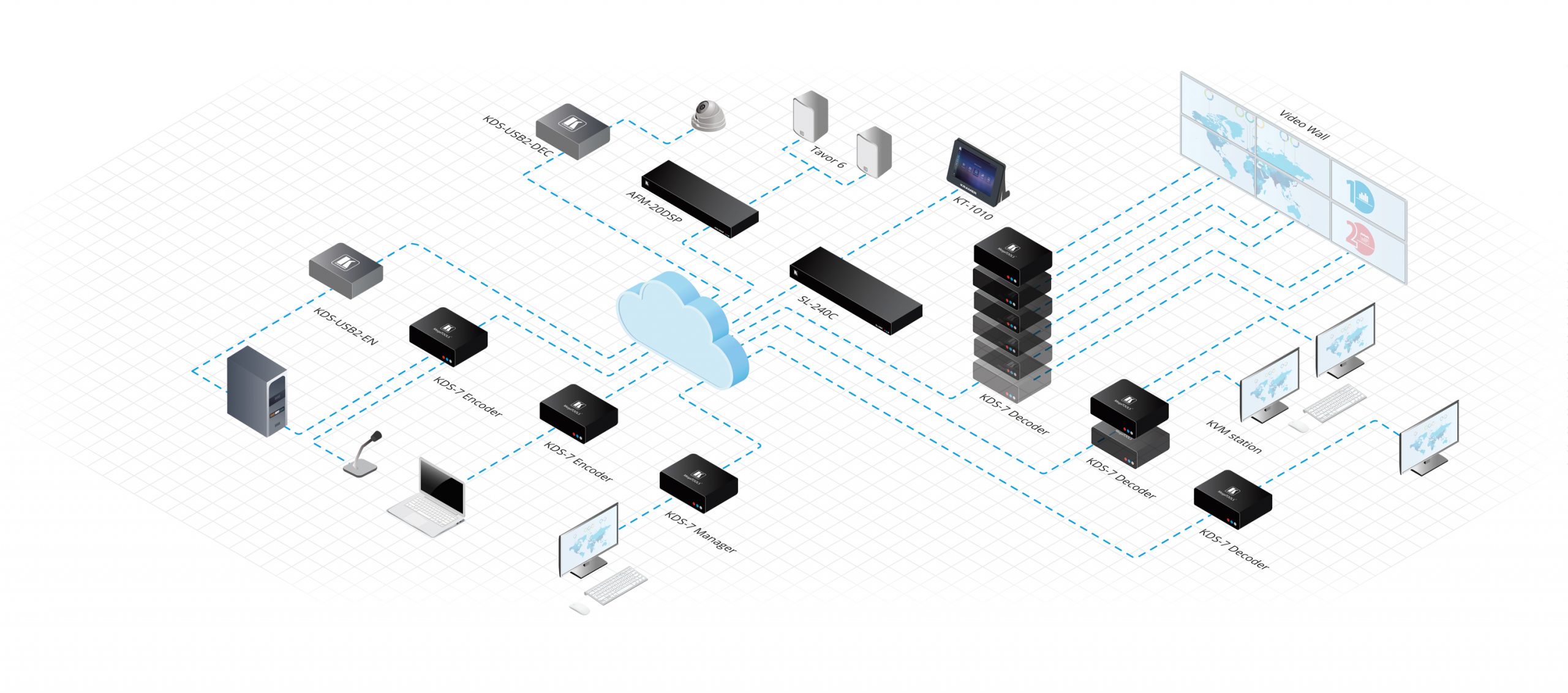

Product Diagrams

View Diagrams

Specifications

INPUTS

1 HDMI: On female HDMI connectors
1 USB-C: On a female USB-C connector

OUTPUTS

1 HDMI: On a female HDMI connector

PORTS

2 Ethernet: On R-J45 connectors
1 Balanced Audio: On a 5-pin terminal block connector
1 RS-232: On a 3-pin terminal block connector
1 IR: On a 3.5mm TRS connector
1 USB Host: On a USB-B connector
2 USB Device: On USB-A connectors

VIDEO

Compression Standard: JPEG based, private stream
Max Resolution: 4K60 4:2:0 or 4K30 4:4:4
HDR 10: Up to 4K30 4:2:2 12 bit

USER INTERFACE

Indicators: LINK, NET and ON LEDs, front panel LCD Display
Controls: Restart and factory reset rear panel button, embedded web pages, P3K API commands via Ethernet, front panel navigation buttons

POWER

Options: PoE on LAN(PoE) port
Consumption: 6W
24V DC

ENVIRONMENTAL CONDITIONS

Operating Temperature: 0 to + 45°C (32 to + 113 °F), 10% to 90%, non-condensing
Storage Temperature: -20 to +70°C (-4 to + 158 °F), 10% to 90%, non-condensing
Humidity: 10% to 90%, non-condensing

GENERAL

Product Dimensions: 18.9cm x 14.5cm x 2.76cm (7.4" x 5.7" x 1") W, D, H
Shipping Dimensions: 31.2cm x 17.9cm x 7.6cm (12.2" x 7.04" x 2.9") W, D, H
Product Weight: 0.67kg (1.4lbs) approx
Shipping Weight: 0.93kg (2.05lbs) approx
