Kramer KDS-EN6 4K/60 4x2x0 HDCP 2.2 Video Encoder

Description

The KDS−EN6 encoder provides streaming over an IP network that carries 4K@60Hz (4:2:0) video, audio, IR, RS−232, USB over IP with HDCP 2.2 in unicast (one−to−one) or multicast (many−to−many) configurations.

Features:

Video Support — HDMI 4K@60Hz (4:2:0).
Audio Support — HDMI/line in, 7.1 PCM, Dolby True–HD, and DTS–HD Master audio.
Virtualization — IR, USB, RS–232 over IP.
Network — Switch 1G multicast IGMP snooping managed layer 2.
Power — PoE or external power supply.
Control — Kramer Network, Web UI, API.
HDCP — 2.2 compliance.
Video Effects — Video wall.

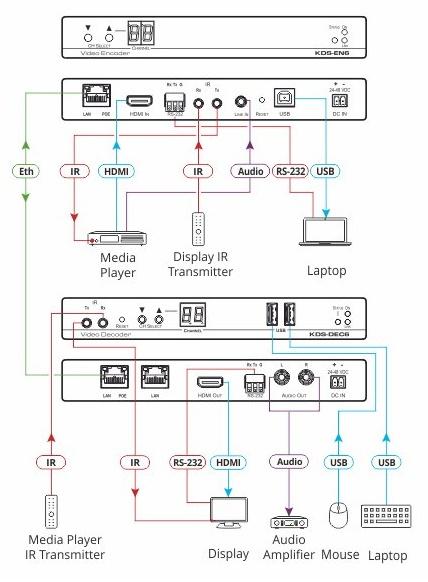

Product Diagrams

View Diagrams

Specifications

INPUTS

1 HDMI connector, 1 unbalanced stereo audio on a 3.5mm mini jack (line in), 1 RS–232 on terminal block connectors, 1 USB (type B) port, 1 IR on 3.5mm mini jack (Rx)

OUTPUTS

1 Ethernet (LAN/PoE) on an RJ–45 connector, 1 IR on 3.5mm mini jack (Tx)

NETWORK

10M/100M/1000M

NETWORK SWITCH

1G multicast, IMGP snooping non–blocking, Layer 2

STREAMING

Unicast and multicast through RTSP (Real Time Streaming Protocol)

CONTROLS

Reset button, up and down channel buttons, channel 7–segment display, STATUS, LINK and ON LEDs

Wide–band 20kHz to 60kHz bidirectional IR transmission

MANAGEMENT

API, Kramer Control, Kramer AV services (powered by Kramer Network)

VIDEO ENCODING/DECODING

Compression standard MJPEG

HDCP

HDCP 2.2

SCALING AND CROPPING

Built in scaling and cropping for flexible display of source content on the decoder output

BIT RATES

Peak: 850Mbps, 4K average: 350Mbps, 1080p average: 250Mbps

RESOLUTION

4096x2160@60Hz, 3840x2160@60Hz, 1920×1200@60Hz, 1920×1080@60Hz, 1864x1050@60Hz, 1856x1392@60Hz, 1792x1344@60Hz, 1728x1080@60Hz, 1704x960@60Hz, 1680×1050@60Hz, 1600×1200@60Hz, 1600x1050@60Hz, 1600×900@60Hz, 1536x960@60Hz, 1440×900@60Hz, 1440x576@60Hz, 1440x480@60Hz, 1400×1050@60Hz, 1366x768@60Hz,1360×768@60Hz, 1280×1024@60Hz, 1280×960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1280×720@60Hz,1224x768@60Hz, 1152x864@60Hz, 1152x720@60Hz, 1024×768@60Hz, 1064x600@60Hz, 1024x384@60Hz, 960x600@60Hz, 848x480@60Hz, 800×600@60Hz, 768x480@60Hz, 720×576@60Hz, 720×480@60Hz, and 640×480@60Hz, 640x400@60Hz, 640x350@60Hz

AUDIO ENCODING/DECODING

Compression standard (analog in/out): AAC–LC

CHANNELS (HDMI EMBEDDED AUDIO)

PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, Dolby Digital True–HD,DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS–HD Master Audio

POWER OPTIONS

PoE, external PS

POWER CONSUMPTION

48V DC, 280mA max

OPERATING TEMPERATURE

0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

–40° to +70°C (–40° to 158°F)

HUMIDITY

10% to 90%, RHL non–condensing

OPTIONS

IR cable (PN: 3500–900617), external DC power supply (PN: 100–800070)

PRODUCT DIMENSION

19.00cm x 10.30cm x 2.30cm (7.48" x 4.06" x 0.91" ) W, D, H

PRODUCT WEIGHT

0.6kg (1.2lbs) approx

SHIPPING DIMENSION

34.50cm x 16.50cm x 5.20cm (13.58" x 6.50" x 2.05" ) W, D, H

SHIPPING WEIGHT

0.8kg (1.7lbs) approx
