Key Digital KD-XUSB2 USB2.0 over CAT5e/6 50m Extender (Transmitter/Receiver) Kit

Description

KD-XUSB2 is a USB 2.0 transmitter + receiver extender kit that has been optimized for use with high bandwidth USB1.1 -2.0 devices, making it ideal in conference rooms and classrooms as well as in business offices and connected homes. KD-XUSB2 enables host laptops, computers, smart TVs or appliances to connect with devices such as web cams, keyboard and mouse, hard drives, printers and scanners, USB microphones, touchscreen displays, conferencing DSPs, and more. KD-XUSB2 extends USB signals up to 50m / 164ft via single CAT5e/6 cable, and only the transmitter needs a power connection. The transmitter features one USB-B connection and the receiver has two USB-A ports which may also connect to a USB hub for up to 15 supported devices.

Features

Signal Extension: Extends USB signals up to 50m / 164ft using CAT5e/6 cable
Data transfer rate: Supports Low, Full, and High data transfer speeds up to 480Mbps
Power Over CAT (PoC): Rx unit powered by Tx
USB Power to device: Rx unit may provide 5V 500mA powering to connected device
Backward Compatible: Supports USB versions 1.1 thru 2.0
Installation: Compact size with L bracket chassis, ideal for mounting at tables, desks, or walls
Hub Compatible: Supports up to 15 connect USB devices with USB hub connected to Rx unit
No software required: Effortless use on Windows, Mac, and Linux machines

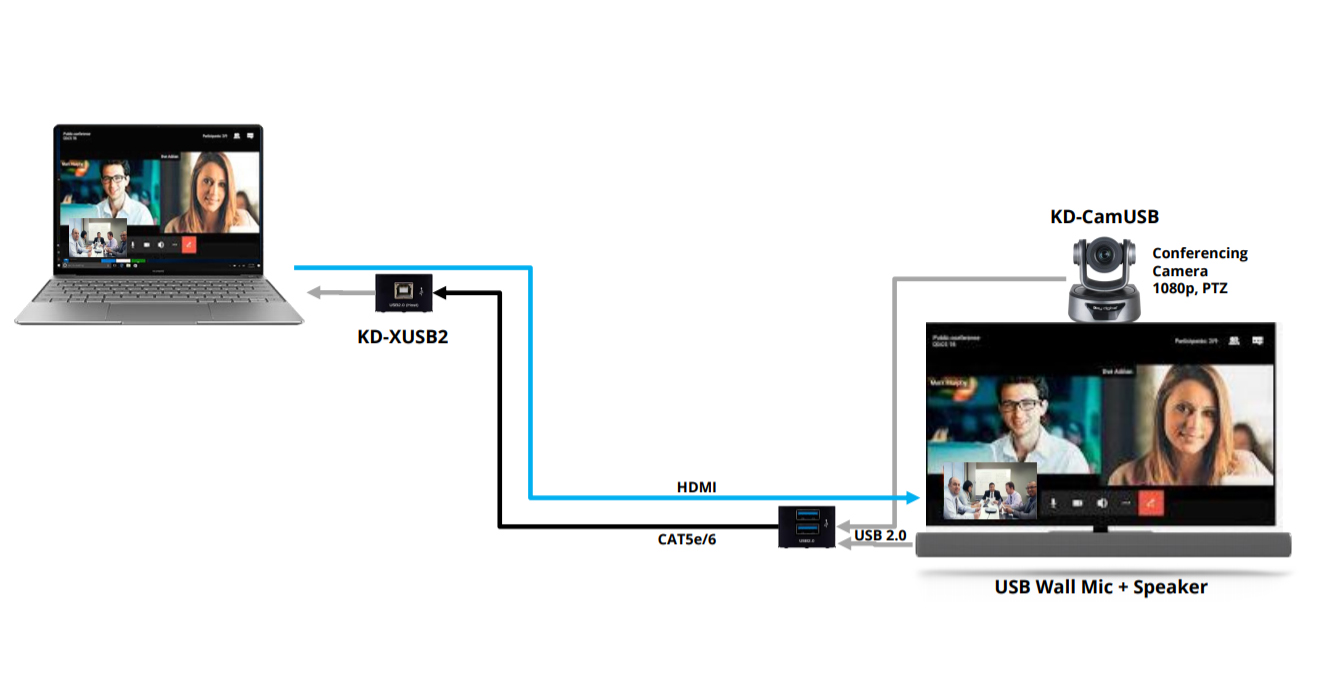

Product Diagrams

View Diagrams

Specifications

Technical:

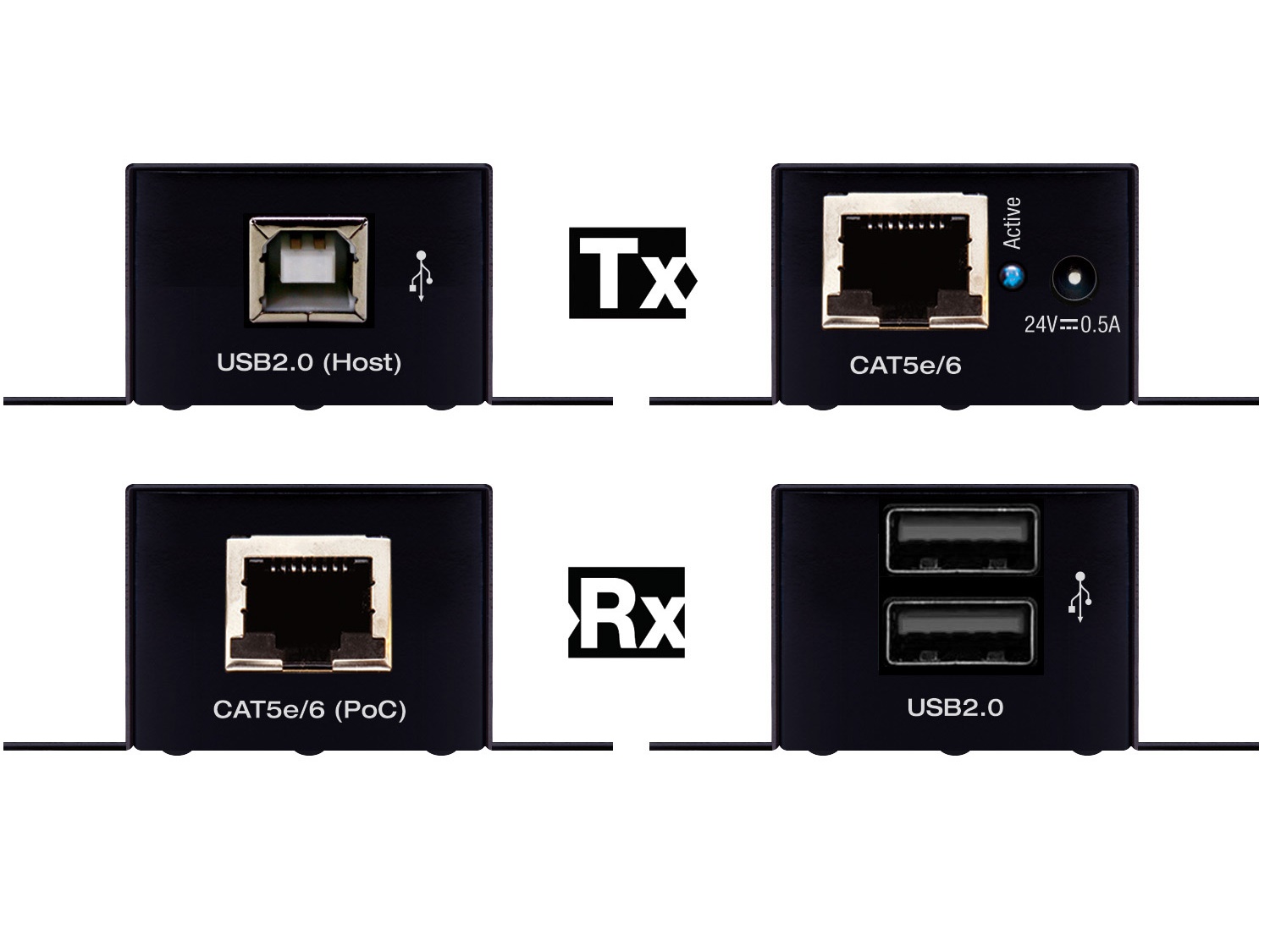

Inputs Tx (Each): 1 USB-B
Outputs Tx (Each): 1 CAT5e/6
Inputs Rx (Each): 1 CAT5e/6
Outputs Rx (Each): 2 USB-A

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Black Metal
Product (Tx): 2.6 x 2.37 x 0.93” (67 x 60.2 x 23.7mm), Weight: 0.3 lbs
Product (Rx): 2.6 x 2.37 x 1.1” (67 x 60.2 x 26.1mm), Weight: 0.3 lbs
Packaging: 9 x 7.8 x 2.5” (230 x 198 x 63mm), Weight: 1 lbs
