Key Digital KD-Pro4x1X-2 4 Input Pro Series HDMI Auto Switcher with Web UI

Description

Key Digital® KD-Pro4x1X-2 is a 4K/18G HDMI switcher with analog and digital audio de-embedding, auto switching, and app-ready controllability. Designed for professional audio video installations in conference rooms, huddle spaces, classrooms, theater and gaming spaces, it enables multiple video sources to connect to a single video display. Analog (3.5mm & balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected source into and amplifier, DSP, or sound bar. Integrating KD-Pro4x1X-2 with KD-AMP220 will enable an app-ready all-in-one solution for control of video switching with sound and speech enforcement. KD-Pro4x1X-2 supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-Pro4x1X-2 can also be controlled via trigger voltage and features status-monitoring LEDs.

Features:

HDMI Switching: 4 HDMI sources to 1 HDMI output/display
Ultra HD/4K: Supports up to 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
Audio De-embedding®: Audio of the selected HDMI input is de-embedded at the analog (3.5mm stereo & L/R balanced/unbalanced) and digital (optical & PCM) connectors
Key Digital® App Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App
KD-AMP220 Control Mode: Command forward to KD-AMP220 for an all-in-one user-friendly control UI of video switching, audio and speech enforcement
PTZ USB Camera Integration: Add KD-CAMUSB for full PTZ control via KD-App. Use with KD-XUSB2 extender for USB signal extension over CAT5e/6
Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
CEC Pass-thru: From connected display to selected HDMI source

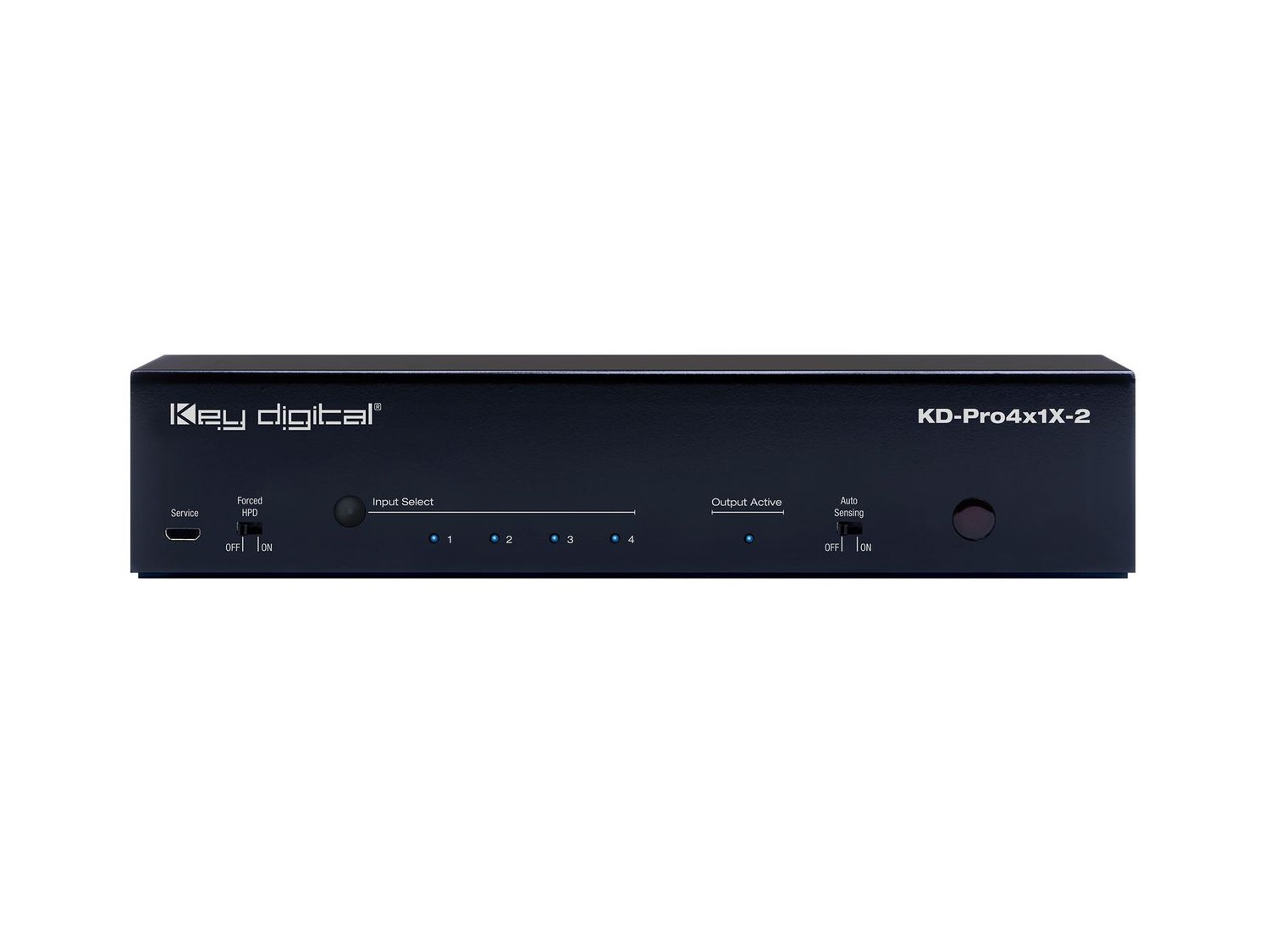

Control: Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable with web UI and KD-App ready

Specifications

Technical:

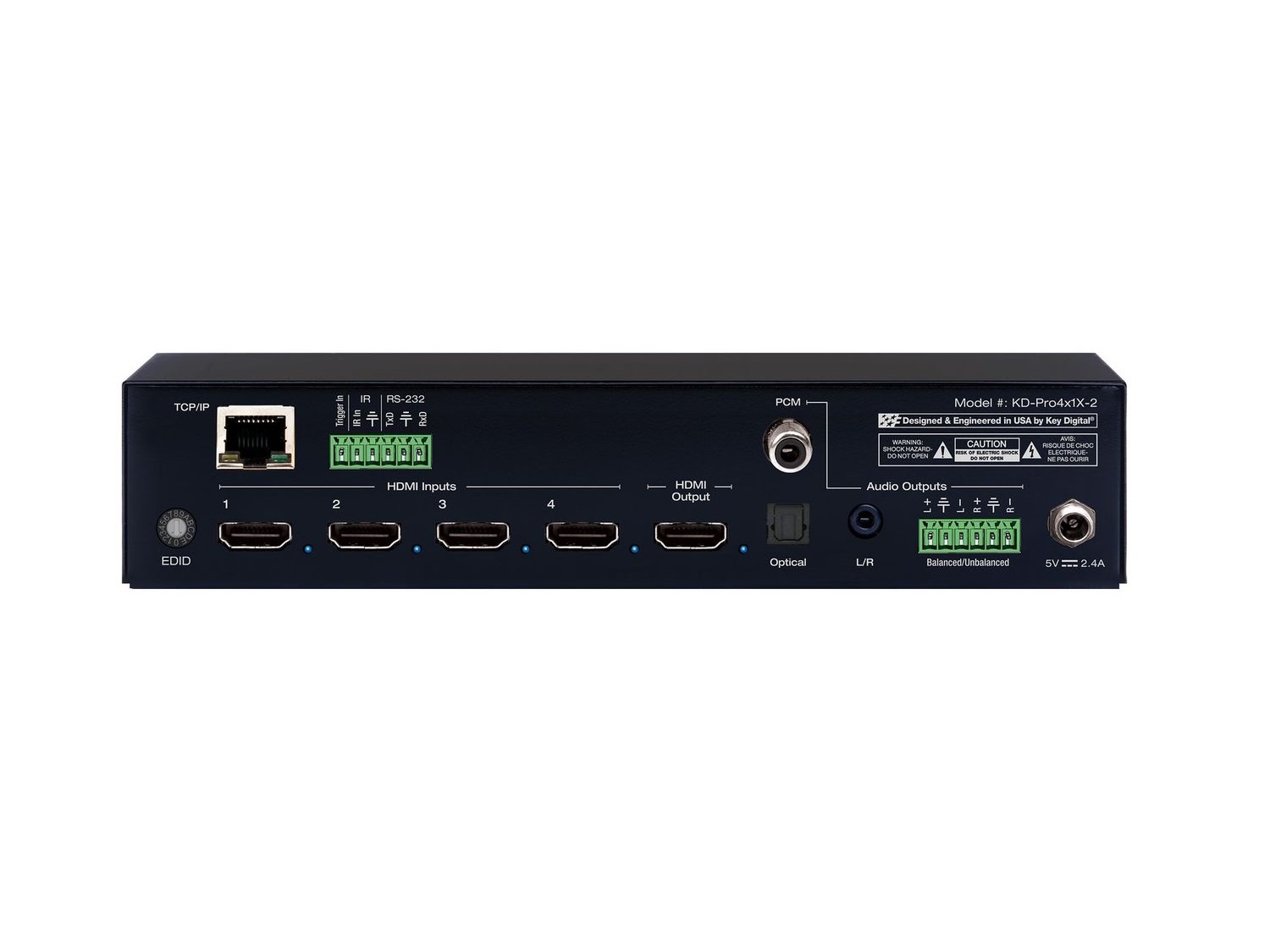

HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female
HDMI Output: HDMI Connector, Type A, 19 Pin Female
HDMI Bandwidth: TMDS bandwidth 18Gbps
DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
3.5mm Stereo Audio Output: Line level audio on TRS connector. Drives 1 VRMS line audio output with a sampling rate of 192KHz
Balanced/unbalanced Audio Output: Line level audio on 6-pin terminal block. Drives 2VRMS line audio output with a sampling rate of 192KHz
Digital PCM Audio Output: RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
Digital Optical Audio Output: TOSlink optical female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 96KHz
PCM Max Output Level: 1Vpp on 75Ω, DC coupling
Audio Bandwidth: 20Hz to 20kHz @ 0dBu
TND + Noise: 0.33% @0dBu @ 1kHz
Wired IR: modulated IR signal input, 0-5V TTL or -10 to +10V
Power Supply: KD-PS12W5VC 5V/2.4A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector

General:

Regulation: CE, RoHS, WEEE, EAC
Enclosure: Black Meta
Product Dimensions: 8.25” x 4.0” x 1.7” (210.82 x 101.9 x 43.96mm)
Packaging Dimensions: 10.75” x 8.9” x 2.2” (275 x 225 x 55mm)
Product Weight: 0.9 lb
Shipping Weight: 2 lb
