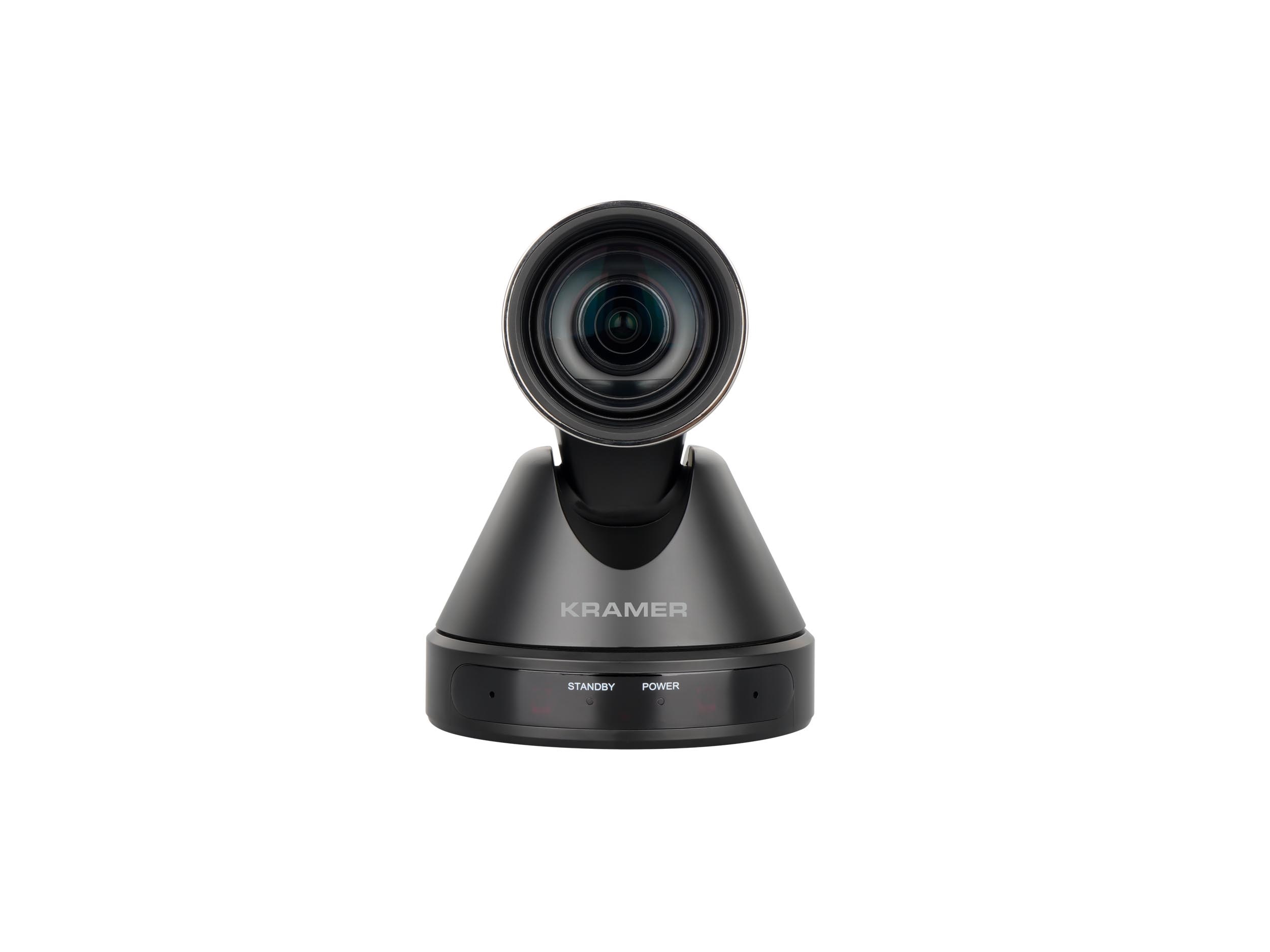

Kramer K-CAMHD 1080p PTZ Camera HD 1080p Pro PTZ Camera with 12x Optical Zoom

SKU: K-CAMHD
Brand: Kramer
$712.00
Brand Kramer
SKU K-CAMHD
Weight 6.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

Professional HD camera for versatile video capture

Get a clear view of all meeting attendees, with special attention wherever it’s needed. This 1080p PTZ camera is equipped with high-power optical and digital zooms, ideal for zooming-in on specific participants in mid-sized and large video conferencing spaces. Silent PTZ movement and simple control let you capture only what you want, when you want it.

Features:

Versatile, high-quality video

  • Wide-angle image capture with advanced PTZ control provides complete coverage of medium and large spaces, such as boardrooms, classrooms and auditoriums
  • Outstanding image detail, with 1080p resolution, 12x optical zoom plus 16x digital zoom, and intelligent color optimization
  • Clear image quality even in low light, with 2D and 3D digital noise reduction (DNR) and wide dynamic reduction (WDR)
  • Easy, instant jumping between whiteboards and speakers, with a choice of 255 pre-set views

Simple deployment and operation

  • Plug and play connection with a USB cable
  • All operation, including pan, tile and zoom, are easily controlled from any Kramer control interface
  • Works with other meeting devices via IR and RS232 communication, enabling continued use of existing AV infrastructure

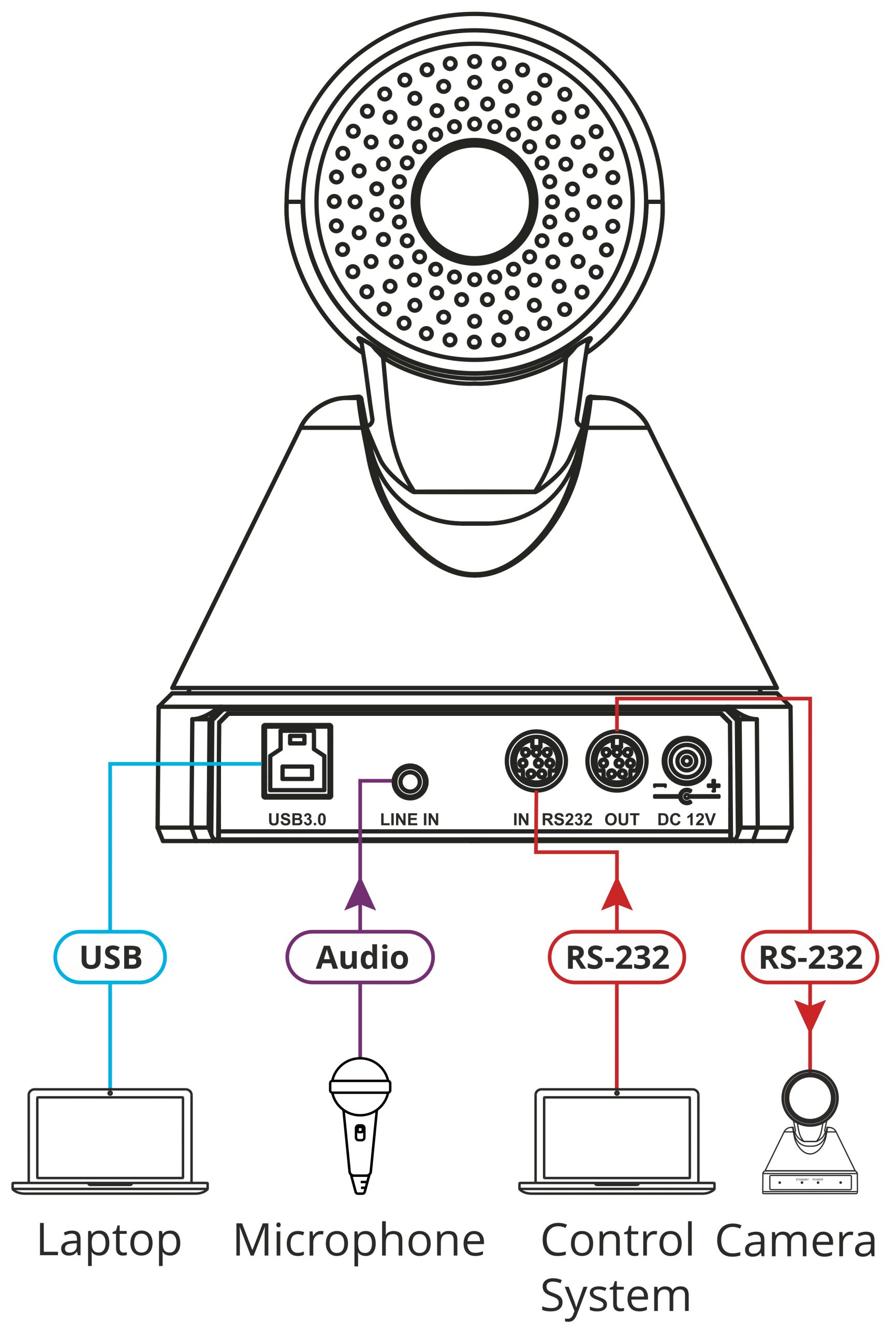

Product Diagrams

View Diagrams

Specifications

PORTS

  • USB 3.0: On a USB type B connector
  • RS-232 IN: : On a VISCA connector
  • RS-232 OUT: On a VISCA connector

CAMERA

  • Pixel: 207M
  • Video System: 1080P, 720P, 540P, 480P, 360P, 240P etc
  • Sensor: 1/2.7inch, CMOS
  • Scanning Mode: Progressive
  • Lens: 12x, f3.5mm~42.3mm, F1.8 ~ F2.8
  • Digital Zoom: 16x
  • Minimal Illumination: 0.5 Lux @ (F1.8, AGC ON)
  • Shutter: 1/30s~1/10000s°
  • White Balance: Auto, Indoor, Outdoor, One Push, Manual, VAR(2500K~8000K)
  • Backlight Compensation: Support
  • Digital Noise Reduction: 2D&3D Digital Noise Reduction
  • Video S/N: ≥55dB
  • Horizontal Angle of View: 72.5°~ 6.9°
  • Vertical Angle of View: 44.8°~ 3.9°
  • Horizontal Rotation Range: ±170
  • Vertical Angle of View: 44.8°~ 3.9°
  • Horizontal Rotation Range: ±170
  • Vertical Rotation Range: -30°~ +30
  • Pan Speed Range: 1.7°~ 100°/s
  • Tilt Speed Range: 0.7°~ 28°/s
  • H & V Flip: Support
  • Image Freeze: Support
  • Number of Presets: 255
  • Preset Accuracy: 0.1°

VIDEO FORMAT

  • YUY2 (BULK): Up to 1080P@30fps
  • YUY2 (ISOC): Up to 1080P@30fps
  • H.264 AVC: Up to 1080P@30fps
  • H.264 SVC: Up to 1080P@15fps
  • MJPEG: Up to 1080P@28fps

USB FEATURES

  • Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android
  • Color System / Compression: YUV 4:2:2 / H.264 / MJPEG

CONTROLS

  • IR Remote Control Transmitter: OSD
  • PC: Embedded web pages

POWER

  • Source: 12V DC, 2A max
  • Consumption: 12V DC, 800mA max

ENVIRONMENTAL CONDITIONS

  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: -20° to +60°C (-4° to 140°F)
  • Humidity: 10% to 90%, RHL non-condensing
  • Altitude: Below 5000 meters
  • Altitude: Below 5000 meters

REGULATORY COMPLIANCE (STANDARDS COMPLIANCE)

  • Safety: CE, FCC
  • Environmental: RoHs, WEEE
  • Safety: CE, FCC
  • Environmental: RoHs, WEEE

ENCLOSURE

  • Type: Aluminum
  • Type: Aluminum

GENERAL

  • Net Dimensions (W, D, H): 14.5cm x 9.8cm x 15cm (5.8" x 3.8" x 5.9")
  • Shipping Dimensions (W, D, H): 23cm x 23cm x 25cm (9" x 9" x 9.8")
  • Net Weight: 0.94kg (2.1lbs) approx
  • Shipping Weight: 2.61kg (5.7lbs) approx

ACCESSORIES

  • Included: Power adapter and cord, 1 USB-C cable, remote controller, wall bracket, screws set, lens cover

PRODUCT DIMENSIONS

  • 14.50cm x 9.80cm x 15.00cm (5.71" x 3.86" x 5.91" ) W, D, H

PRODUCT WEIGHT

  • 0.9kg (2.1lbs) approx.

SHIPPING DIMENSIONS

  • 23.00cm x 23.00cm x 25.00cm (9.06" x 9.06" x 9.84" ) W, D, H

SHIPPING WEIGHT

  • 2.6kg (5.8lbs) approx.
