Description
The IPX-TC3A provides one of the most advanced IP Streaming solutions on the market utilizing SDVoE technology. It is the industry’s first 4K2K transceiver with zero compression (4K60 4:2:0, 4K30 4:4:4), lossless compression (4K60 4:4:4), and zero frame latency based on BlueRiver NT+ platform. Using a transmitter (encoder) and receiver (decoder), respectively, used to be the standard – until now. The IPX can be set up as either one to make installation, inventory, and troubleshooting easier. Another industry first is the option slot to add other IP capabilities, like ExtremeUSB® (USB 2.0 over IP) or Dante® audio, for a more complete, distributed system.

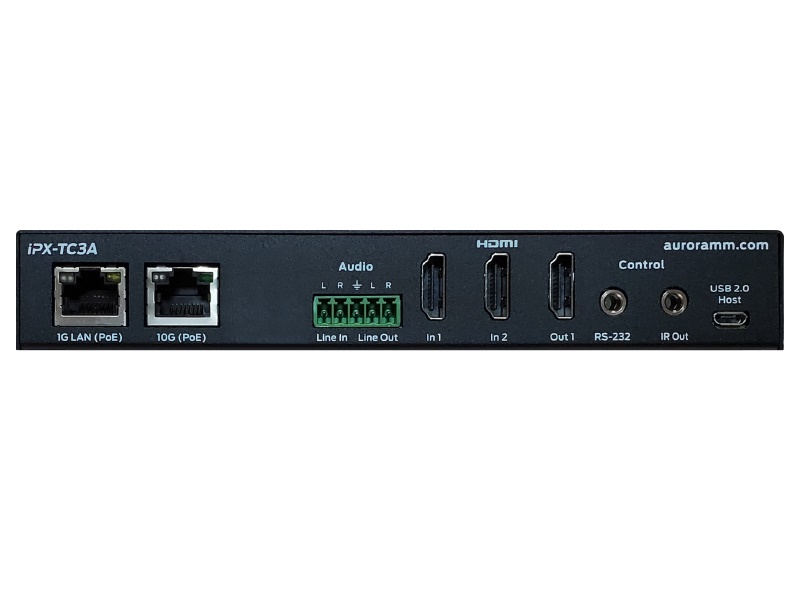

Audio, video, data, and control can be sent securely to one or many units using off-the-shelf 10G Ethernet switches. When the IPX is set up to be a transmitter, the 2 HDMI inputs become a source switch and the HDMI output becomes a potential loop out. When set up as a receiver, a user can select the local HDMI inputs or an IP source. Regardless of how the IPX is set up, the audio can be de-embedded at any location, break away, and/or be sent to or received from a Dante® enabled device. The USB 2.0 option is also flexible, working as a KVM and/or a high-speed data transfer (480Mbps) for memory sticks. Each IPX USB feature can also be set as a host or a device. To keep the system friendly, a customizable OSD and web server are available to be programmed as required. For RJ-45 LAN devices, the 1G Ethernet port allows full bandwidth end-to-end over the IPX 10G port.
Note: The selected network switch needs to support: 10Gbps, Non-blocking IGMP.
Power Supply NOT included, please order separately.
Features:
- Configure as Transmitter (Encoder) or Receiver (Decoder)
- 4K60 4:4:4 Over 10G Fiber or Copper
- Zero Compression/Frame Latency (22us) for 4K60 4:2:0 and below
- 1.3:1 Lossless Compression and Zero Frame Latency (100us) for 4K60 4:4:4
- Secure Content Encryption
- 128×128 Capable with HDCP, Larger for Non-Encrypted Sources
- Break-away Switching
- Audio DSP

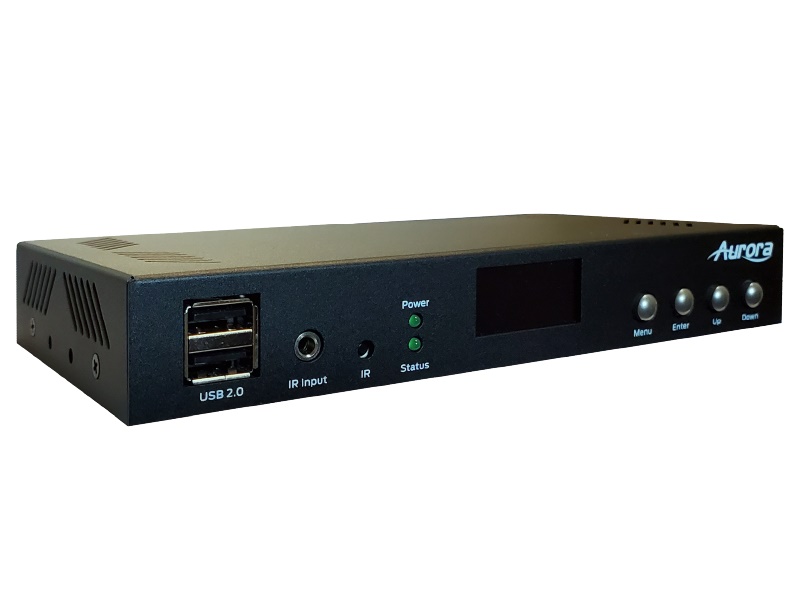

- Front Keypad with OLED Display
- Wall Plate Versions also available in white or black
