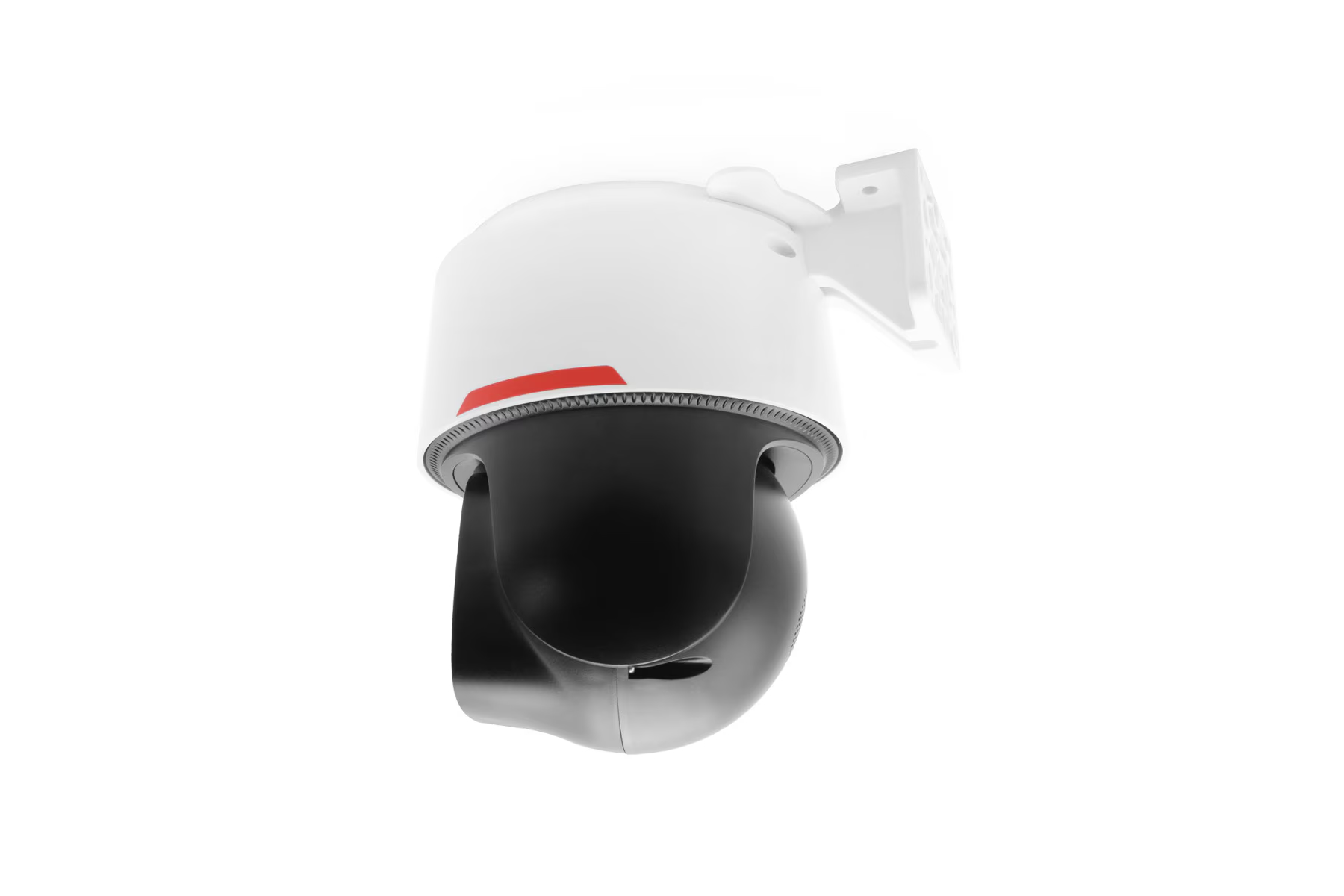

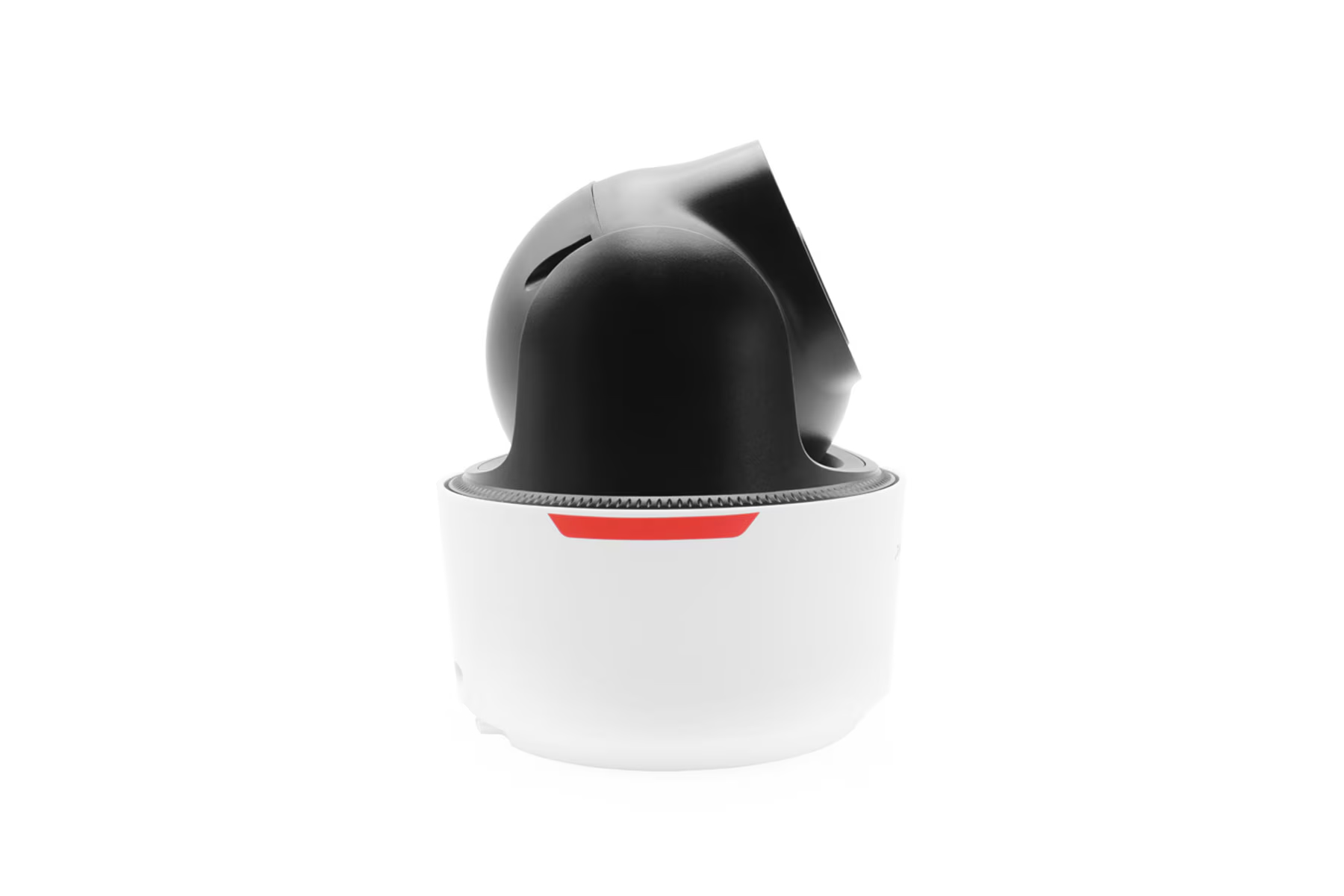

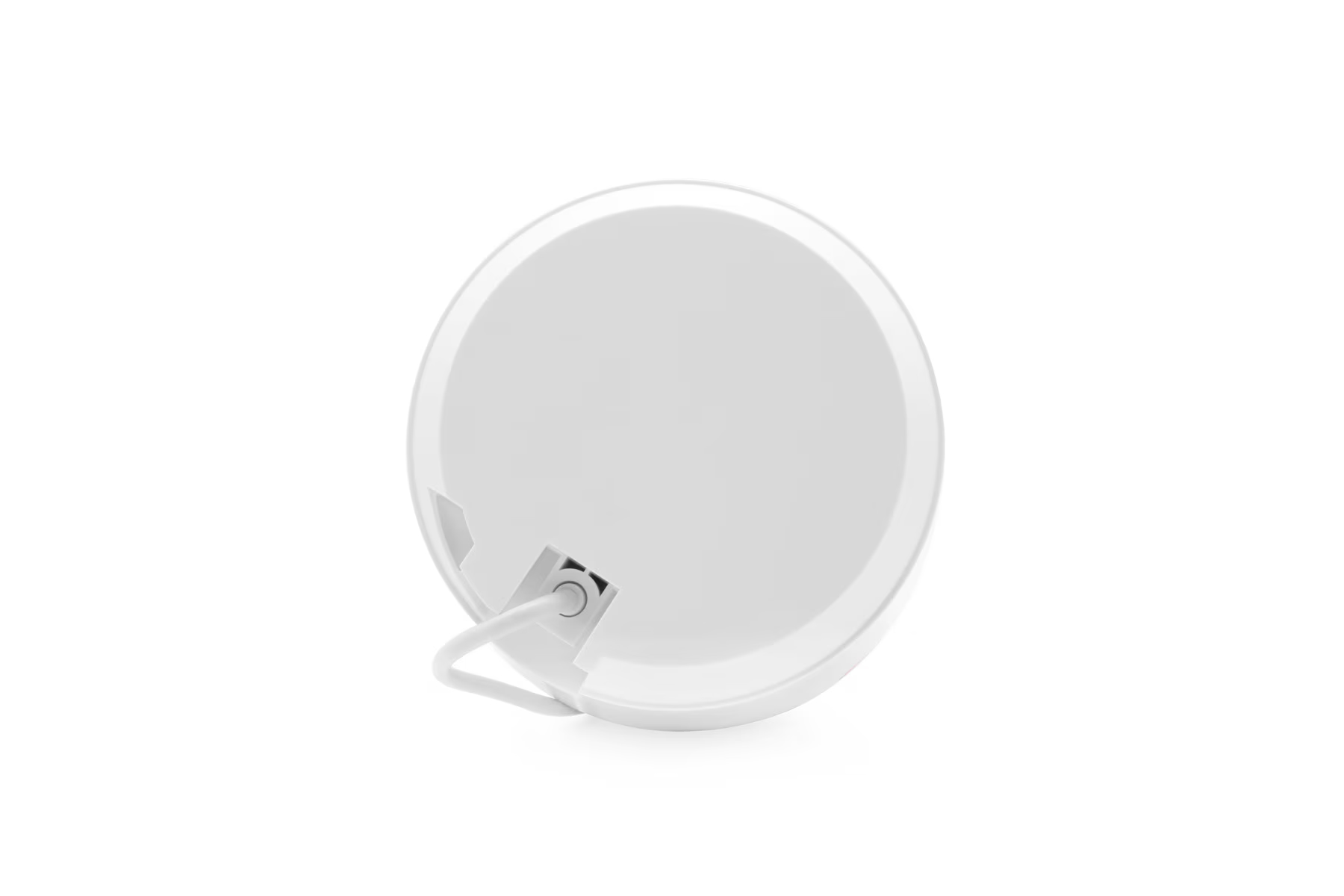

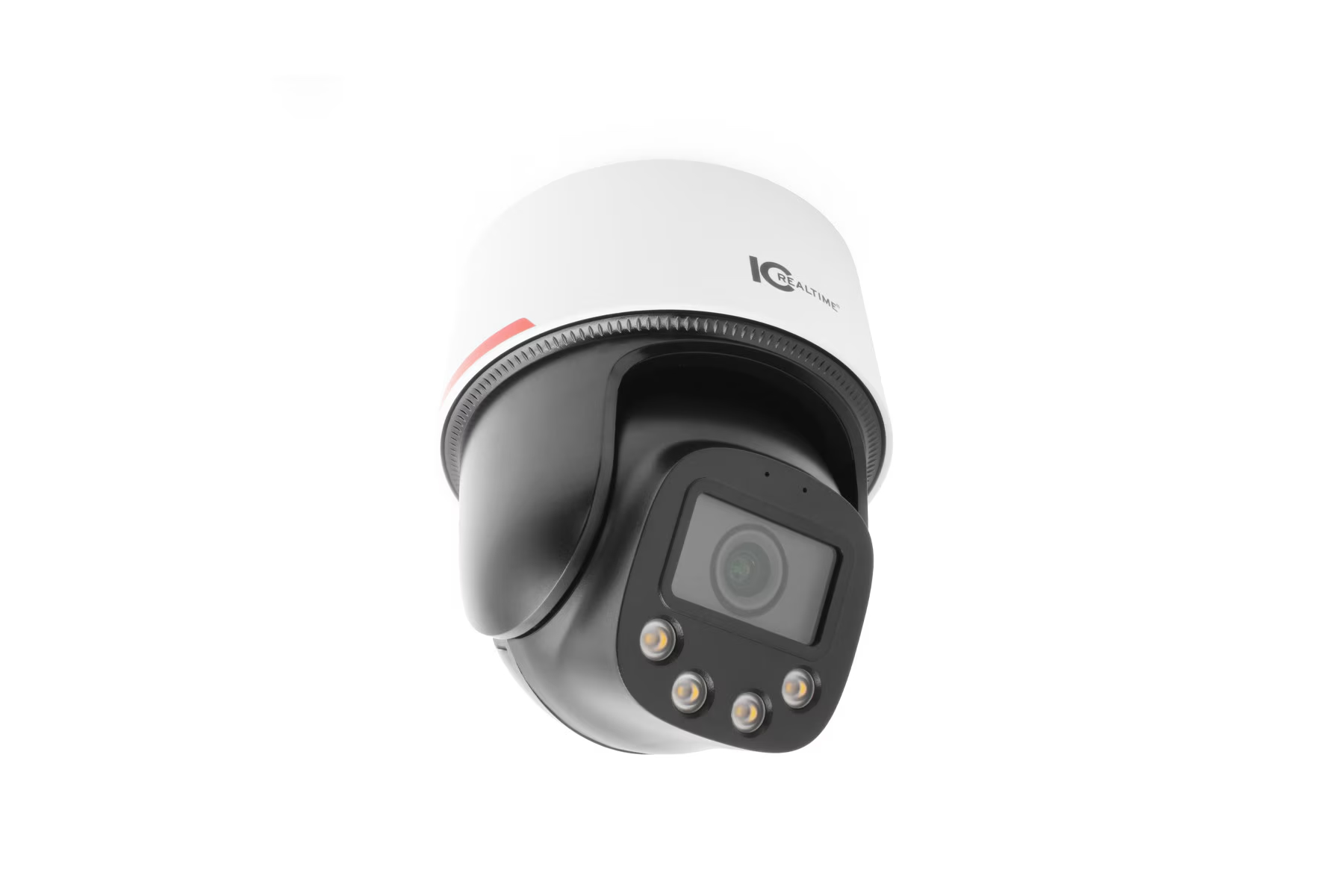

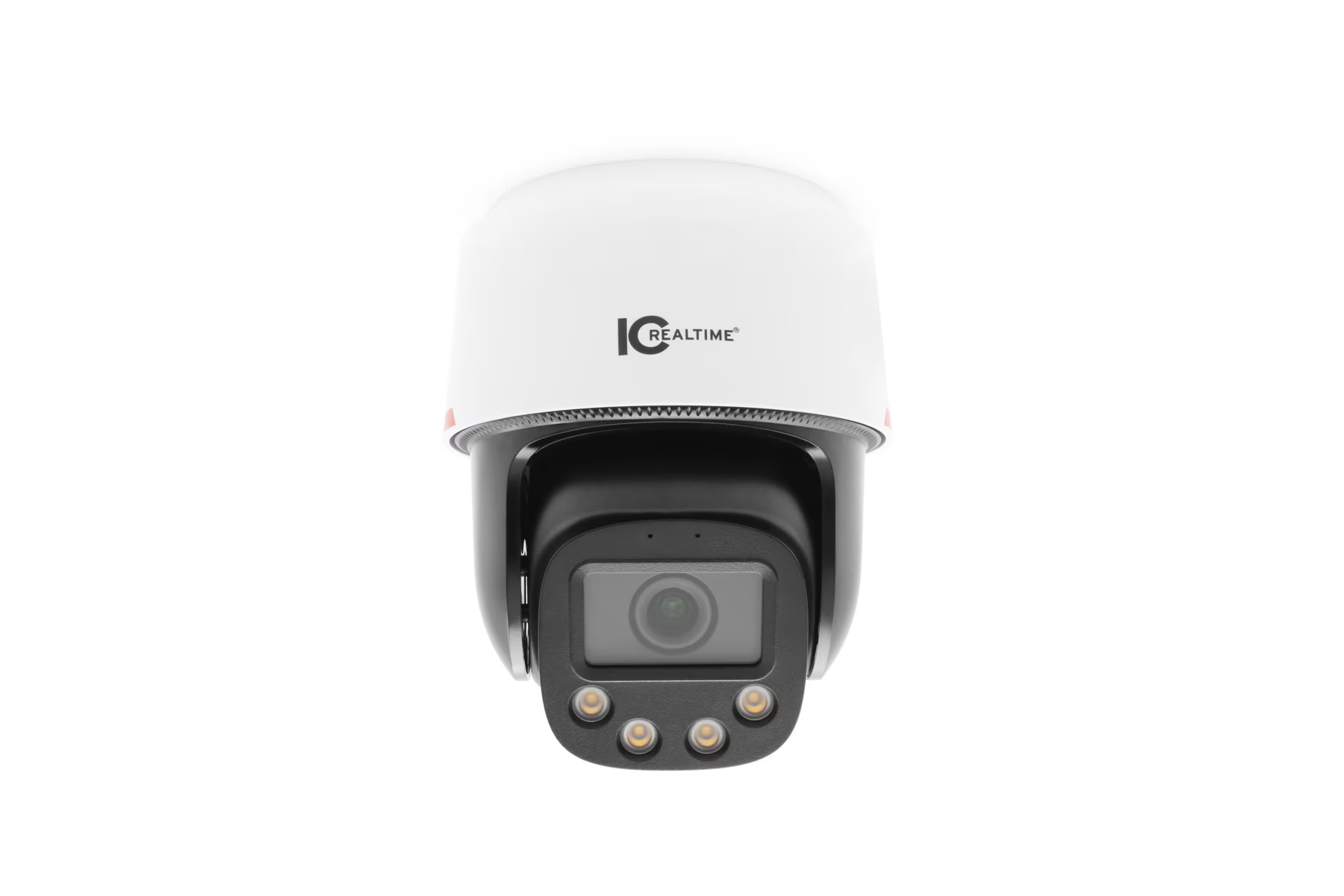

ICRealtime IPMX-P40F-W1-LED Pro Full-Color Motion Dome Camera with Pan-Tilt, 2-Way Audio & Advanced AI

Description

The Pro Full-Color PT delivers advanced coverage with full-color imaging, flashing LEDs, 2-way audio, and AI Intelligence that detects, tracks, and deters in real time.

You know the call — the one that comes after hours because the footage missed the moment. The IPMX-P40F-W1-LED is built to make sure that never happens. Its 4MP STARVIS™ sensor captures detail in color even in near darkness, while the integrated PT tracks movement across wide areas automatically. When motion is detected, flashing LEDs and two-way audio provide instant deterrence, giving operators the ability to challenge intruders or communicate directly from the camera. It’s not just recording — it’s response in real time.

Built for Integrators
Designed for pros who handle dynamic environments, this compact PT simplifies installation while delivering full coverage and smart automation. With active deterrence, and advanced AI Intelligence, it replaces multiple fixed cameras with a single intelligent unit — reducing costs, streamlining cabling, and adding interactive protection clients will notice immediately.

Features

Full-color imaging with 1/1.8″ 4MP STARVIS™ CMOS sensor
Active deterrence with flashing warm LEDs and 2-way talk
Smart motion tracking powered by AI Intelligence
Perimeter, Tripwire, and Intrusion detection analytics
Compact, weather-rated housing ideal for commercial or residential use

Specifications

Camera
Image Sensor	1/1.8" CMOS
Effective Pixels	2560 (H) × 1440 (V), 4 Megapixels
RAM / ROM	256 MB / 256 MB
Scanning System	Progressive
Minimum Illumination	0.0005 lux @ F1.0 (Color, 30 IRE); 0 lux (illuminator on)
S/N Ratio	≥55 dB
Illumination Distance	98 ft (30 m)
Illumination Type	White Light
Lens
Lens Type	Fixed
Focal Length	4 mm
Max Aperture	F1.0
Angle of View	H: 97°; V: 52°; D: 114°
Close Focus Distance	8.53 ft (2.6 m)
DORI - Detect	230 ft (70.10 m)
DORI - Observe	92 ft (28.04 m)
DORI - Recognize	46 ft (14.02 m)
DORI - Identify	23 ft (7.01 m)
PTZ
Pan/Tilt Range	Pan: 0°–345°; Tilt: 0°–90°
Manual Speed	Pan: 0.1°–34.5°/s; Tilt: 0.1°–36.4°/s
Preset Speed	Pan: 0.1°–33.8°/s; Tilt: 0.1°–36.3°/s
Presets	300
Idle Motion	Preset / Tour
Intelligence
IVS	Tripwire; Intrusion
Advanced Functions	Human Auto-Tracking (supported with iMD)
Video
Compression	Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream)
Streaming	2 Streams
Resolution	4M (2560×1440); 1080p; 720p; D1; VGA; CIF
Frame Rate	Main: up to 30 fps; Sub: up to 30 fps
Bit Rate Control	CBR / VBR
Day/Night	Color / B/W
WDR	DWDR
Noise Reduction	2DNR / 3DNR
Audio
Compression	PCM; G.711A; G.711Mu
Audio I/O	Built-in Mic and Speaker
Network
Ethernet	RJ-45 (10/100Base-T)
Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS
Interoperability	ONVIF (Profile S/G/T); CGI; SDK
Max User Access	20 (64M total bandwidth)
Edge Storage	Micro SD (Up to 256 GB); FTP
Electrical
Power Supply	12 VDC, 1A ±10%; PoE (802.3af); PSU not included
Power Consumption	Basic: 3.6 W; Max: 9.5 W (LEDs on + PT moving)
Environmental
Operating Conditions	–22°F to +131°F (–30°C to +55°C); <95% RH
Ingress Protection	IP66
Construction
Casing	Plastic

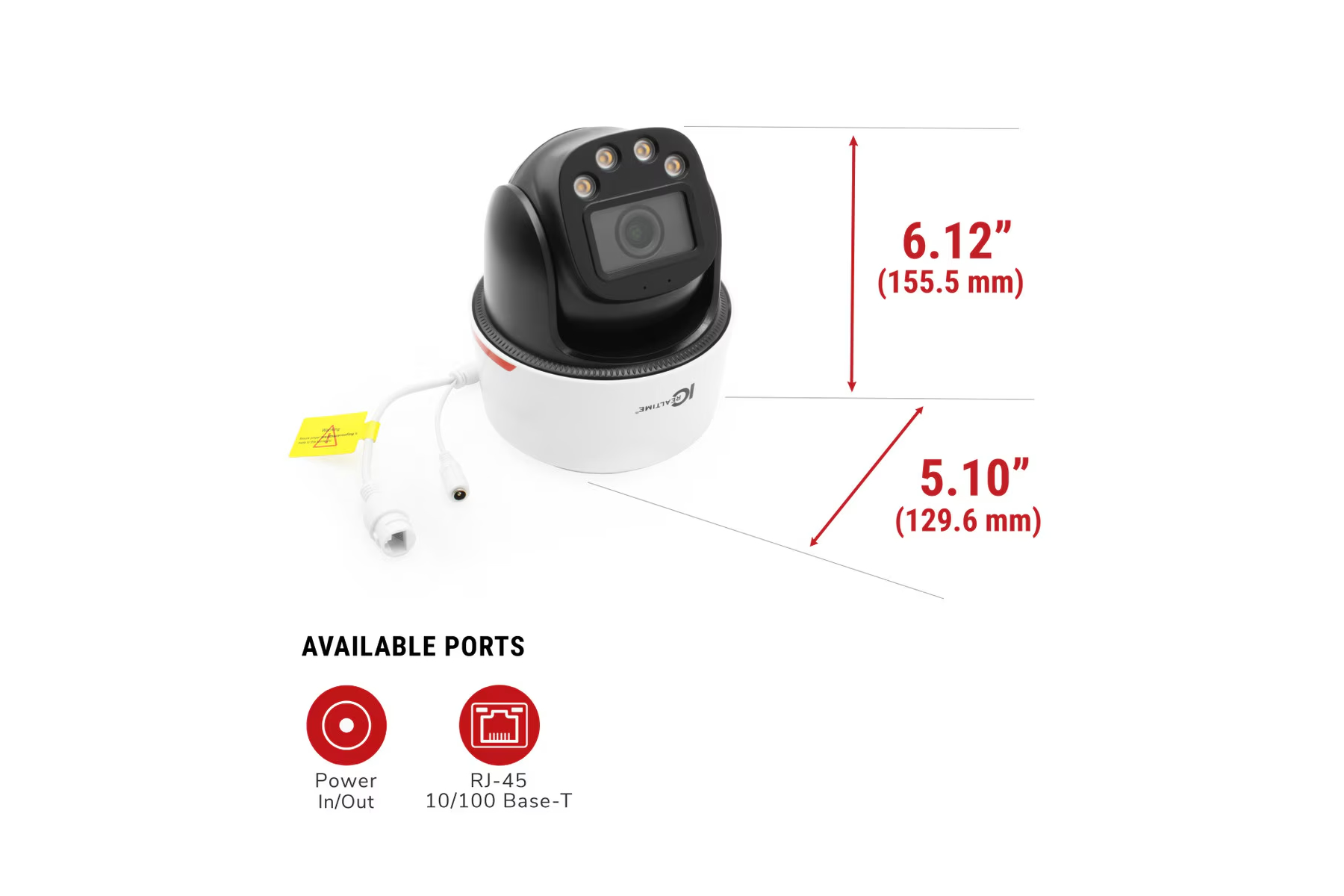

Dimensions	6.04" × Ø5.09" (153.5 mm × Ø129.3 mm)
Weight	2.20 lb (1 kg)
