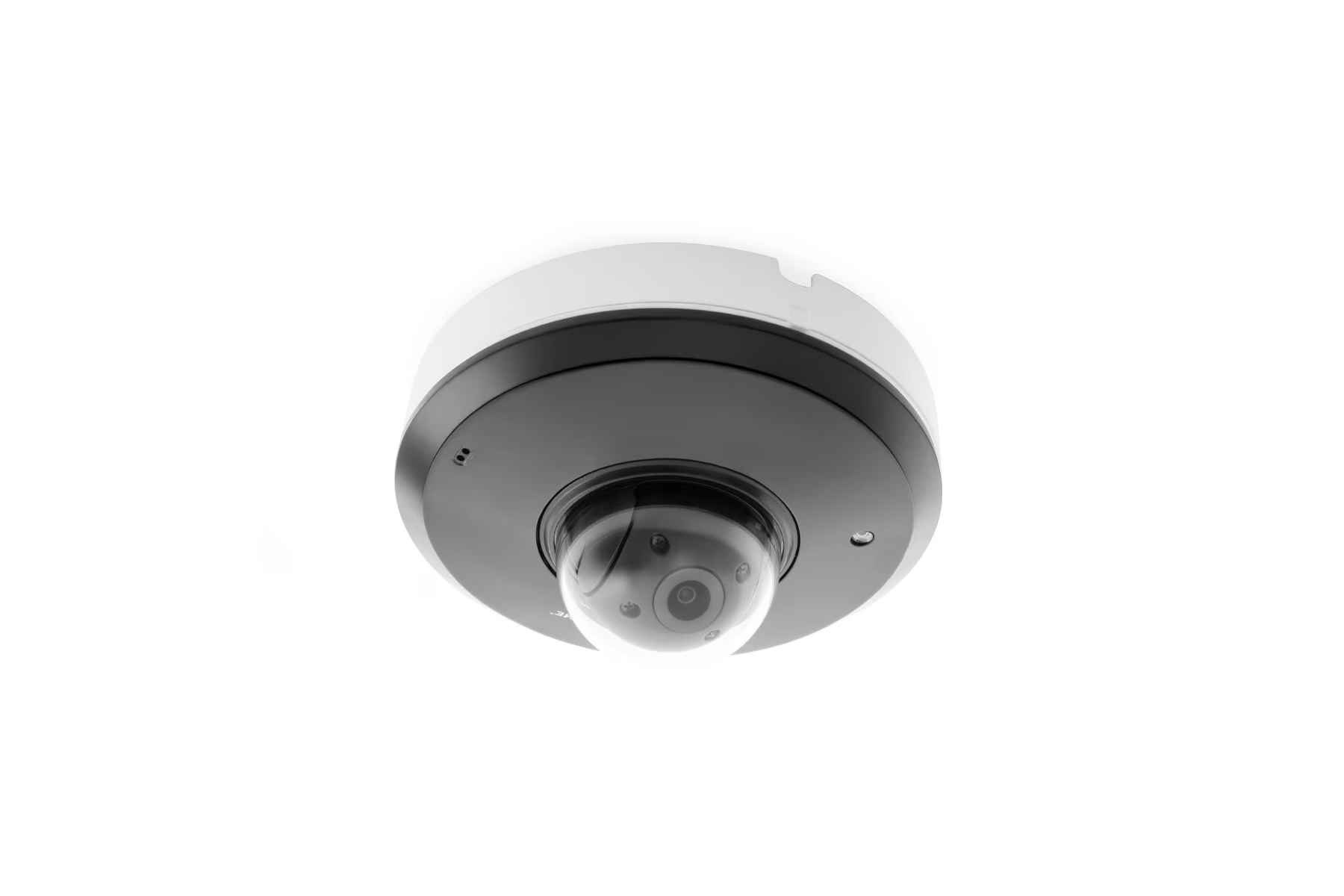

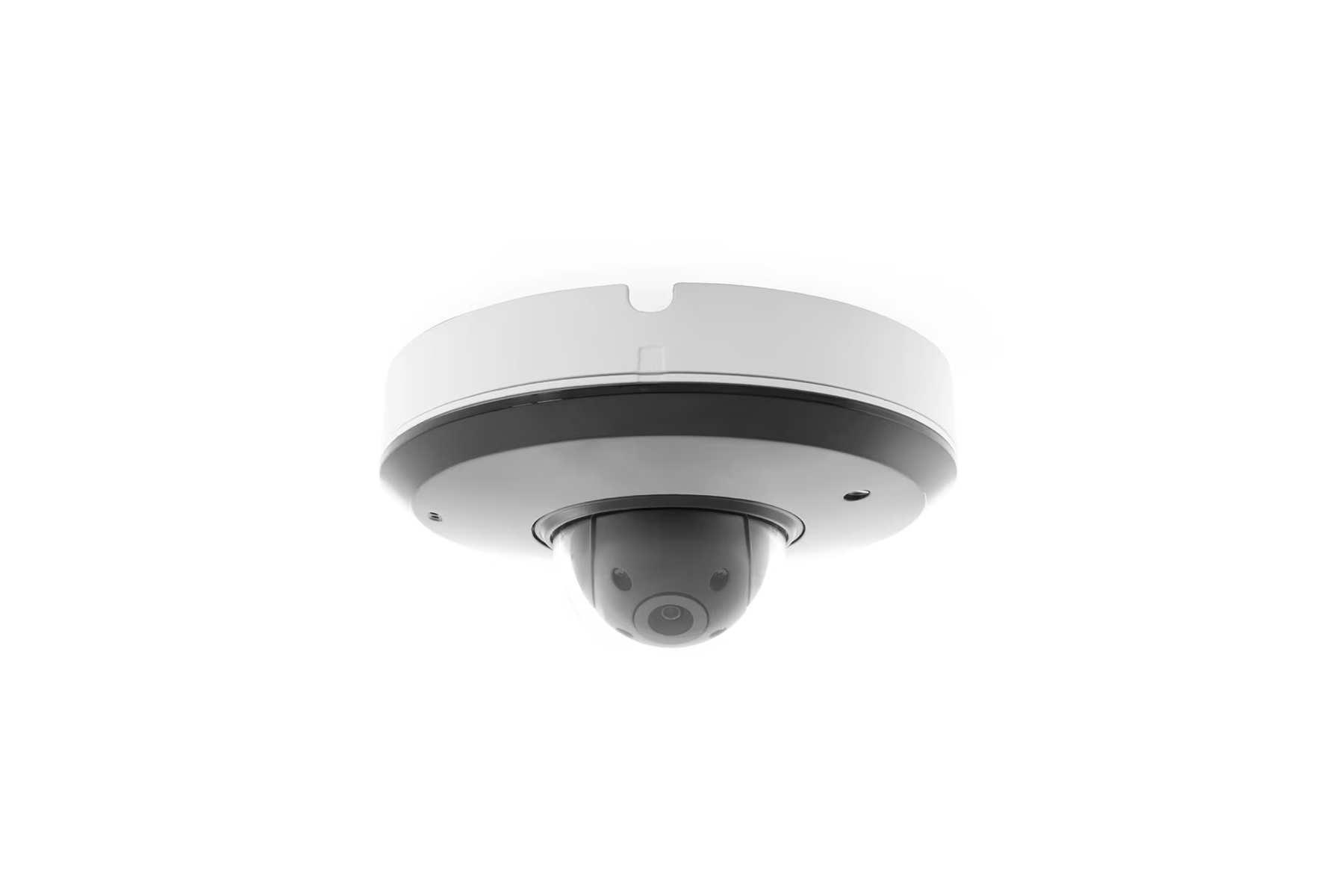

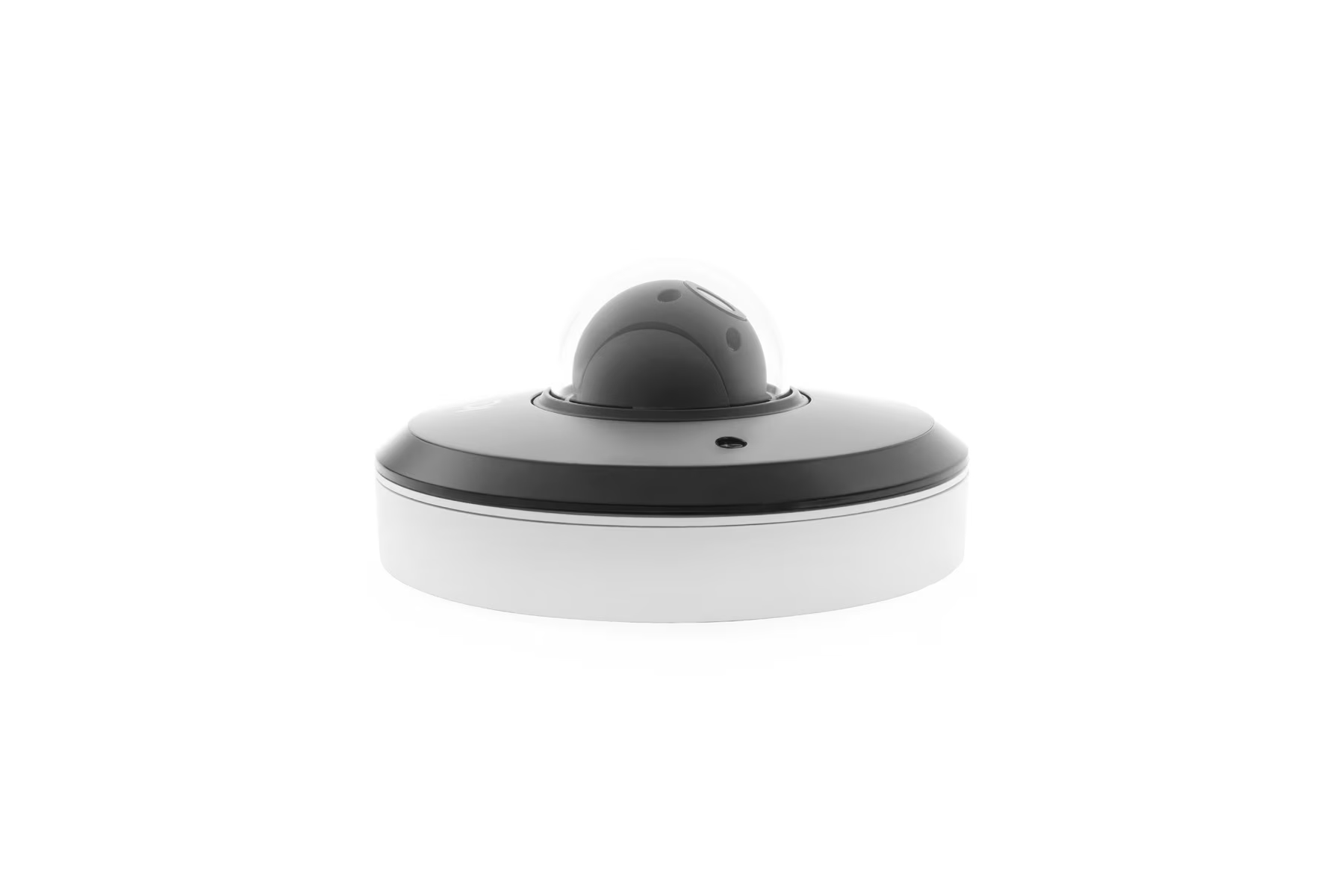

ICRealtime IPFX-P4004-IRW1 4MP Compact Starlight IR Mini-PTZ Camera (4× Optical Zoom)

Description

The IPFX-P4004-IRW1 is a compact, professional-grade mini-PTZ designed for applications that need movement, clarity, and AI analytics in a small footprint. It delivers 4MP resolution, smooth pan/tilt operation, and a 4× optical zoom lens that brings distant details into focus without distortion.
Powered by Starlight low-light technology and 65ft IR illumination, it captures clean, defined images even in challenging nighttime conditions. This mini-PTZ is engineered for residential and commercial sites where wide-angle domes aren’t enough, but full-size PTZs are too large or costly.
With built-in intelligent analytics, face detection, perimeter protection, and advanced iMD filtering, the IPFX-P4004-IRW1 provides reliable automation and alerting for modern installations.

Features

Compact Mobility — 4× optical zoom for close-up clarity with pan/tilt coverage in a discreet mini-dome form; enhances—not replaces—fixed cameras.
Low-Light Performance — Starlight sensor delivers color detail in low ambient light with 65 ft IR illumination and 120 dB WDR for challenging lighting.
AI Intelligence — Intelligent Motion Detection with human and vehicle filtering, IVS analytics, face detection, people counting, and perimeter protection.
Installer-Focused Design — PoE single-cable convenience, metal housing with IP66 + IK08 protection, 300 presets, 8 tours, power-off memory, and IC Now / IC Now Pro compatibility.

Specifications

Camera
Image Sensor	1/2.8" CMOS
Effective Pixels	2560 (H) × 1440 (V), 4 Megapixels
RAM / ROM	256MB / 512MB
Scanning System	Progressive
Minimum Illumination	0.005 lux@F1.8 (Color, 30 IRE) 0.0005 lux@F1.8 (B/W, 30 IRE) 0 lux (illuminator on)
Illumination Distance	65.62 ft (20 m)
Illumination On/Off Control	Manual; SmartIR; Off
Illumination LEDs	3
Camera Illumination Type	IR
Lens
Lens Type	Motorized Varifocal
Focal Length	2.8 mm–12 mm
Max. Aperture	2.8 mm–12 mm
Angle of View	H: 96.9°–31.6°; V: 51.4°–17.8°
Optical Zoom	4x
Focus Control	0.66 ft–1.64 ft (0.2 m–0.5 m)
Close Focus Distance	0.66 ft–1.64 ft (0.2 m–0.5 m)
DORI – Detect	787 ft
DORI – Observe	311 ft
DORI – Recognize	157 ft
DORI – Identify	78 ft
PTZ
Pan / Tilt Range	Pan: 0°–355°; Tilt: 5°–90°
Manual Control Speed	Pan: 0.1°/s–70°/s; Tilt: 0.1°/s–30°/s
Preset Speed	Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–40°/s
Presets	300
Speed Setup	Human-oriented focal length / speed adaptation
Idle Motion	Preset; Tour
Protocol	ICR-SD
Wiper	N/A
Intelligence
IVS	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering
Advanced Intelligent Functions	Perimeter Protection: Tripwire; Intrusion (vehicle & human filtering) Intelligent Motion Detect: Advanced filtering for humans & vehicles to reduce false alarms Face Detection: Detection, tracking, snapshot optimization, enhancement, exposure, attributes (6) & expressions (8), angle filtering, snapshot strategies People Counting: Tripwire counting, area counting, queue management; reports (day/month/year); up to 4 rules
Video
Compression	H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub); Smart H.264+
Streaming Capability	3 Streams
Resolution	4M (2560 × 1440); 3M (2304 × 1296); 1080p; 1.3M; 720p; D1; VGA; CIF
Frame Rate	Main: 4M/3M/1080P/1.3M/720P @(1–25/30 fps) Sub 1: D1/VGA/CIF @(1–25/30 fps) Sub 2: 720p @(1–25/30 fps)
Bit Rate Control	CBR / VBR
Bit Rate	H.264: 96 Kbps–14,848 Kbps H.265: 38 Kbps–8,960 Kbps
Day / Night	ICR: Color; B/W; Auto \| Electronic: Color; B/W; Auto
Backlight Compensation	BLC / HLC / 120 dB WDR
White Balance	Auto; Indoor; Outdoor; ATW; Manual; Sodium Lamp; Natural Light; Street Lamp
Gain Control	Auto; Manual; Gain Priority
Noise Reduction	2D NR; 3D NR
Smart IR	Supported
Flip	180°
Mirror	Supported
WDR	120 dB WDR
Audio
Compression	PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP
Interoperability	ONVIF (Profile S/G/T); CGI; SDK
Max User Access	20 (Total bandwidth: 64 Mbps)
Edge Storage	Micro SD (512 GB); FTP/SFTP; NAS
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	IC Now; IC Now Pro
Smart Phone	iOS; Android
Interface
Audio I/O	Built-in Microphone; 1ch Input / 1ch Output (bare wire)
Alarm I/O	N/A
Memory Slot	Micro SD (512 GB)
Electrical
Power Supply	12 VDC, 2 A ±10%
Power Consumption	Basic: 4 W; Max: 13 W (illuminator on)
Environmental
Operating Conditions	-22°F ~ +140°F (-30°C ~ 60°C); <95% RH
Ingress Protection	IP66
Vandal Resistance	IK08
Construction
Casing	Metal

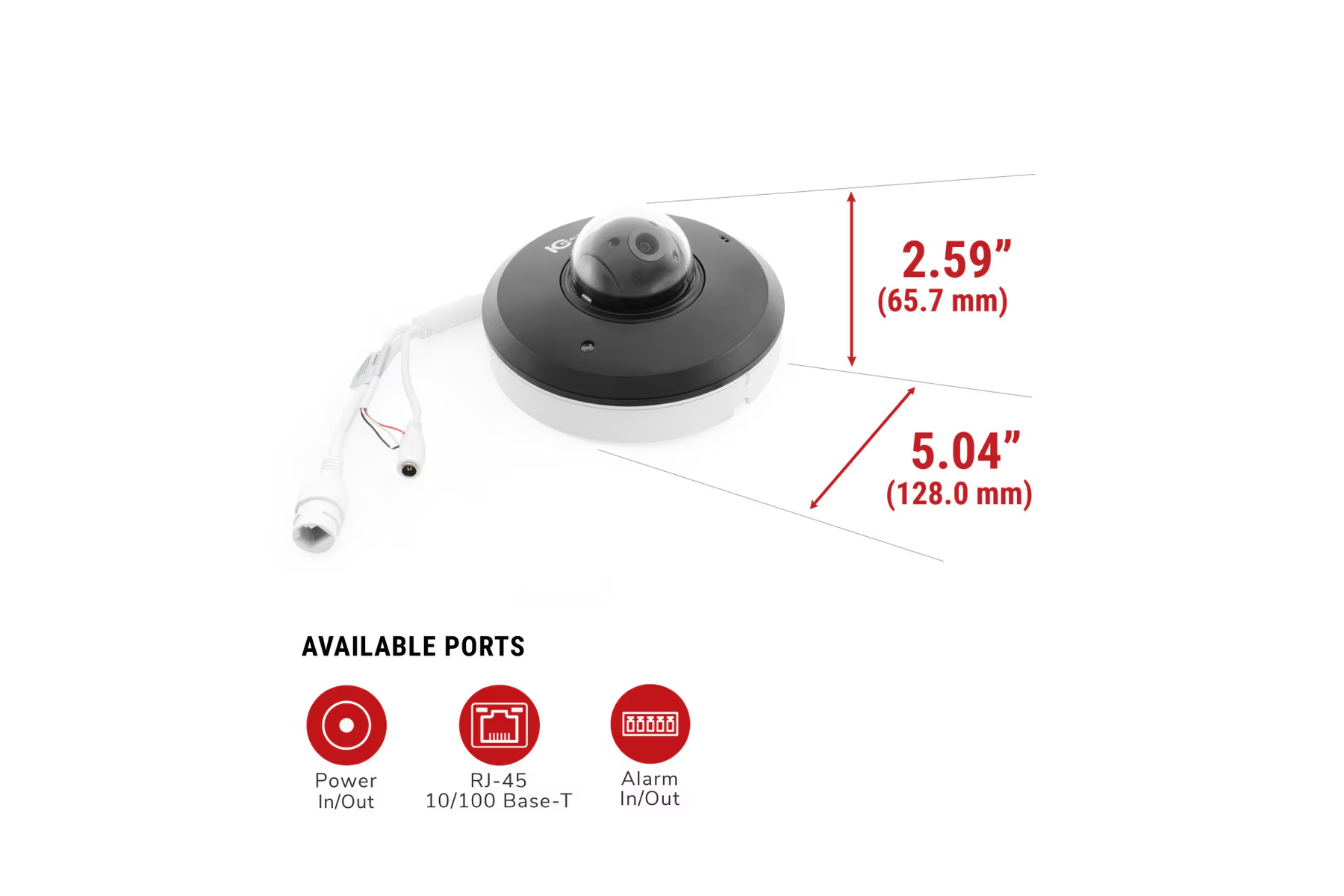

Dimensions	2.59" × 5.04" (65.7 mm × Ø128.0 mm)
Gross Weight	1.54 lb (0.7 kg)
