Description

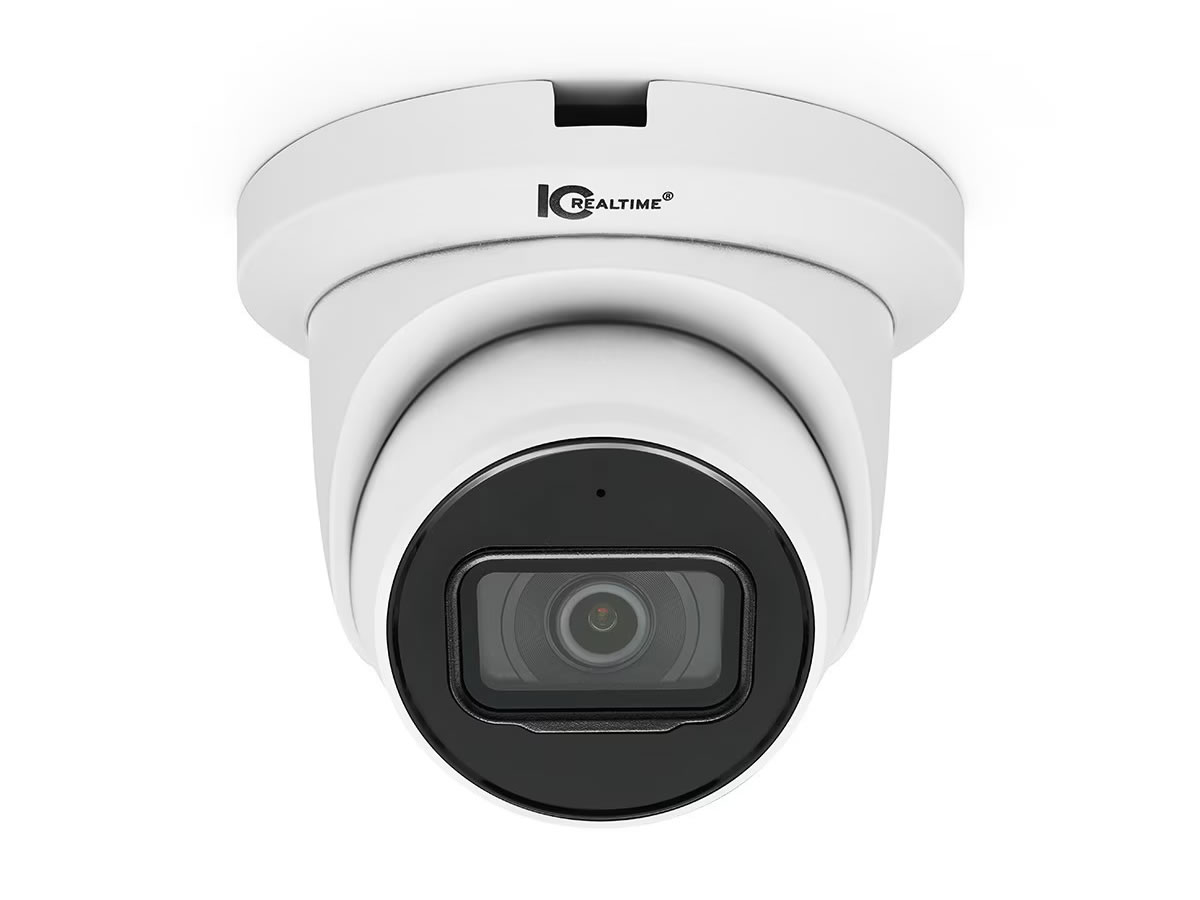

The IPEL-E80F-IRW3 is an 8MP 4K UHD Starlight eyeball dome camera that delivers high-resolution surveillance day and night. It combines a 2.8mm medium wide-angle lens with a Starlight sensor to retain color at very low lux levels and provide detailed 4K imagery. Designed for indoor and outdoor use, this camera supports advanced metadata-based AI detection to enhance scene understanding.
Key features include IC Realtime FlexSmartAi running iMD 2.0 for deep learning metadata streaming, SmartIR illumination up to 98.4ft, and a broad 107h x 56v field of view. The camera supports three independent streams and scene-adaptive Smart H.265+ compression to lower bandwidth and storage needs. Built-in IVS functions such as tripwire and intrusion improve human and vehicle detection accuracy for event-driven alerts.
Technical performance centers on a 1/2.8″ 8MP progressive CMOS sensor producing 3840 x 2160 resolution at standard frame rates. Low light sensitivity reaches 0.007 lux in color and 0.0007 lux in black and white, with IR illumination available at 0 lux when active. Additional imaging features include 120dB WDR, 3D DNR noise reduction, BLC/HLC, and multiple exposure and region controls to maintain clarity across challenging scenes.
Connectivity options include 10/100Base-T Ethernet with IPv4/IPv6 support and broad protocol compatibility such as RTSP, ONVIF Profile S/G/T, FTP/SFTP and SNMP. The camera supports PoE (802.3af) or 12VDC power and accepts up to a 256GB microSD card for local edge storage. Compatibility extends to most NVRs, VMS platforms and IC Realtime AI-NVRs for object search and metadata indexing.
Practical applications for the IPEL-E80F include retail surveillance where fine detail and face recognition are needed, perimeter monitoring for tripwire and intrusion detection, and parking lot or driveway coverage where IR range and vehicle detection matter. The camera’s 4K resolution preserves pixel density for evidence-grade captures and forensic review. Integrated audio I/O and alarm inputs provide additional context and response capability for security workflows.

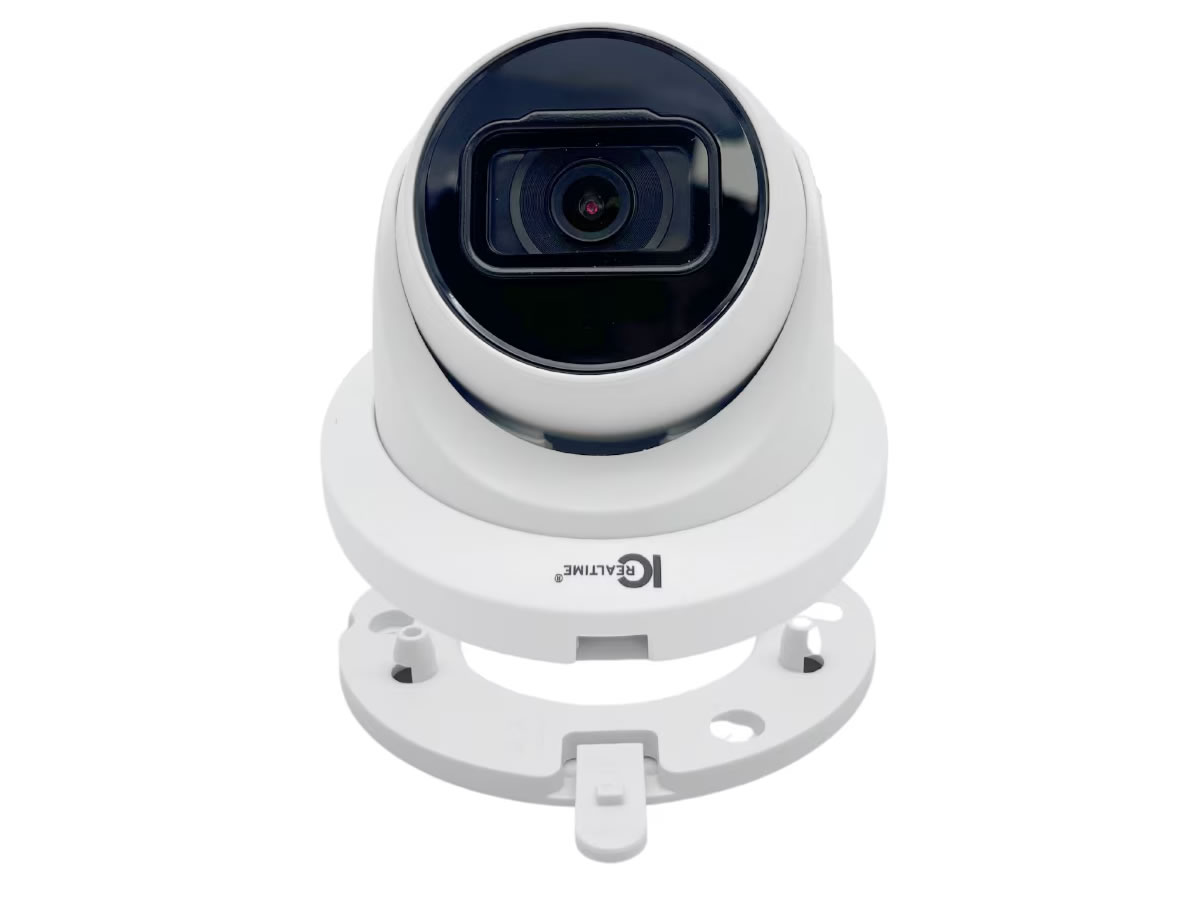

Installation is straightforward using the eyeball dome form factor that combines easy aiming with a durable metal housing rated to IP67. Mounting supports wide pan, tilt and rotation ranges to align scenes quickly, and the three stream outputs allow balancing of quality and bandwidth for varied recorder or network environments. Firmware and management tools from IC Realtime facilitate configuration, encryption, and secure access controls for long-term deployment.
