Description

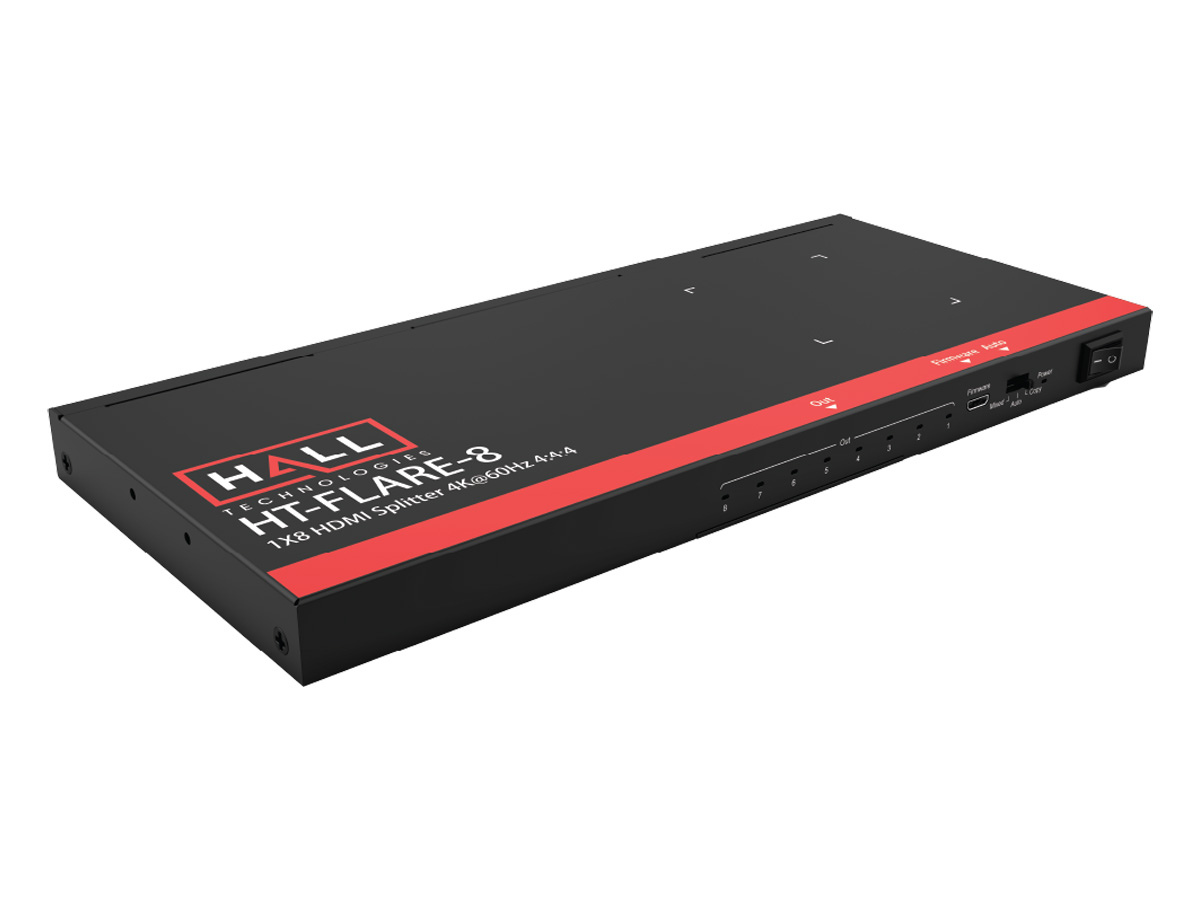

The HT-FLARE-8 is an 8-output HDMI distribution amplifier designed to deliver a single HDMI source to multiple displays with consistent image quality. It supports resolutions up to 4K@60Hz 4:4:4 and preserves HDR metadata for improved contrast and color. The unit is intended for installations that require high-bandwidth HDMI distribution and reliable signal integrity.
Key features include full HDMI 2.0 bandwidth support to 18Gbps, HDCP 2.2 and 1.4 compatibility, and three EDID handling modes to manage mixed display environments. The splitter can downscale automatically to provide simultaneous 4K and 1080p outputs where needed, while preserving color fidelity. Built-in audio extraction provides both analog and optical outputs for flexible audio routing.
Performance details include support for HDR formats and lossless audio streams including LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio. The device consumes up to 5W under maximum load and is powered via a 5V/2A DC adapter. Physical dimensions are compact at 247.2mm x 110mm x 17mm which simplifies rack or shelf placement.

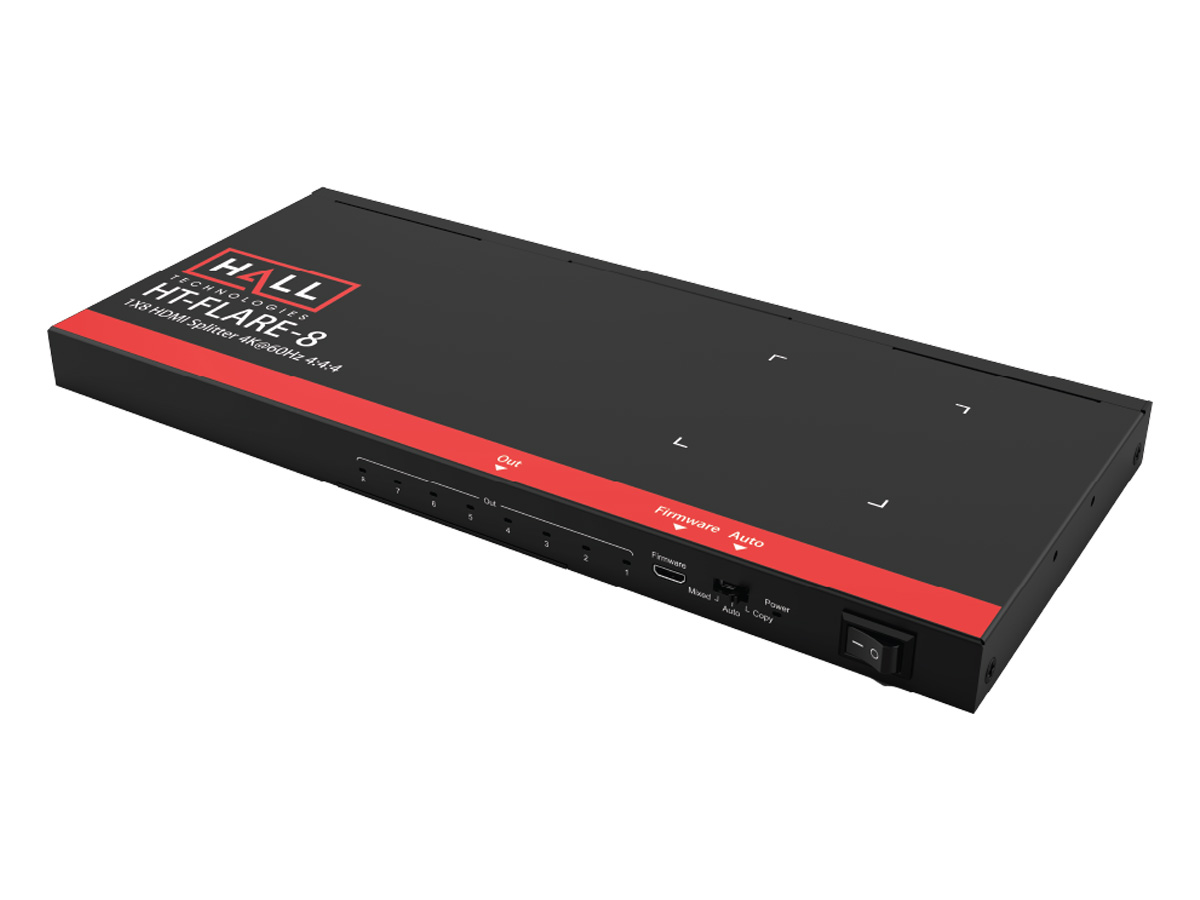

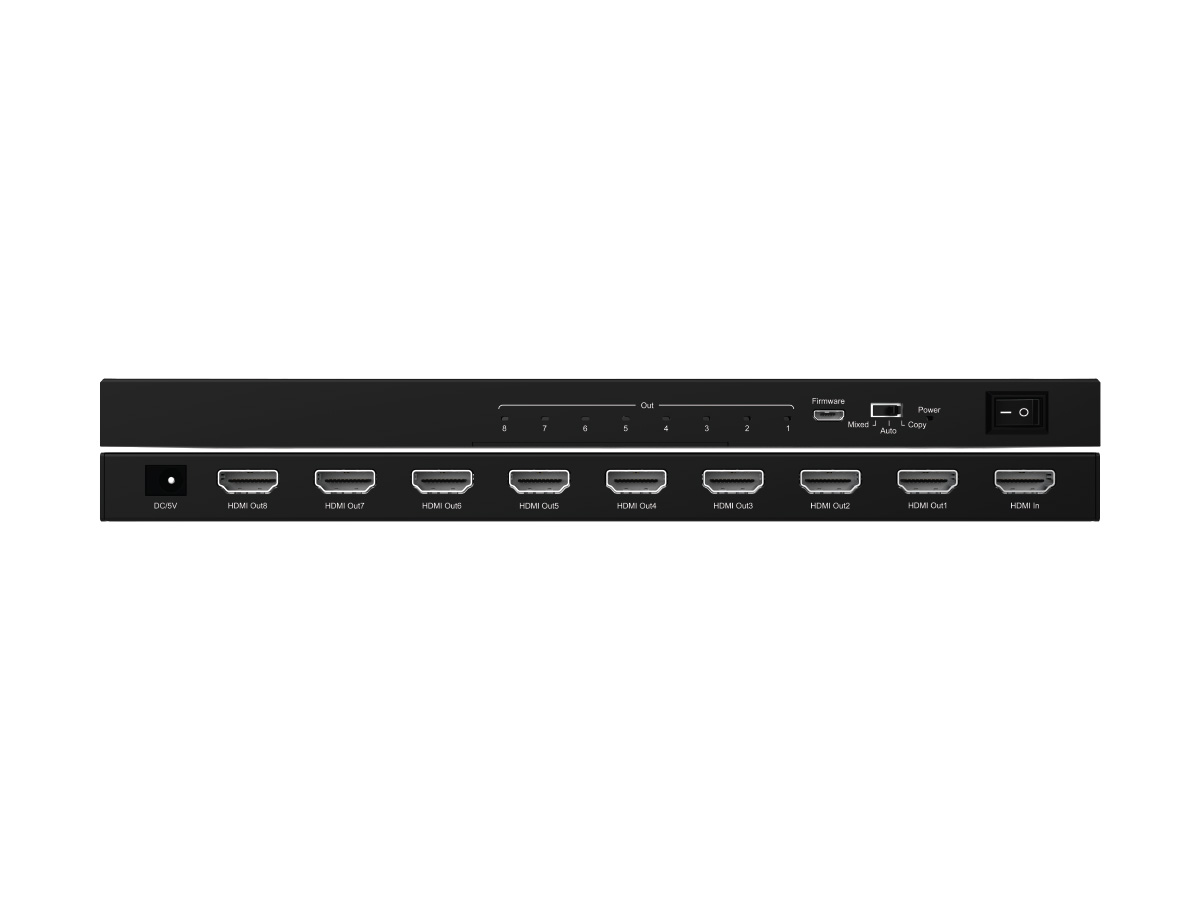

Connectivity consists of one HDMI input and eight HDMI outputs using HDMI female connectors on the rear panel. The unit provides an optical S/PDIF port and an analog audio output for integration with AV processors and amplifiers. Front-panel LEDs indicate power and output connections, and a firmware port supports field updates.
Typical applications include digital signage networks, conference rooms, control centers, museum displays, and multi-screen home theater systems. The splitter supports mixed-resolution arrays where some displays require 4K and others remain at 1080p. EDID management modes help ensure connected displays present a compatible resolution and refresh rate.
Installation is straightforward via a single HDMI source and individual HDMI runs to each display, with front-panel switches to select EDID behavior. The chassis is engineered for continuous operation and simple maintenance, and Hall Technologies provides a limited warranty covering defects with terms based on purchase date. The compact footprint and low power draw make the HT-FLARE-8 suitable for tight AV racks and kiosks.
