Description

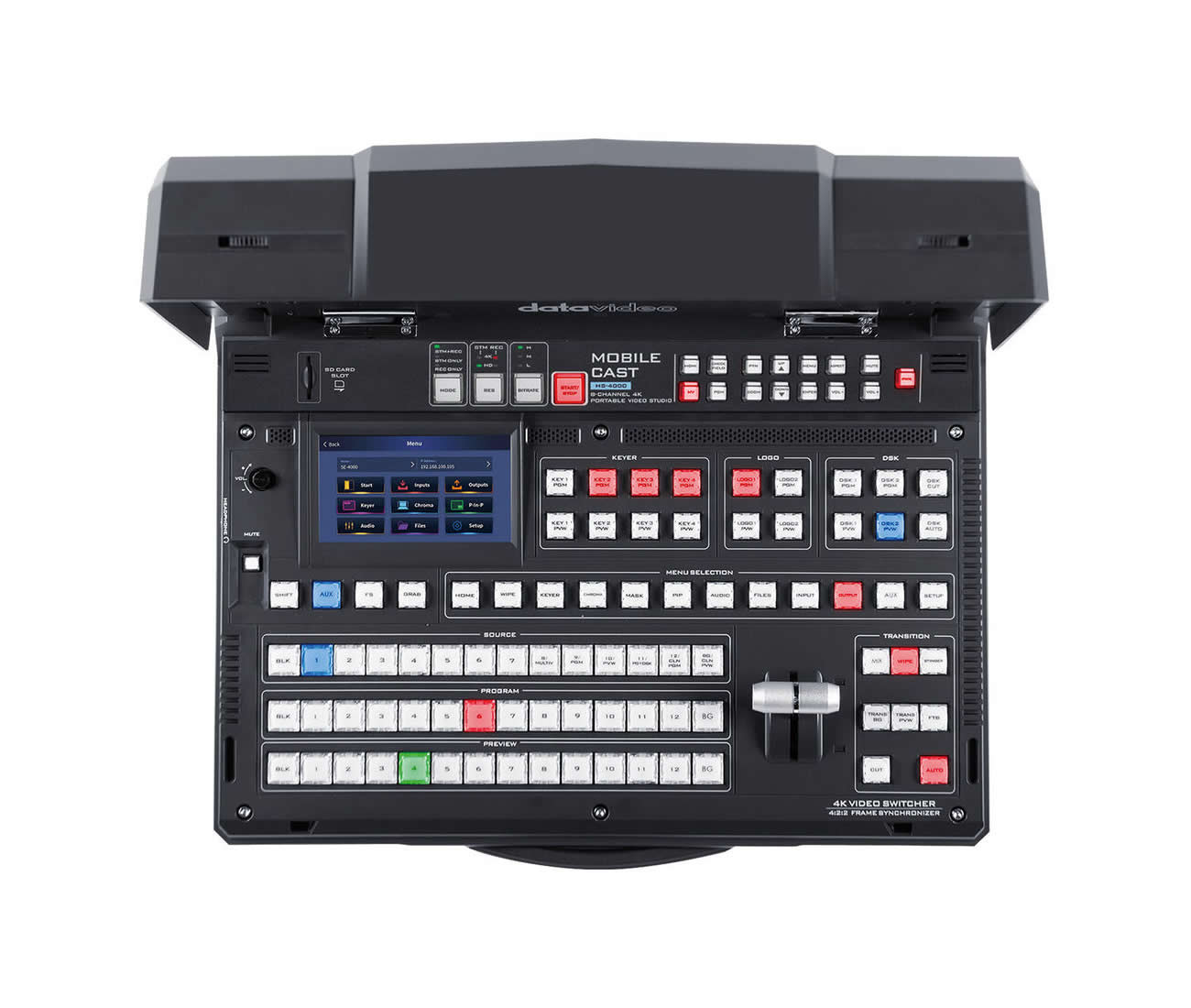

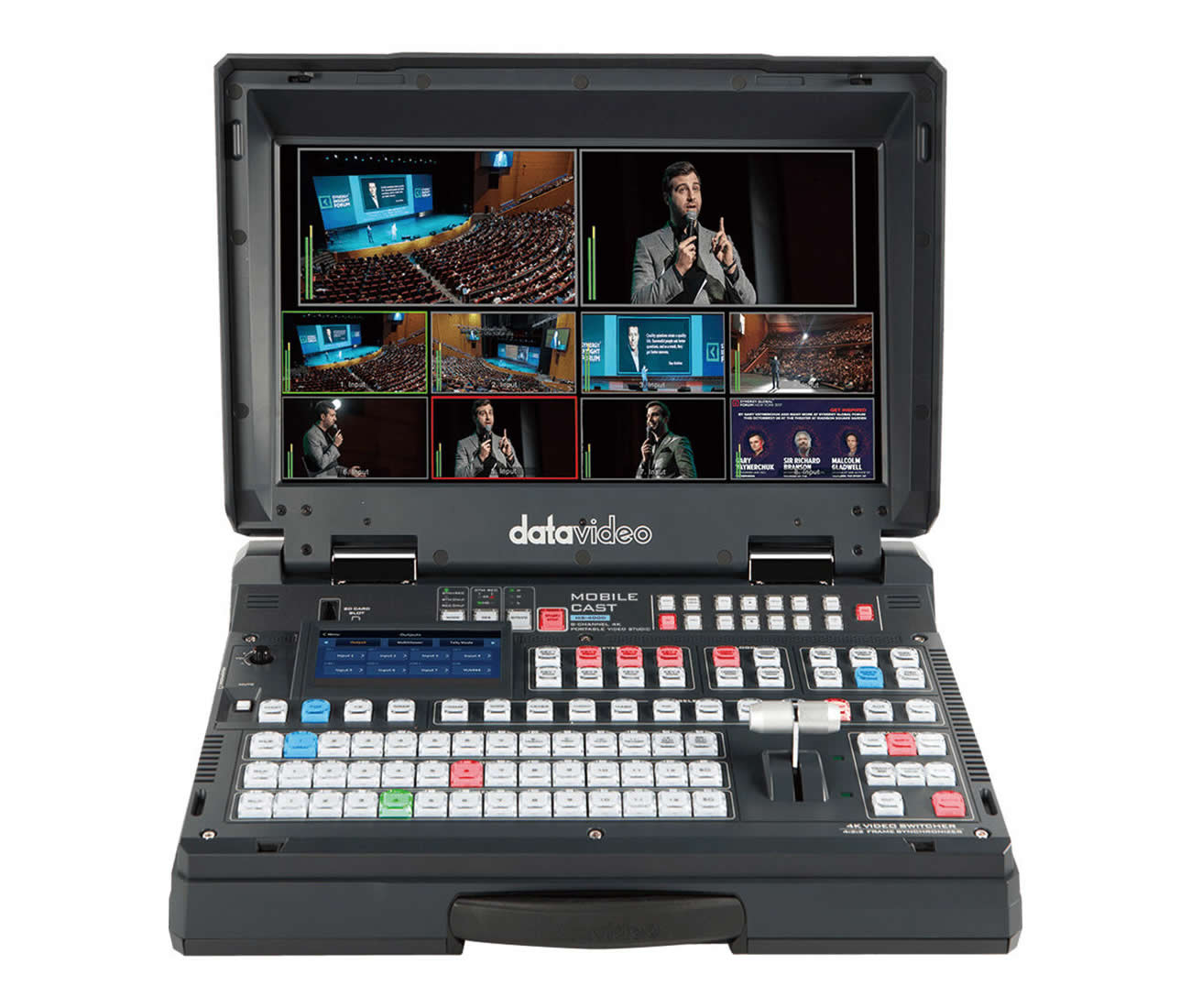

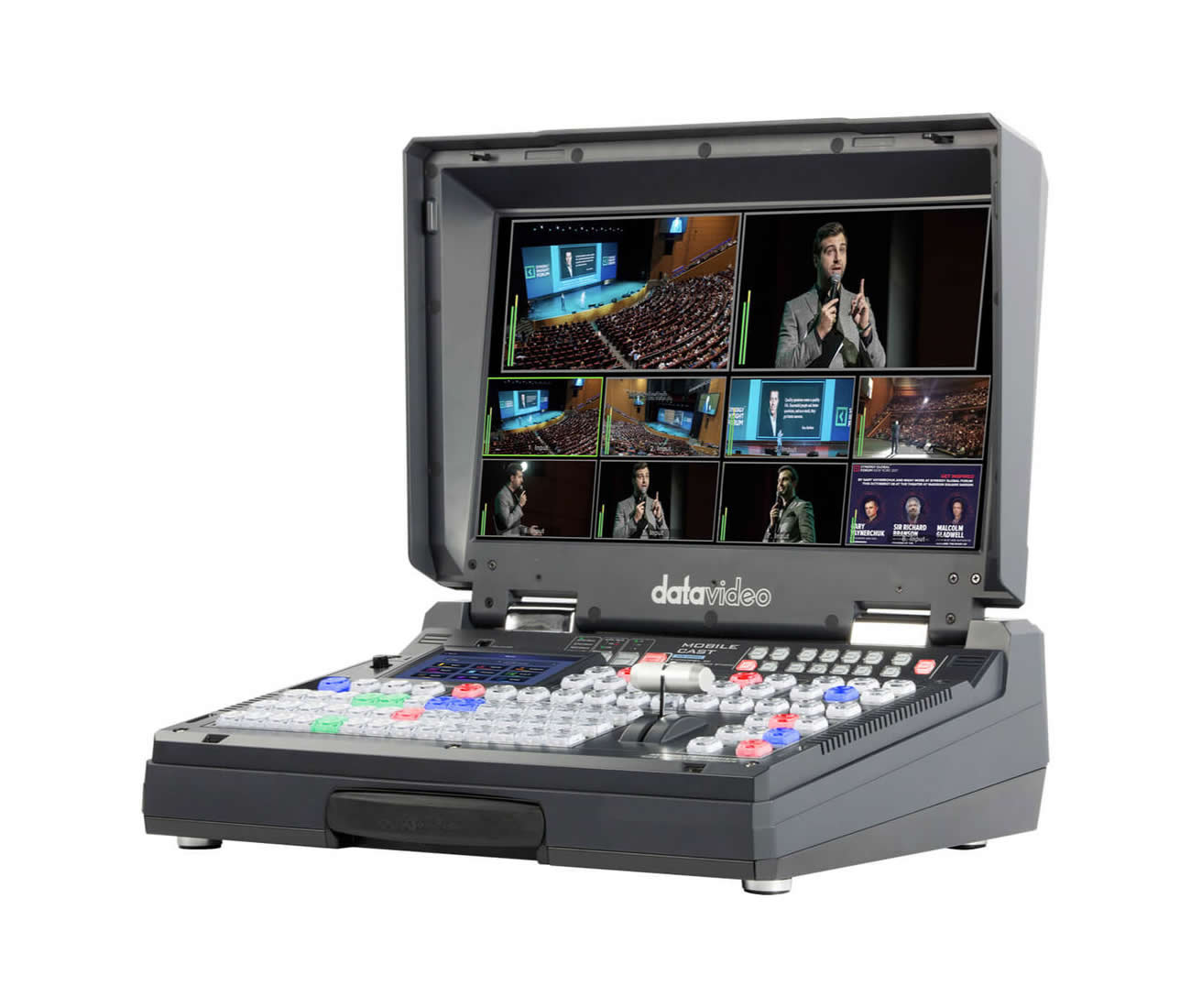

The HS-4000 is an all-in-one 4K mobile production studio built to combine switching, monitoring, recording and streaming in a single rack-friendly package. It serves as a compact production hub that processes UHD 4K60/50 and HD sources for live program outputs and multiview monitoring. The integrated 17.3-inch 4K display and 5-inch touchscreen provide direct, on-device control and monitoring without extra gear.
The unit accepts twelve video inputs with eight selectable active inputs, including eight SDI and four HDMI 2.0 ports and supports 10-bit broadcast-quality video. It offers four 12G-SDI outputs plus two HDMI program outputs and one HDMI multiview output for program feeds and monitoring. Built-in features include chroma/luma keying, downstream key (DSK), two PIP windows, 64 wipe transitions, logo insertion and still-store recall.
Recording and streaming are native to the chassis, producing synchronized MP4 files while simultaneously encoding live streams. The HS-4000 supports RTMP and SRT streaming protocols and includes a web-ready recorder using SD cards for quick file transfer and upload. Audio handling includes four XLR mic inputs, two XLR outputs and a professional audio delayer to maintain AV sync.

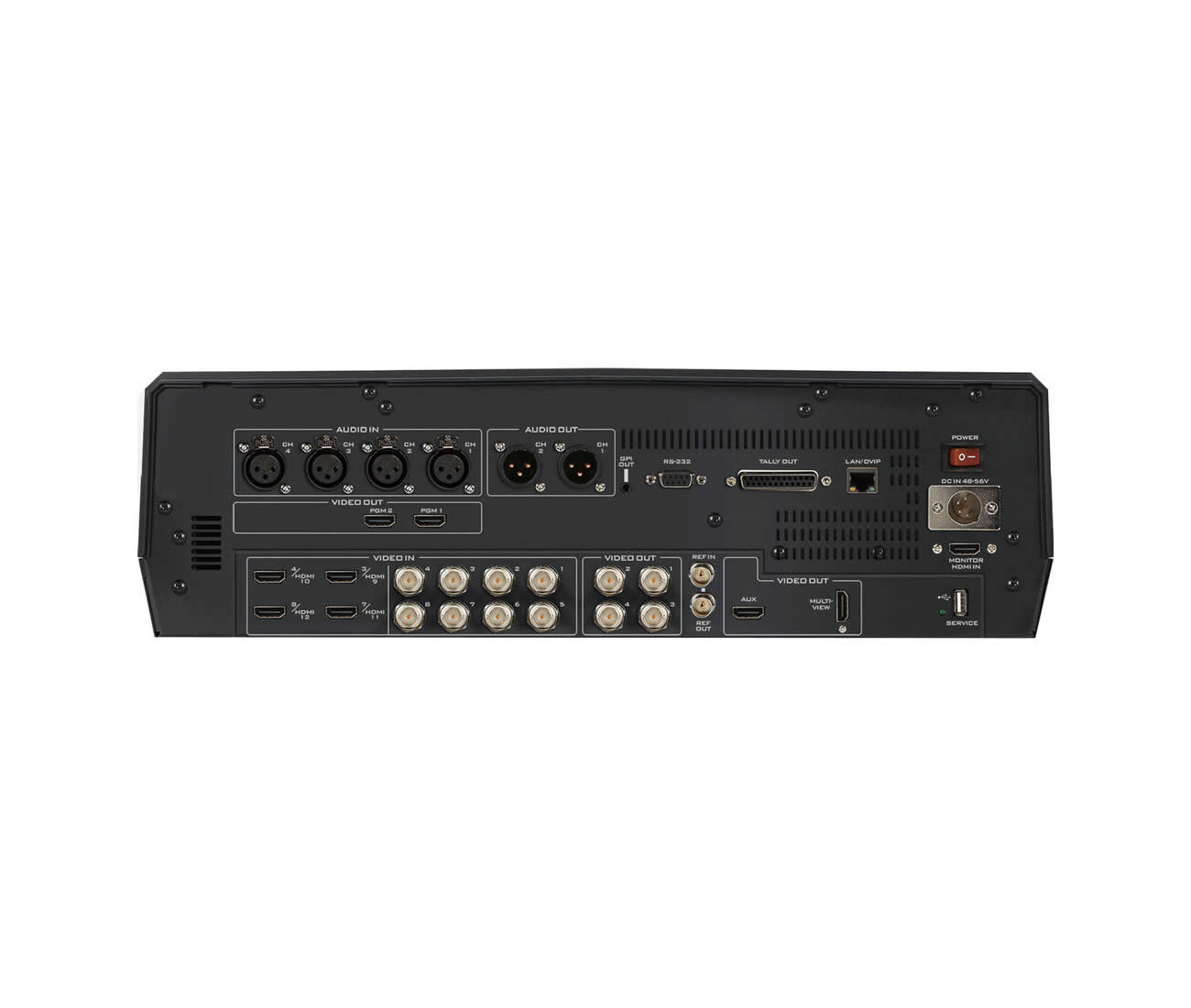

Connectivity covers RS-232 serial control, GPI, tally output and a LAN port for network control and streaming. Inputs feature built-in scaling for up-conversion so connected sources display at native output resolutions without external scalers. The switcher is plug-and-play for many laptop HDMI sources and supports common camera and multimedia workflows.
This mobile studio suits live event production, education broadcasts, corporate streaming and remote webinars where a single integrated system reduces setup time and complexity. Its virtual set library, 250 still-image stores and 40 high-quality 4K virtual set assets allow quick scene creation for interviews and presentations. Two PIP windows and flexible keyers support multi-camera program layouts and live graphics insertion.
The HS-4000 is designed for field reliability and operator efficiency with user memory presets, icon-based touchscreen control and a rackable chassis form factor. Preset recall and one-button-one-function operation speed live switching, while the robust build and professional I/O ensure dependable performance. Overall, the unit delivers a complete production workflow in a single portable device.
