Description
The HS-2600 is a portable eight-channel video studio designed for live switching, streaming and recording. It provides real-time encoding and multiview monitoring in a compact chassis – enabling broadcast-quality 1080p60 production in constrained spaces. The system combines switching, chroma keying and on-site recording into a single integrated unit.
Key features include four SDI inputs and four HDMI inputs, three SDI outputs and four HDMI outputs, and an internal H.264 streaming encoder. The HS-2600 supports RTMP and SRT streaming protocols – and offers SD card recording for immediate postproduction access. Advanced effects include up to four picture-in-picture windows, four chroma keyers and two downstream keyers for titles and overlays.
In terms of performance the unit supports 1080p60 resolution and real-time H.264 encoding to deliver consistent broadcast frame rates. The built-in recorder writes directly to SD card media – simplifying media handling and turnaround. Transition options include wipe, DVE, mix, cut and stinger transitions to match a range of production aesthetics.

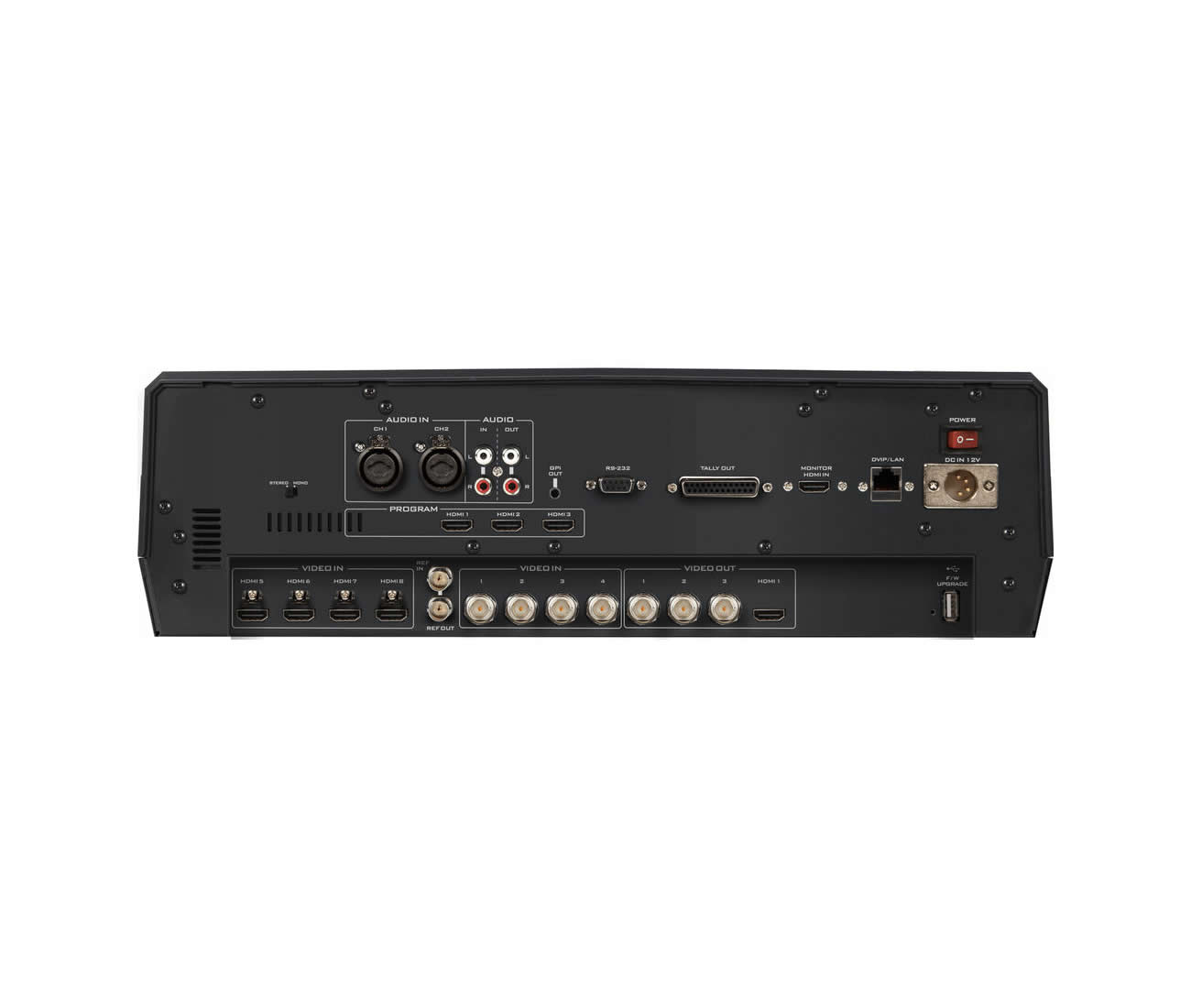

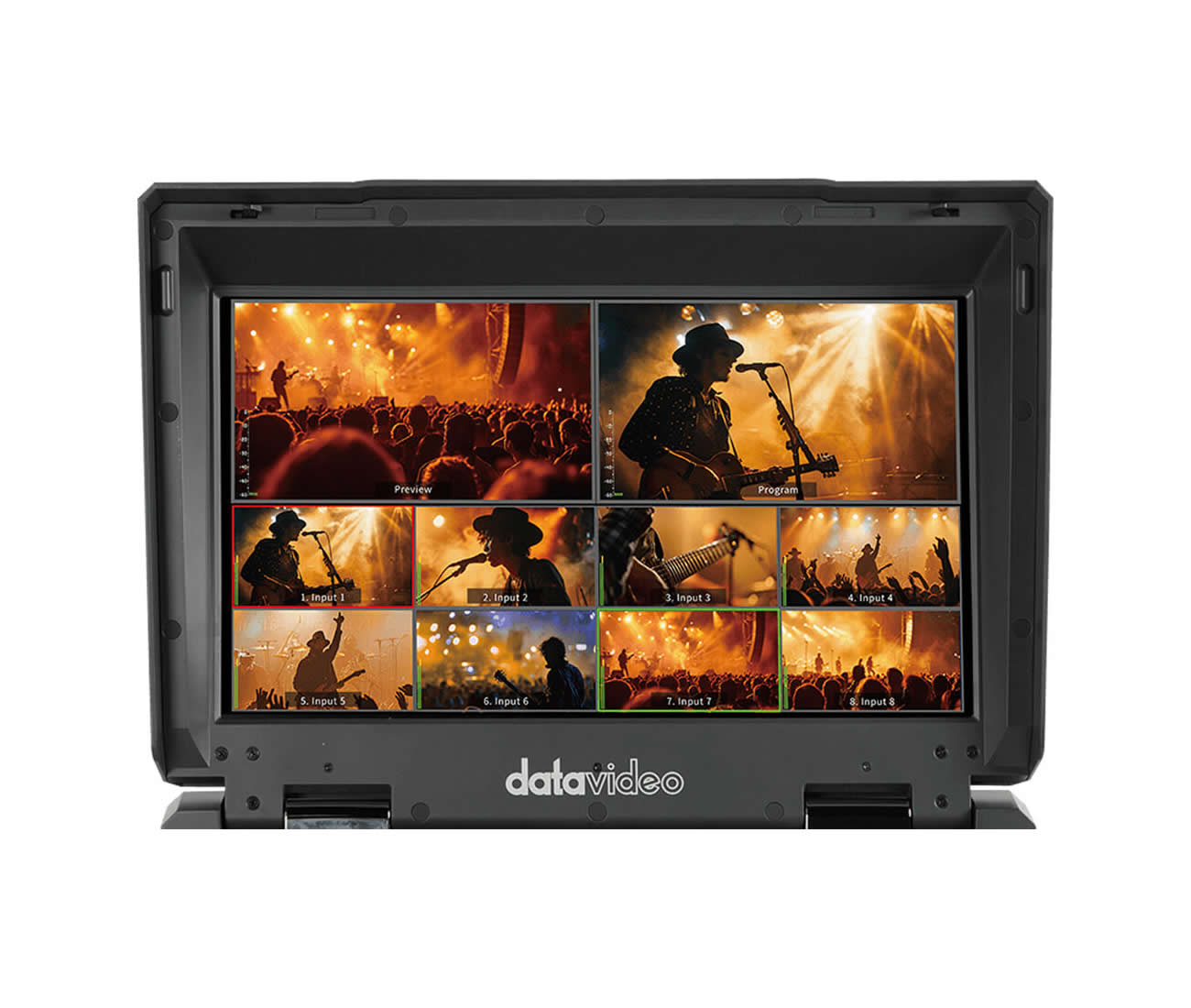

Connectivity is comprehensive with balanced XLR inputs for master audio integration, dedicated SDI and HDMI I/O and a user-friendly web interface for configuration. The device supports streaming to platforms such as YouTube / Facebook / Twitch and accepts control via the front panel and web UI. Dual multiview outputs and an integrated 17.3in HD TFT LED monitor simplify source monitoring and program confidence checking.
The HS-2600 is suited to live events, conferences, sports productions and virtual studio environments where space and setup time are limited. It combines switching, keying and streaming in a road-ready enclosure – enabling fast deployment and consistent operation across venues. The compact, reinforced casing supports transport and field use while protecting key components.
