Description

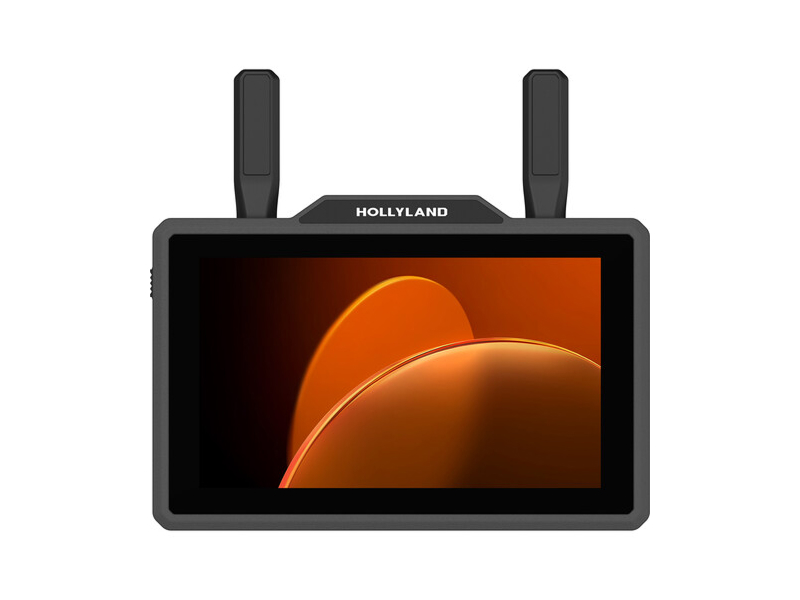

The Pyro 5 is a wireless transceiver monitor designed to transmit, receive, and display high-quality HD video on a 5.5 inch touchscreen. It combines transmitter and receiver roles in a single unit – allowing flexible deployment on set or in the field. The unit supports HDMI and SDI I/O and includes SD card recording and RTMP streaming options.
Key features include a 1920 x 1080 5.5 inch touchscreen at 1500 nits, dual-band 2.4/5 GHz automatic hopping, and broadcast mode that lets one transmitter send to up to four receivers. The Pyro 5 offers two transmission modes – HD mode for higher bitrates and Smooth mode for lower latency over longer distances. Proxy recording to SD or USB is supported for streamlined review and editing workflows.
Performance specifications include a line-of-sight wireless range up to 1312 ft and latency as low as 60 ms in Smooth mode, with HD mode offering up to 12 Mb/s and approximately 75 ms latency. The monitor accepts 1080p/1080i/720p inputs over HDMI 1.4b and 3G-SDI and passes embedded HDMI audio channels. Power options include an L-Series battery plate and DC barrel input to match common production power systems.

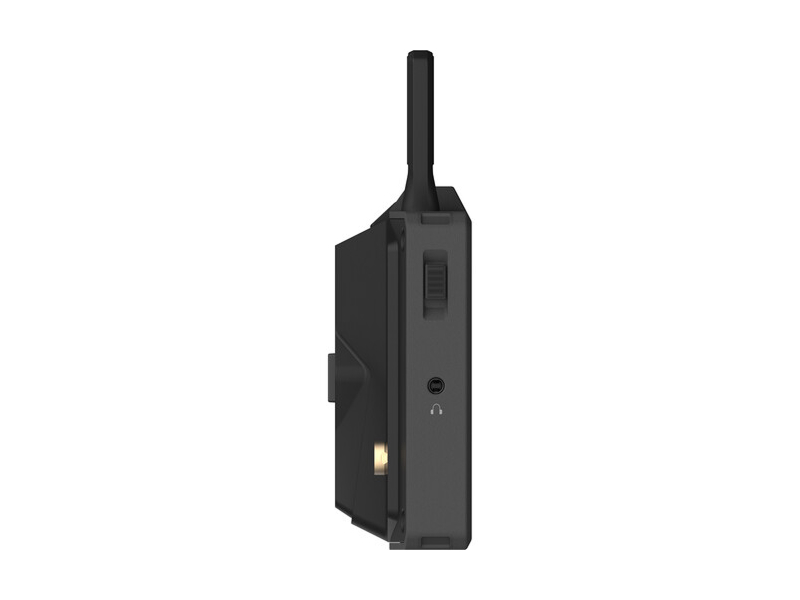

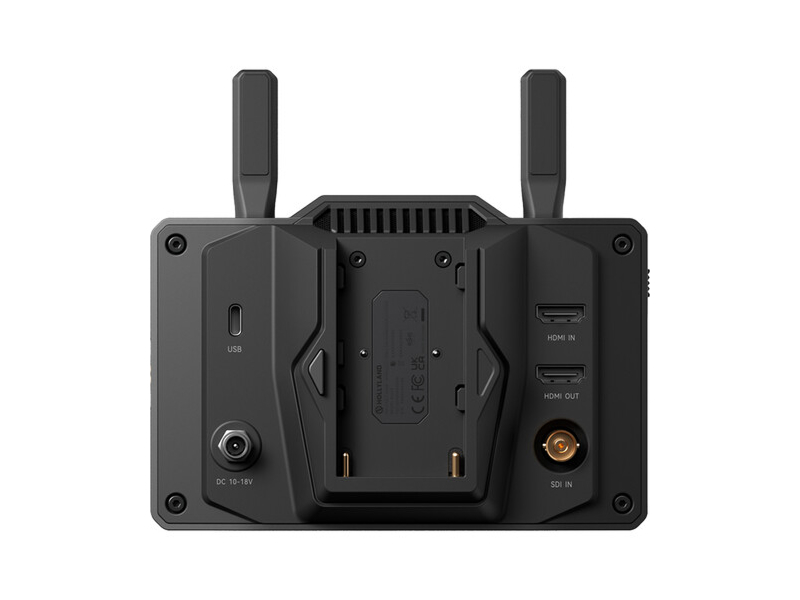

Connectivity options include 1x HDMI input, 1x SDI input, 1x HDMI loop output when used as a transmitter, and 1x HDMI output when used as a receiver. The unit also provides 2x RP-SMA antenna connectors, a USB-C port, and a 1/8″ headphone jack for monitoring. Mobile app support for Android and iOS plus RTMP streaming expand integration with live platforms and monitoring tools.
The Pyro 5 is suited to ENG, indie film, live streaming, and multi-camera productions that need a compact monitoring and wireless transmission solution. Use cases include camera-to-director feeds on location, wireless switching between cameras with grouping presets, and direct RTMP streaming to online platforms. Image tools such as waveform, focus assist, false color, and zebras support precise exposure and focus control on set.
Setup and operation are designed for rapid deployment – the L-series battery plate provides hot-swap power and the touchscreen gives quick access to channel selection and image tools. The robust metal chassis and industry-standard mounting points enable secure rigging on cameras, stands, or monitor arms. Overall the Pyro 5 delivers a compact, integrated wireless monitoring solution that balances range, latency, and recording features for professional video workflows.
