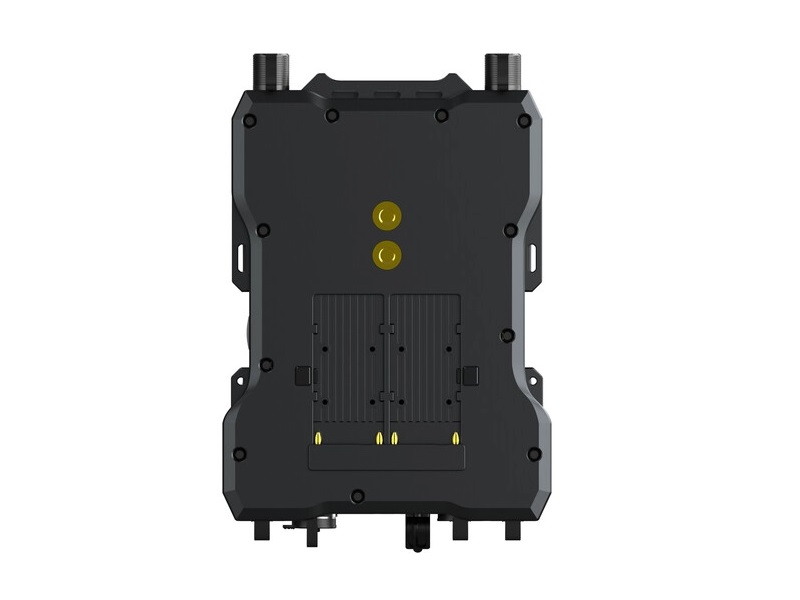

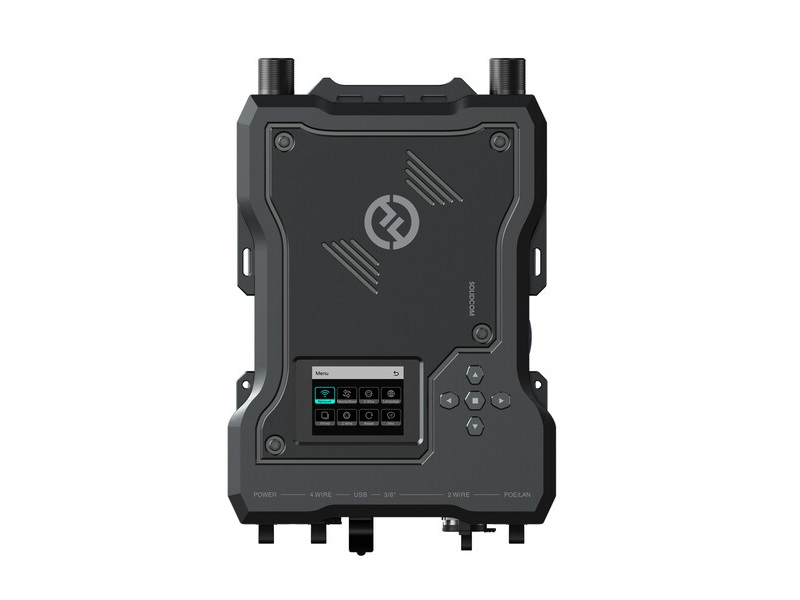

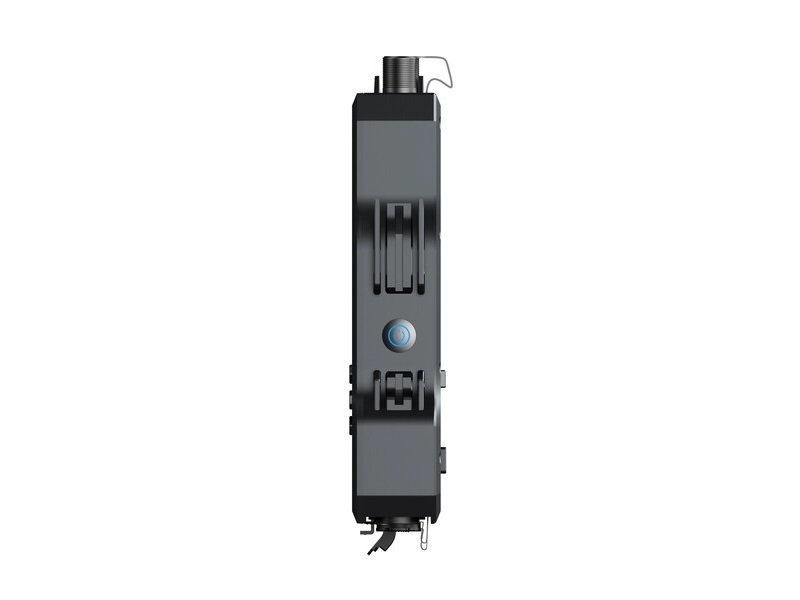

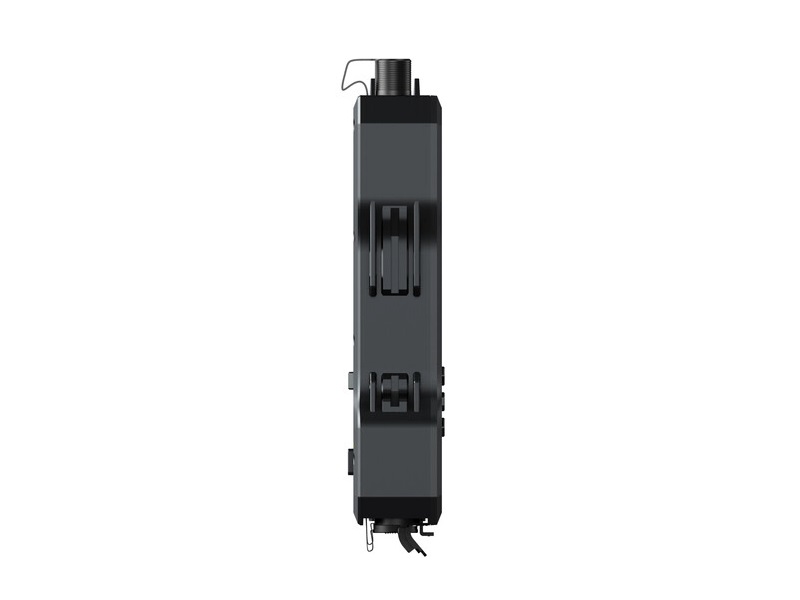

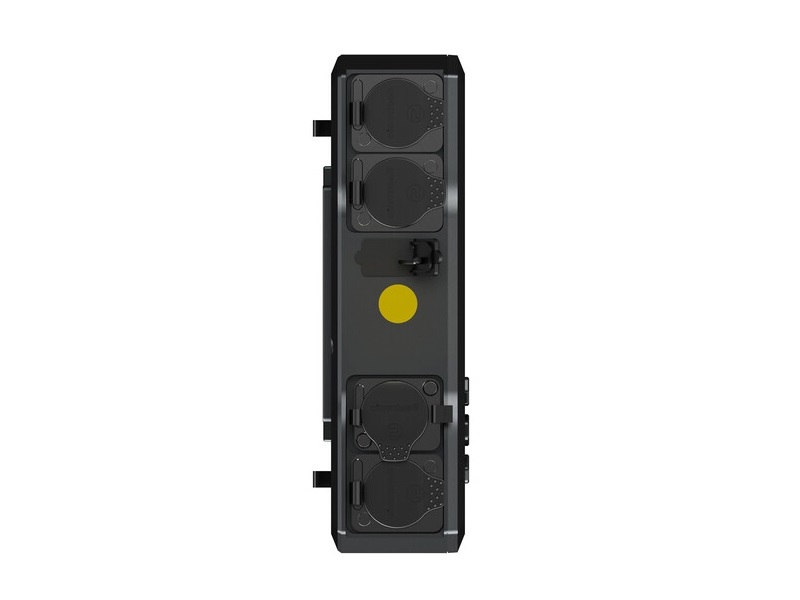

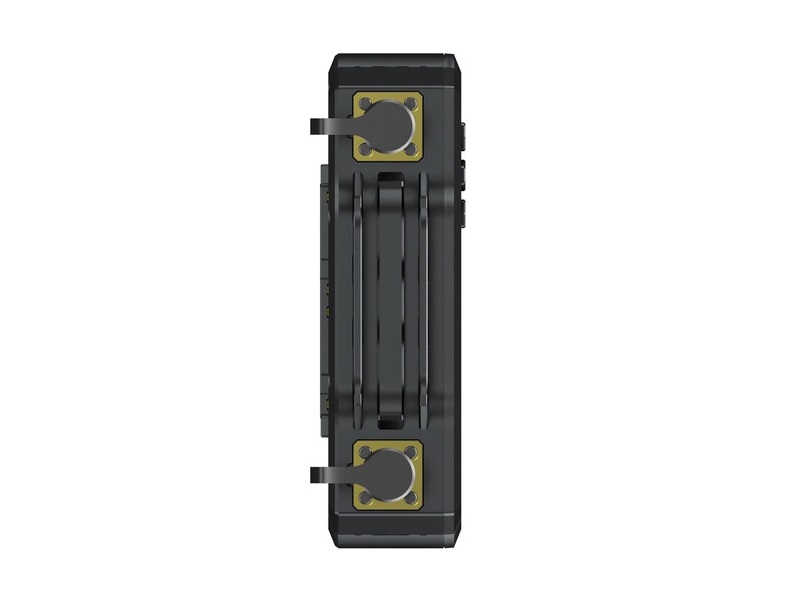

Hollyland HL-M1-HUB Solidcom M1 Wireless Intercom System Base Station

Description

Integrated Panel Antenna

With up to 1300′ one-way transmission range from the front and an extra 160′ range at the back, the built-in panel antenna is perfect for one-way communication in unobstructed venues, such as church events and performances.

External FRP Antennas

The external FRP antennas are endowed with reliable transmission in 360° radius range of around 985′, ideal for large-scale events including sports events, exhibitions, and concerts.

Intuitive Grouping

Setting up groups with the Solidcom M1 system is an intuitive experience. It’s as easy as selecting the numbers of specific beltpacks and making them a group. Either through the base station, Solidcom APP, or webpage, a group can be created and managed in seconds. The system supports up to 3 groups so you can flexibly allocate the beltpacks to team members such as lighting crew, camera crew, and PAs for example.

Flexible Powering & Expandability

Power is supplied from a pair of NP-F batteries or via PoE through the RJ45 port. Link up to 8 remote headsets (available separately) to each base station hub. Cascade an unlimited number of hubs together via the RJ45 ports to create a larger com system as your needs grow.

Features:

For Small- to Mid-Sized Events
Hub Base Only without Beltpacks/Headsets
Use with up to 8 Beltpack Receivers
Built-In Panel Antenna with 1300′ Range
2 External FRP Antennas with 985′ Range
Reliable DECT 6.0 Wireless Technology
XLR and RJ45 In/Out Ports
PoE or Dual NP-F Batteries
3 Groups Maximum
Cascade Additional HUBs to Expand System

Specifications

Wireless Connectivity

Wireless Technology	Digital DECT (1.9 GHz)
Operating Range	1476.4' / 450 m
Wireless Modulation	GFSK
Approximate RF Sensitivity	-93 dBm
Encryption	None

Base Station

I/O	1 x RJ45 - Audio Input/Output
Antenna	Base Station: 1 x External, Fixed Base Station: 2 x External, Detachable

Battery

Battery Type	Base Station: 2 x NP-F
Runtime	Not Specified by Manufacturer
DC Input Power	12 VDC

Environmental

Operating Temperature	32 to 113°F / 0 to 45°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Physical

Dimensions	10.1 x 7.1 x 1.9" / 255.5 x 180.4 x 48.5 mm
Weight	3.4 lb / 1560 g
