Hi5-4K-Plus SDI to HDMI 2.0 Converter 4K/60p HDR

Description

The AJA Hi5-4K-Plus is a compact SDI to HDMI video converter designed to bridge professional SDI sources and modern HDMI 2.0 displays. It accepts Quad 3G-SDI, Quad 1.5G-SDI, Dual 3G-SDI or single SDI inputs and outputs a single HDMI 2.0 signal. The unit preserves image fidelity while providing High Frame Rate support up to 60p for 4K/UltraHD workflows.

Key features include Quad SDI inputs for 4K workflows, support for 4:2:2 and 4:4:4 HDMI output, and HDR metadata generation compliant with HDMI v2.0a / CTA-861.3. The converter passes up to 8 channels of embedded SDI audio through to the HDMI output and supports both RGB and YCbCr color formats. It also supports HD conversion when working with single HD-SDI sources.

Technically the Hi5-4K-Plus handles a wide range of raster sizes and frame rates including 4096×2160 and 3840×2160 up to 60p in HFR 4:2:0 mode, and a full set of 2K, HD and SD formats. Video input mapping supports Two Sample Interleave (2SI) and Square Division (Quadrant) source mapping. The HDMI output provides HDR Infoframe generation as defined in CTA-861.3 and HDMI v2.0a for compatible displays.

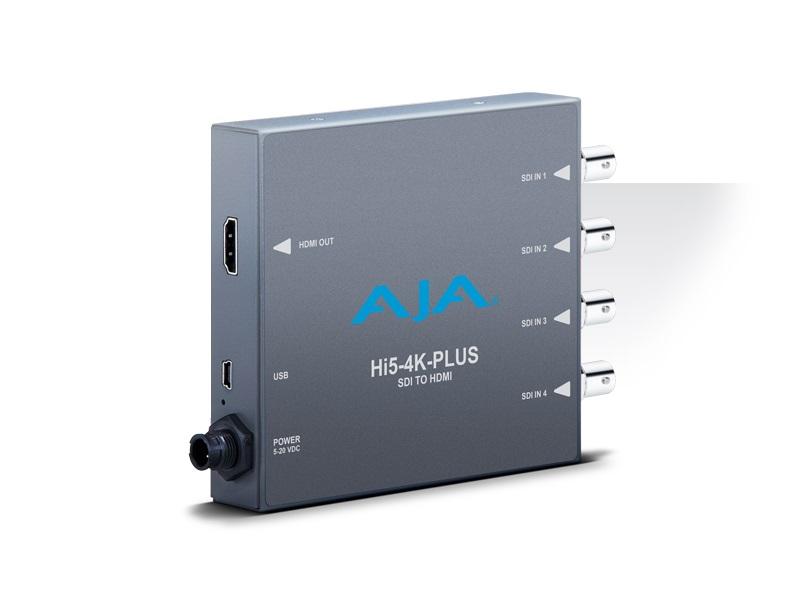

Connectivity is straightforward with four 3G-SDI BNC inputs, USB configuration, and one HDMI Type A output for connection to HDMI 2.0 displays. The unit ships with a universal 5-20VDC power supply and supports international AC input. A locking power connector and optional P-TAP battery cable make on-location use practical.

Use cases include camera or production monitoring, rack-based monitoring feeds, and broadcast or postproduction previewing where professional SDI sources must be displayed on HDMI 2.0 panels. The Hi5-4K-Plus supports HDR pipelines and HFR monitoring, enabling accurate evaluation of color and motion for 4K/UltraHD projects. Its small footprint makes it suitable for behind-monitor or in-rack placement.

Installation is simple and configuration is handled via the supplied MiniConfig software over USB. The unit uses convection cooling and consumes approximately 12 watts, so allow ventilation space when mounting. AJA backs the Hi5-4K-Plus with a 5 year warranty and advanced replacement to minimize downtime.

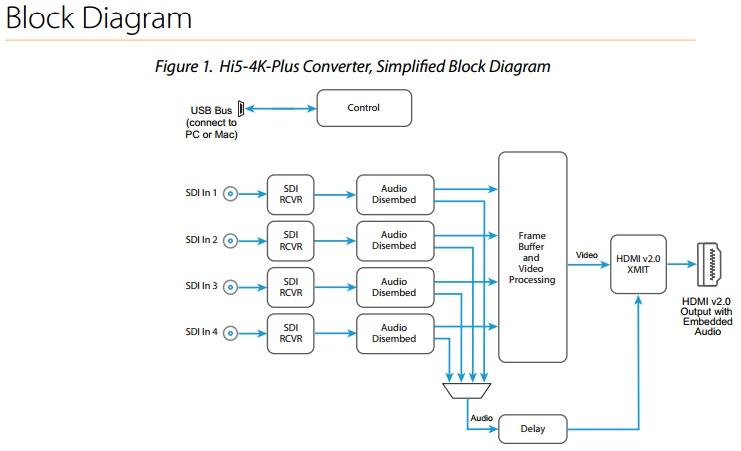

Product Diagrams

View Diagrams

Specifications

Video Formats	4096x2160p, 3840x2160p, 2048x1080p, 1920x1080p, 1920x1080i, 1280x720p, 720x576i, 720x480i
Video Input Digital	4 x 3G-SDI BNC, SMPTE-259/292/424, YCbCr 4:2:2/4:4:4, RGB 4:4:4 SMPTE or Full level, 8 or 10 bit, Two Sample Interleave 2SI or Square Division Quadrant
4 x 3 Gb SDI (Level A or B-Dual Link)	4096x2160p 23.98/24/25/29.97/30/50/59.94/60, 4096x2160PsF 23.98/24/25/29.97/30, 3840x2160p 23.98/24/25/29.97/30/50/59.94/60, 3840x2160PsF 23.98/24/25/29.97/30, PsF Level B-Dual Link
4 x 1.5 Gb SDI	4096x2160p 23.98/24/25/29.97/30, 4096x2160PsF 23.98/24/25/29.97/30, 3840x2160p 23.98/24/25/29.97/30, 3840x2160PsF 23.98/24/25/29.97/30
2 x 3 Gb SDI (Level B-Dual Stream)	4096x2160p 23.98/24/25/29.97/30, 4096x2160PsF 23.98/24/25/29.97/30, 3840x2160p 23.98/24/25/29.97/30, 3840x2160PsF 23.98/24/25/29.97/30
1 x 3 Gb SDI (Level A or B-Dual Link)	2048x1080p 23.98/24/25/29.97/30/50/59.94/60, 2048x1080PsF 23.98/24/25/29.97/30, 1920x1080p 23.98/24/25/29.97/30/50/59.94/60, 1920x1080PsF 23.98/24/25/29.97/30, 1920x1080i 25/29.97/30, 1280x720p 50/59.94/60, 1280x720p Level A only
2 x 1.5 Gb SDI	1920x1080p 50/59.94/60
1 x 1.5 Gb SDI	2048x1080p 23.98/24/25/29.97/30, 2048x1080PsF 23.98/24/25/29.97/30, 1920x1080p 23.98/24/25/29.97/30, 1920x1080PsF 23.98/24/25/29.97/30, 1920x1080i 25/29.97/30, 1280x720p 50/59.94/60
1 x 270 Mb SDI	625i 25, 525i 29.97
Video Output Digital	1 x HDMI Type A connector, HDMI v1.4, YCbCr 4:2:2/4:4:4, YCbCr 4:2:0 HFR 4K/UltraHD, RGB 4:4:4 SMPTE or Full level, 8 or 10 bit, 4:4:4 and 4:2:0 limited to 8 bit, HDR Infoframe CTA-861.3 HDMI v2.0a
Raster size and frame rate	4096x2160p 23.98/24/25/29.97/30/50/59.94/60 HFR 4:2:0 only, 3840x2160p 23.98/24/25/29.97/30/50/59.94/60 HFR 4:2:0 only, 2048x1080p 23.98/24/25/29.97/30/50/59.94/60, 1920x1080p 23.98/24/25/29.97/30/50/59.94/60, 1920x1080i 25/29.97/30, 1280x720p 50/59.94/60, 720x576i 25, 720x480i 29.97
HDCP Encryption	Not supported
Audio Input Digital	SDI embedded audio, 24-bit, 8-Channel
Audio Output Digital	SDI embedded audio, 24-bit, 8-Channel
User Controls	USB port, supplied cable, Mini-Config software, Mac or Windows
Size (w x d x h)	5.76 x 4.02 x 0.90 inch, 146mm x 102mm x 23mm
Weight	0.6 lb, 0.3 kg
Power	5-20VDC regulated, 12 watts, power supply required, DWP-U-R1 included, AC Adapter 100-240VAC 50/60Hz universal input
Environment Safe Operating Temperature	0 to 40 degrees C, 32 to 104 degrees F
Environment Storage Temperature	-40 to 60 degrees C, -40 to 140 degrees F
Operating Relative Humidity	10-90% noncondensing
Operating Altitude	<3,000 meters, <10,000 feet
Cooling and Mounting Note	Convection cooling, approx 12 watts, will be warm to touch, allow ventilation, do not stack with other Mini-Converters
Features	4 x 3G-SDI inputs, 4:2:2/4:4:4 HDMI 2.0 output support, HD conversion supported, Embedded audio support, Configure via USB and MiniConfig, Uses 5-20VDC power, 5-year warranty
