Aida HD3G-NDI-200 Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera

Description

The HD3G-NDI-200 Full HD NDI|HX/IP/SRT/3G-SDI PoE & IP Control POV Camera from AIDA Imaging provides an effective solution that facilitates any SDI workflow with IP connectivity and NDI. An optional SDI cable and a standard Ethernet cable are all you will need for easy NDI|HX and 3G-SDI connectivity. The unit’s support for PoE+ technology enables power, control, and video to be sent over a single Cat 5e+ cable, further simplifying your setup. The HD3G-NDI-200 comes with top and bottom 1/4″-20 mounting solutions.

Features

Full HD 1/2.8” progressive scan CMOS sensor capable of 1080p60 NDI|HX and 3G-SDI video
Accessible Web UI to stream directly to social media platforms and control image parameters over IP
Versatile and discreet design perfect for sleek, multilevel image capturing in most scenarios
OSD breakout cable provides power or control over serial RS-485 communication
Flawlessly relays multichannel embedded audio via NDI|HX2
Perfectly suited for upgrading existing 3G-SDI workflows to IP/NDI|HX capabilities

Specifications

General
Control	OSD Button or Web UI
Image Sensor	1/2.8" Progressive CMOS
Control Protocol	VISCA RS485, VISCA Over IP
Lens	C/CS-Mount 4 mm HD Lens
Resolutions	1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98 fps 1080i: 60 / 59.94 / 50 fps 720p: 60 / 59.94 / 50 / 30 / 29.97 / 25 fps IP Rate: 1920x1080 at 3-60 fps, 1280x720 at 3-60 fps, 1024x576 at 3-60 fps, 620x360 at 3-60 fps
Streaming	RTSP, RTMP
Color Spaces	4:2:2 (YCbCr) 10-Bit
Effective Pixels	1920 x 1080 (2.9 μm H x 2.9 μm V)
Inputs / Outputs

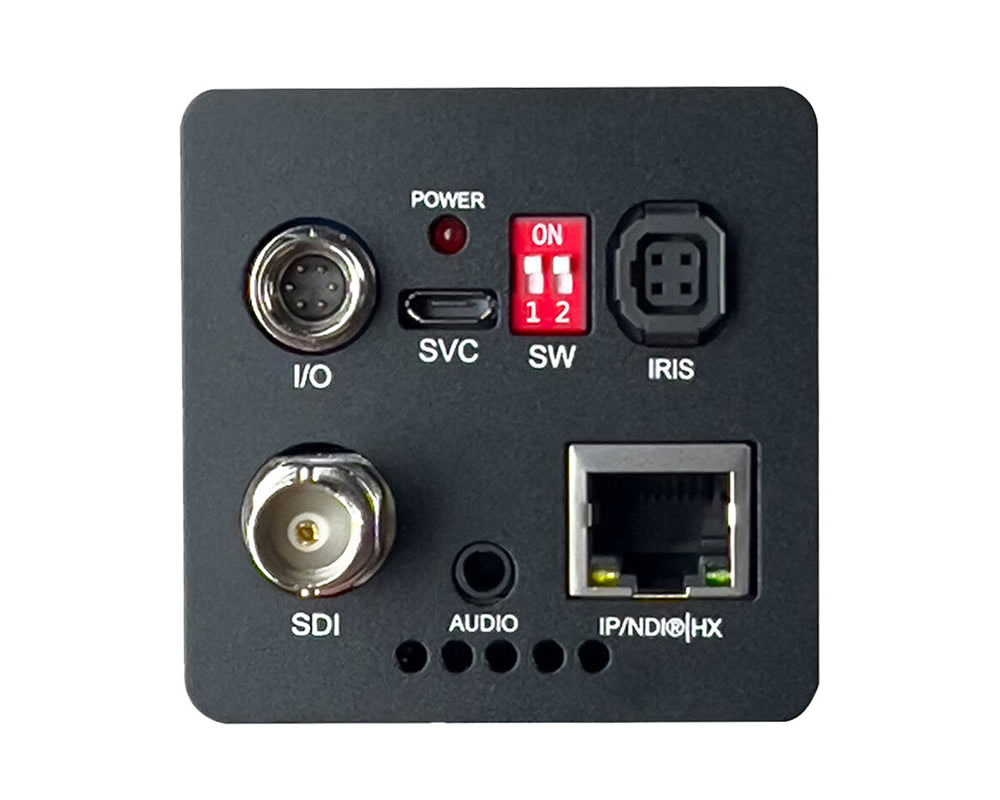

Video I/O	1x BNC (3G-SDI) Output
Audio I/O	1x 3.5 mm TRS Input
Other I/O	1x RJ45
Power
Power Source	AC Adapter with Power Brick (Included), PoE (Built-In)
DC Input	9 to 15 VDC
Physical
Mounting	2x 1/4"-20 Thread
Color	Black
Operating Conditions	0 to 40°C / 32 to 104°F
Dimensions	127 x 54 x 54 mm / 5 x 2.1 x 2.1"
Packaging
Package Weight	2.18 lb
Box Dimensions	12.3 x 5 x 4.7 inches
