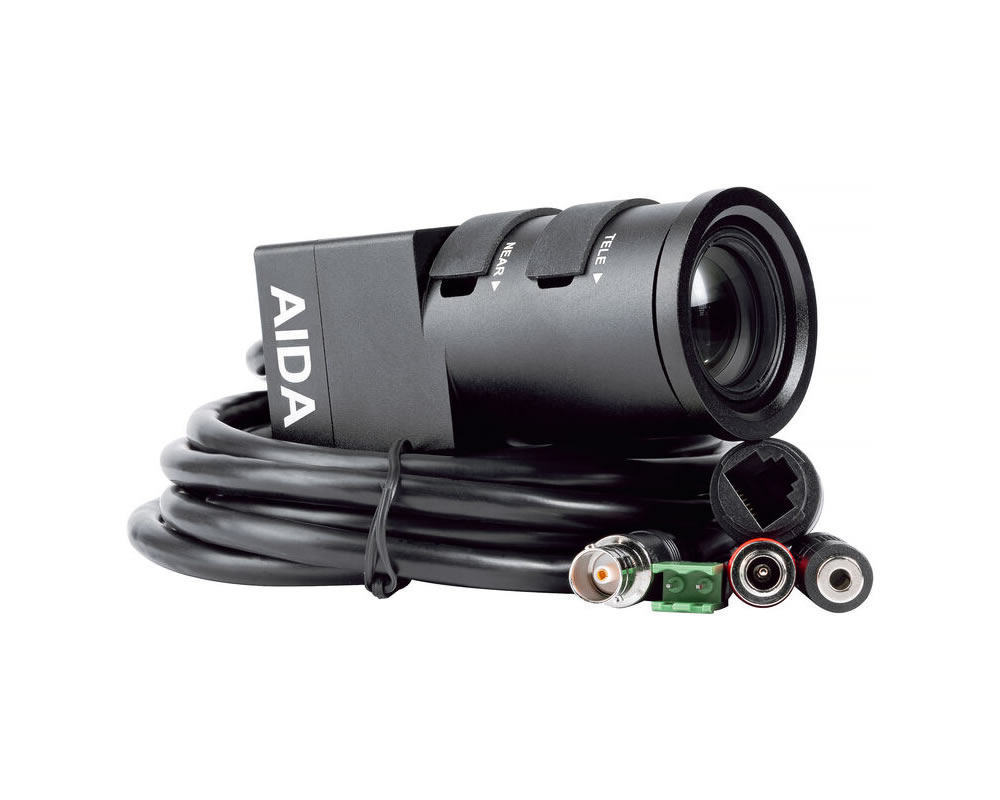

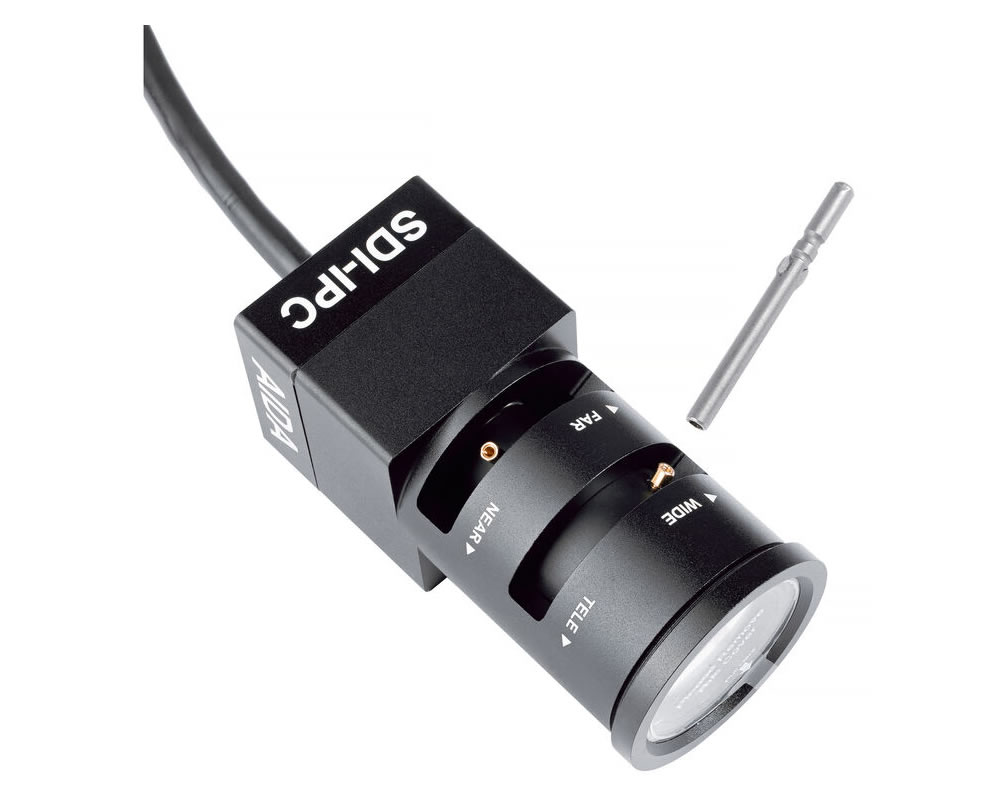

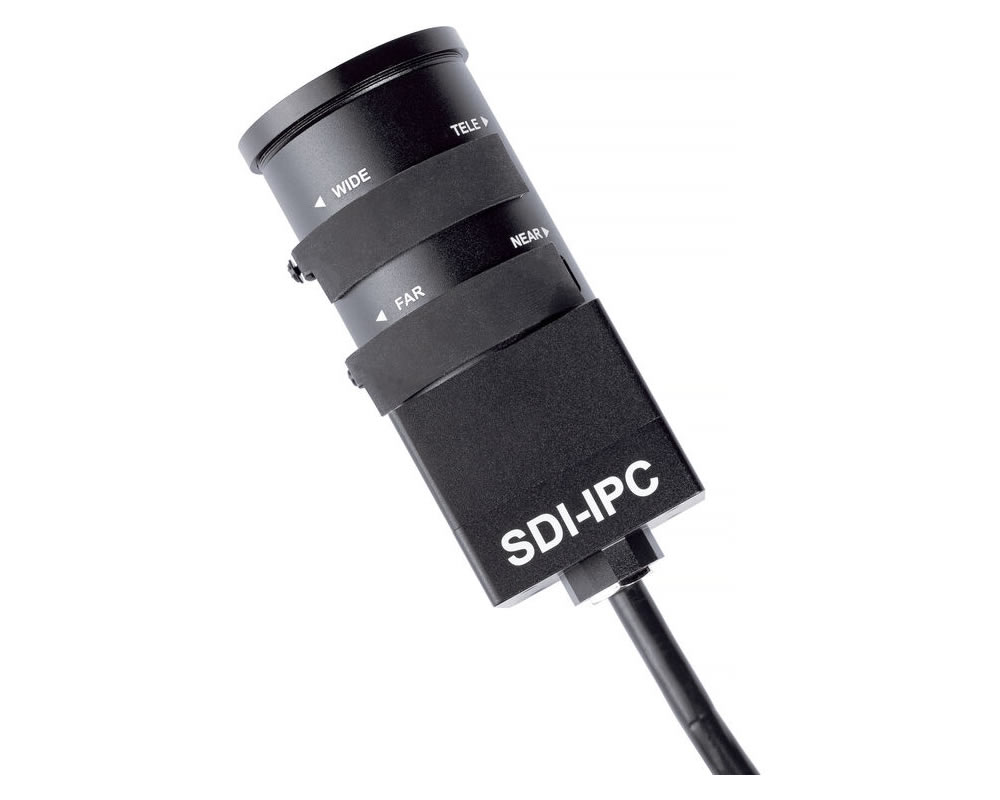

Aida HD3G-IPC-TF Full HD 3G-SDI POV Camera with IP Control

Description

The HD3G-IPC-TF Full HD 3G-SDI POV Camera from AIDA Imaging boasts IP control with a signature compact design, affordable pricing, and exceptional image quality. The versatile camera utilizes a 1/2.8″ Sony progressive CMOS sensor and a 5 to 50mm custom varifocal lens that achieve a 51 to 6.1° angle of view and image resolutions up to 1080p60.

Full VISCA over IP control across any network eliminates the need for outdated RS-485 wiring. This camera is part of the AIDA Imaging SDI IPC series, which integrates seamlessly with both new and existing 3G-SDI setups, offering complete control over every aspect.

Features

Full-HD 1/2.8” Sony progressive scan CMOS sensor capable of up to 1080p60 through 3G-SDI
VISCA over IP compatible for hardware and software solutions using that protocol (VISCA UDP, Sony VISCA over IP)
Versatile design with tripod mounts for easy and unique shot creation
PoE+ adaptable with adapter
Small form-factor and rugged design make all video streaming applications possible
Perfectly suited for indoor or outdoor shots for new or existing workflows

Specifications

Category	Specification	Details
General	Image Sensor	1/2.8" Sony Progressive CMOS Sensor (5.640 × 3.216 mm)
	Effective Pixels (H × V)	1920 × 1080 Pixel Size: 2.9 (H) × 2.9 μm (V)
	Resolution	1080p, 1080i, 720p
	Frame Rate	1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i: 60 / 59.94 / 50 720p: 60 / 59.94 / 50
	Color Spaces	4:2:2 (YCbCr) 10-Bit
	Minimum Illumination	0.2 Lux (Day), 0.1 Lux (Night)
	White Balance	Auto & Manual (9000 to 11,000K)
	Lens	5-50 mm Custom Varifocal Lens
Field of View	51° to 6.1° Field of View
Control Protocol	VISCA over IP
Weatherproofing	IP54
Inputs / Outputs	Video I/O	1x BNC (3G-SDI) Output
Inputs / Outputs	Audio I/O	1x 1/8" / 3.5 mm TRS Line Input
Power	Power Source	AC Adapter with Power Brick (Included), PoE (Included)
	DC Input Power	12 VDC
	Power Consumption	6 W
Physical	Mounting	Top: 1x 1/4"-20, Bottom: 1x 1/4"-20
	Color	Black
	Environmental Resistance	Weather-Resistant (IP54)
	Operating Conditions	14 to 122°F / -10 to 50°C
	Cable Length	3' / 91.4 cm
	Dimensions	1.6 × 1.6" / 4 × 4 cm
Packaging Info	Package Weight	2.34 lb
Packaging Info	Box Dimensions (L × W × H)	11.1 × 5.6 × 4.1"
