Aida HD-NDI-X20 Full HD NDI HX IP POV Camera with 20x Optical Zoom

Description

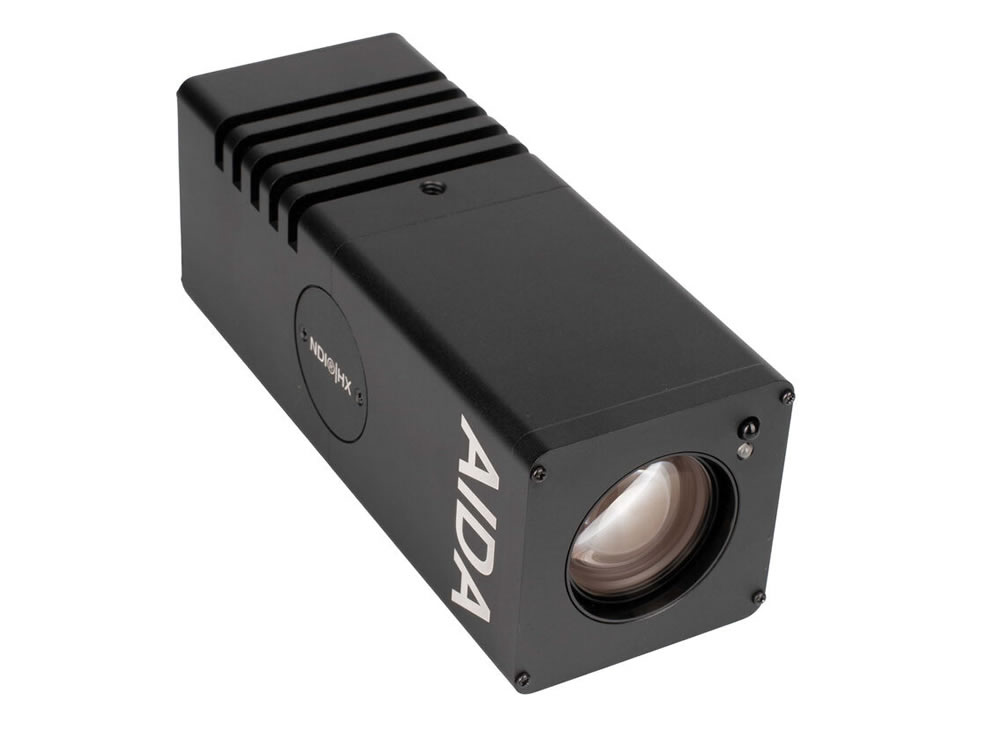

Perfect for integration into your preexisting NDI|HX setup, this Full HD NDI|HX IP POV Camera from AIDA Imaging features an integrated NDI|HX license and full HD HDMI and IP outputs for high-quality footage in broadcast and live event streaming applications. The camera features a 1/2.8″ CMOS image sensor and 20x optical zoom with autofocus to capture clear HD video. A 3.5mm TRS stereo audio input allows you to embed audio into your NDI|HX stream.

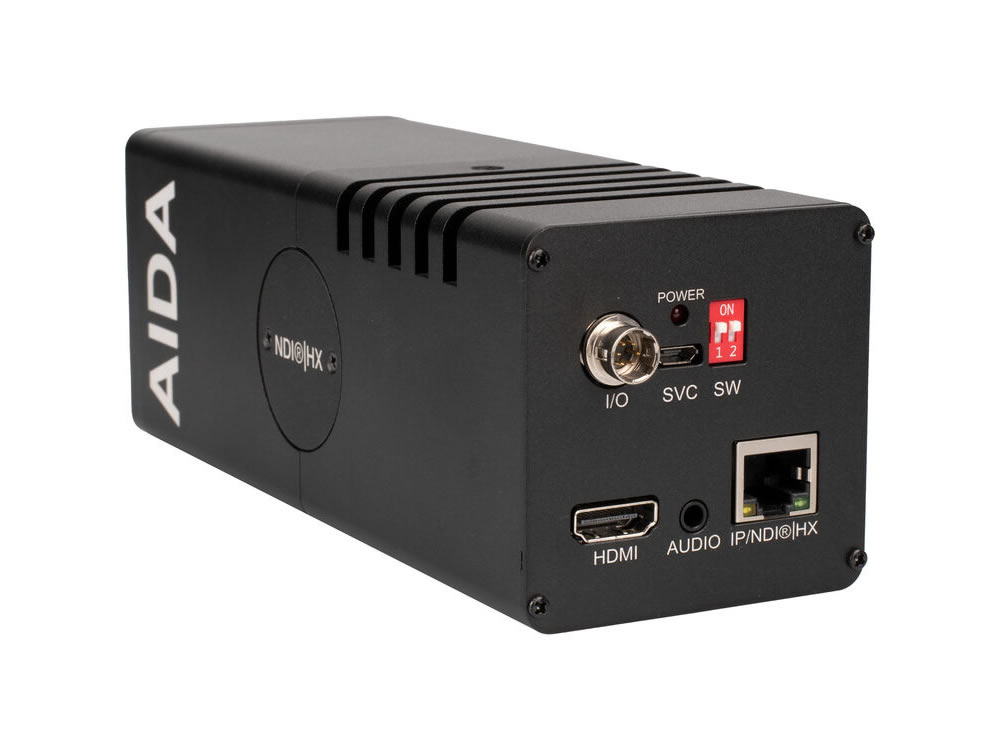

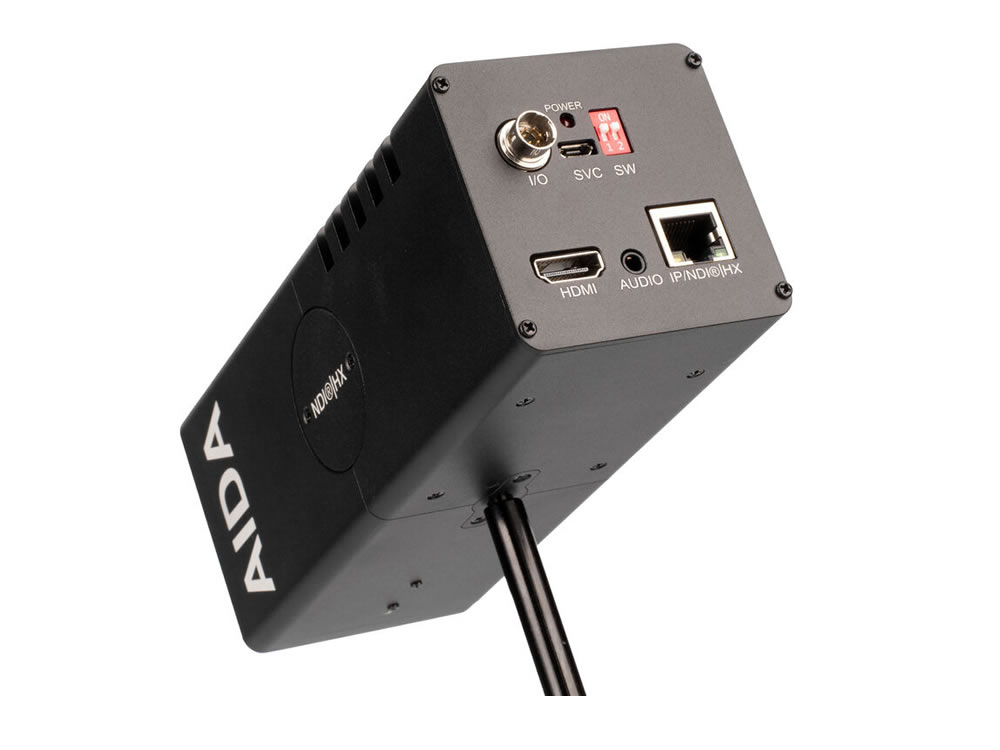

Deliver power and RS-485 serial zoom control using the 6-pin I/O port and included breakout cable. Other image parameters are adjustable via WebUI and the included IR Remote. PoE+ support reduces cable runs for power, control, and video over a single cable. Update your camera’s firmware via the micro-USB port. A tally light indicator at the front of the camera lets your talent know when you’re live.

Features

WebUI streams directly to social media platforms, control image parameters via IP
20x optical zoom for full HD shots up to 140′
I/O breakout cable with power and control via serial RS-485
Relay multi-channel embedded audio via NDI|HX
PoE+ compatibility reduces cable runs
Two 1/4″-20 mounting threads

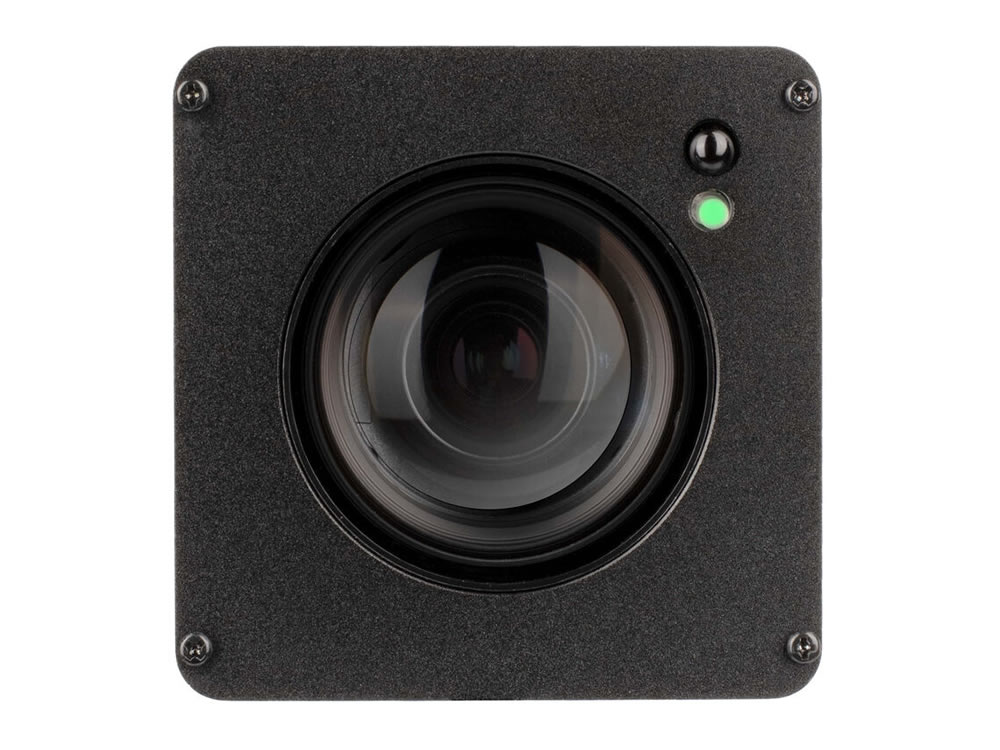

Integrated front tally light
Supports UDP|IP, RTSP, RTMP, SRT, VISCA Over IP, and NDI|HX protocols

Specifications

Camera Specifications
Image Sensor	1/2.8"-Type CMOS
Effective Resolution	2.07 Megapixel
Shutter Type	Electronic Rolling Shutter
Minimum Illumination	0.1 Lux
Focal Length	4 mm
Aperture	f/1.5 to f/3
Zoom	20x Optical
Video & Recording
Video Output	10-bit via HDMI
Resolutions	1920x1080i (50/59.94/60 fps) 1920x1080p (24/25/29.97/30/50/59.94/60 fps) 1280x720 (50/59.94/60 fps)
Interfaces & Connectivity
Video Outputs	1x HDMI 1.3, 1x RJ45 (NDI)
Audio Input	1x 3.5 mm TRS Stereo
Control Input	1x LEMO 6-Pin (RS-485)
Firmware Input	1x Micro-USB
Embedded Audio	HDMI / RJ45
Supported Protocols	RTSP / UDP / RTMP / NDI
Wireless	No
Mobile App	No
Power
Voltage	9–15 VDC
Power Consumption	24 W
Power Input	Hirose 6-Pin
Environmental
Operating Temperature	0 to 40°C (32 to 104°F)
Physical
Mounting	1x 1/4"-20 Female
Dimensions	171 x 64 x 64 mm
Weight	600 g (21.2 oz)
Packaging
Package Weight	3.3 lb
Box Dimensions	14.7 x 5.2 x 5.1 inches
