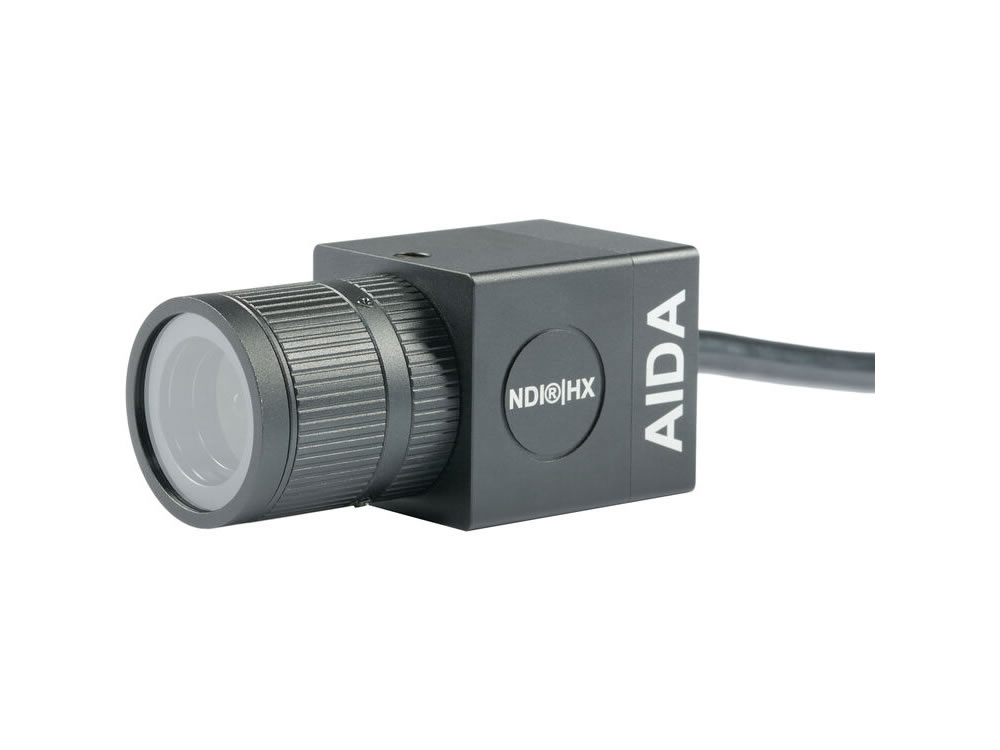

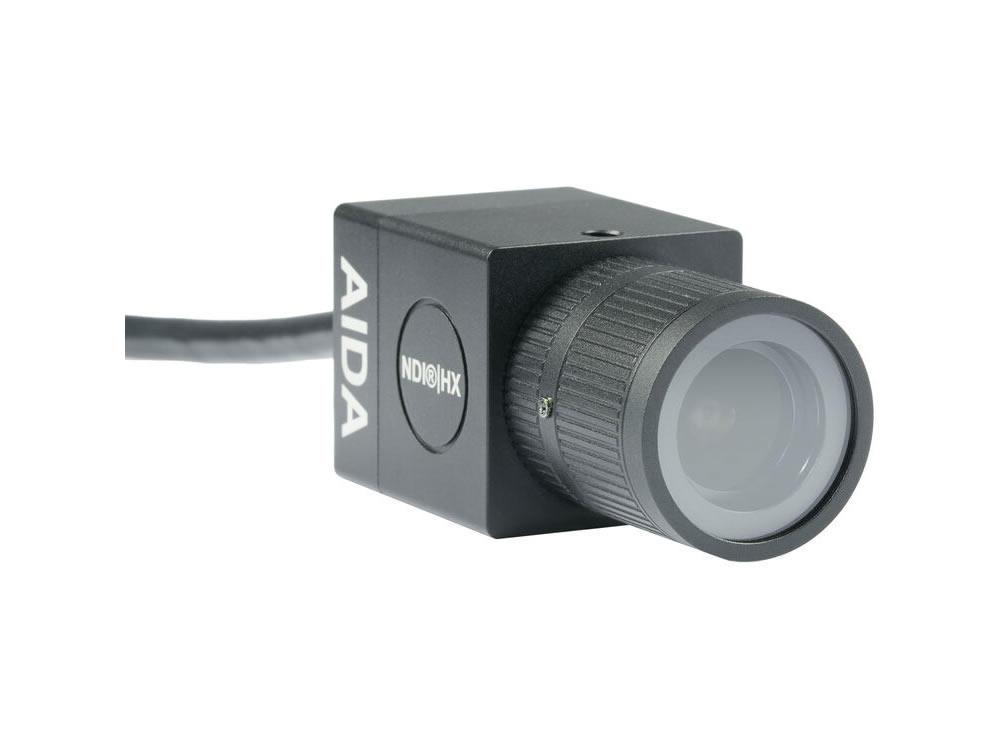

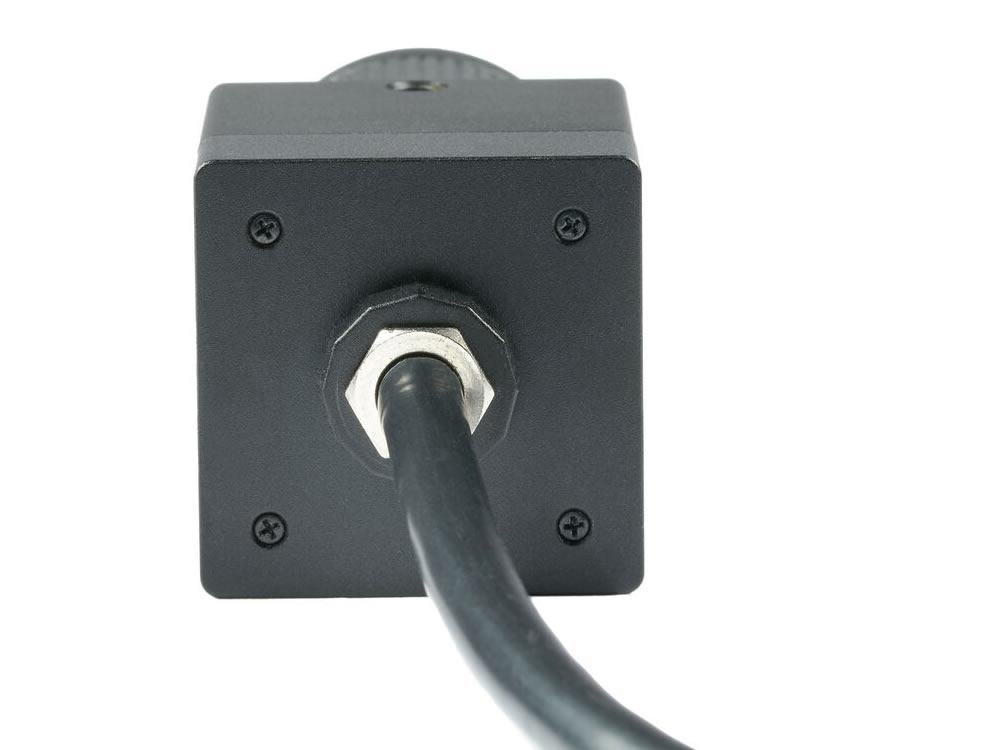

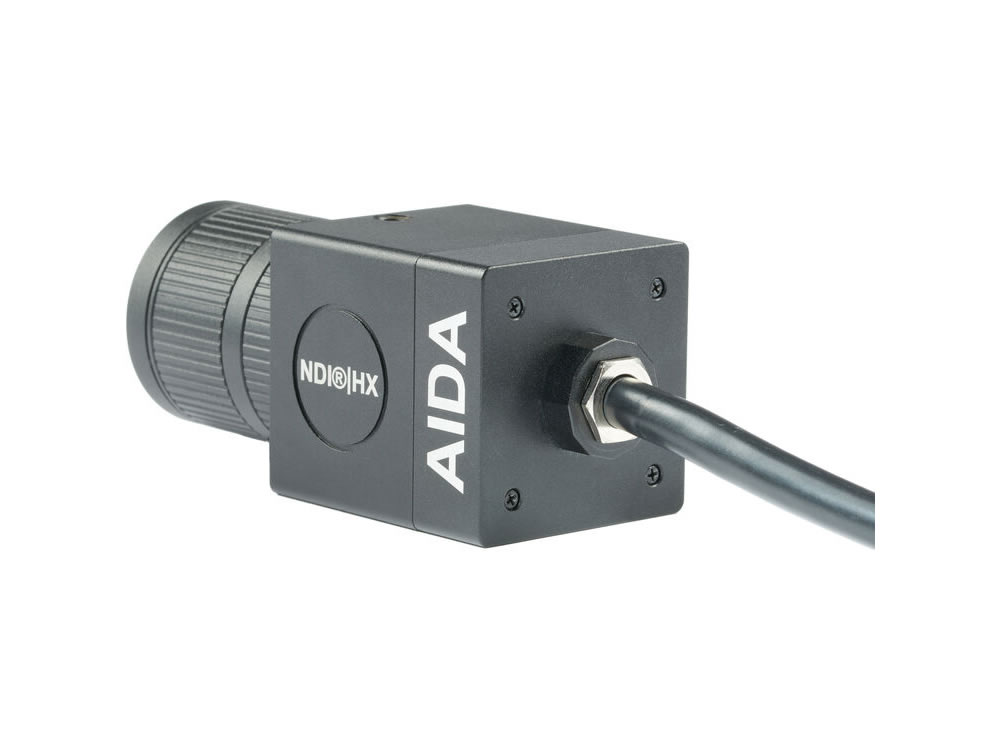

Aida HD-NDI-VF Full HD NDI HX/IP Streaming Weatherproof POV Camera with 2.8-12mm Varifocal Lens

Description

Stream 1080p60 video in broadcast, education, and live production applications either indoors or outdoors using this AIDA Imaging Full HD NDI|HX/IP Streaming Weatherproof POV Camera. This HD-NDI-VF model features a 2.8 to 12mm varifocal lens with a 120° field of view at its wide end. Rated at IP54, the camera is weatherproof for use in outdoor environments. An integrated 10′ I/O cable facilitates the camera’s RJ45 IP and NDI streaming output and USB-A port for tweaks to the camera’s settings.

VISCA over IP control protocol is supported by the device as well as UDP, SRT, RTSP, and RTMP IP streaming. Both NDI and IP streams are simultaneously output via a single Ethernet connection. An included PoE+ dongle adapter allows the RJ45 connection to provide power to the camera. Alternatively, the 12 VDC input port connects to the included power supply for another installation option.

Features

WebUI streams directly to social media platforms and controls image parameters over IP
Versatile design with top and bottom tripod mounts
IP54 rated varifocal lens with 120° wide FOV and 36° tele FOV
Small form-factor and rugged design
PoE+ dongle adapter and power supply included

Specifications

Image Sensor	1/3"-Type
Effective Sensor Resolution	2.07 Megapixel
Lens Mount	C CS
Video Output	10-Bit via HDMI 1920 x 1080i at 59.94/60.00/50 fps 1920 x 1080p at 59.94/60.00/24.00/25/50/29.97/30.00 fps 1280 x 720 at 59.94/60.00/50 fps
Digital I/O	RJ45 / USB-A
Supported Protocols	Video Streaming RTSP/UDP/RTMP/NDI Camera Control VISCA
Imaging
Image Sensor	1/3"-Type CMOS
Effective Sensor Resolution	2.07 Megapixel
Lens Mount	C CS
Recording
Video Output	10-Bit via HDMI 1920 x 1080i at 59.94/60.00/50 fps 1920 x 1080p at 59.94/60.00/24.00/25/50/29.97/30.00 fps 1280 x 720 at 59.94/60.00/50 fps
Exposure Control
Shutter Type	Electronic Rolling Shutter
Minimum Illumination	0.1 Lux
Focal Length	2.8 to 12mm
Aperture Range	f/1.5 to 3
Interface
Digital I/O	1x RJ45 LAN Video Output 1x USB-A Data Input
Embedded Audio	HDMI/RJ45
Power I/O	1x Hirose 6-Pin Input
Adapter / Cable	Built-In Adapter • Input: USA (Edison) Type-A/B Plug • Cable: 10' / 3 m
Supported Protocols	Video Streaming RTSP/UDP/RTMP/NDI Camera Control VISCA
Mobile App Compatible	No
Power
Voltage	12.0 VDC
Environmental
Operating Conditions	32 to 104°F / 0 to 40°C
General
Accessory Mounting	2 x 1/4"-20 Female
Dimensions	2.9 x 1.6 x 1.6" / 73 x 41 x 41 mm
Weight	16 oz / 454 g
Packaging Info
Package Weight	2.245 lb
Box Dimensions (LxWxH)	10.9 x 5.7 x 4.1"
