Gefen GTV-DVIDL-2-MDP Dual Link DVI to Mini Displayport Converter

Description

View Any PC or Mac Computer with Audio Support on a Display Using Mini DisplayPort

The GefenTV Dual Link DVI to Mini DP Converter works with all Mac and PC computers using dual link DVI graphics supporting resolutions up to 2560×1600. It is designed as an easy, plug and play solution for viewing DVI dual link video using the Mini DisplayPort interface with audio support. The GefenTV Dual Link DVI to Mini DP Converter can also be used with displays using standard DisplayPort connections with a passive Mini DisplayPort to DisplayPort cable. Audio support is provided through the built-in 3.5mm audio connector. The audio output is fed through the Mini DP Out connector on the unit. An EDID switch button is provided for manually selecting the three EDID modes: 2560×1600, 2560×1440, or pass-through. The unit is powered using the included USB cable.

How It Works

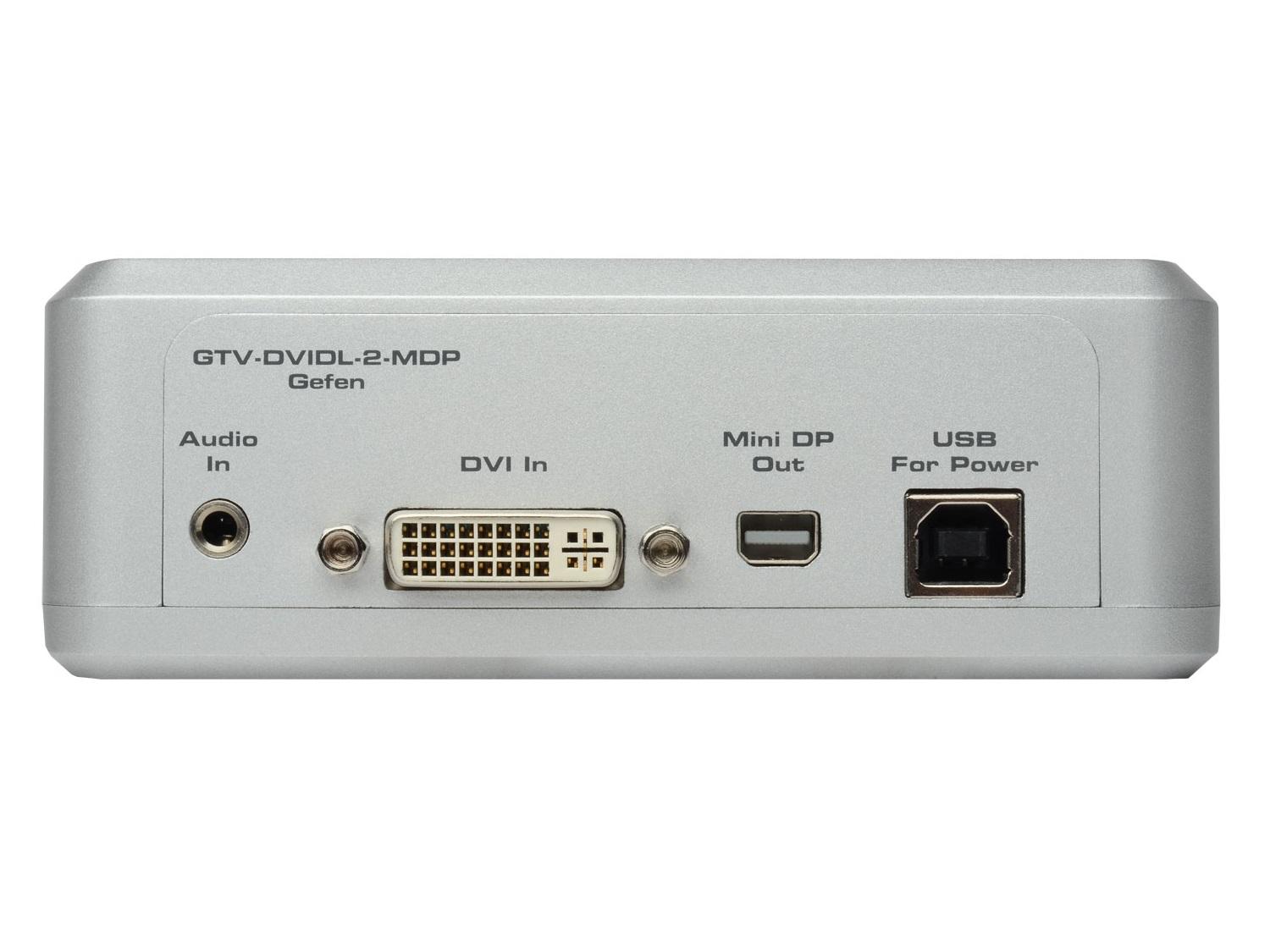

Connect your DVI source to the GefenTV Dual Link DVI to Mini DP Converter using an optional dual link DVI cable to the unit’s DVI In connector. Using a Mini DisplayPort cable (sold separately), connect the cable from the unit’s Mini DP Out jack to the display’s Mini DisplayPort input (or DisplayPort input: With a Mini DisplayPort to DisplayPort adapter, also sold separately). Use the EDID button on the front panel to cycle through the three different EDID modes: 2560×1600, 2560×1440, or pass-through. Select the appropriate EDID mode based on the capabilities of the display attached. The specific EDID Mode LED will glow to indicate which mode is selected. Attach the optional audio cable from your computer’s audio output jack to the unit’s Audio In jack. Connect the USB cable (included) from the computer’s USB port to the unit’s USB (USB For Power) jack.

Features:

Converts Dual Link DVI to DisplayPort using the Mini DisplayPort connector interface
Supports resolutions up to 2560×1600
Supports Apple 24″ and 27″ LED Cinema Displays
Advanced EDID Management: Mode 1: 2560×1600, Mode 2: 2560×1400, Mode 3: EDID pass-through
Audio Input Jack
USB-powered
Field upgradable using USB
Durable, compact form factor

Specifications:

DVI Connector: DVI-I 29 pin, female
USB Connector: Type B
Audio Input Connector: 3.5mm mini-stereo
Output Connector: Mini DisplayPort
LED Indicators: (3) EDID mode, (1) SYNC
Dimensions: 4.75″ W x 1.75″ H x 3.25″ D
Shipping Weight: 2 lbs.

Package Includes:

(1) GefenTV Dual Link DVI to Mini DP Converter
(1) 4 ft. USB cable (A-B)
(1) User Manua

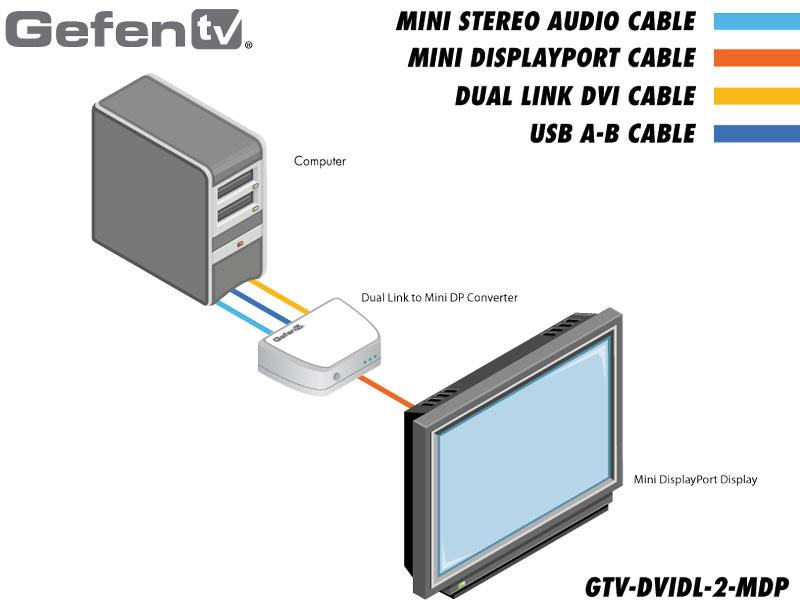

Product Diagrams

View Diagrams
