Description
The GefenToolBox High Definition 1080p Scaler is a compact HDMI video scaler designed to output a single HDMI source at up to 1080p Full HD. It lets integrators bypass a display’s internal scaler by providing a native 1080p output for improved image fidelity. The unit also supports Deep Color and common high-definition audio formats.
The scaler provides manual upscaling and downscaling for all resolutions up to 1080p and supports DVI-D sources via adapters. It includes an Advanced Color Engine to enhance contrast, skin tones, and edge detail. The device performs frame rate conversion and supports auto 3:2 and 2:2 pull-down detection and recovery.
Key performance metrics include a maximum pixel clock of 225 MHz and standard HDMI input/output signal levels of 1.2 V p-p for video and 5 V p-p (TTL) for DDC. The scaler supports Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, DTS Digital Surround, and up to 8-channel LPCM via HDMI. It also provides S/PDIF and TOSLINK pass-through for legacy audio systems.

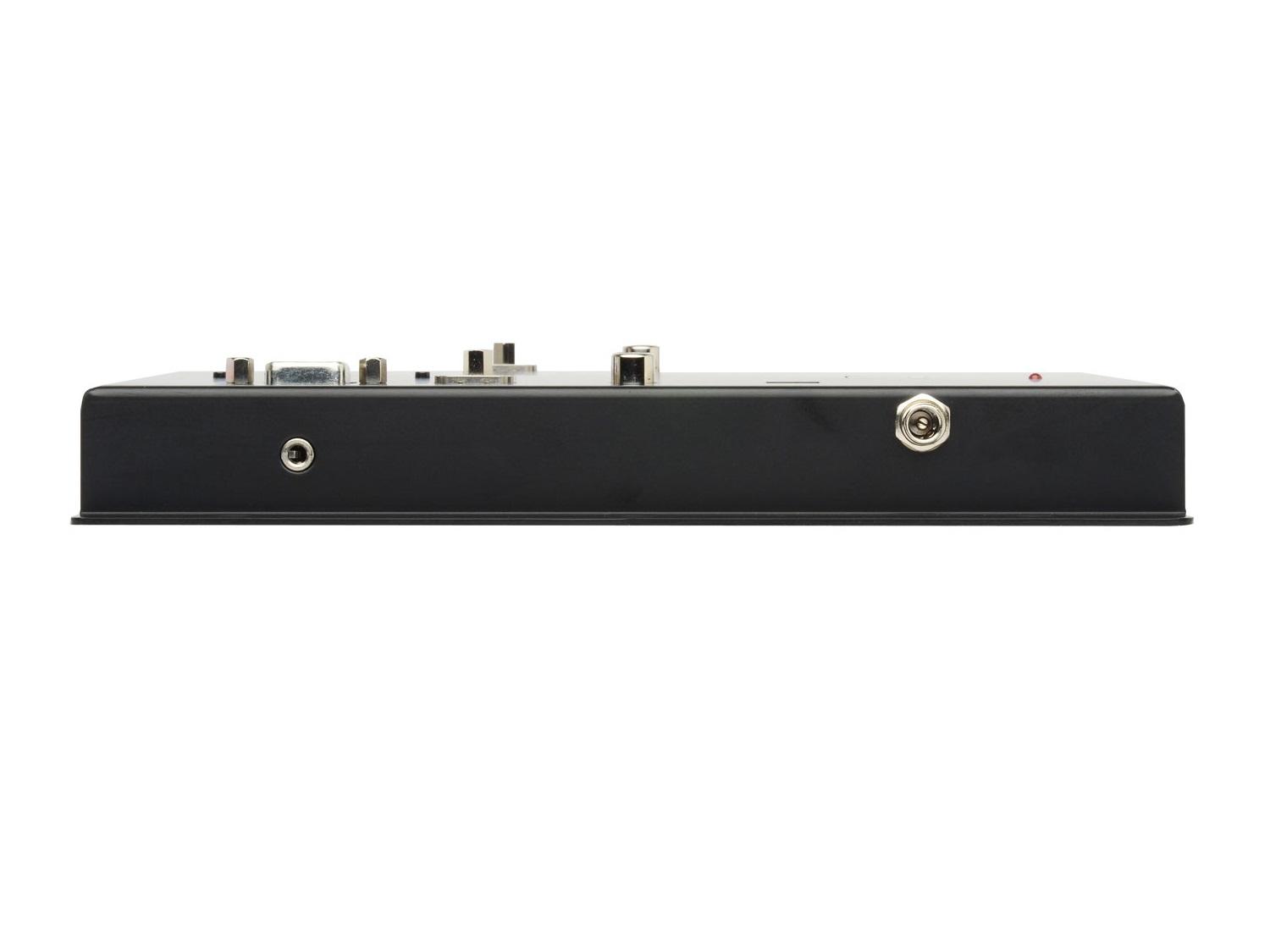

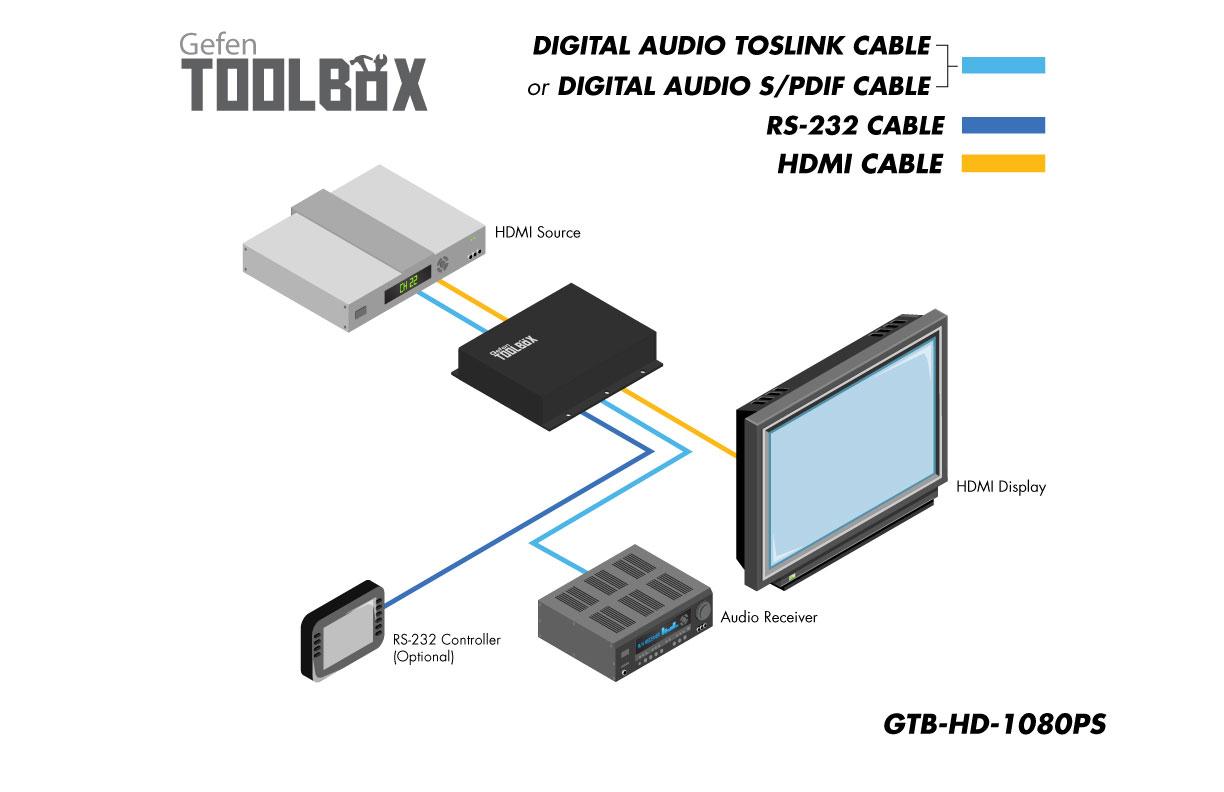

Connectivity includes one HDMI input and one HDMI output (Type A 19-pin female), one TOSLINK optical input and output, and one digital coaxial S/PDIF input and output. Control and integration options include an IR extender jack and an RS-232 DB-9 port for external control and automation. The unit accepts a 5 V DC locking power supply for secure installation.
This scaler is practical for mixed-resolution distribution systems where some displays require downscaling while others display native 1080p. Typical applications include conference rooms, digital signage clusters, rental AV, and broadcast confidence monitoring. It preserves maximum resolution on higher-definition displays while supporting lower-resolution endpoints.
The compact metal enclosure is wall-mountable for discreet installation behind displays and includes field-upgradeable firmware to maintain compatibility with evolving sources and formats. On-screen display (OSD) menus and front-panel controls enable straightforward local setup and audio input selection. The unit ships with an IR remote for basic control out of the box.
Overall, the GefenToolBox 1080p Scaler delivers predictable image scaling, multi-format audio support, and flexible control interfaces to integrate into professional AV systems. It is engineered to simplify compatibility across heterogeneous display environments while preserving audio/video sync and image quality. The product is suited to integrators who need a compact, installable scaler with legacy audio connectivity and serial control.
