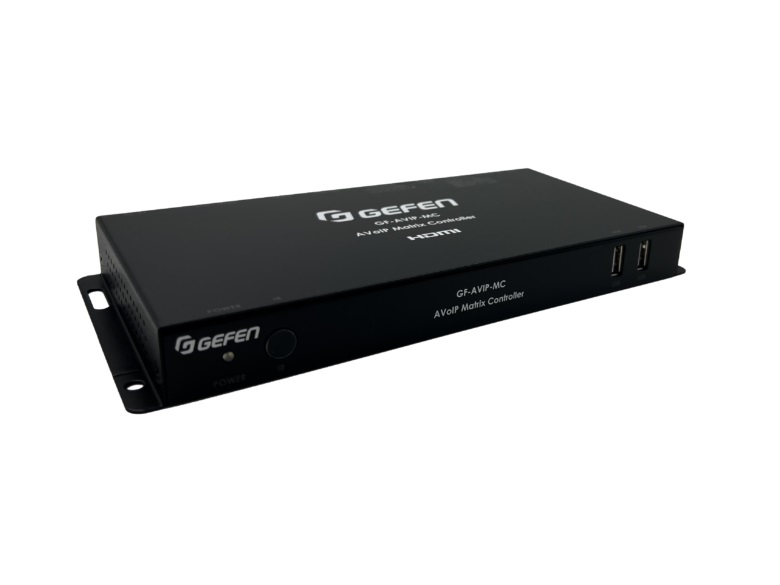

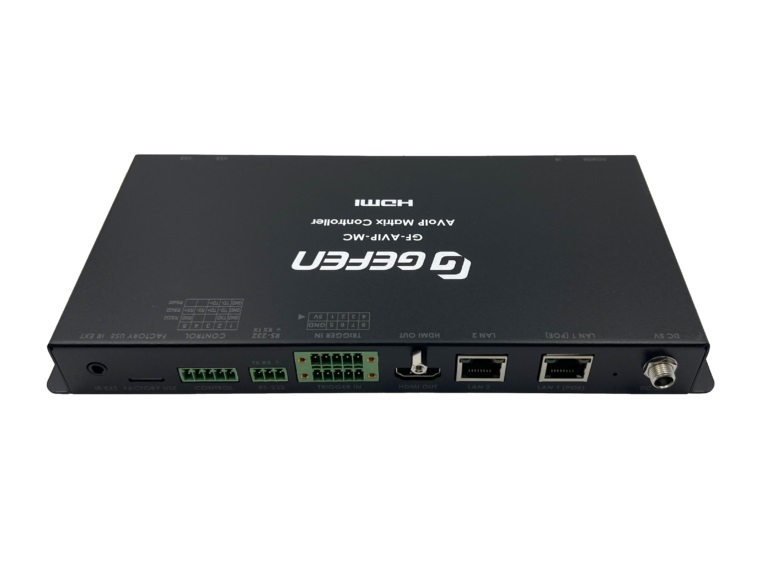

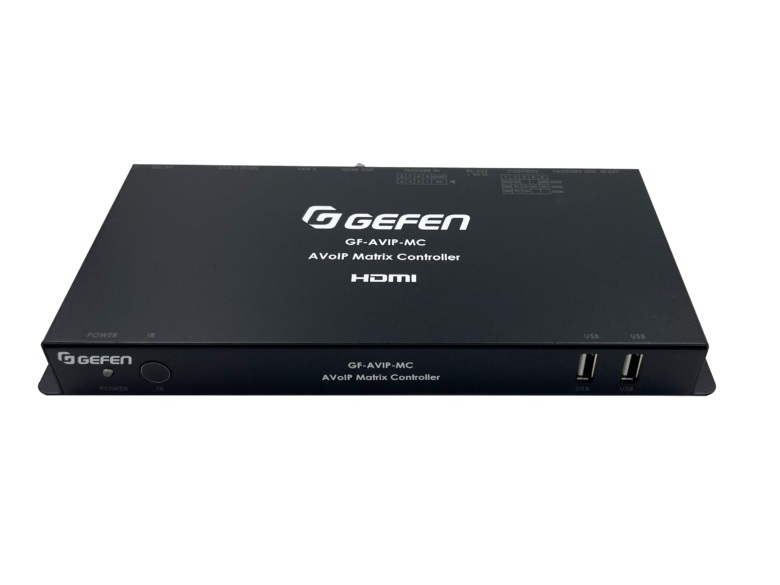

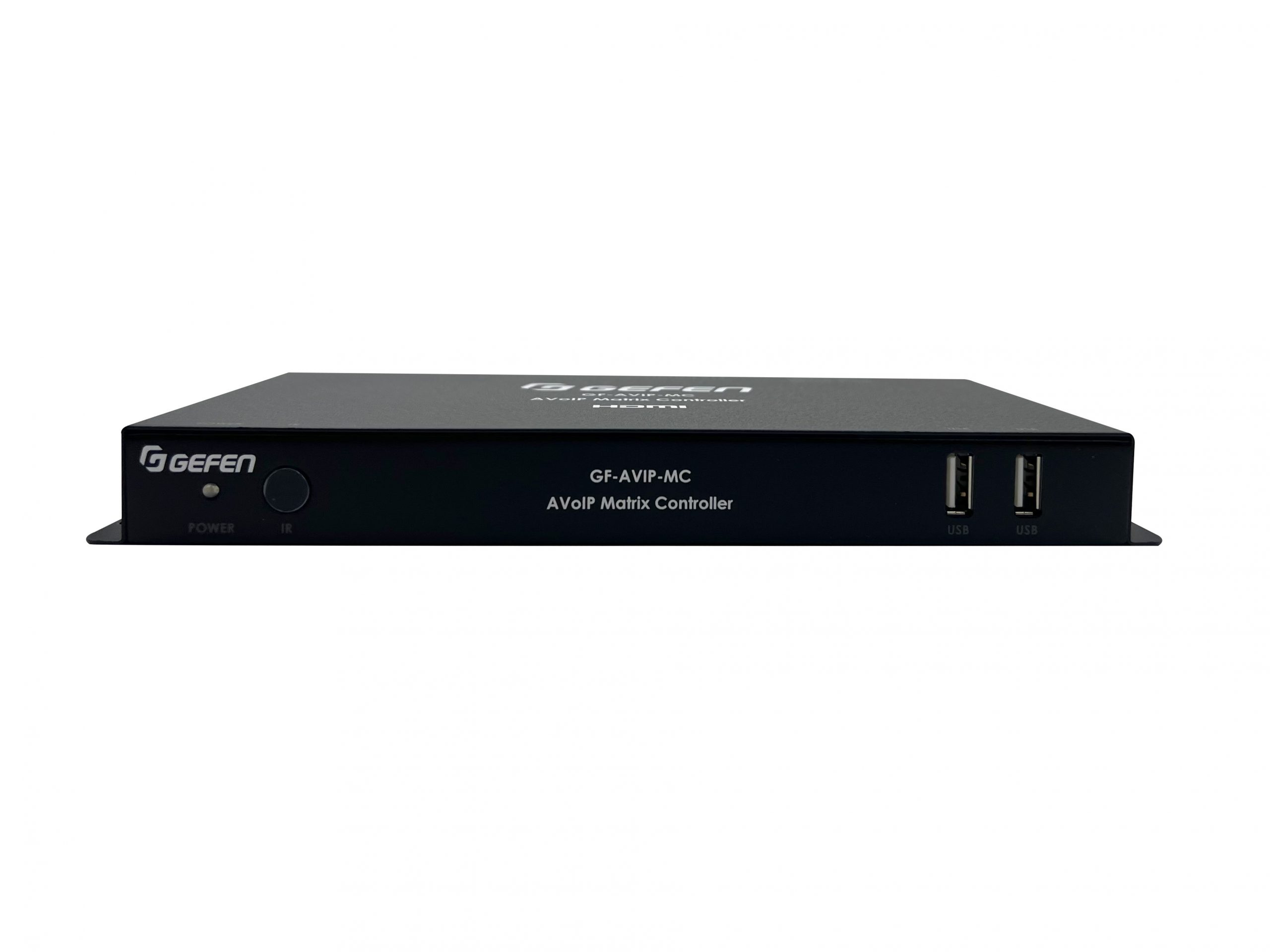

Gefen GF-AVIP-MC AVoIP Matrix Controller

Description

The Gefen AV over IP Matrix Controller is a powerful and flexible solution for controlling multiple Video over IP (VoIP) extenders within same network. Install this unit on the same local network as the extenders (transmitter and receiver) to easily define and configure both unicast and multicast channel routing selections using the WebGUI. Using customized groups or presets you can define and switch routes allowing for easy control over multiple video zones.

The AV over IP Matrix Controller also supports Matrix routing, Independent routing and Video Wall Modes of connected VoIP units. The settings of all connected transmitter/receiver units, including IP address, netmask and extender status are clearly displayed within the WebGUI. Control is available via WebGUI (remote or local), RS-232, Telnet, UDP, IR Remote, and triggers. The WebGUI is accessible via a web browser over a normal network connection or by directly connecting an HDMI display and USB keyboard & mouse to the unit. A standard HDMI/USB Touchscreen display can also be used to interact with the local WebGUI and control to the device. A trigger input interface is also provided to allow the easy addition of a remote device, to be operated from a podium, conference room or classroom.

Features:

Enables the management and full configuration of multiple compatible Gefen Video and KVM over IP extenders through a single WebGUI
Supports point-to-point (unicast) and multi-to-multi (multicast) routing selections
Control over standard matrix, free routing and TV wall modes using presets or direct configuration
Definable display groups
WebGUI clearly displays the status of all connected Transmitters and Receivers, including IP address, channel selection, etc.
HDMI output displays the WebGUI and system status
Supports the use of a USB mouse and keyboard, with separate HDMI display, or an HDMI + USB touch screen display to locally control the WebGUI (Optional)
Can be powered by an Ethernet switch that supports the IEEE 802.3af- 2003 PoE standard (Optional)
Trigger Control support for easy preset activation
Standard control is available via WebGUI (remote or local), RS-232, Telnet, UDP and IR remote

Specifications

Weight	1.00 lbs
