Route 16 DVI Sources to 16 Monitors Using the GefenPRO 16×16 DVI Matrix with Front Panel Push Button Control
Simplify the process of routing multiple DVI sources by giving the ability to route sources without losing quality or resolution. Route 16 sources to 16 digital monitors using the GefenPRO 16×16 DVI Matrix. The Matrix provides a simple, reliable and highly effective method of streamlining any installation using multiple sources and outputs. Four methods are available for controlling the GefenPRO 16×16 DVI Matrix: Front panel buttons, IR remote, RS-232 interface, or using IP control.
How It Works

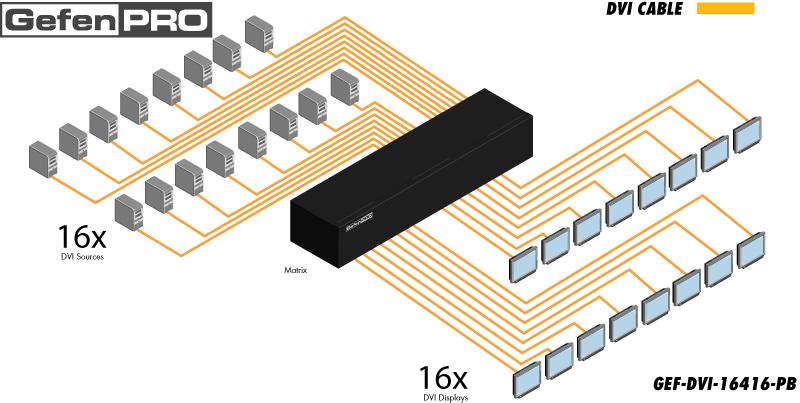

The GefenPRO 16×16 DVI Matrix has 16 DVI inputs and 16 DVI outputs. Using the supplied DVI cables, connect 16 sources to the DVI input ports on the GefenPRO 16×16 DVI Matrix. Connect the GefenPRO 16×16 DVI Matrix’s 16 DVI outputs to the monitors. Plug in the power cord and power on the GefenPRO 16×16 DVI Matrix. The connected monitors will show video according to the routing selection. Note: The GefenPRO 16×16 DVI Matrix with Front Panel Push Button Control only supports DVI-D although the DVI connectors use DVI-I connectors.
Features:
- Increases productivity by providing instant access to all sources and displays
- Supports resolutions up to 1080p and 1920×1200@60Hz
- Advanced EDID management permits upload of custom internal or external EDID settings
- Serial RS-232 interface for remote control via a computer or control automation devices
- Status LCD (shows routing status)
- Front panel control buttons for local switching
- IR Remote Control
- IP Control
- User-defined routing states
- Supports DDWG standards for DVI
- Built-in power supply
- Output masking command
- Standby mode
- Energy Star compliant
- Grounding terminal
- IR Sensor
- IR Extender
- Power ON / OFF switch
- Rack-mountable (rack adapters included)

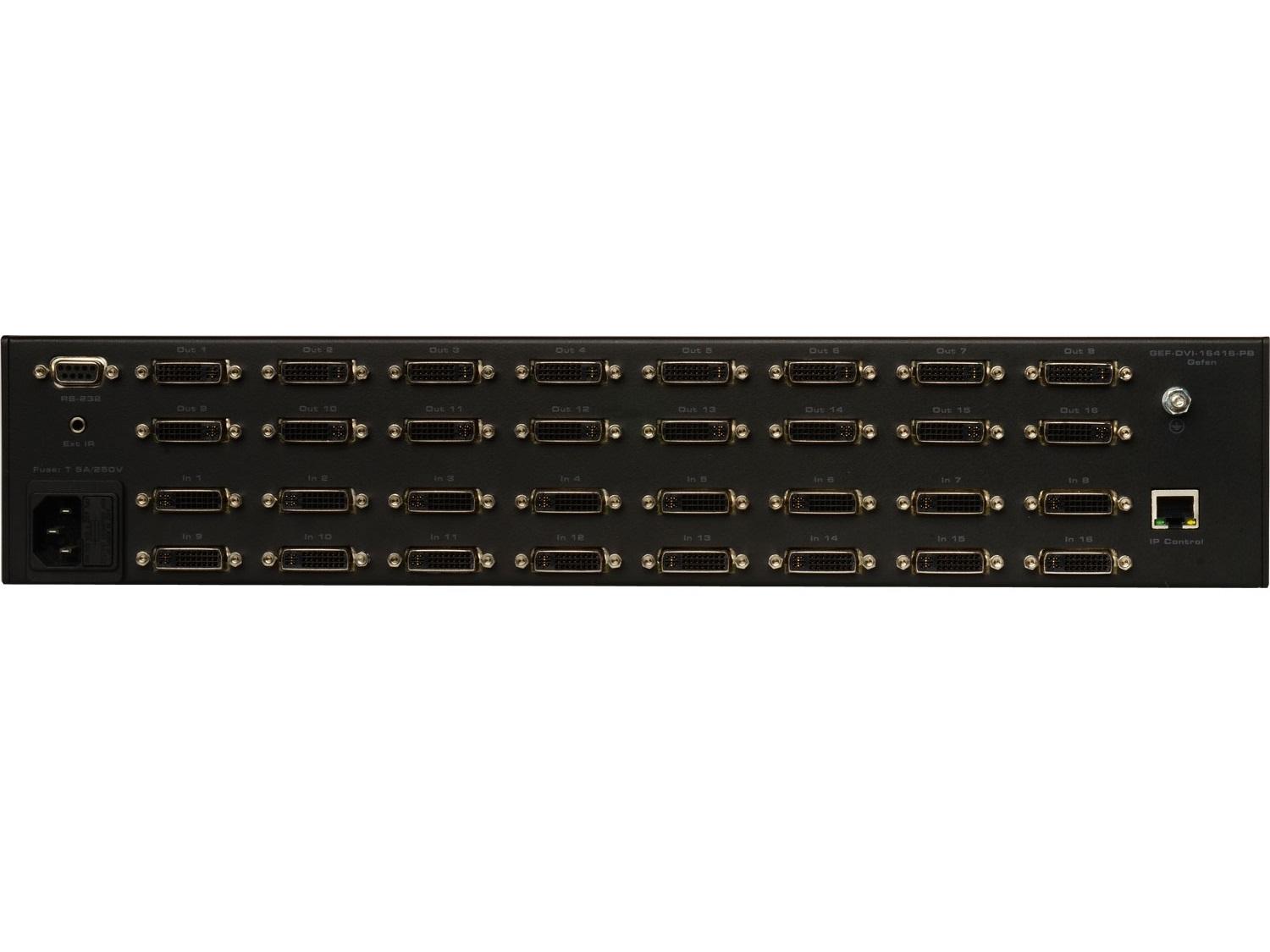

Specifications:
- Video Amplifier Bandwidth: 165 MHz per channel
- Single Link Range up to 1080p and 1920×1200 @ 60Hz
- Input Video Signal: 1.2 Volts p-p
- IR port on front panel
- IR Extender: 3.5mm Mini-Stereo jack on rear panel
- DVI Input Connectors: (16) DVI-I 29-pin female
- DVI Output Connectors: (16) DVI-I 29-pin female
- RS-232 serial port: DB9 female
- Ethernet (IP Control) port: RJ-45
- Power Supply: AC 110 / 220V
- Power Consumption: 90 Watts (max.)
- Rack-Mountable: 2U rack space, rack ears included
- Dimensions: 17.25″ W x 3.5″ H x 12″ D (19″ W with rack ears)
- Shipping Weight: 28.1 lbs
Package Includes:
- (1) GefenPRO 16×16 DVI Matrix with Front Panel Push Button Control
- (16) 6-foot dual link DVI cables (M-M)
- (1) 6-foot Serial DB9 cable (M-F)
- (1) IR Remote Control unit
- (1) AC Power Cord
- (1) User Manual
