Description

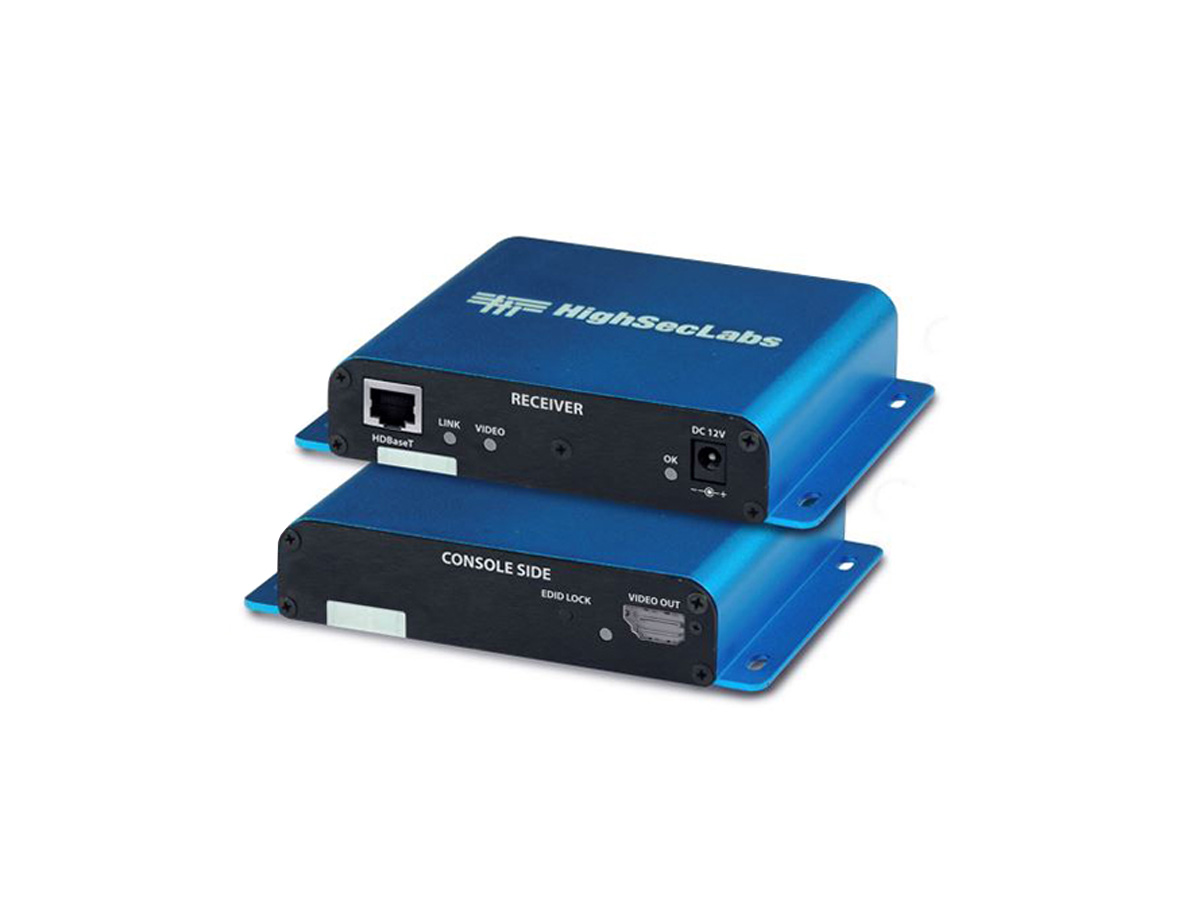

The FVCE11PHR-M is a secure copper video isolator receiver designed to extend DisplayPort or HDMI signals over long distances while enforcing unidirectional and filtered data flow. It enables remote console access to a protected host without exposing peripherals to the secured network. The receiver is NIAP Common Criteria PP4.0 PSD compliant which supports high-assurance deployments.
Key features include HDBaseT transport over copper cabling, combined DP/HDMI connectors for flexible display connections, and support for up to UHD 4K resolution at 3840×2160 @ 30 Hz. The product implements Valence HDBaseT technology to provide zero-latency extension between transmitter and receiver. The secure isolator architecture prevents inbound device attacks and limits peripheral data channels.
Performance specifications include support for 4K30 video at distances up to 100 meters over Cat cabling for the copper variant and extended fiber options for longer runs. The receiver supports USB mouse and keyboard passthrough where applicable and includes RJ45 link ports for the copper model. Power options include PoE support on compatible transmitters and an optional 12V DC input for the receiver.
Connectivity is delivered via combined DP/HDMI console ports that accept DisplayPort or HDMI sources and displays. The unit also provides USB Type A ports for keyboard and mouse on selected models and RJ45 link ports for HDBaseT copper transport. It is compatible with Windows Linux and Mac endpoints and integrates into standard AV and secure KVM topologies.
Typical use cases include classified or sensitive environments where one-way display and peripheral isolation is required, secure control rooms requiring remote console extension, and government or enterprise deployments needing NIAP PP4.0 certification. The receiver is suitable for single-source point-to-point extensions where security and signal integrity are critical.
Installation is straightforward with rack or desktop placement supported by compact dimensions and standard external power options. The unit is built to industry environmental ranges and complies with common safety and emissions certifications. Firmware and support options are available to assist integration into existing secure AV systems.
