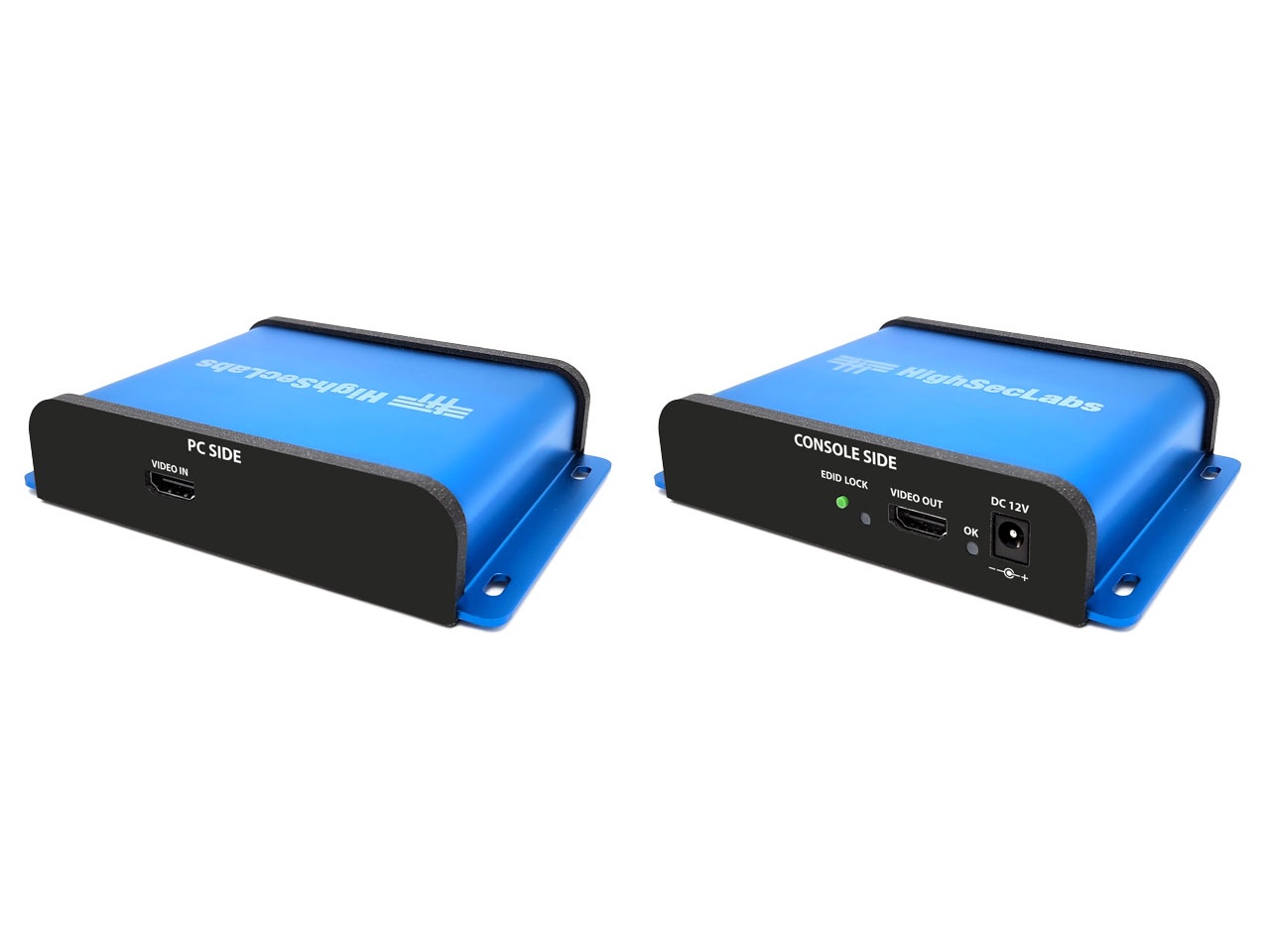

FV11H-MGH HDMI Isolator 4K30 Medical Grade PSU

Description

The FV11H-MGH is a single-port galvanic HDMI video isolator designed to enforce electrical isolation between display equipment and medical computers. It provides full galvanic separation of DC and ground currents to reduce risk of leakage and cross-contamination between systems. The unit is supplied with a medical grade power supply and meets key medical safety standards.

This isolator supports up to 3840×2160 at 30 Hz and uses HDMI 1.4 signalling to preserve video quality across the isolated boundary. Galvanic isolation rating is 3KV which prevents ground loops and limits fault currents. The device protects EDID and prevents signalling attacks through patented emulated EDID and ROM firmware.

Technical performance includes single HDMI console and single HDMI computer port with HDMI 1.4 display type compatibility. The unit accepts DC 12V/2.5A input and operates across a 0 to 40 C ambient range. It is compact at 145 x 105 x 28 mm and weighs 0.3 kg, making it simple to deploy at the point of use.

Connectivity is straightforward with one HDMI input and one HDMI output and no USB console ports on this model. Supported host operating systems include Windows, Linux and Mac for display-only applications. The product is compatible with rack mounting accessories and power distribution options for centralized installations.

Typical applications include medical imaging suites, clinical workstations and secure diagnostic displays where patient safety and data isolation are required. The medical grade external power supply and IEC60601 certifications enable placement in regulated clinical environments. It is also suitable for defence or classified environments where galvanic separation is required.

Installation is plug-and-play with EDID protection and no firmware updates required since firmware is stored in ROM. The unit is BAA and TAA compliant, carries a two year warranty and a 10 year product life-cycle guideline. The compact metal enclosure supports reliable long-term operation in clinical and secure AV installations.

Specifications

Displays	1 x HDMI, 1 x HDMI, 1 x HDMI, 1 x HDMI
Max Resolution (Input & Output)	3840x2160 @ 30 Hz, 3840x2160 @ 30 Hz, 3840x2160 @ 30 Hz, 3840x2160 @ 30 Hz
Mouse and Keyboard (console)	N/A, N/A, USB Type A, USB Type A
Display Type (computer)	1 x HDMI 1.4, 1 x HDMI 1.4, 1 x HDMI 1.4, 1 x HDMI 1.4
Mouse and Keyboard (computer)	N/A, N/A, USB Type B, USB Type B
Dimensions	145 x 105 x 28 mm / 5.8 x 4.2 x 1.1 inches, 145 x 105 x 28 mm / 5.8 x 4.2 x 1.1 inches, 145 x 105 x 28 mm / 5.8 x 4.2 x 1.1 inches, 145 x 105 x 28 mm / 5.8 x 4.2 x 1.1 inches
Weight	0.3 kg (0.64 lbs), 0.3 kg (0.64 lbs), 0.3 kg (0.64 lbs), 0.3 kg (0.64 lbs)
Power Requirements	DC input 12V/2.5A Maximum, DC input 12V/2.5A Maximum, DC input 12V/2.5A Maximum, DC input 12V/2.5A Maximum
Power Type	External Power Supply, Medical Grade External Power Supply, External Power Supply, Medical Grade External Power Supply
Galvanic Isolation	3KV, 3KV, 3KV, 3KV
Operating Temperature	32° to 104° F (0° to 40° C), 32° to 104° F (0° to 40° C), 32° to 104° F (0° to 40° C), 32° to 104° F (0° to 40° C)
Storage Temperature	-4° to 140° F (-20° to 60° C), -4° to 140° F (-20° to 60° C), -4° to 140° F (-20° to 60° C), -4° to 140° F (-20° to 60° C)
Humidity	20 to 80% non condensing; Storage - 10 to 90% non condensing, 20 to 80% non condensing; Storage - 10 to 90% non condensing, 20 to 80% non condensing; Storage - 10 to 90% non condensing, 20 to 80% non condensing; Storage - 10 to 90% non condensing
Supported OS	Windows, Linux, Mac, Windows, Linux, Mac, Windows, Linux, Mac, Windows, Linux, Mac
Safety Certification	N/A, IEC60601-1, IEC62304, IEC60601-1-6, N/A, IEC60601-1, IEC62304, IEC60601-1-6
EMC Certification	N/A, IEC 60601-1-2, N/A, IEC 60601-1-2
Manufactured	BAA & TAA Compliant, BAA & TAA Compliant, BAA & TAA Compliant, BAA & TAA Compliant
Product life-cycle	10 years, 10 years, 10 years, 10 years
Warranty	2 Years, 2 Years, 2 Years, 2 Years
Accessories - RackMount KIT	RK-4U-HKS-10
Accessories - Power Distribution Unit	PDUI
Security - Unidirectional optical data diodes	Assuring USB peripherals isolation
Security - Data flow direction	Device to host only
Security - Firmware storage	ROM
Security - EDID protection	Patented emulated technology
