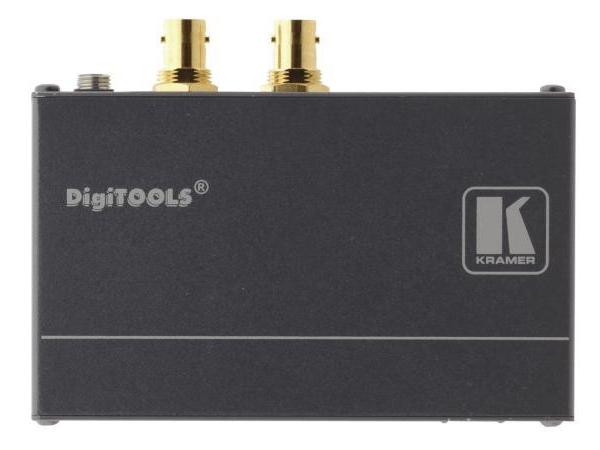

Kramer FC-113 HDMI to 3G HD-SDI Format Converter

Description

DESCRIPTION

The FC-113 is a high-performance format converter for HDMI signals. It converts an HDMI input signal to two identical SDI video signals with embedded audio.

Max. Data Rate – 3Gbps.
HDTV Compatible.
Input – 1 HDMI.
Multi-Standard Operation – SDI (SMPTE 259M), HD-SDI (SMPTE 292M), and 3G HD SDI (SMPTE 424M).
No Frame Rate or Resolution Conversion.
Active Input™ LED Reporting – Green indicates standard definition (SDI), blue indicates a high-definition (HD-SDI) input signal, flashing indicates HDCP on the HDMI signal.
HDCP Encryption – Since the HD-SDI standard does not support HDCP, the status LED flashes when an HDCP encrypted input signal is detected, indicating that the input signal cannot be converted.
Compact DigiTOOLS® – 3 units can be rack mounted side-by-side in a 1U rack space with the optional RK-3T rack adapter.

SPECIFICATIONS

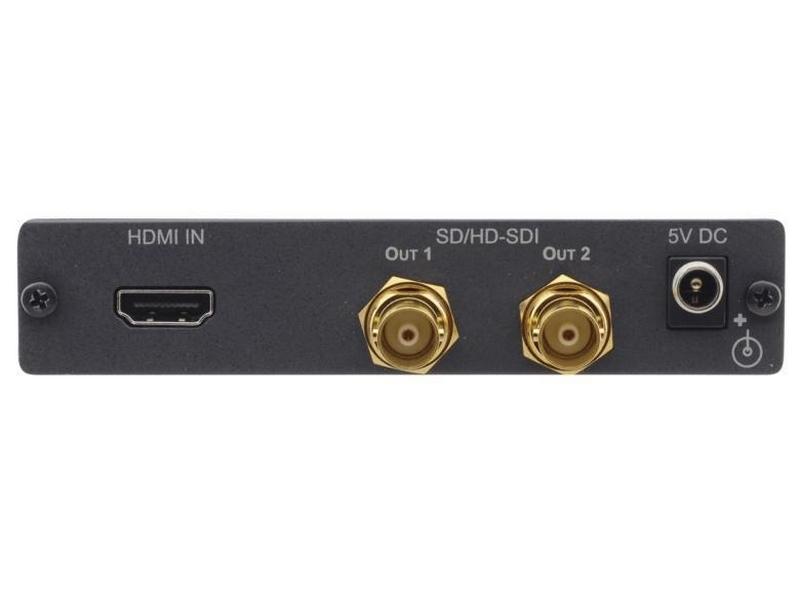

INPUT:	1 HDMI connector.
OUTPUTS:	2 SD/HD-SDI, 3G HD-SDI on BNC connectors.
MAX. DATA RATE:	Up to 3Gbps.
STANDARD COMPLIANCE:	HDMI.
INPUT FORMATS:	525i, 625i; 1080p @23.98/24/25/29.97/30/50/59.94/60; 1080i @50/59.94/60; 720p @50/59.94/60.
INDICATOR LEDS:	SD/HD, OUT, ON.
POWER SOURCE:	5V DC, 440ma.
DIMENSIONS:	12cm x 7.2cm x 2.4cm (4.7″ x 2.8″ x 1.0″) W, D, H.
WEIGHT:	0.3kg (0.67lbs).
ACCESSORIES:	Power supply.
OPTIONS:	RK-3T 19″ rack adapter.

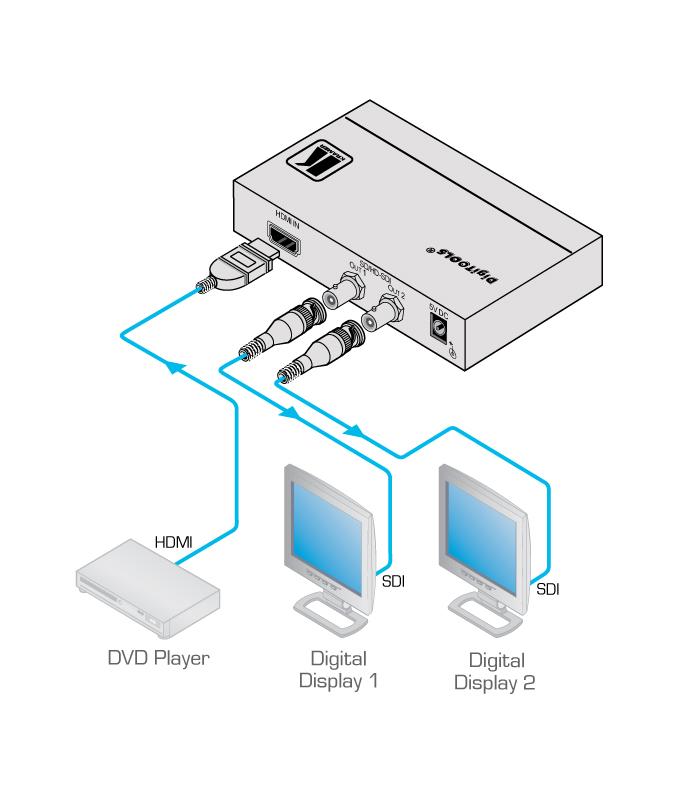

Product Diagrams

View Diagrams
