RDL EZ-MXA20X 20W Stereo Mixer-Amplifier / 10W per ch into 8 Ohm / XLR Mic / RCA Line / EQ / Limiter / 24V

SKU: EZ-MXA20X
Brand: RDL
$365.54
Brand RDL
SKU EZ-MXA20X
Weight 2.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

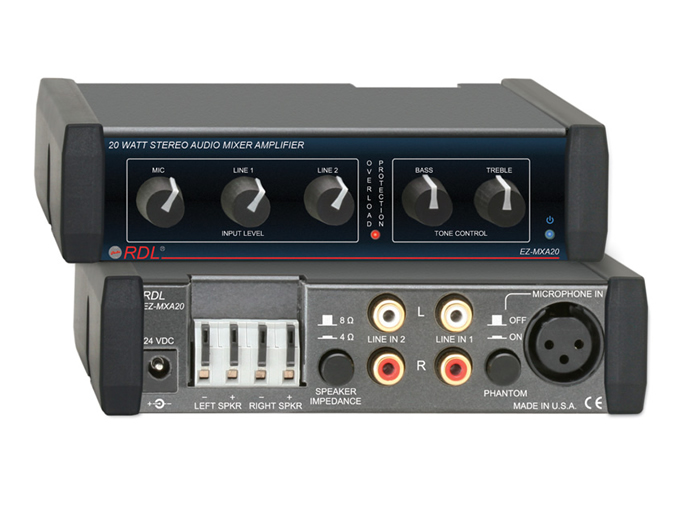

The EZ-MXA20X is a compact stereo mixer-amplifier designed to combine a microphone preamplifier, line-level inputs and a power amplifier in a 1/3 rack chassis. It delivers rated output power of 10 Watts RMS per channel into 8 Ohm and 8 Watts RMS per channel into 4 Ohm. The unit provides straightforward front-panel controls and a small footprint for tight installations.

The unit includes a balanced XLR mic input with switch-selectable 24 V phantom and two unbalanced RCA line inputs. Bass and treble tone controls allow basic tonal shaping while an integral overload compressor/limiter with LED indicator controls peaks and reduces clipping. A rear-panel switch selects load impedance to match 4 Ohm or 8 Ohm speakers.

Performance specifications include frequency response from 50 Hz to 20 kHz for mic input and 35 Hz to 20 kHz for line input at rated power, THD+N under 0.25 percent and crosstalk below -68 dB at 1 kHz. Mic gain is adjustable up to 74 dB while line gain reaches up to 32 dB. Noise and CMRR specifications make the unit suitable for spoken-word and background-music applications.

Connectivity is provided via a balanced XLR mic jack and stereo RCA line jacks on the rear panel, plus left and right speaker outputs with switch-selectable impedance. The module is powered by an external 24 Vdc supply and the supply current measures 170 mA at idle and up to 1000 mA peak. The limiter and LED indicator give visual feedback and protect downstream loudspeakers from overload.

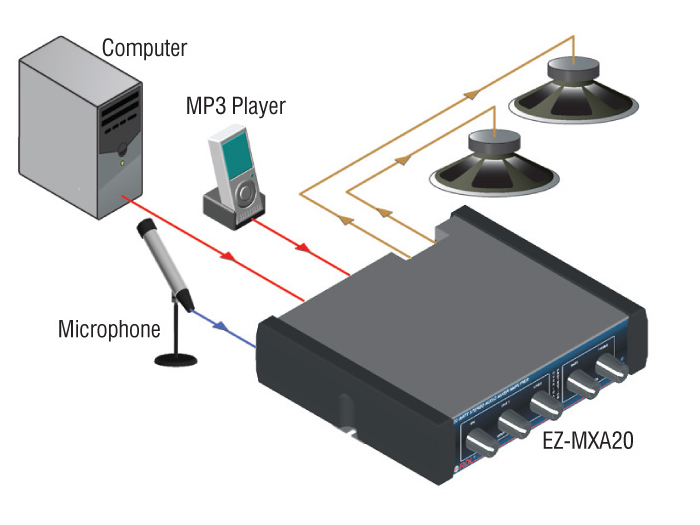

Typical applications include houses of worship, restaurants, clubs, meeting rooms and other commercial sound systems that require integrated mic mixing and modest local amplification. The EZ-MXA20X suits speech reinforcement, background music and small-venue paging duties. Its limiter allows perceived output comparable to higher-power amplifiers while limiting clipping.

Installation is quick thanks to the compact 1/3 rack width form factor and simple control layout. The metal chassis and straightforward connectors support long-term reliability in installed environments. Overall the EZ-MXA20X offers a compact mixer-amplifier solution with tone control, phantom power and an effective limiter for stable operation.

Specifications

Audio Amplifier with Mic and Line Input MixerStereo mixer-amplifier
10 Watts RMS Per Channel into 8 Ω10 Watts RMS per channel into 8 Ohm
8 Watts RMS Per Channel into 4 Ω8 Watts RMS per channel into 4 Ohm
Switch-Selectable Load Impedance on Rear PanelSwitch-selectable load impedance
Balanced Microphone Input on XLRBalanced mic input on XLR
Unbalanced Line Inputs on RCA JacksUnbalanced line inputs on RCA
Switch-Selectable Phantom on Mic InputSwitch-selectable 24 V phantom
Bass and Treble Tone Control EqualizationBass and treble tone controls
Integral Overload Limiter with LED IndicatorOverload limiter with LED indicator
Limiter Controls Overloads from ClippingLimiter reduces clipping
Limiter Produces Output Level Comparable to Higher Power AmpLimiter increases usable output
Inputs (3)1.2 kOhm balanced XLR mic-level -55 dBu min -11 dBu max; >10 kOhm RCA -10 dBV nominal -13 dBV min +22 dBV max
GainOff to 74 dB mic, Off to 32 dB line
Outputs (2)Left and Right 10 Watts RMS into 8 Ohm per channel, 8 Watts RMS into 4 Ohm per channel, switch-selectable
Equalization±10 dB @ 10 kHz, ±9 dB @ 80 Hz
Frequency Response50 Hz to 20 kHz mic input, 35 Hz to 20 kHz line input ±1.5 dB
THD+N< 0.25%
CMRR> -55 dB mic
Crosstalk< -68 dB 1 kHz line input
PhantomSwitch-selectable 24 V IEC 61938:2013
Noise< -70 dB below 10 Watts -10 dBV line; < -65 dB below 10 Watts -50 dBu mic
24 Vdc power supply current170 mA idle, 1000 mA max
Case dimensions5.75 in W x 5 in D (14.6 cm x 12.7 cm)
Mounting size1/3 rack width
Package TypeCardboard Box
Tariff code8518.50.0000
WEEE weight1.015 lbs
Shipping Weight1.435 lbs
Package Dimensions9.5 x 7 x 2.25 in
