RDL EZ-AFC2X Stereo Bi-Directional Audio Converter / RCA to XLR / Level Controls / Dual LED VU

SKU: EZ-AFC2X
Brand: RDL
$340.63
Brand RDL
SKU EZ-AFC2X
Weight 1.00 lbs
Warranty 3 Years
Condition New
Status Available
Expert

Product Questions? Ask Our Experts!

Description

The EZ-AFC2X is a compact stereo bi-directional audio converter that converts unbalanced consumer-level signals to professional balanced outputs and balanced signals to unbalanced outputs. It is designed to bridge consumer and professional audio equipment with precise level control and reliable metering. The unit offers front-panel access and rackable mounting in a 1/3 rack width form factor for tight installations.

Key features include front-panel unbalanced RCA inputs and outputs, rear-panel balanced XLR connections, independent level controls, and dual LED VU metering for left and right channels. The converter provides up to 12 dB of gain and selectable nominal levels to match a wide range of sources. Gold-plated connectors and engineered circuitry deliver improved headroom and extended frequency response.

Technical performance includes frequency response from 10 Hz to 50 kHz with ±0.01 dB deviation, extremely low distortion, and high channel separation. The unbalanced to balanced path offers THD+N below 0.01% while the balanced to unbalanced path measures below 0.003%. Crosstalk and noise figures are engineered to support professional signal integrity.

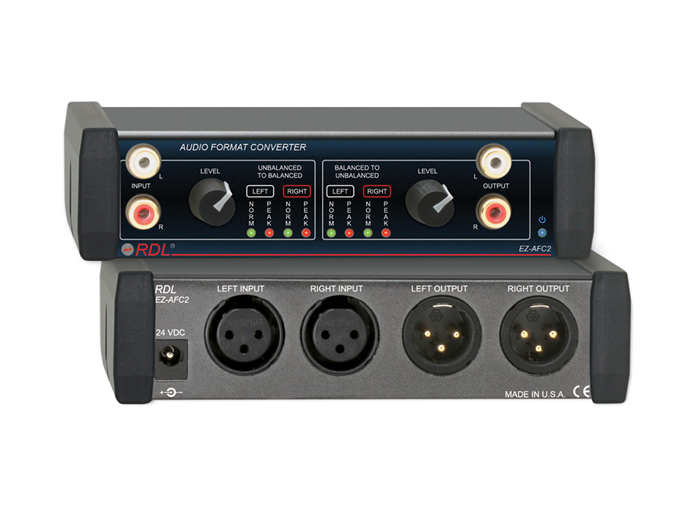

Connectivity is straightforward with dual RCA jacks on the front for consumer devices and dual XLR jacks on the rear for professional consoles or processors. Metering is calibrated to the selected nominal output levels and displayed via dual-LED VU meters for easy visual adjustment. Power is supplied by a 24 Vdc adapter with low idle and maximum current draw for efficient operation.

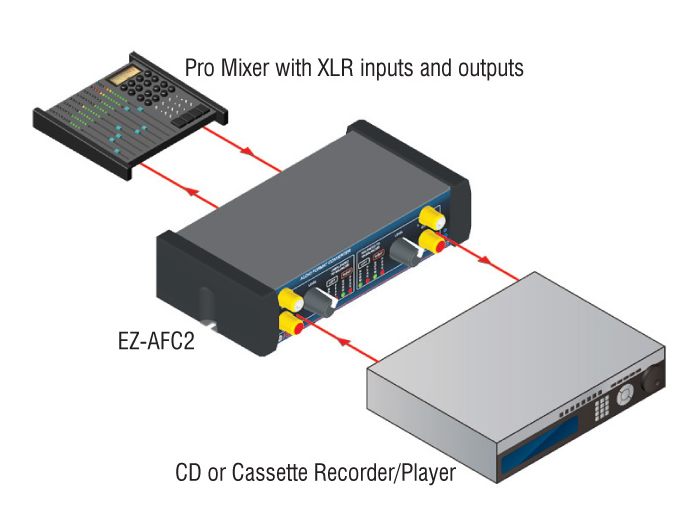

The EZ-AFC2X is suitable for live sound, houses of worship, broadcast studios, AV racks, and postproduction environments where conversion between consumer and professional audio formats is required. It adapts consumer playback equipment to balanced mixer inputs and provides balanced outputs for long cable runs. The compact size fits into subrack panels or tight rack spaces and integrates easily into existing signal chains.

Installation and operation are straightforward – connect the appropriate RCA or XLR jacks, adjust the front-panel level controls while monitoring the dual VU meters, and use the gold-plated connectors for reliable contact. The robust metal enclosure and thoughtfully placed controls support dependable field and studio use. The EZ-AFC2X delivers a clean, level-matched conversion solution for professional audio setups.

Specifications

Unbalanced to Balanced Audio Conversion
Balanced to Unbalanced Audio Conversion
Unbalanced RCA Connections on Front Panel
Balanced XLR Connections on Rear Panel
Front-Panel LEVEL Controls
Gold-Plated Connectors
Front-Panel Stereo Audio Metering
Knob for Easy Level Adjustment
Exceptional Headroom and Frequency Response
Dual-LED VU Meter for Each Channel
UNBALANCED TO BALANCED SECTION
InputStereo on dual RCA jacks,>10 kΩ,-10 dBV nominal,+16 dBV max
Level controlOff to 12 dB gain above nominal
OutputStereo on dual XLR jacks,+4 dBu nominal,+26 dBu max
Frequency Response10 Hz to 50 kHz,±0.01 dB
THD+N<0.01%
MeteringDual-LED VU Meter Left and Right,calibrated to +4 dBu output
Crosstalk<75 dB,1 kHz
Noise<-85 dB,below +4 dBu output
BALANCED TO UNBALANCED SECTION
InputStereo on dual XLR jacks,+4 dBu nominal,+26 dBu max
Level controlOff to 12 dB gain above nominal
OutputStereo on dual RCA jacks,-10 dBV nominal,+17 dBV max
Frequency Response10 Hz to 50 kHz,±0.01 dB
THD+N<0.003%
Crosstalk<80 dB,1 kHz
CMRR>50 dB,50 Hz to 120 Hz
MeteringDual-LED VU Meter Left and Right,calibrated to -10 dBV output
Noise<-75 dB,below +4 dBu output
24 Vdc power supply current45 mA idle,90 mA max
Case dimensions5.75 in W x 3 in D,14.6 cm W x 7.6 cm D
Mounting size1/3 rack width
Package TypeCardboard Box
Tariff code8543.70.9860
WEEE weight0.615 lbs
Shipping Weight1.015 lbs
Package Dimensions9.5 x 7 x 2.25 in
