EXT-VGA-DVI-SC VGA to DVI Scaler 1080p WUXGA

Description

The EXT-VGA-DVI-SC is a compact VGA to DVI scaler and converter designed to adapt analog computer video for digital displays. It accepts VGA input and outputs DVI digital video scaled to Full HD 1080p60 or up to 1920 x 1200 WUXGA. The unit includes an intuitive on-screen display – allowing quick setup and image adjustments.

Key features include scaling up to 1080p60 and native support for 1920 x 1200 input timings. The on-screen display provides aspect ratio control options including Full Screen, Panoramic, Letter/Pillar and Extract/Crop. A built-in test pattern generator and dedicated OSD navigation buttons simplify system configuration and verification.

Performance specifications include a maximum pixel clock of 165 MHz and a maximum TMDS clock of 165 MHz to support high-resolution timings. The scaler consumes a maximum of 2W and operates from a wide 6V to 24V DC input range, with a nominal 12V DC supply. Thermal and environmental ranges cover typical AV install conditions with operating temperature 0 to 50 C and non-condensing humidity up to 90% RH.

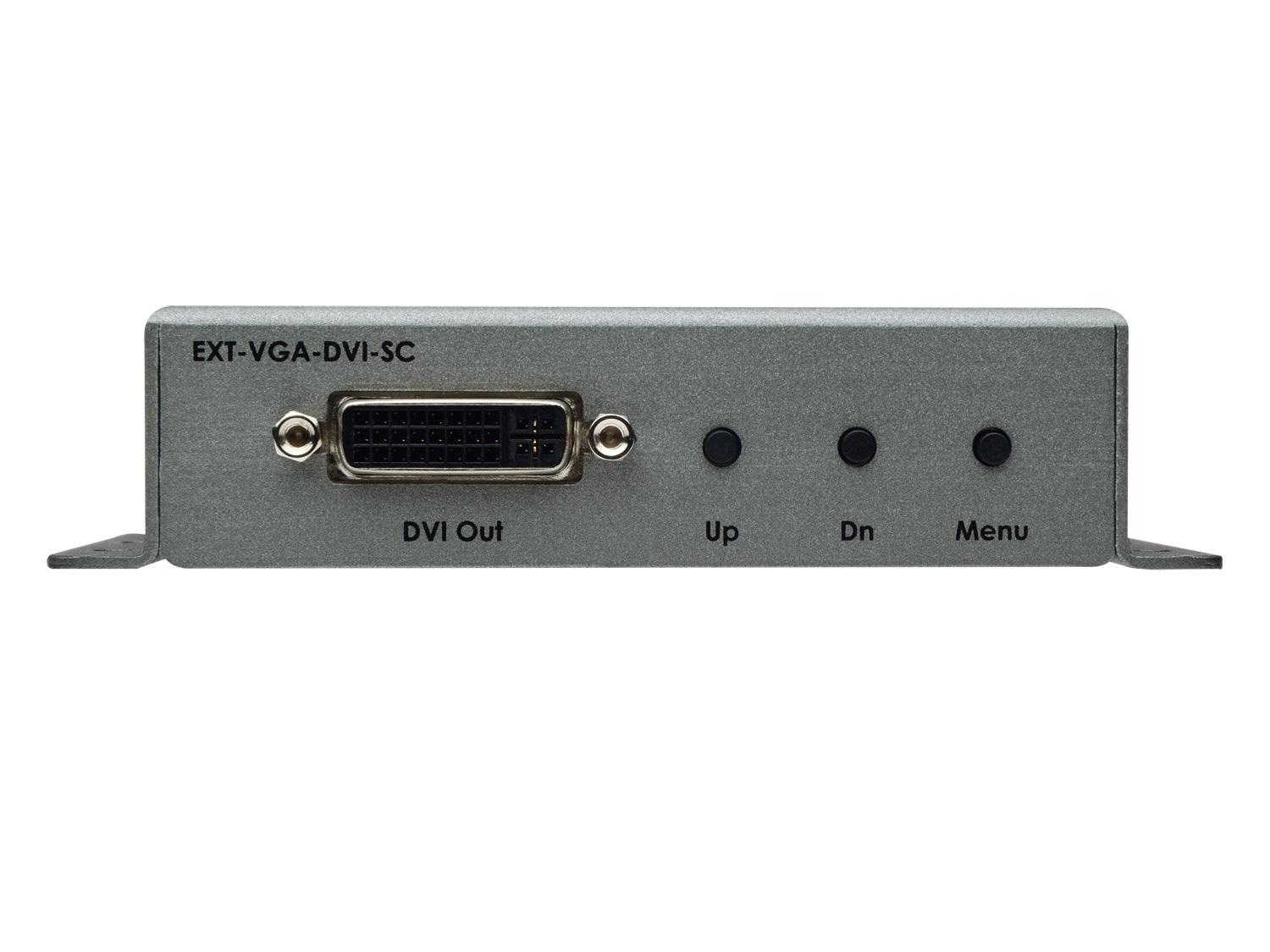

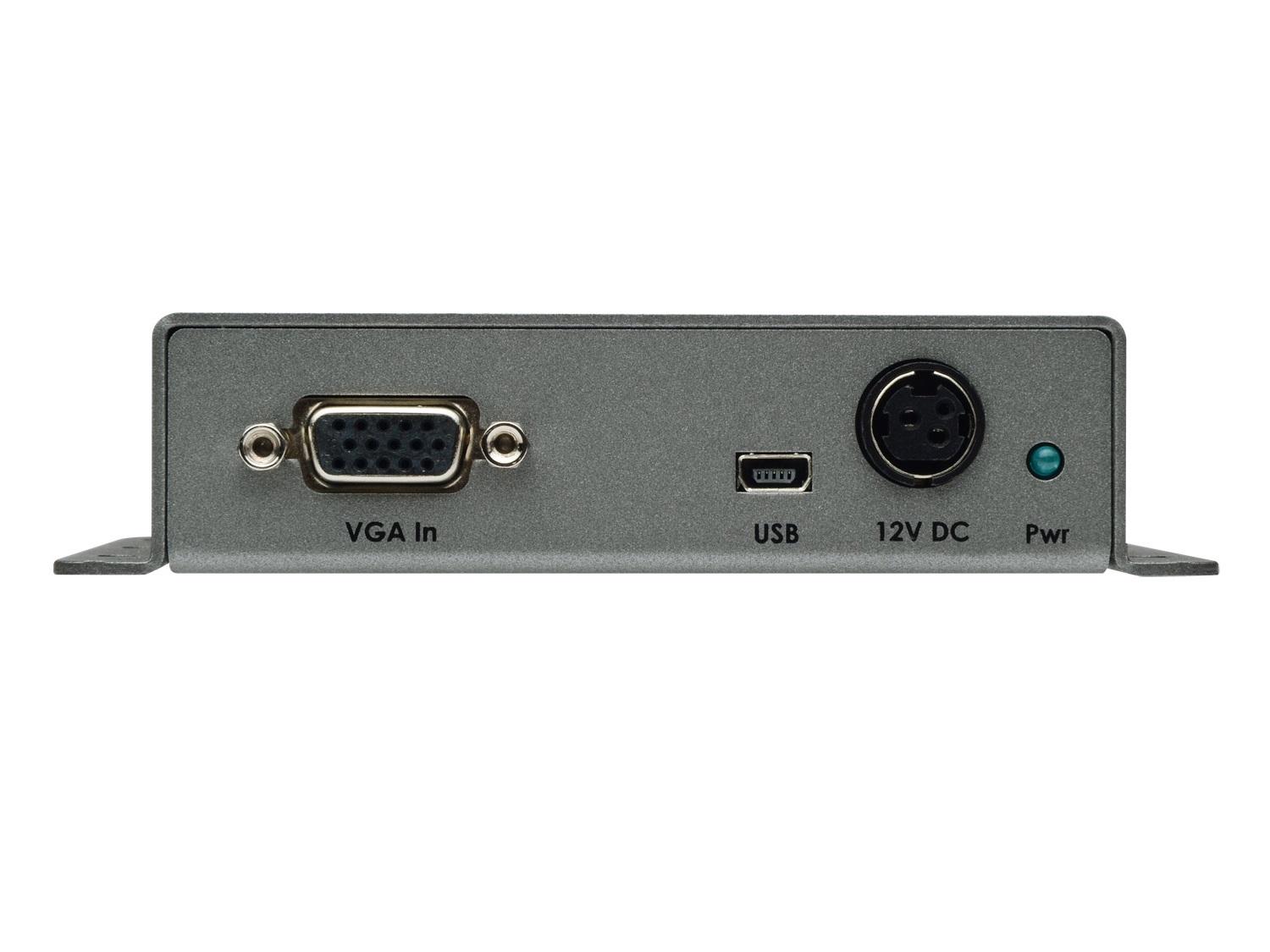

Connectivity is straightforward via a single VGA HD-15 input and a single DVI-I 29-pin female output (digital only). A USB Mini-B port provides integration with Gefen Syner-G software for firmware updates and advanced EDID management. A locking 3-pin power connector and blue power LED improve reliability in installed systems.

The unit is surface-mountable and features a small footprint for rack, wall or equipment-bay installations. Typical applications include presentation rooms, classrooms, control rooms and studio monitors where legacy VGA sources must feed modern DVI displays. Setup is driven through the OSD and front-panel tact switches for fast field deployment.

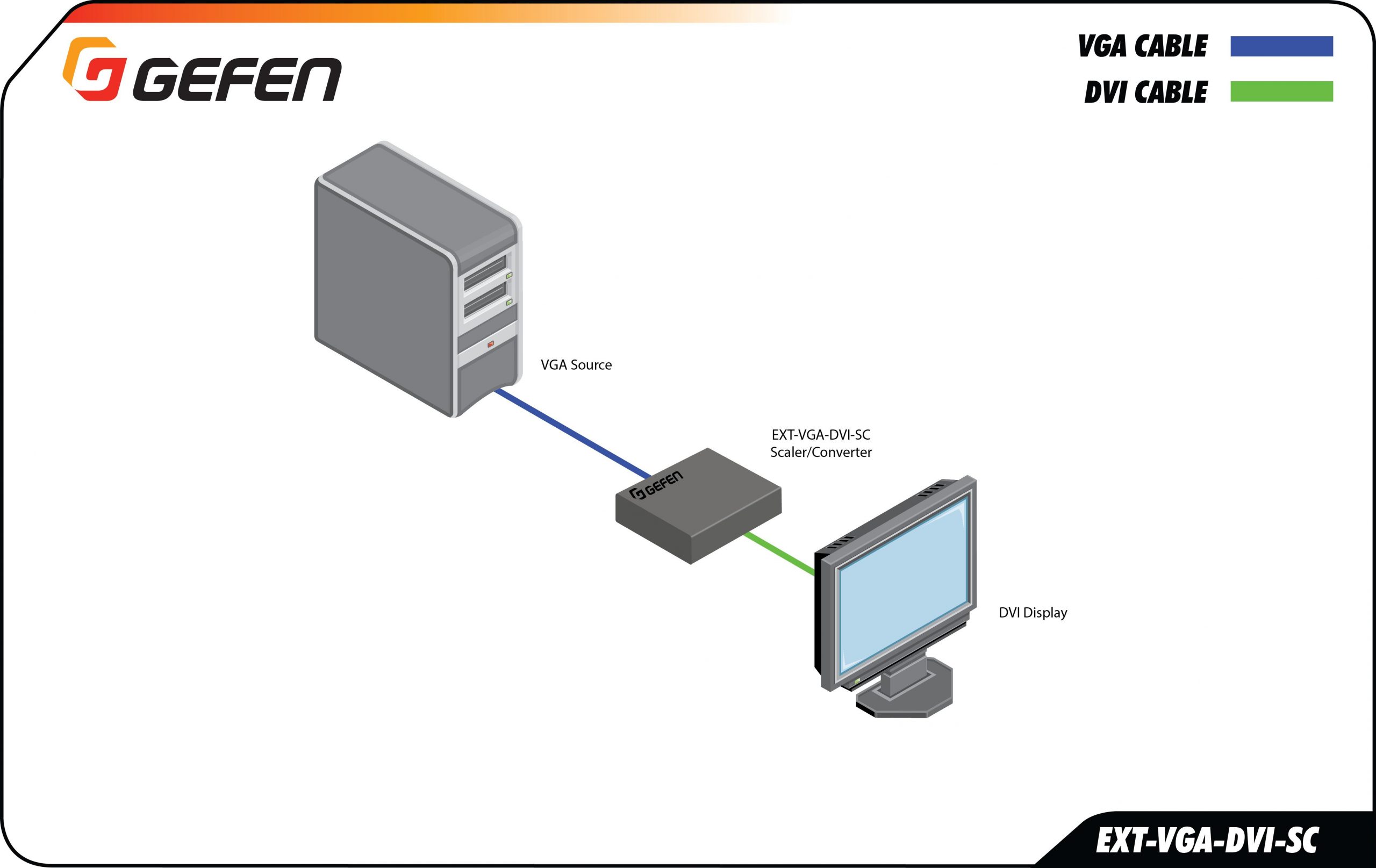

Product Diagrams

View Diagrams

Specifications

Converts and scales VGA to DVI	VGA to DVI scaler/converter
Input resolutions up to 1920 x 1200 (WUXGA)	up to 1920 x 1200 WUXGA
Output resolutions up to 1080p60 and 1920 x 1200 (WUXGA)	up to 1080p60; 1920 x 1200 WUXGA
On-screen display (OSD) menu allows easy set-up and control	On-Screen Display OSD
Aspect Ratio Control	Full Screen, Panoramic, Letter/Pillar, Extract/Crop
Test Pattern Generator for quick system configuration	Included
Gefen Syner-G™ simplifies in-field firmware updates and advanced EDID management including custom input timings	Gefen Syner-G firmware/EDID management
USB port for use with Gefen Syner-G™	(1) USB Mini-B
Wide power supply operating range (6V to 24V DC)	6V to 24V DC
Locking power supply connector	Locking 3-pin
Surface mountable	Surface mountable enclosure
Maximum Pixel Clock	165 MHz
Maximum TMDS Clock	165 MHz
Video Input Connector	(1) VGA HD-15 female
Video Output Connectors	(1) DVI-I 29-pin female digital only
USB Connector	(1) Mini-B
Menu/Navigation Switches	(3) tact-type
Power Indicator	(1) LED blue
Power Supply Connector	(1) 3-pin locking
Power Supply	12V DC nominal; 6V to 24V DC operating range
Power Consumption)	2W maximum
Operating Temperature	+32 to +122 F / 0 to +50 C
Operating Humidity	5% to 90% RH non-condensing
Storage Temperature	-4 to +185 F / -20 to +85 C
Storage Humidity	0% to 95% RH non-condensing
MTBF	50000 hours
Dimensions (excluding connectors, W x H x D)	4.9 x 1 x 3.2 in / 123 x 26 x 82 mm
Unit Weight	0.4 lbs / 0.2 kg
