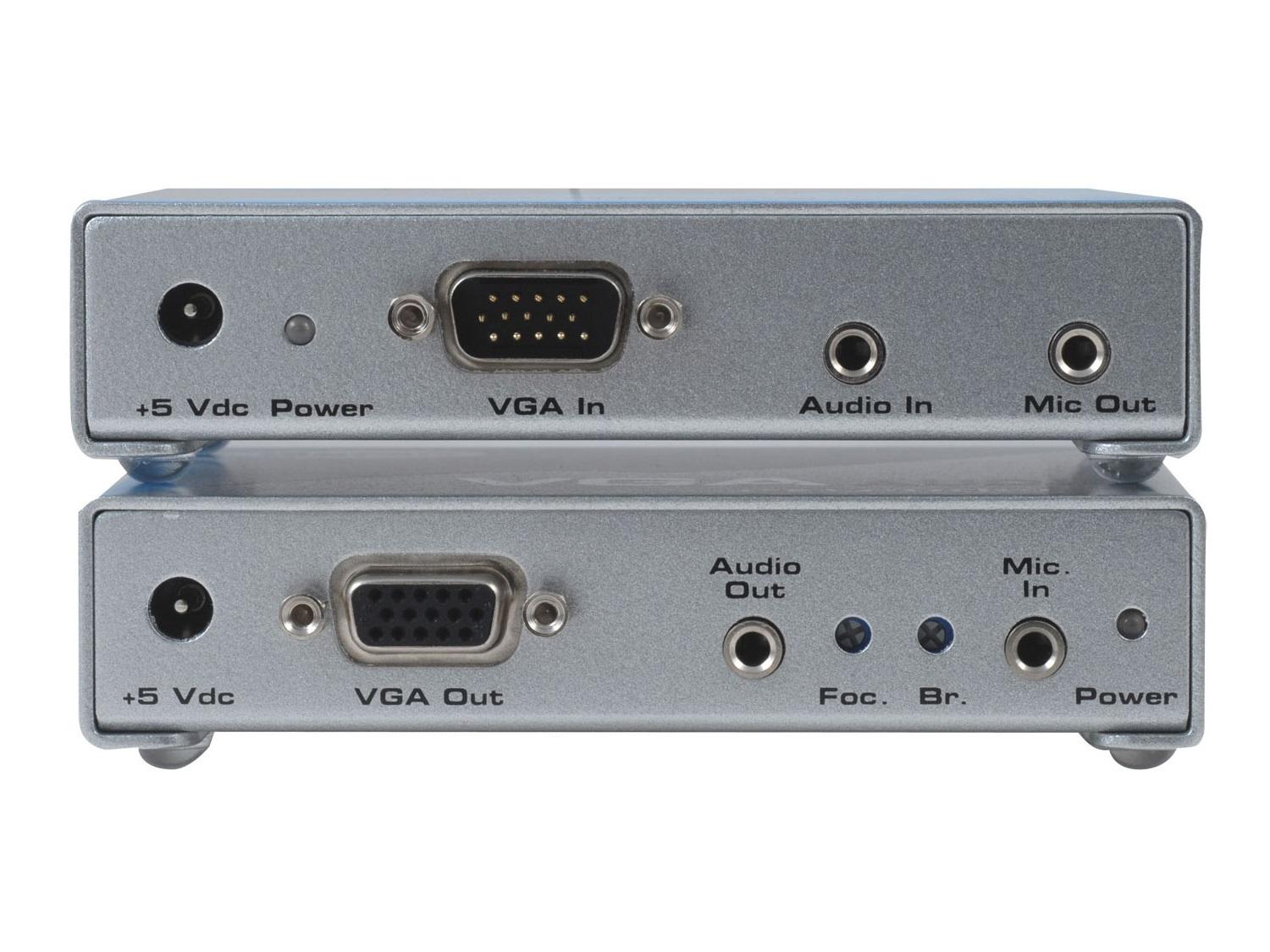

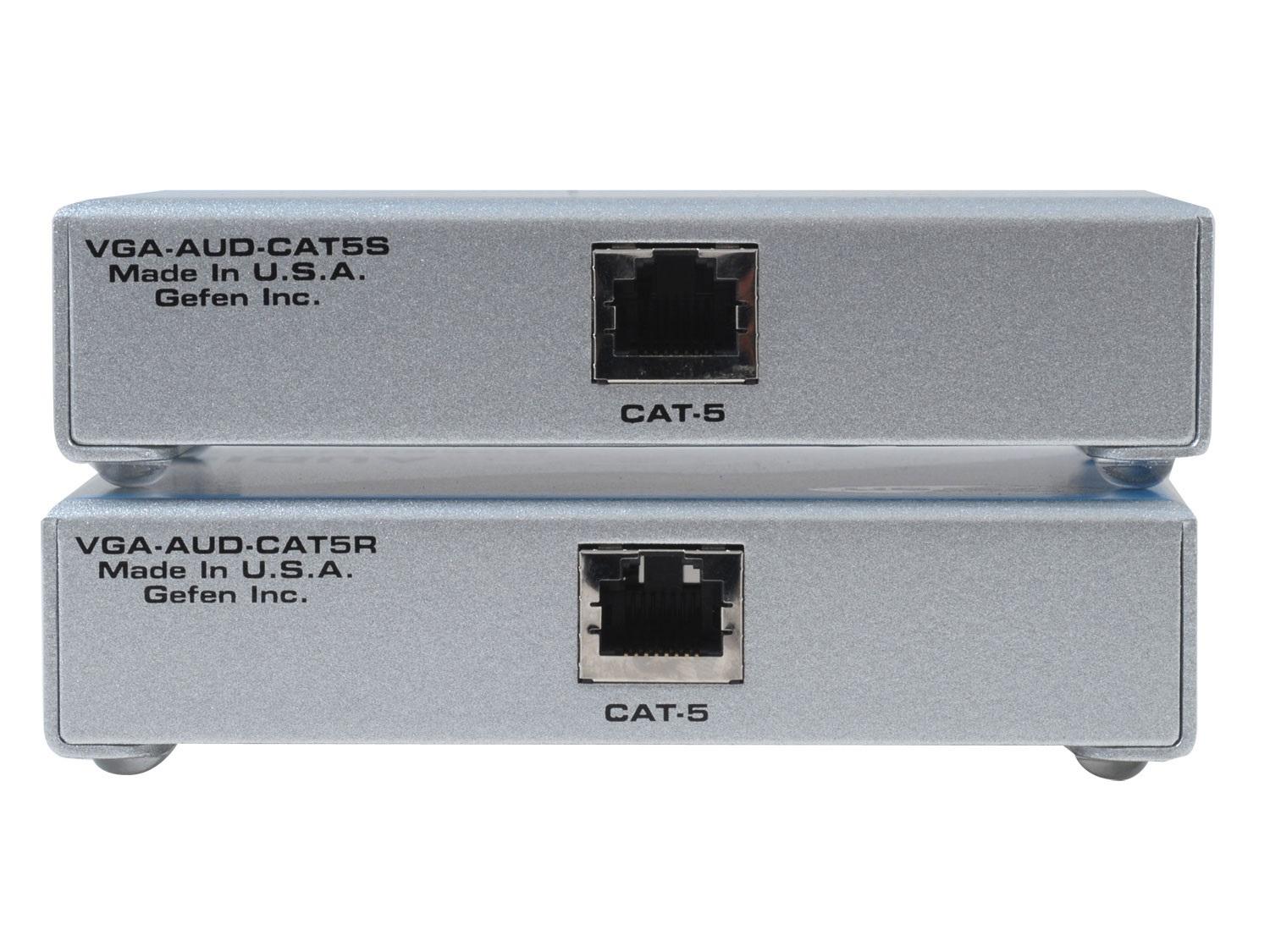

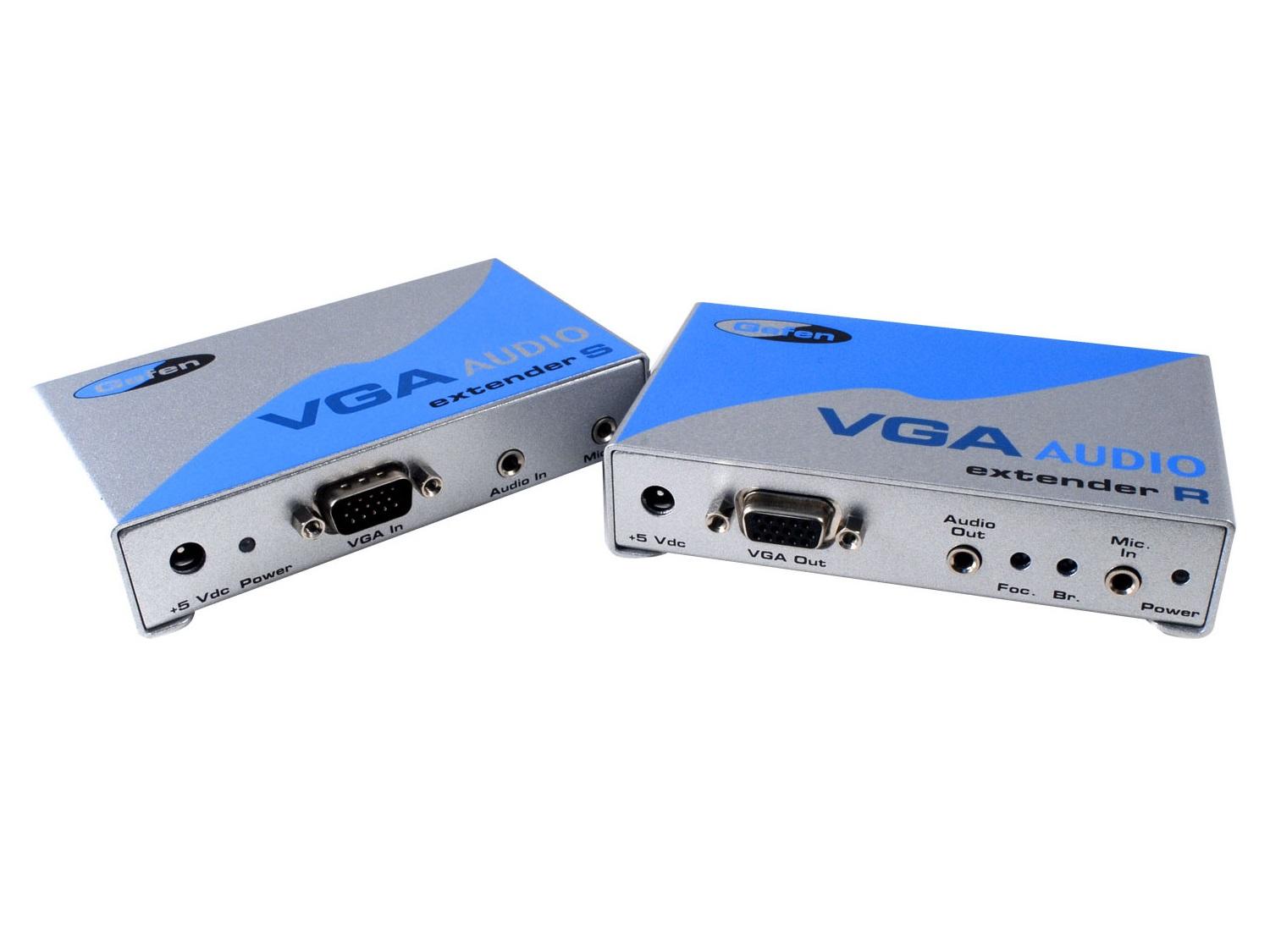

Gefen EXT-VGA-AUDIO-141 Vga/Audio Extender(Receiver/Sender) Kit Up To 330ft

Description

Extends VGA and analog audio up to 330 feet (100 meters) over one CAT-5 cable.

How it works The VGA Audio Extender utilizes a sender and receiver methodology to connect the extended workstation to the computer. Simply connect the sender unit to your computer using the cables provided. Then connect the receiver unit to the display and speakers. CAT5e cables, sold separately, then connect the sender unit to the receiver unit. Both the sender and the receiver units must be connected to a power supply. When fully powered and operational, the units efficiently extend video, audio and control signals.

Features:

Extends any VGA or high definition component display and analog L+R audio device up to 330 feet (100 meters)
Trim pod and dip switches for fine video equalization
Perfect for digital signage applications
One CAT-5 cable for extension
Supports resolutions up to 1080p, 2K, and 1920 x 1200
Bi-directional audio transmission for speaker and mic

Product Diagrams

View Diagrams

Specifications

Video Amplifier Bandwidth: 350 MHz
Actual Bandwidth: 120 MHz
Input Video Signal: 1.2 Volts p-p / Input Sync Signal: 5 Volts p-p (TTL)
Horizontal Frequency Range: 15-70 KHz
Vertical Frequency Range: 30 - 170 Hz
Video In: HD-15 male
Video out: HD-15 female
Sample Rate: 5 kHz (min) - 48 kHz (max)
Frequency Response: 20Hz - 20kHz
Audio Connector: mini- phone Stereo 3.5mm
Link Connector: RJ-45 Shielded
Power Supply: 5V DC
Power Consumption: 5 watts (max.)
Dimensions: 4" W x 1.125" H x 3" D
Shipping Weight: 3 lbs.
